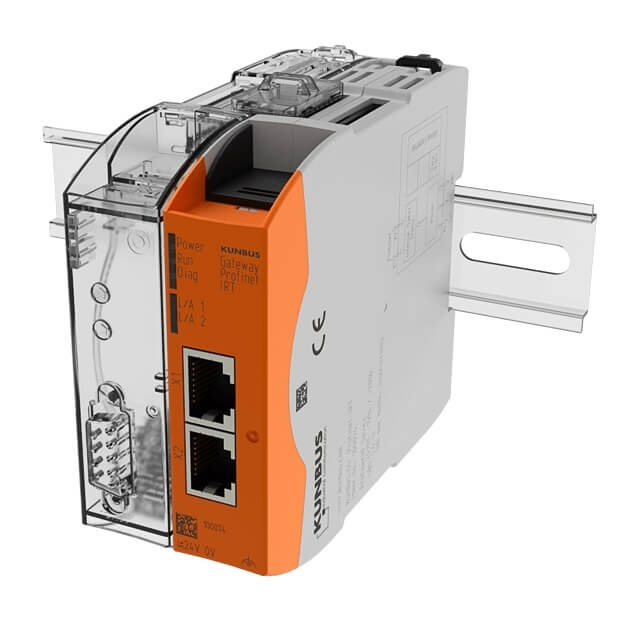

Gateway Module - PROFINET IRT Slave

SKU #: KU-PR100074
by KUNBUS

Expansion module for PROFINET networks.

When using our RevPi Gate PROFINET gateway, integrating Revolution Pi into a PROFINET network is no problem. Like all Revolution Pi expansion modules, the gateway is connected to the base module RevPi Core via the overhead Pi Bridge connector. Thus, up to two gateway modules can be used per system.

Review the UL Certificate.

Module version Slave
Network connector 2 x RJ45
max. baud rate 100 Mbit/s
I/O data 512 Byte IN/OUT
Protection class IP20
Power 24 V DC (-15/+20%)
Current consumption 100 mA
Dimensions 110.4 x 22.5 x 101.4 mm
Weight approx. 90 g
Reverse voltage protection Yes
Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C
max. relative humidity (at 40 °C) 93 % (non condensing)
Casing material Polycarbonate
Mounting DIN rail (EN50022)
User Manual
KUNBUS-GW PROFINET User Manual in PDF Format
Certificate
KUNBUS-GW PROFINET Certificate in PDF Format
XML File
KUNBUS-GW PROFINET XML Files
