PCAN-Chip USB-Eval
Stamp Module utilized for the Implementation of CAN FD to USB Connections.
(The chip itself is not available for online ordering. NDA documents must be filled out between PEAK and customer: (Contact Phytools for Documents)

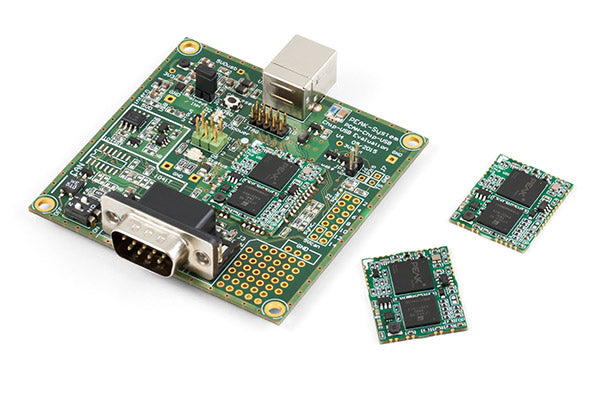

The PCAN-Chip USB Stamp Module made by PEAK-System Technik provides an easy way to implement a CAN-FD interface connection in an embedded computer through a USB 2.0 port. The core of this tiny 20 by 25 mm sub-assembly is its CAN controller with support of the protocols CAN 2.0 A/B as well as the faster CAN FD. Circuitry components are only populated on one side of the PCB. All necessary signal contacts are provided via plated half-holes on the PCB edges making this PCAN-Chip USB suitable for automatic assembly. The physical connection to the CAN bus can be chosen by the system integrator via applicable external wiring.
The PCAN-Chip USB Eval Board represents a fully functional reference design for easy device startup and evaluation of the Stamp modules features. It also assists the embedded designer with the development of the board-level integration of this CAN interface into the target circuitry.
The PCAN-USB package includes device drivers for Windows® 10, 8.1, 7 and Linux (32/64-bit), the PCAN-Basic API
- Interface in compact plastic casing
- CAN transfer rates up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via D-Sub, 9-pin (to CiA® 102)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- 82C251 CAN transceiver
- Hardware can be reset via software
- 5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external transceiver
- Voltage supply through USB bus
- USB connection (USB 1.1, compatible with USB 2.0 and USB 3.0)
- Optional galvanic isolation on the CAN connection up to 500 V (see IPEH-002022)
| Enclosure | IP20, Plastic Enclosure |
|---|---|
| Power Consumption | 1 Channel max. 200 mA |
| Baud Rate | CAN: max. 1 MBit/s |
| Pinout | C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3) |
| Transceiver | CAN: NXP / Philips PCA82C251 |
| Dimensions | 75 x 43 x 22 mm Isolated version: 87 x 43 x 22 mm |
| Weight | 78 g Isolated version: 83 g |
| Software | Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit) Tools: PCAN-View for Windows® |
| Connector(s) | PC: USB plug type A, USB 1.1, compatible to USB 2.0 and USB 3.0 CAN: ISO 11898-2, complies with CiA-recommendation DS 102 |
| Controller(s) | CAN: NXP / Phillips SJA1000 |
| I/O & IRQ | automatically assigned via "plug n play" |
| Specification | CAN: 2.0A (Standard format) and 2.0B (extended format) |
| Operating temperature | -40°C to +85°C |
| Storage temperature | -40°C to +100°C |
| Relative humidity | 15% to 90% (non-condensing) |
| EMC directives | EN 55024:2003-10 EN 55022:2007-04 EC directive 2004/108/EG |
| Certifications | CE, RoHS |
| PCAN-Chip USB & PCAN-Chip USB Eval manual |
| User's Manual in English |
| Device driver setup for Windows |
| Installation package from PEAK-System for device drivers and tools for Windows ® 10, 8.1 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway. |
| Device drivers for Linux |
| Device driver for PEAK CAN interfaces from Kernel 2.6. |
| PCAN-Chip USB firmware |
| Firmware flash package |
| PCAN-View |
| Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-Basic API |
| API for developing applications with CAN and CAN FD connections for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-Basic API (Linux) |
| API for developing applications with CAN connection for Linux. |
| PCAN-CCP API |
| API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-XCP API |
| API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-ISO-TP API |
| API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-UDS API |
| API for communication with control units according to UDS (ISO 14229-1) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-OBD-2 API |
| API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-PassThru API |
| Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 10, 8.1 (32/64-bit) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download. |
