PCAN-XL Starter Bundle

All-IN-ONE Bundle for Getting Started with the new Standard CAN XL

*Due to the currently limited availability of CAN SIC XL transceivers, stock is very limited. Pre-order only on these items. (Limited to one per order)

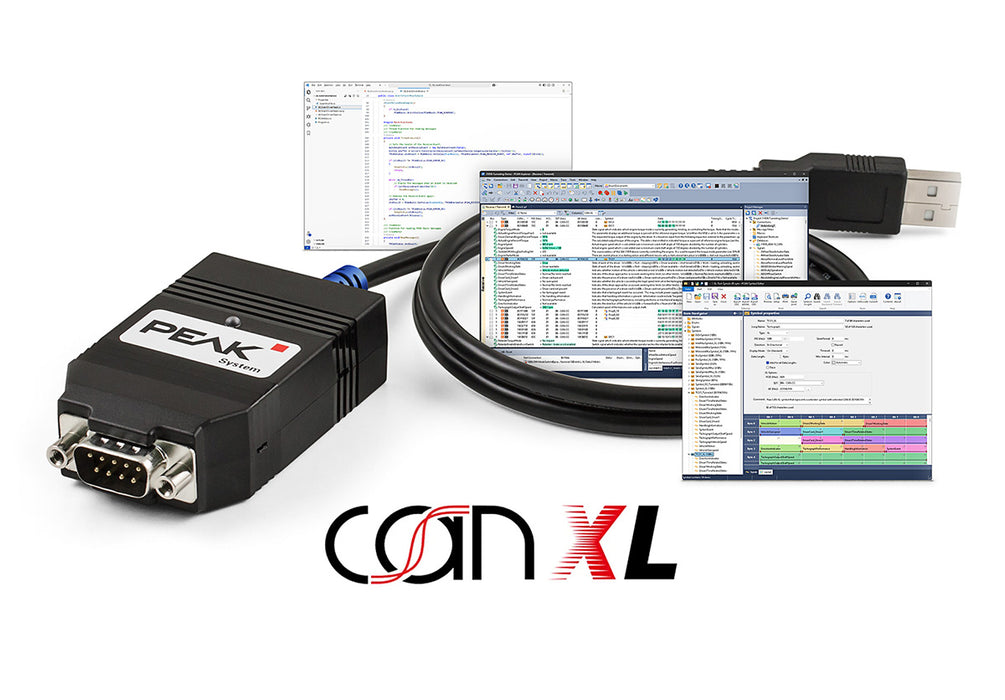

The PCAN-XL Starter Bundle provides everything needed to get started with the new standard CAN XL. With an USB to CAN interface, a professional CAN analysis software, and a programming interface.

Since at least two participants are required for a functioning CAN XL communication, as with classic CAN, PEAK-System offers the bundle with one or two PCAN-USB XL interfaces. Enabling customers without a suitable CAN XL counterpart to gain their first experiences with the new standard.

The CAN interface PCAN-USB XL ensures an uncomplicated connection to CAN XL, CAN FD, and CAN CC buses via the USB port of a computer. Galvanic isolation of up to 500 Volts decouples the PC from the CAN bus. With its compact plastic casing, it is ideal for mobile applications.

In addition, the starter bundle includes the Early Access edition of the professional CAN analysis software PCAN-Explorer 7 and the programming interface PCAN-Basic for the development of applications with CAN connection, both enhanced with CAN XL support.

CAN XL

CAN XL (Extended Data-Field Length) was designed to improve cooperation with Automotive Ethernet and to enable transmitting larger data streams for use cases such as ECU flashing. For this, the new standard provides transmission of up to 2048 bytes payload data per message and data bit rates of up to 20 Mbit/s.

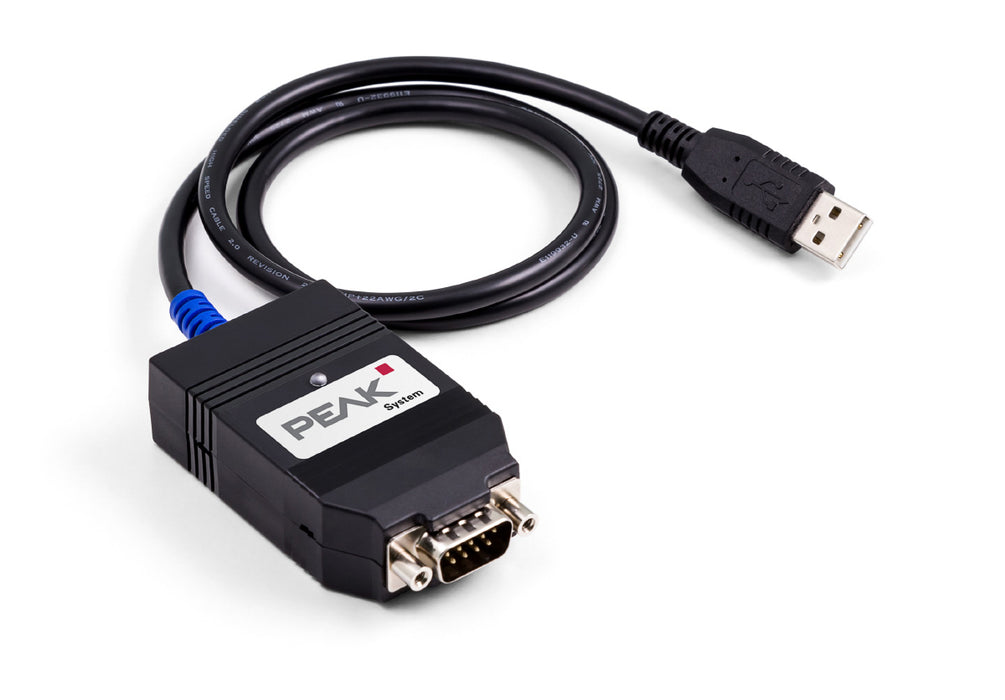

PCAN-USB XL

• CAN interface for High-speed USB 2.0 (compatible to USB 3.0)
• High-speed CAN connection (ISO 11898-2 2024)

  • Complies with CAN specifications CAN CC (classic CAN 2.0), CAN FD, and CAN XL (ISO 11898-1 2024)
  • CAN bit rates from 20 kbit/s up to 1 Mbit/s
  • CAN FD data bit rates up to 8 Mbit/s
  • CAN XL data bit rates up to 8 Mbit/s, CAN FD compatible transmission mode
  • CAN XL data bit rates up to 20 Mbit/s by using the transceiver mode switch
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)
• Time stamp resolution 1 µs
• FPGA implementation of the CAN XL core by PEAK-System;
  Validated with the CAN XL Evaluation Board by C&S (www.cs-group.de)
• CAN SIC XL transceiver TI TCAN6062V
• Galvanic isolation up to 500 V
• CAN termination can be activated through solder jumpers
• Voltage supply via USB
• Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

• Pin assignment D-Sub



  2	CAN-L
  3	GND
  6	GND
  7	CAN-H

PCAN-EXPLORER 7 EARLY ACCESS

• Connection with up to 16 CAN channels
• Simultaneous connections with multiple CAN interfaces independent of their hardware type
• Support for the CAN specifications CAN CC (classic CAN 2.0), CAN FD, and CAN XL (ISO 11898-1 2024)
• Support for CAN XL operation modes:

  • CAN XL with error signaling
  • CAN XL without error signaling
  • CAN XL with transceiver mode switch
• Display of the CAN traffic in receive and transmit lists with various information
• Configurable, readable representation of CAN messages
• Manual and periodic message transmission
• Creating CAN XL send messages with selection of an SDT (service data unit type) according to CiA® 611-1, such as tunneling of CAN FD frames
• Logging of the CAN data traffic with tracers
• Playback of trace files with optional loop function
• Multiple flexible filters, also usable for trace files
• Management of settings, information, and files in projects
• Export of entire projects for archiving or sharing

SCOPE OF SUPPLY

• IPEH-005001: One PCAN-USB XL interface unit
• IPEH-005002: Two PCAN-USB XL interface units
• Device drivers for Windows® 11 (x64/ARM64), 10 (x64)
• Professional CAN analysis software PCAN-Explorer 7 Early Access for Windows® with copy protection dongle
• Programming interface PCAN-Basic for developing applications with CAN CC, CAN FD, and CAN XL connection for Windows®
• Programming interfaces for standardized protocols from the automotive sector
• Manual in PDF format
