100Base-T1 Media Converter

SKU #: MA-100BASET1-MC-ETH

A bi-directional physical layer converter between 100BASE-T1 (OPEN Alliance BroadR-Reach – OABR) and 100BASE-TX (Fast Ethernet), enabling the user to easily connect automotive cameras or ECUs with OABR / Automotive Ethernet media link to a standard computer network.

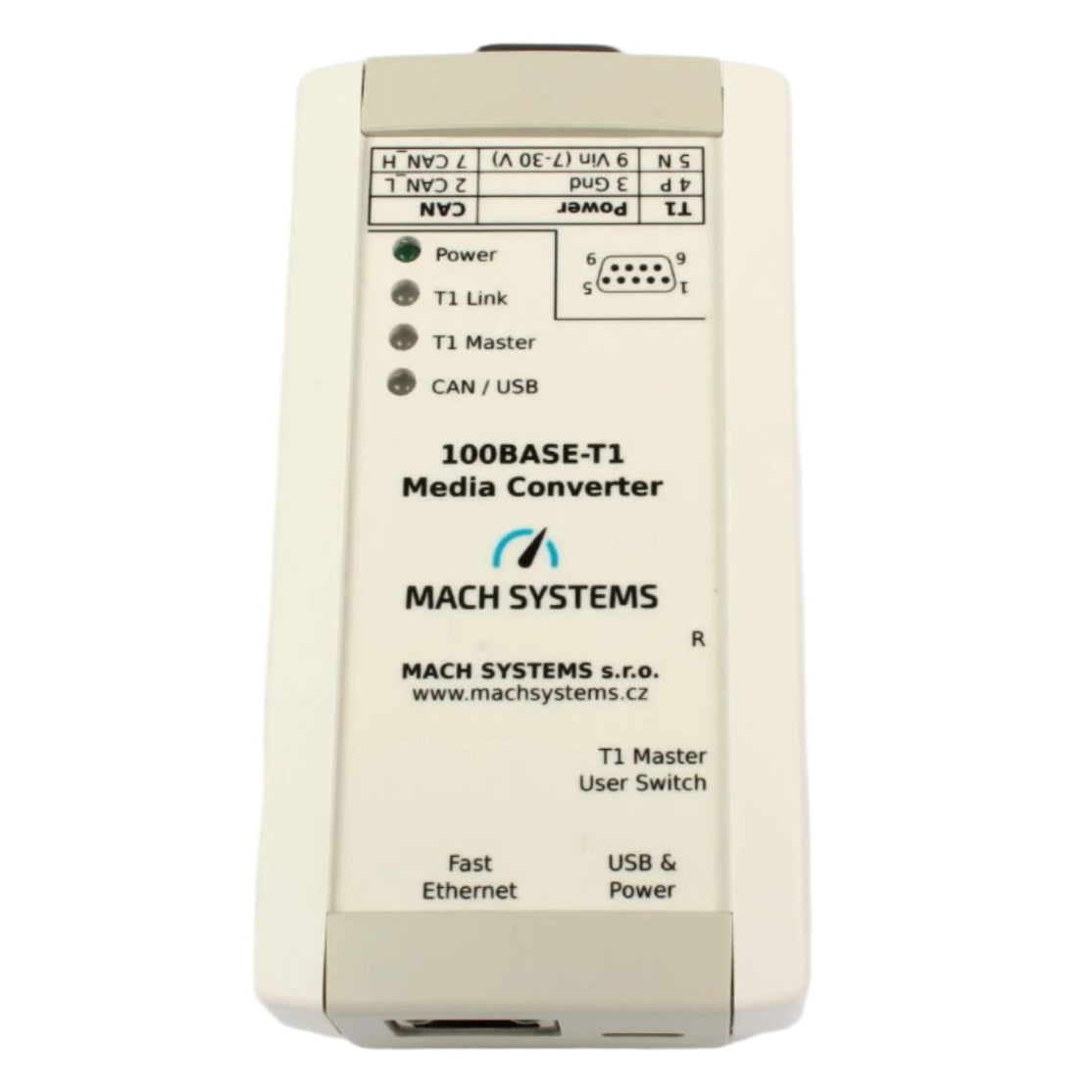

The interface establishes a point-to-point link between an unshielded twisted-pair Automotive Ethernet (IEEE 100BASE-T1) port and a Fast Ethernet port. The converter features one DSUB9 (BroadR-Reach, CAN bus), one Fast Ethernet port with RJ-45 connector, and a Micro-USB connector. The BroadR-Reach channel is configurable as either Master or Slave by a switch button or programmatically, and the device can be powered either via DSUB connector or via USB.

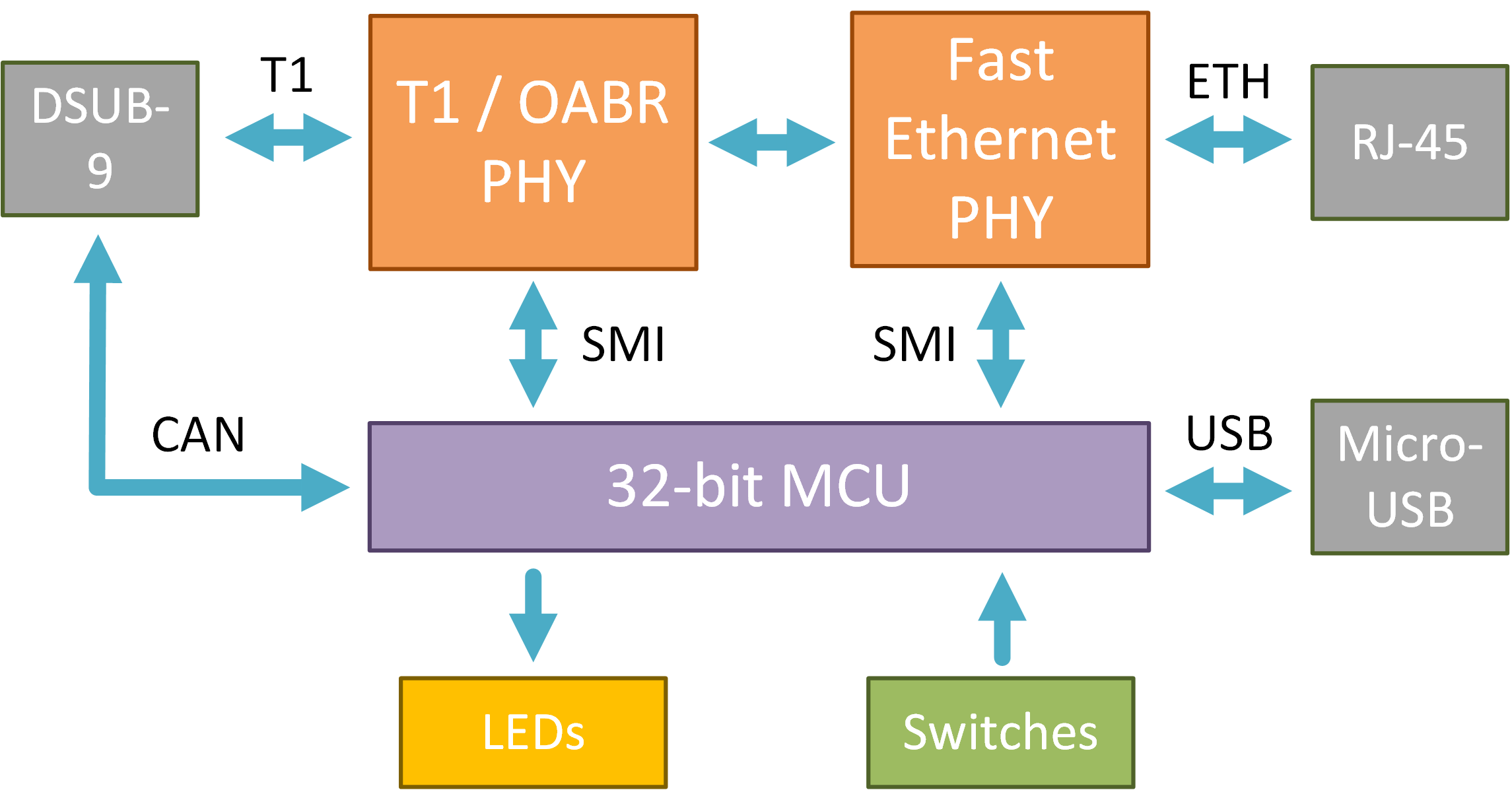

The converter enables access to SMI registers of both transceivers (PHYs) via a CAN bus or a USB’s virtual serial port. This enables the user to evaluate signal strength, detect polarity of the T1 port, carry out a BroadR-Reach media test to diagnose cable errors, fine-tune the PHYs parameters, and generally to read and write the registers.

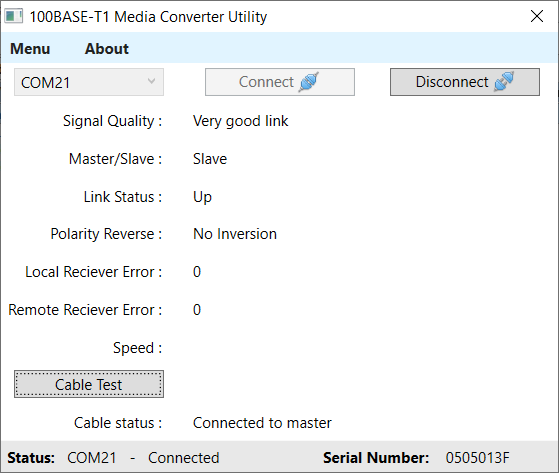

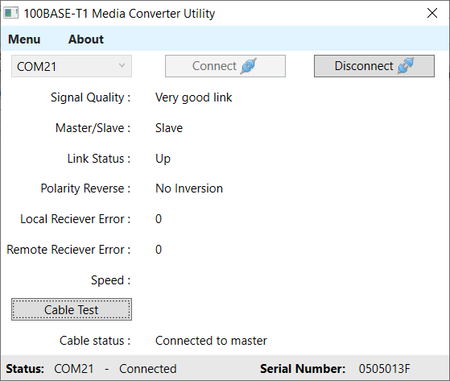

The 100BASE-T1 Media Converter is available as a serial port (COM port) when it is connected to a PC over USB. The PC application reads the following information out of the converter:

  • T1 port status
  • T1 port signal quality
  • Master/Slave configuration
  • T1 port polarity detection
  • RX and TX error counters
  • a result of T1 cable test (OK / Open-circuit / Shorted)
  • 100BASE-T1 (IEEE 802.3bw) to 100BASE-TX media conversion
  • Master/Slave configuration for BroadR-Reach
  • DSUB9 connector for T1, RJ-45 connector for Ethernet
  • Power 9-30 V DC over DSUB or Micro-USB connector
  • 6 status LEDs
  • 2 DIP switches
  • Automatic polarity detection for OABR Slave
  • Media test for T1 cable – can detect a shortage, cut-off and impedance mismatch
  • Table top or DIN-rail mount
Data Sheet
100BASE-T1 Media Converter Data Sheet
100BASE-T1 Media Converter PC Utility
