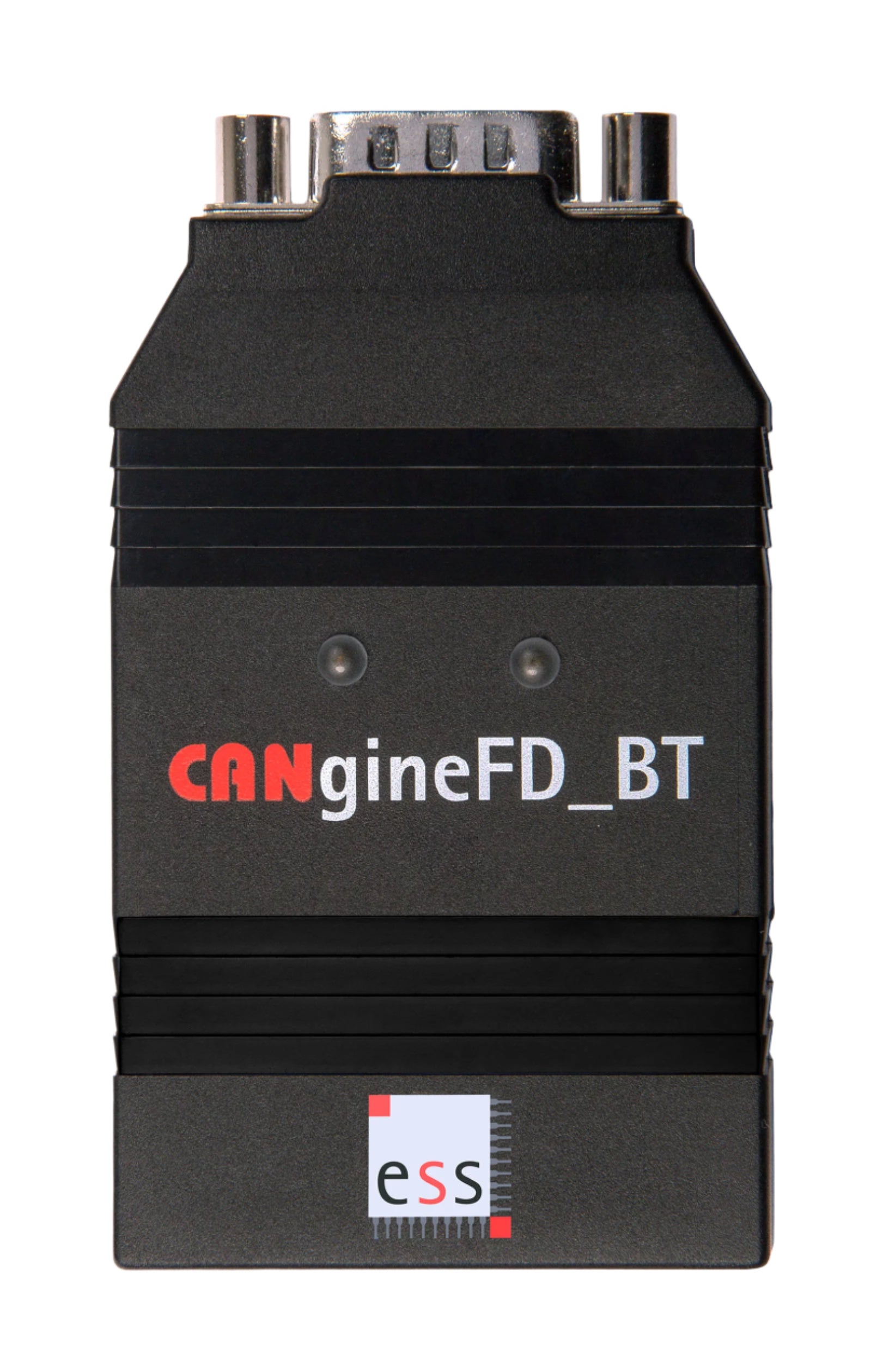

CANgineFD_BT (Bluetooth/CAN FD)


CANgineFD_BT is a small and powerful CAN FD-Bluetooth adapter. It enables the connection of any Bluetooth capable device to a CAN or CAN FD network. Due to the input and output in ASCII strings, CANgineFD_BT is completely platform-independent and requires neither special drivers nor software.

CANgineFD_BT is configured with a few commands and CAN and CAN FD messages can be sent and received on the bus immediately. Each incoming CAN message is either added to the receive buffer or sent directly via Bluetooth, depending on the configuration.

CANgineFD_BT is clocked with 80 MHz and supports CAN FD messages with bit rates up to 10 Mbit/s. Due to the downward compatibility of CAN FD, messages according to CAN 2.0 A/B can also be processed.

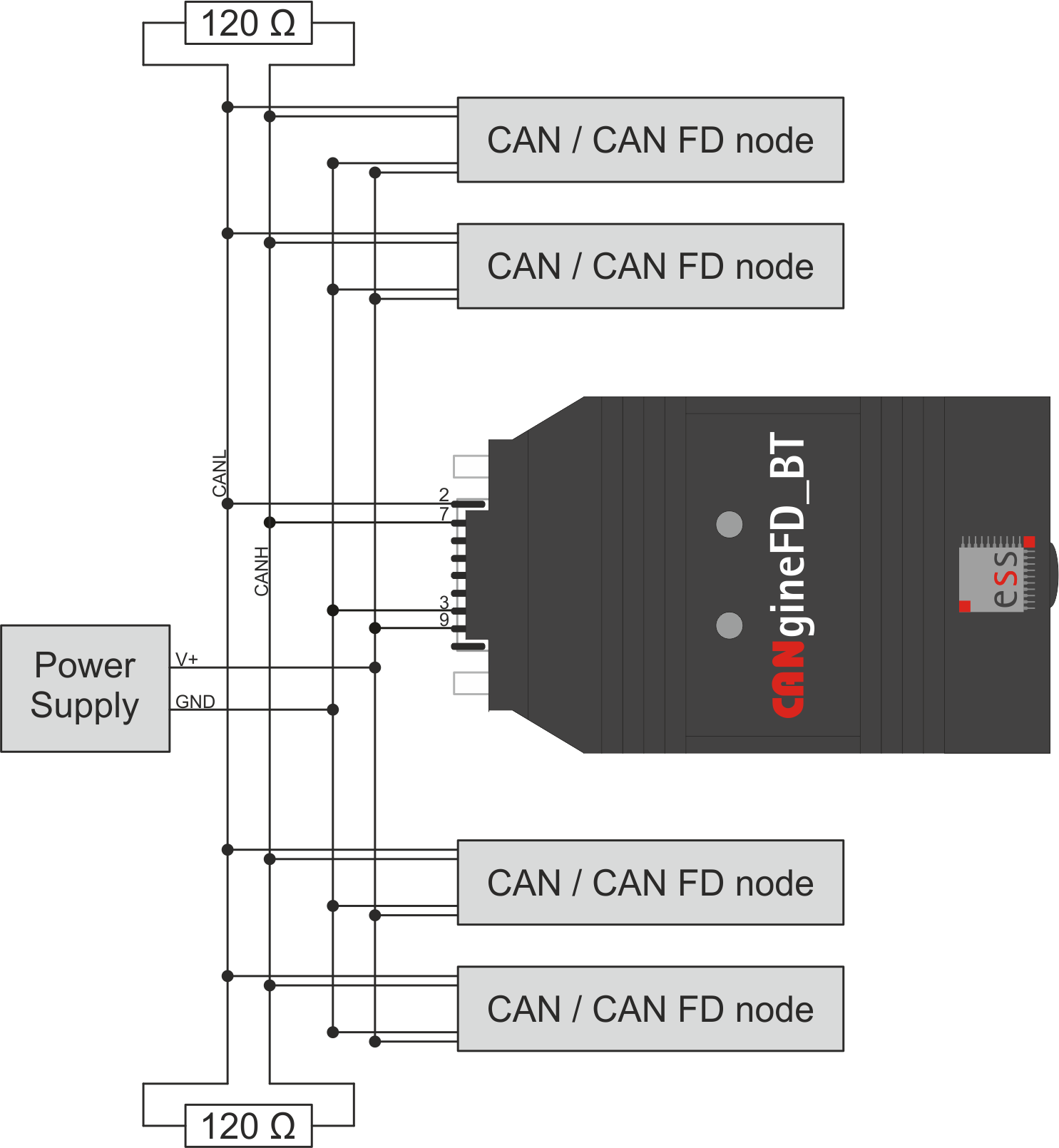

The device is powered via the CAN connector with the pin assignment recommended in CiA® 303-1. The Bluetooth connection uses the proven Serial Port Profile (SPP) to establish a transparent communication connection between CANgineFD_BT and the Bluetooth remote station.

Once CANgineFD_BT has been supplied with power, the device appears in the Bluetooth list and accepts incoming connection requests. Every Bluetooth capable device can now establish a connection to CANgineFD_BT via the SPP.

  • 32-bit Cortex-M4 microcontroller regulated at 80 MHz that supports CAN FD data rates up to 10 Mbps
  • Available in two firmware versions: generic version CAN and CAN FD
  • The CANgineFD_BT turns into a remote access device with the help of the CANopen FD firmware.
  • All CANopen FD devices connected can be retrieved with serial commands
Property Value
The information herein is subject to change without notice.
Power Supply: 7 … 30 VDC
Power Consumption: ~ 35 mA / 9 V
Microcontroller ARM Cortex-M4 80 MHz clock
CAN Transceiver MCP2561FD
CAN Controller Bosch M_CAN
CAN Nominal Bitrate 10 kbit/s – 1 Mbit/s
10 kbit/s – 1 Mbit/s 10 kBit/s – 10 Mbit/s
Displays LED RUN (green) and LED ERR (red)
CAN Connector D-Sub 9 male
Size 70 x 42 x 21 mm³
Weight 38 g
Operating Temperature -40 .. +85 °C
