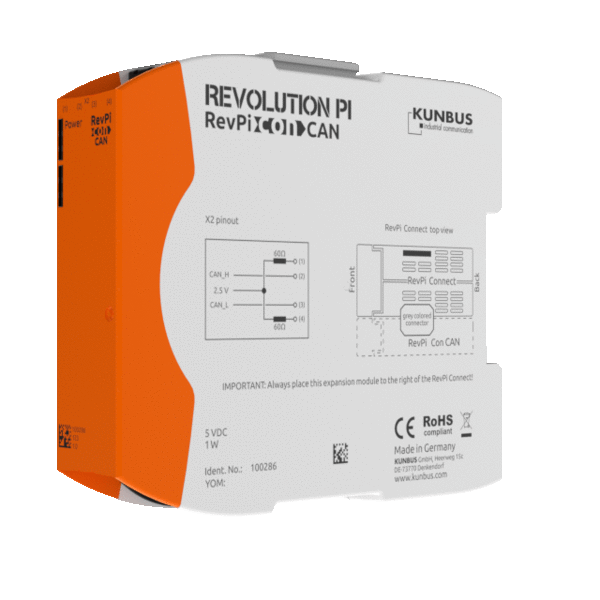

Kunbus KU-PR100286 RevPi ConCAN rotating gif view

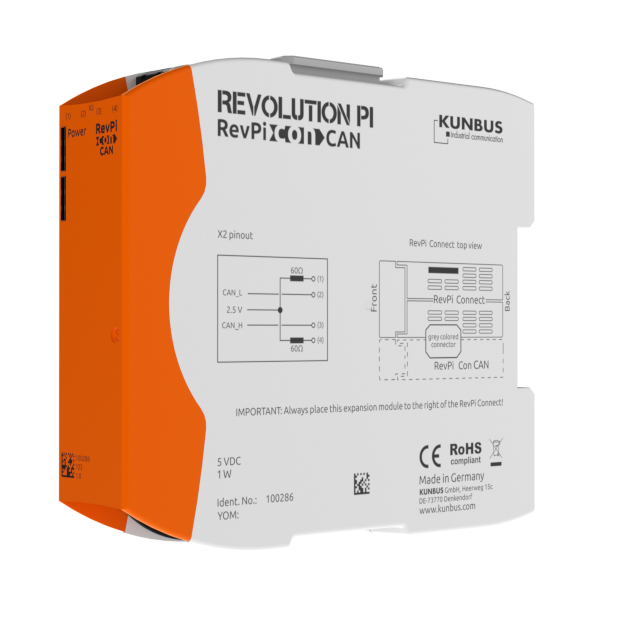

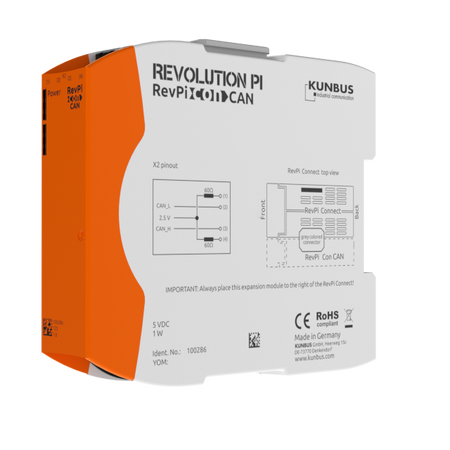

Kunbus KU-PR100286 RevPi ConCAN front and left view

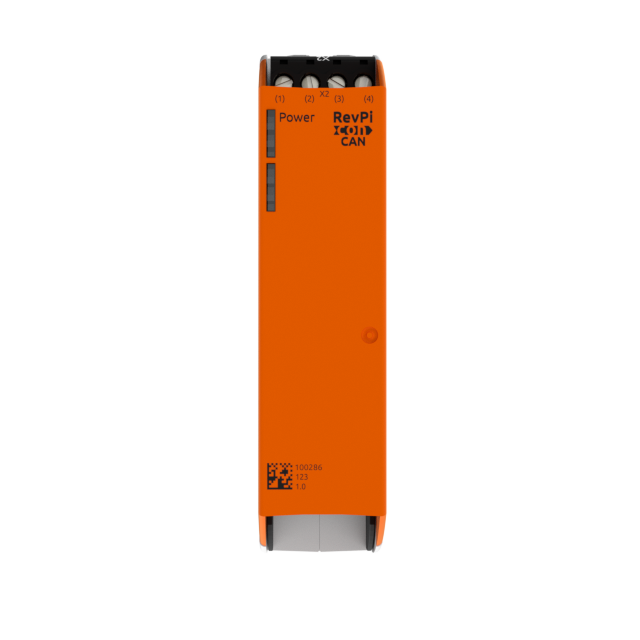

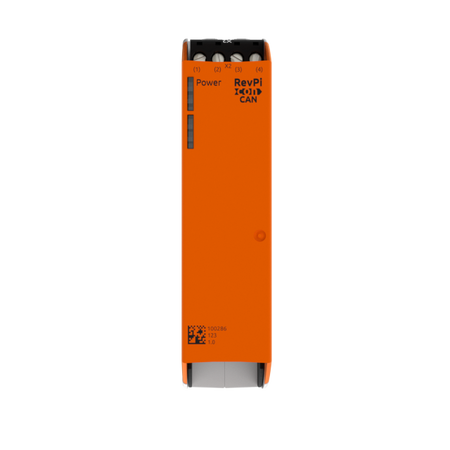

Kunbus KU-PR100286 RevPi ConCAN left side view

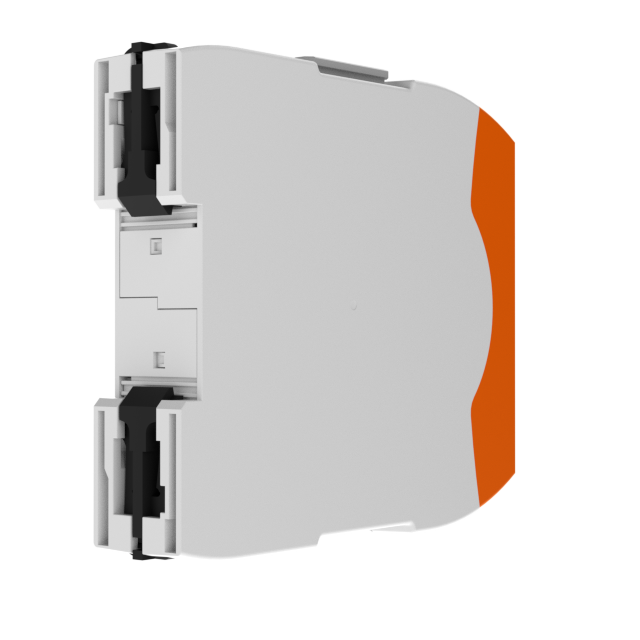

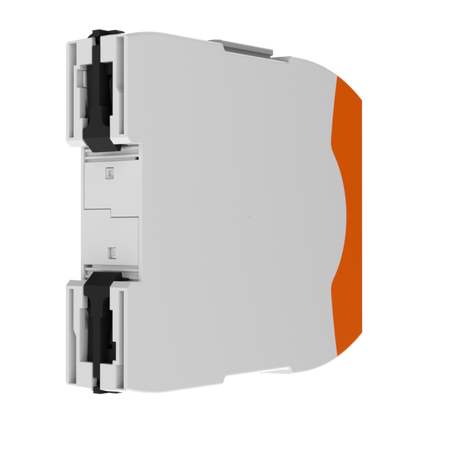

Kunbus KU-PR100286 RevPi ConCAN back view

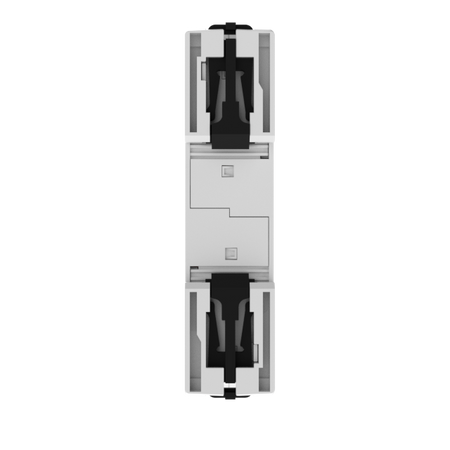

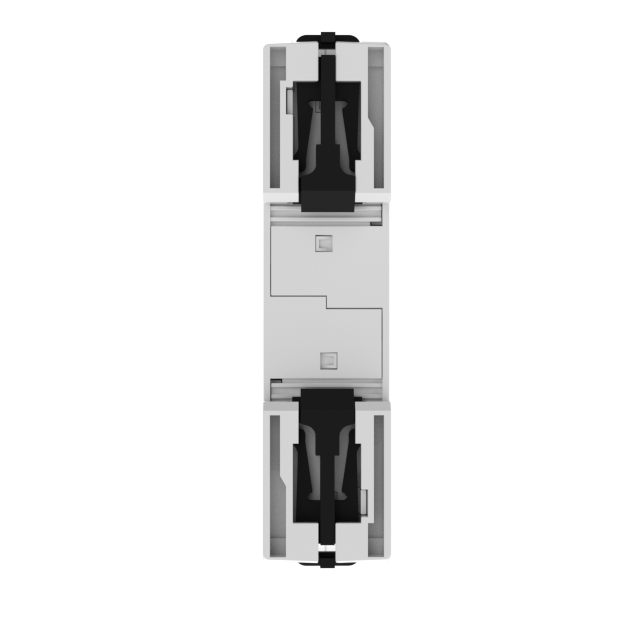

Kunbus KU-PR100286 RevPi ConCAN right side view
Kunbus KU-PR100286 RevPi ConCAN rotating gif view
Kunbus KU-PR100286 RevPi ConCAN front and left view
Kunbus KU-PR100286 RevPi ConCAN left side view
Kunbus KU-PR100286 RevPi ConCAN back view
Kunbus KU-PR100286 RevPi ConCAN right side view

Images provided by manufacturer.

KUNBUS

RevPi Con CAN

SKU: KU-PR100286
(0)
$151

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

Expansion module allows you to integrate CAN bus capabilities into your RevPi Connect

The expansion module has 4-pin connector to the CAN bus connection.

The expansion module is supplied with power directly via the overhead connector (item no. 200044) and does not require an additional voltage source. The overhead connector (item no.: 200044) for connection to the base unit is included in the scope of delivery of the expansion module.

Phytools SKU to EAN#

PR100286              4260498390977





Housing dimensions (H x W x D) 96 x 22.5 x 110.5 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 115 g
IP Code IP20
Power supply power supply via ConBridge
Operating temperature -20 °C....+60 °C
Storage temperature -40 °C....+70 °C
Humidity (at 40 °C) 93 % (non-condensing)
Connectors 4-pole screw terminal
Optical indicator 1 status LED (green)
CAN Controller Holt HI-3110
Baud rate Up to 1 Mbit/sec.
CAN Version CAN 2.0B
Software interface Accessible via SocketCAN of the Linux operating system
Terminating resistor Switchable integrated terminating resistor
Connection compatibility Exclusively connectable via ConBridge of RevPi Connect
Conformity CE, RoHS
ESD test Passed (according to EN 61000-4-2)
Technical Datasheet
Datasheet for RevPi Con CAN
