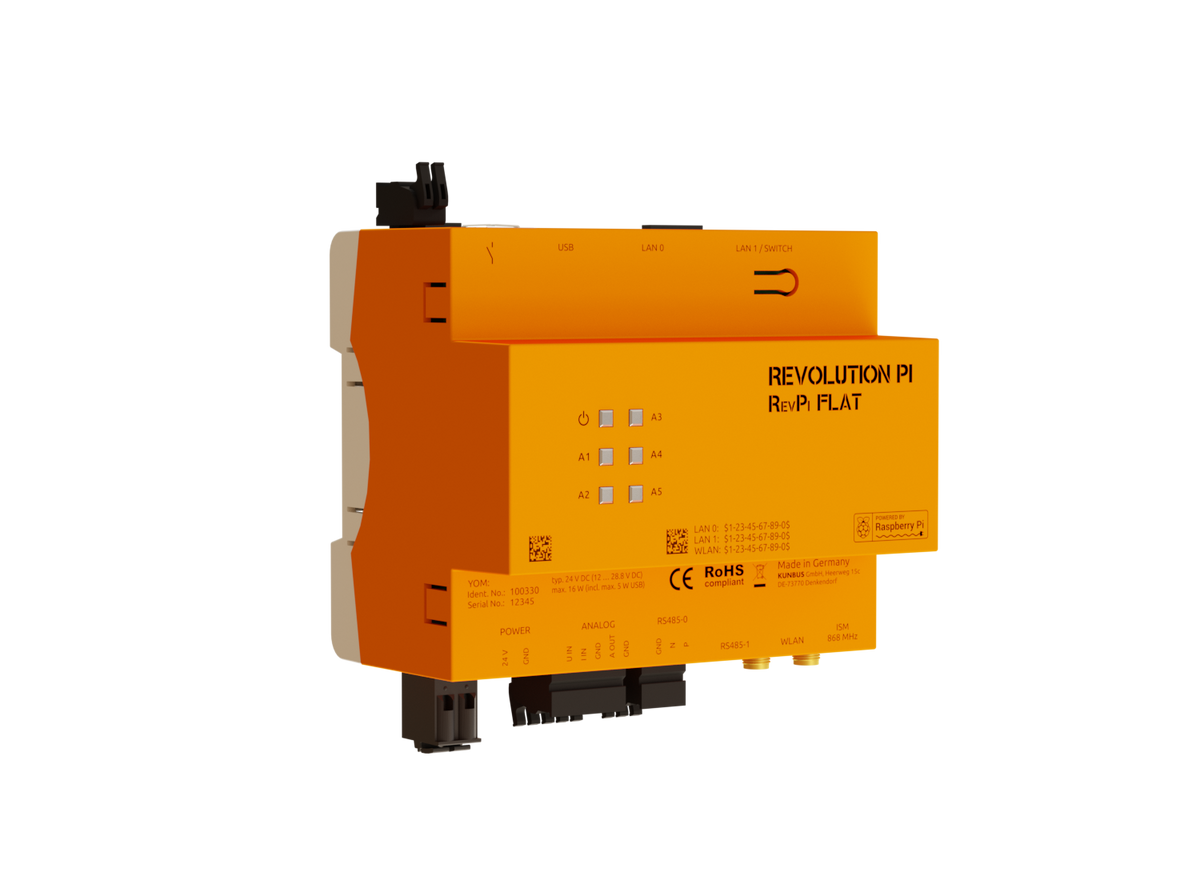

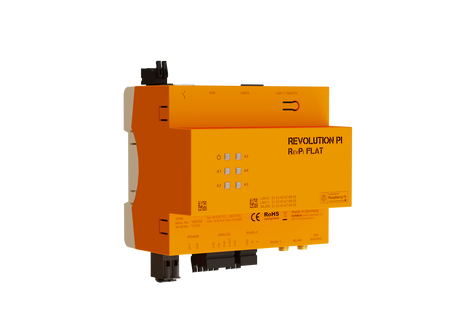

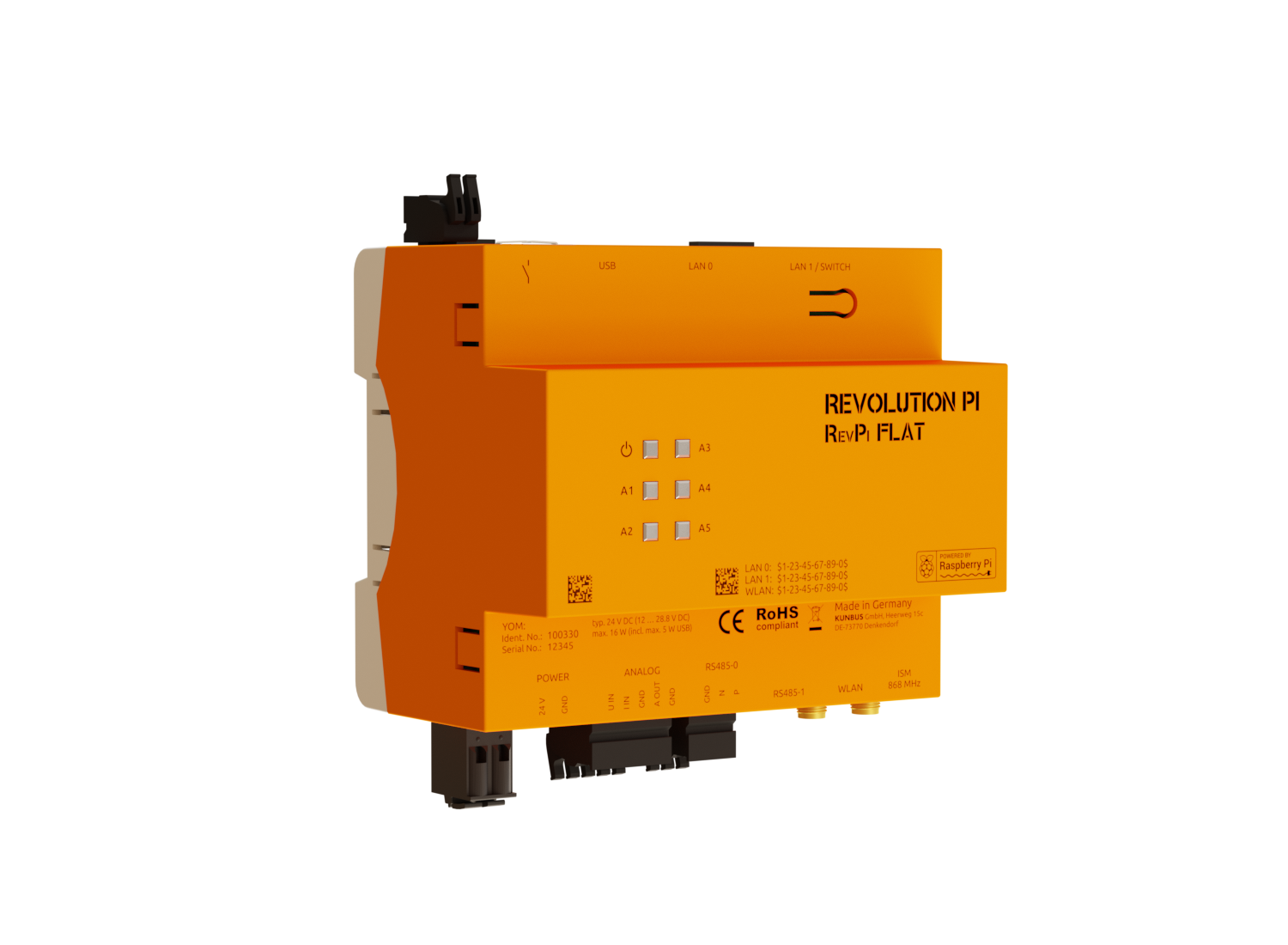

RevPi Flat

SKU #: KU-PR100330
by KUNBUS
Save 30%
Original price $450
Current price $315

A Slim Compact Controller Based on Raspberry Pi

RevPi Flat is an open source industrial PC for the DIN rail. Equipped with the Raspberry Pi Compute Module 3+, the device has a 1.2 GHz quad-core processor with 1 GB RAM and 8 GB eMMC flash memory. With its slim design, it fits perfectly into the sub-distribution cabinets that are typically used in building automation. The operating system used by the RevPi Flat is a specially adapted Raspbian version with RT patch by default. Unlike the RevPi Core and RevPi Connect devices, the RevPi Flat is not modular in design and cannot be extended with expansion modules.

Ideal Applications:

•    Modern, decentralized energy management
•    Management of virtual power plants
•    Energy trading
•    Control of photovoltaic, biogas and wind power plants
•    Control of charging stations and hydrogen cells
•    Cost- and time-optimised charging of electric vehicles
•    Management of alternative intermediate storage, e.g. for e-vehicles
•    On-site management of digital master data, files and maintenance logs
•    Remote reading of meters
•    Integration of cloud solutions


  • Available Connections
    • 4 x RJ45 Ethernet
    • 2 x USB A
    • 1 x RS485
    • 1 x WLAN (RP SMA)
    • 1 x ISM 868 MHz (SMA)
    • 1 x digital output
    • 1 x analog input
    • 1 x analog output
  • Power Supply
    • typ. 24 V DC (12.0 … 28.8 V DC)
  • IP Code
    • IP20
  • WEEE-Reg.-No.
    • DE 34461592
Housing dimensions (H x W x D) 90 x 106 x 70 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight 248 g
IP Code
IP20
Power supply typ. 24 V DC (12.0 … 28.8 V DC), reverse polarity protected
Max. power consumption 16 W (incl. max. 5 W USB)
Interfaces 4 x RJ45 10/100 Ethernet, two separate MAC addresses for LAN0 & LAN1
LAN0: 1 x Ethernet
LAN1: 3 x Ethernet switched
2 x USB A (total current draw from all sockets max. 1 A)
2 x RS485 max. 500 kbps, galvanically isolated, termination switchable by software
1 x RP-SMA jack WLAN
1 x SMA jack ISM 868 MHz
Processor Broadcom BCM2837B0 quad-core ARM Cortex A53
RAM 1 GB
Flash 8 GB
Clock Rate 1.2 GHz
Processor cooling Passive with heat sink
Number of digital output channels 1
Digital output type potential-free relay contact
Maximum current output channel 2 A @ 30 V DC
Operating system Raspian - version Jessie with RT-Patch
Data Sheet
RevPi Flat Data Sheet
Tech Specs Sheet
RevPi Flat Tech Specs Sheet
