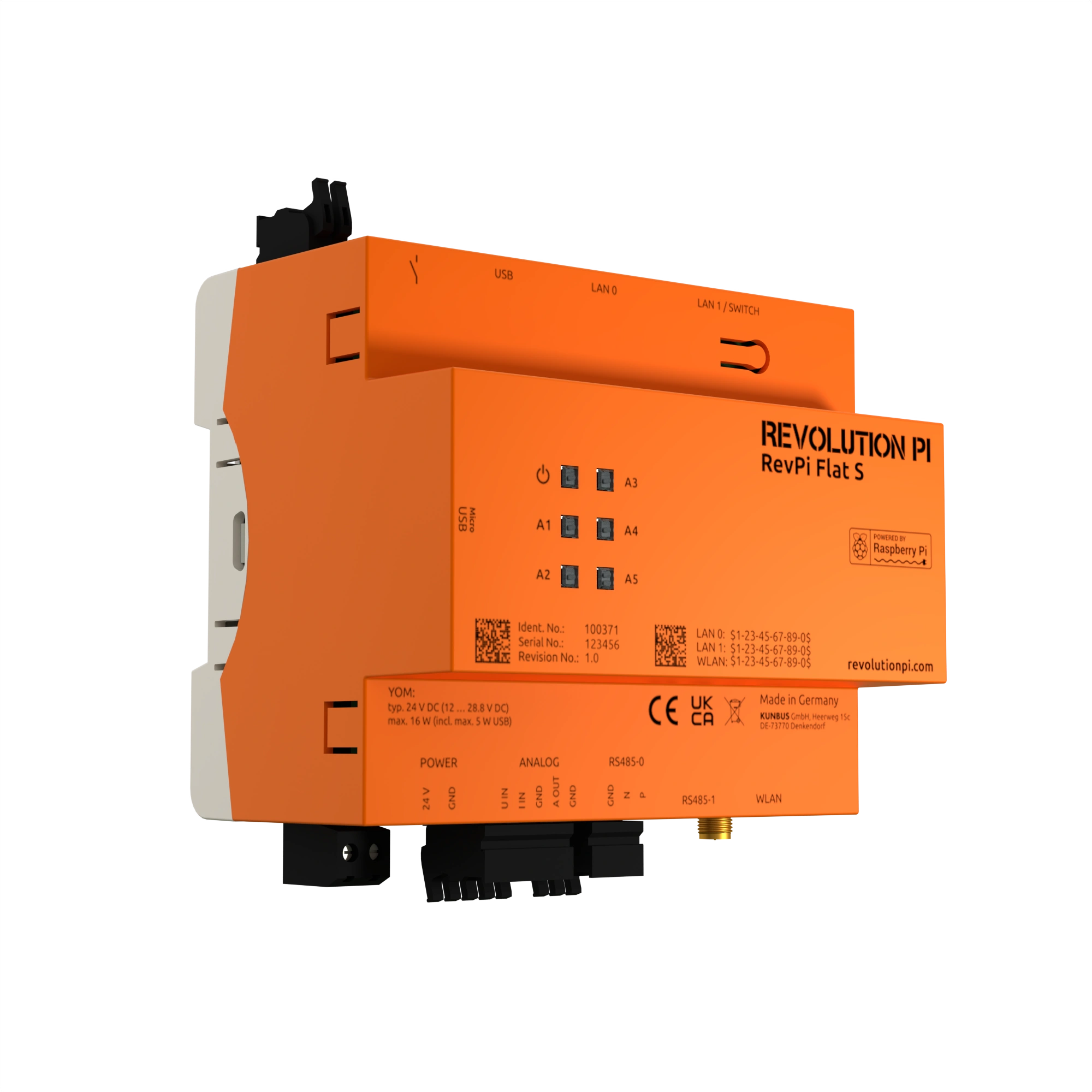

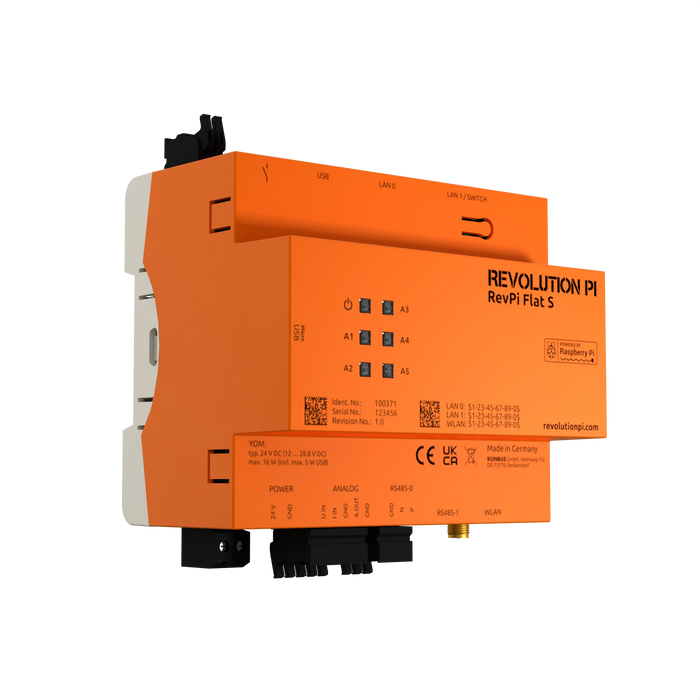

Kunbus RevPi Flat S

SKU #: KU-PR100371
by KUNBUS
New

This is a new item expected to ship in late Q3 2022. We are now accepting pre-orders. Please email or contact us for updated lead times and availability.

A Slim Compact Controller Based on Raspberry Pi

RevPi Flat is an open source industrial PC for the DIN rail. Equipped with the Raspberry Pi Compute Module 4S, the device has a 1.5 GHz quad-core processor with 1 GB RAM and 8 GB eMMC flash memory. With its slim design, it fits perfectly into the sub-distribution cabinets that are typically used in building automation. The operating system used by the RevPi Flat is a specially adapted Raspbian version with RT patch by default. Unlike the RevPi Core and RevPi Connect devices, the RevPi Flat is not modular in design and cannot be extended with expansion modules.

Ideal Applications:

- Decentralized Energy Management
- Virtual Power Plants
- Energy Trading

  • Available Connections
    • 4 x RJ45 Ethernet
    • 2 x USB A
    • 1 x RS485
    • 1 x WLAN (RP SMA)
    • 1 x ISM 868 MHz (SMA)
    • 1 x digital output
    • 1 x analog input
    • 1 x analog output
  • Power Supply
    • typ. 24 V DC (12.0 … 28.8 V DC)
  • IP Code
    • IP20
  • WEEE-Reg.-No.
    • DE 34461592

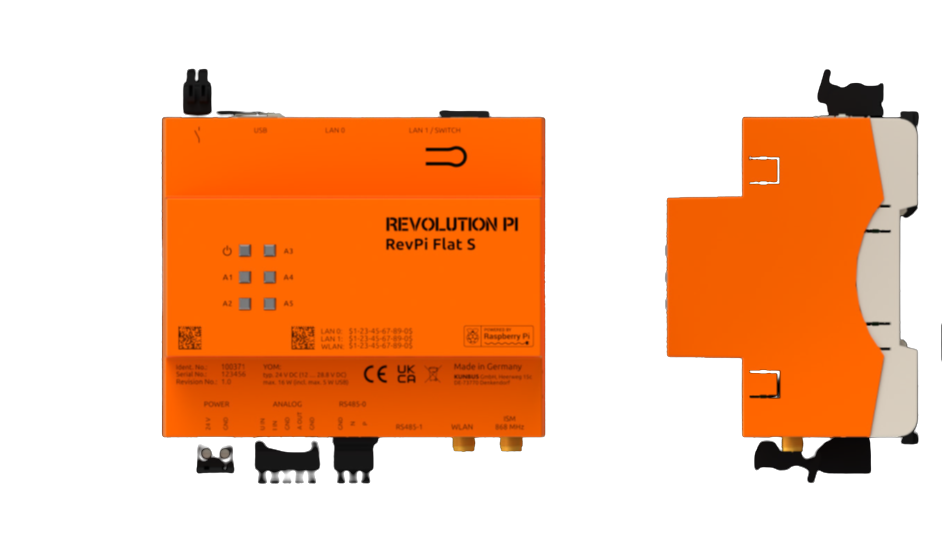

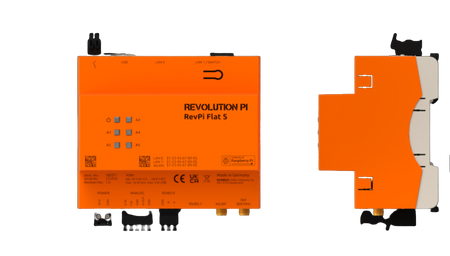

Housing dimensions (HxWxD) 90 x 106 x 70 mm

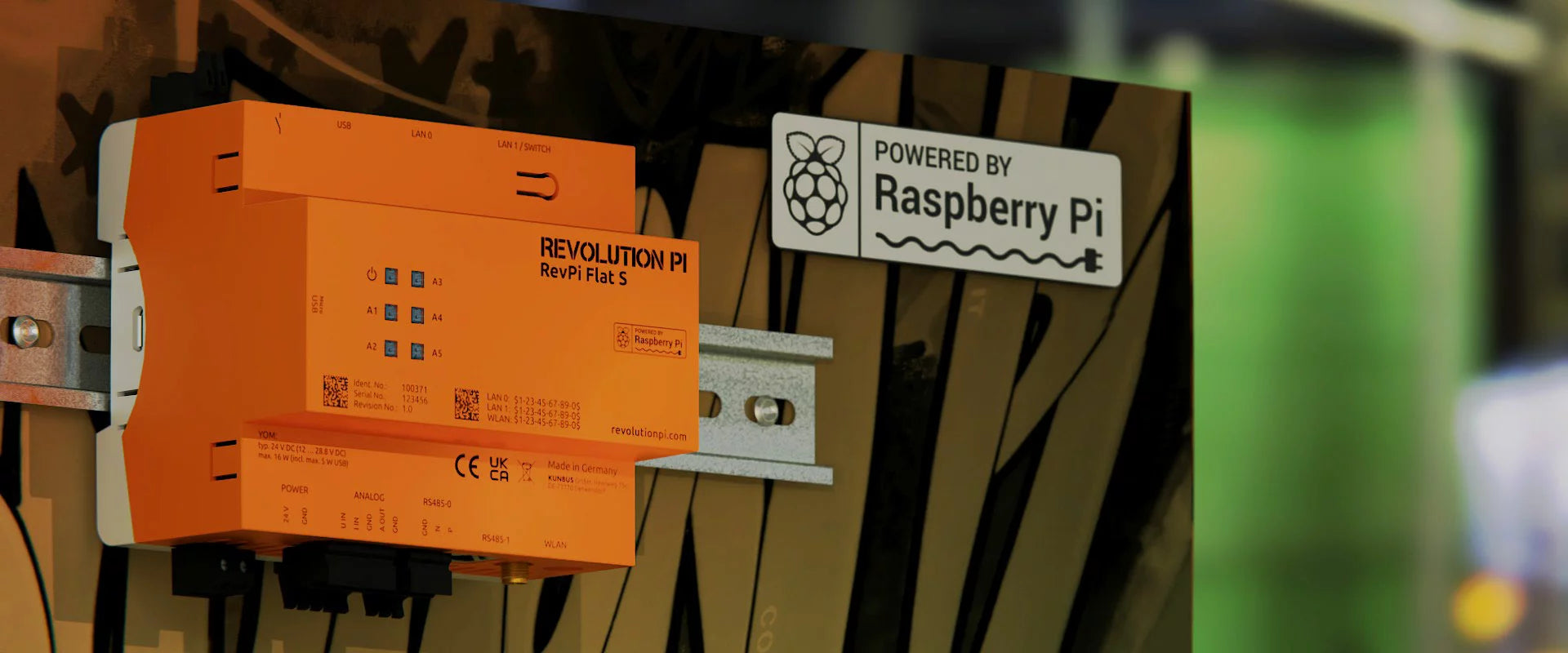

Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 248 g
IP Code IP20
Power supply typ. 24 V DC (12.0 … 28.8 V DC), reverse polarity protected
Max. power consumption 16 W (incl. max. 5 W USB)
Operating temperature -25 °C to +55 °C
Storage temperature -40 °C to +85 °C
Humidity (40 °C) up to 93 % (non-condensing)
Interfaces 4 x RJ45 10/100 Ethernet, two separate MAC addresses for LAN0 & LAN1
LAN0: 1 x Ethernet
LAN1: 3 x Ethernet switched
2 x USB A (total current draw from all sockets max. 1 A) ,
2 x RS485 max. 500 kbps, galvanically isolated, termination switchable by software
1 x RP-SMA jack WLAN
1 x SMA jack ISM 868 MHz
Connectors 2-, 3- and 5-pole screw/spring-loaded terminal
Processor Broadcom BCM2711, quad-core Arm Cortex-A72
Clock rate 1.5 GHz
Processor cooling Passive with heat sink
RAM 1 GB LPDDR4
Flash memory 8 GB
Number of digital input channels 1
Input Type 24 V control voltage (e.g. for power-good signal of a UPS)
Input Threshold approx. 3.0 V (0 -> 1) / 2.3 V (1 -> 0)
Input protection against overvoltage, negative voltages
Number of digital output channels 1
Digital output type potential-free relay contact
Maximum current output channel 2 A @ 30V DC
Number of analog input channels 1
Analog input type 0-10 V DC or 0-20 mA, single ended, 16-bit at piControl, 21-bit raw value
Number of analog output channels 1
Analog output type 0-10 V DC, short-circuit proof, protection against backfeeding, 12-bit resolution, 1% accuracy
Maximum current load of the analog output 10 mA (10 V DC @ 1 k)
Software interface of inputs and outputs Via GPIOs and process image
EMC interference emission according to EN 61000-6-4
EMC immunity according to EN 61000-6-2
Buffer time RTC min. 24 h
Optical indicator 6 status LEDs (bi-color), two of them freely programmable
RoHS conformity Yes
CE conformity Yes
