![Kvaser DB9-Power Inlet](http://phytools.com/cdn/shop/products/image_1_8c80694e-2072-4bac-84d7-6279423b2b65_1051x700.progressive.jpg?v=1539641235)

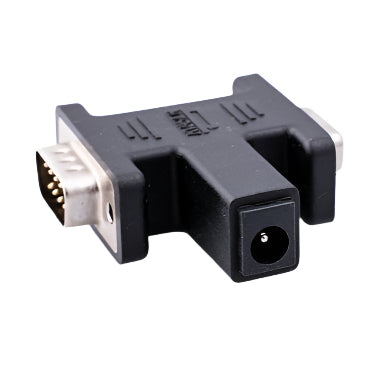

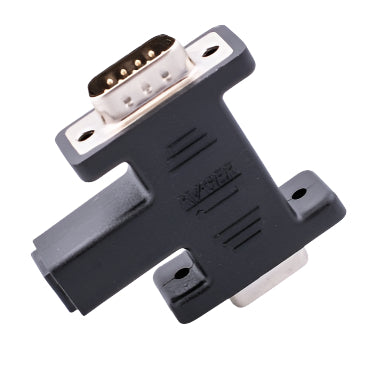

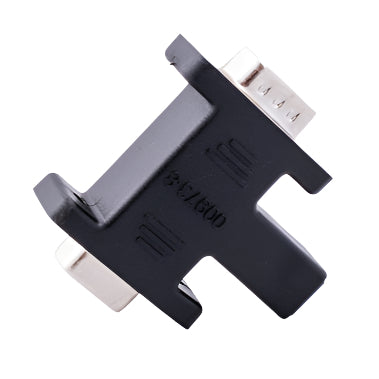

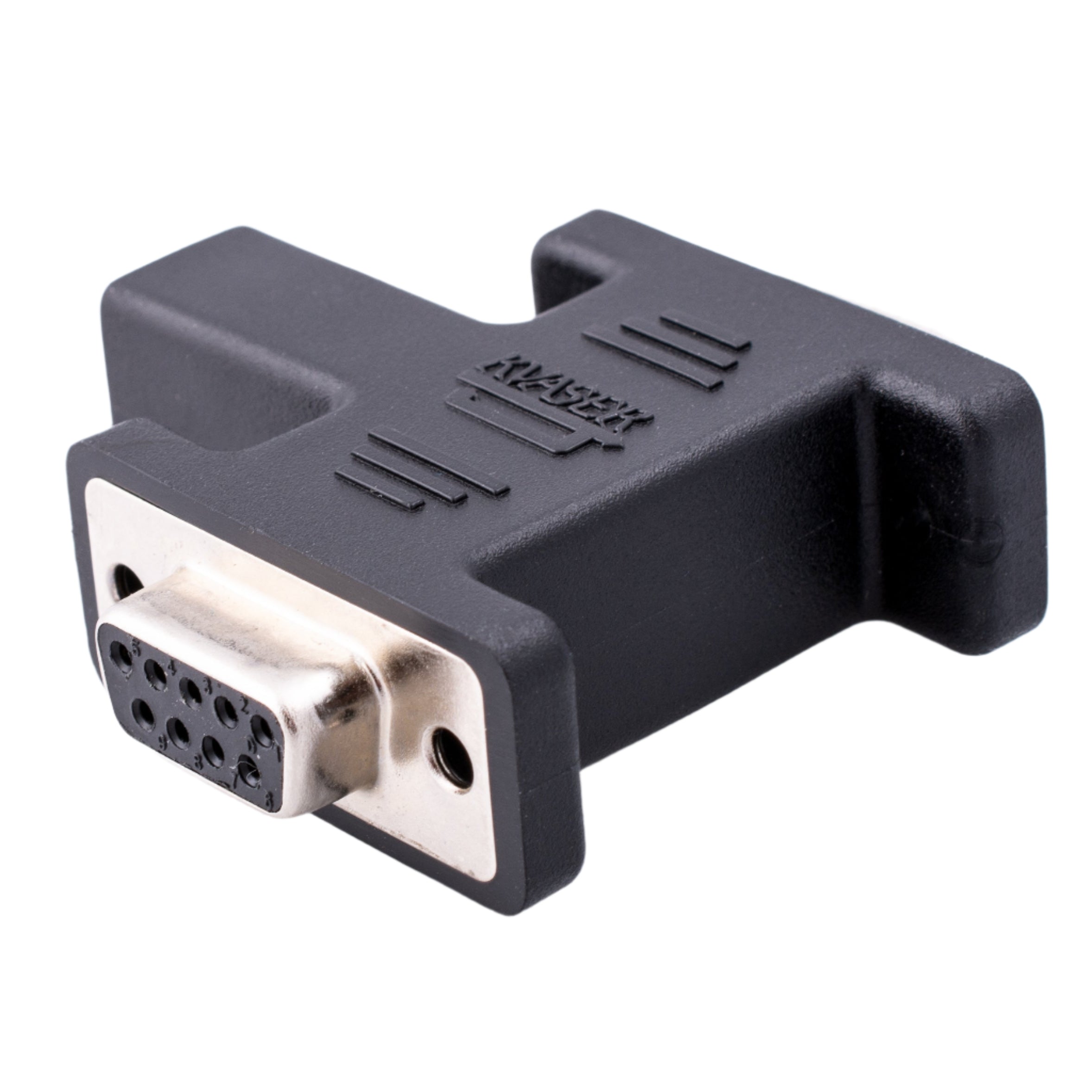

The Kvaser DB9-Power Inlet is a power injector for CAN busses from a DC power jack into one female D-SUB9 connector and also has one unpowered male D-SUB9 connector for connecting to the CAN network. The Kvaser DB9-Power Inlet provides a simple and safe way to supply power to Kvaser interfaces on a development board, as well as interface devices without internal power, such as Kvaser’s Blackbird and Memorator series.
- Product Group: Accessory
- Rugged: No
- Operating Temperature Range: (C) -30.00 to 80.00
- Weight: (G) 100.0
- Sound: No
- Galvanic Isolation: No
Installation Guide |
Kvaser DB9-Power Inlet Installation Guide |
The Kvaser DB9-Power Inlet is a power injector for CAN busses from a DC power jack into one female D-SUB9 connector and also has one unpowered male D-SUB9 connector for connecting to the CAN networ...
