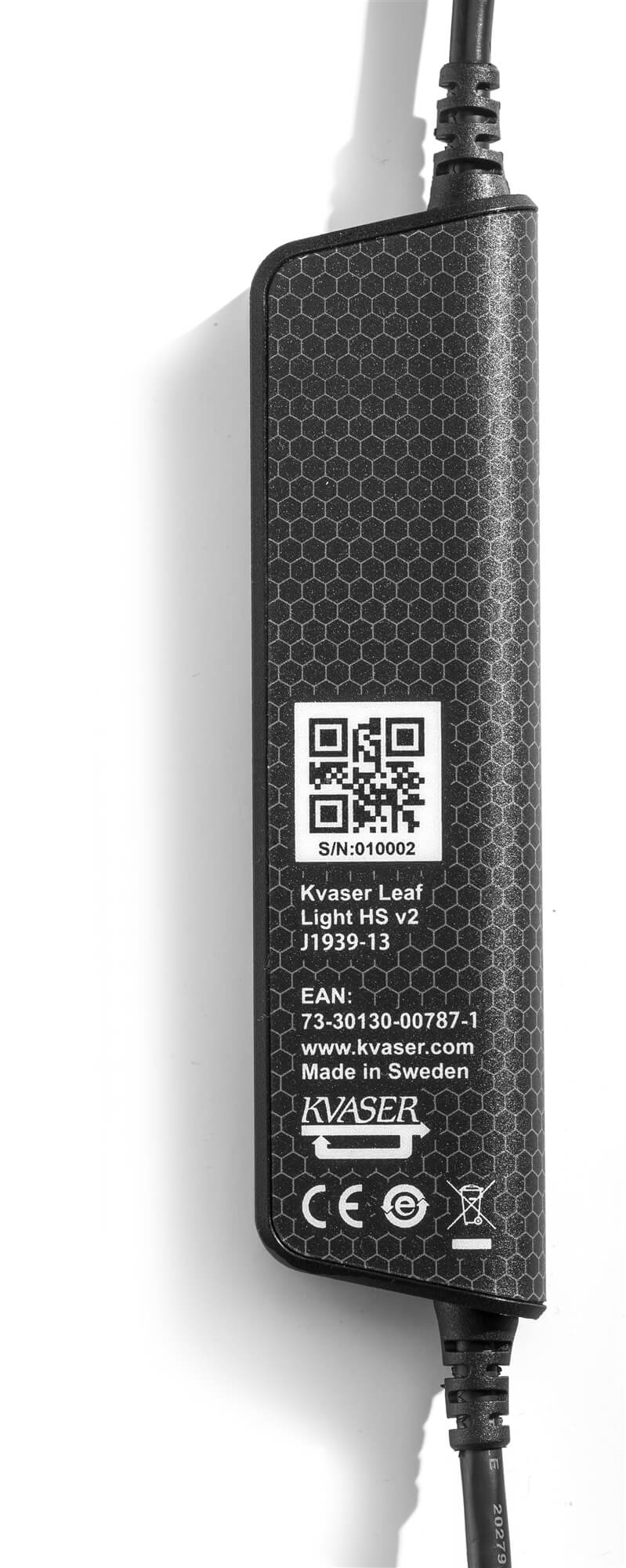

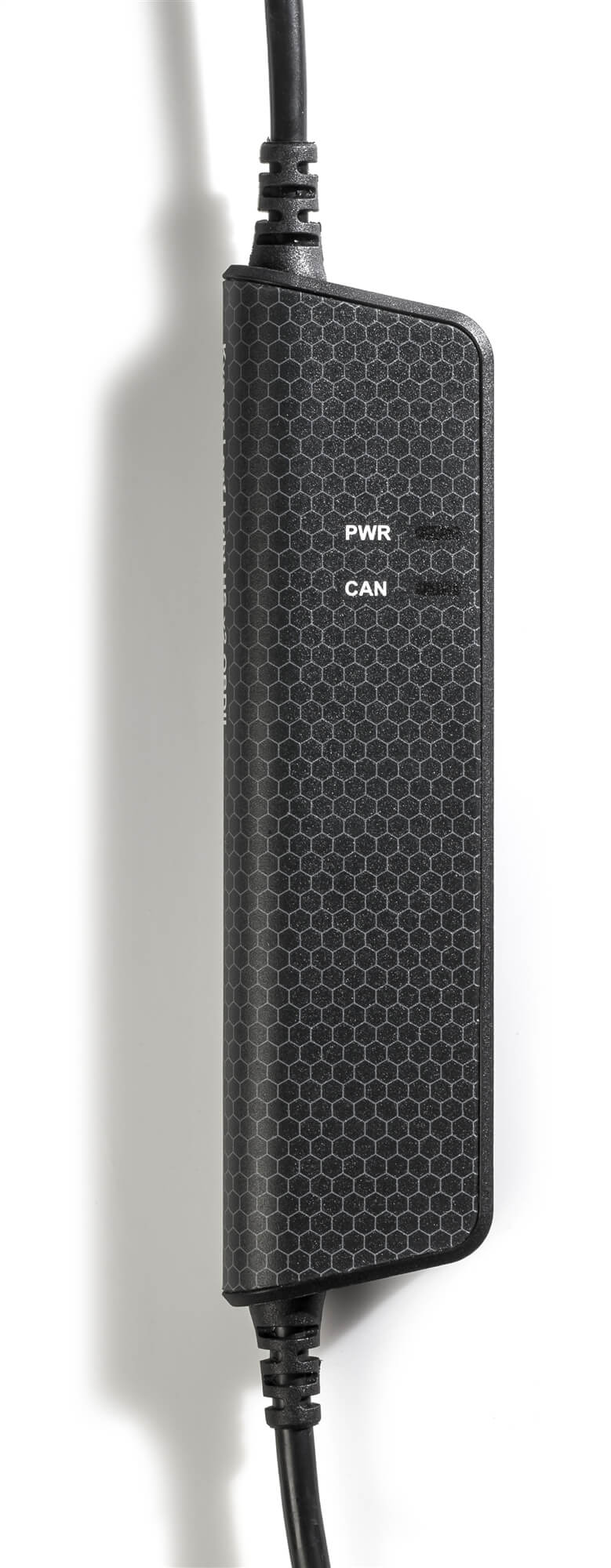

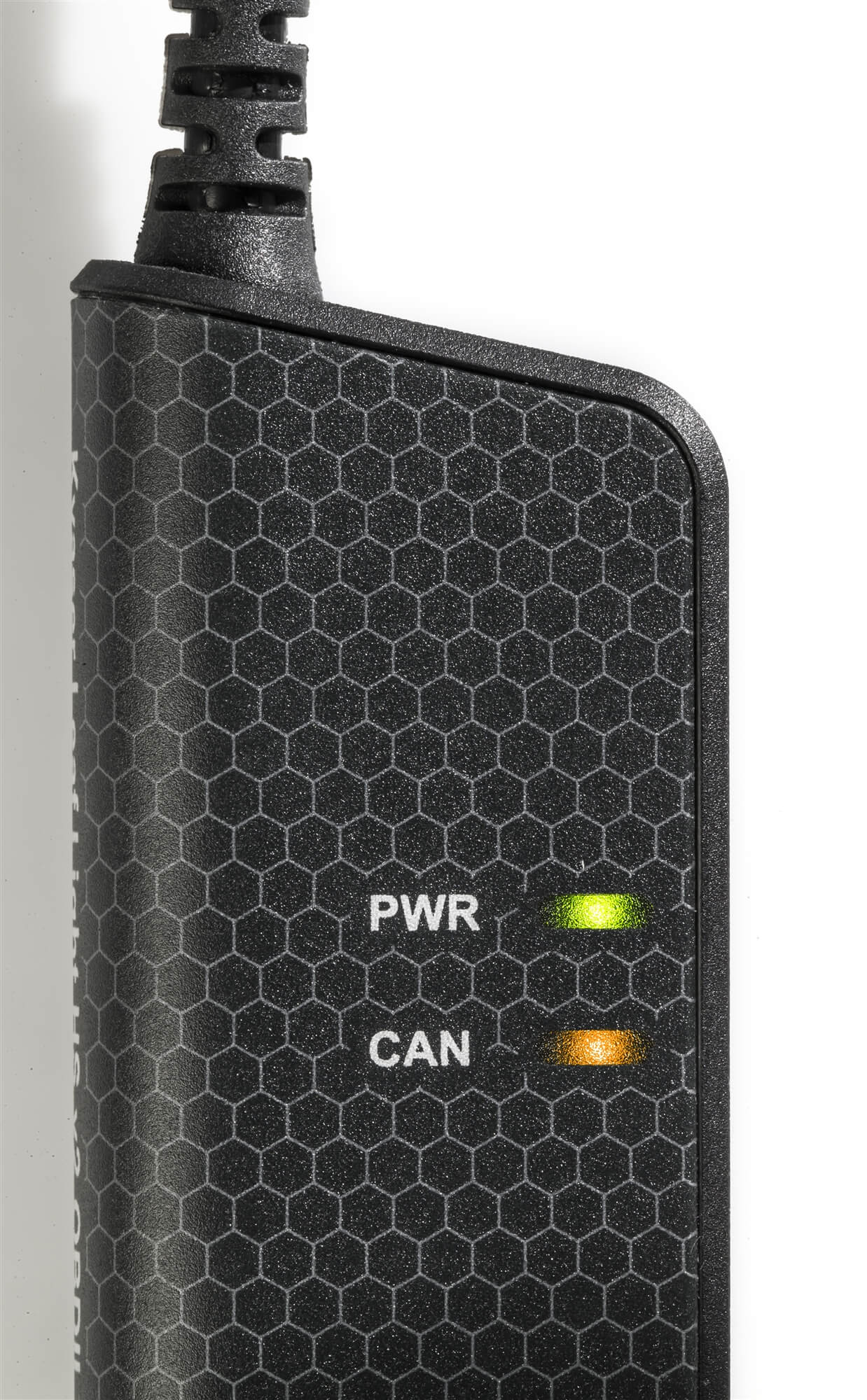

Kvaser Leaf Light V2 HS J1939-13KV-00787-1
by Kvaser AB
Product is no longer available.

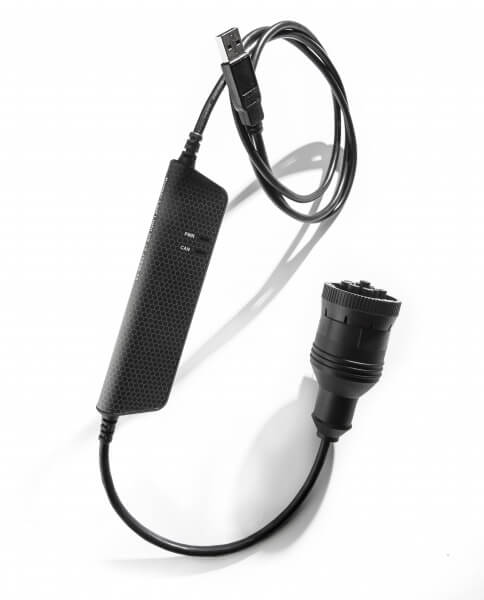

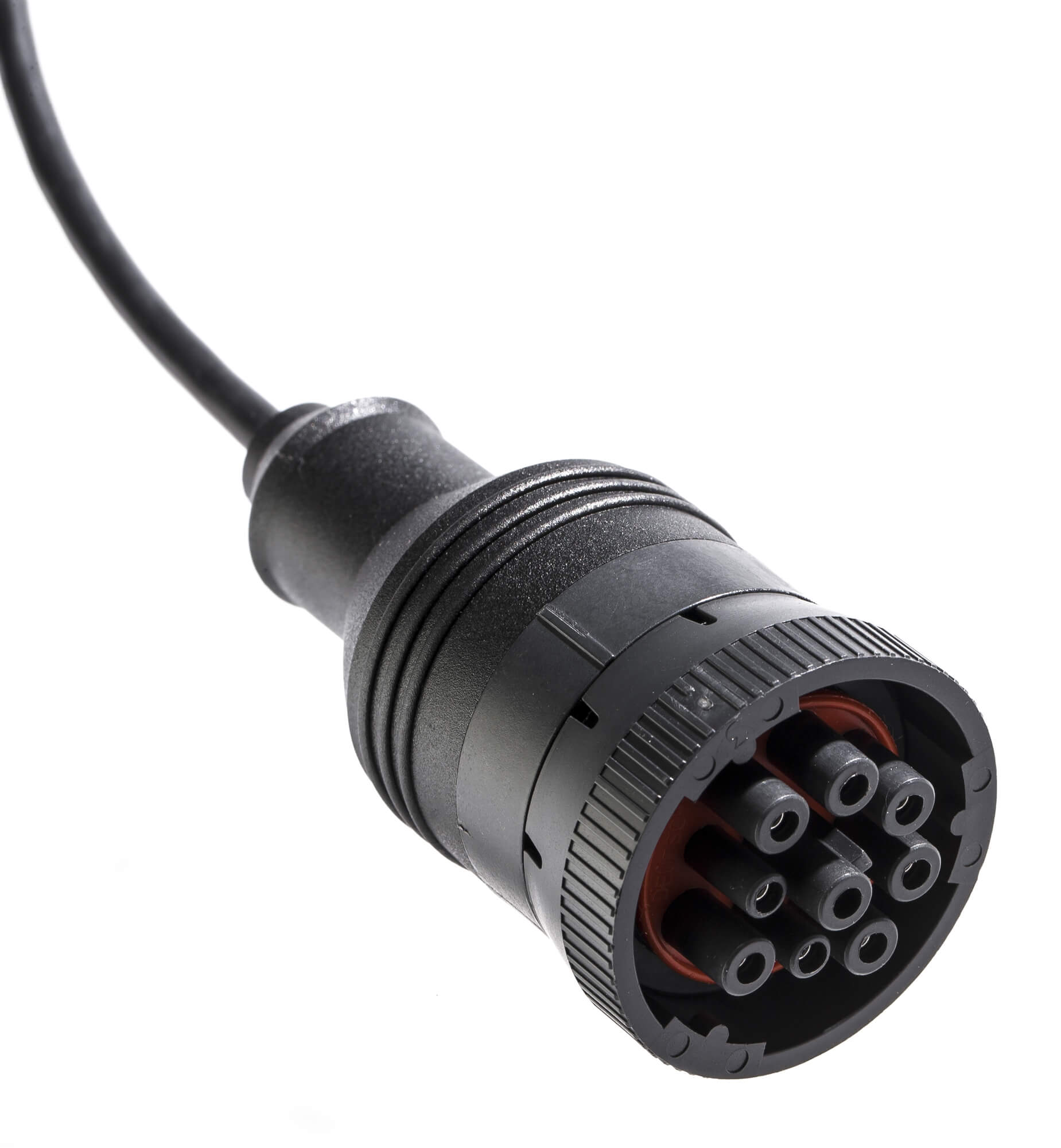

Kvaser's Leaf Light V2 J1939-13 is the latest version of Kvaser's popular line of Leaf Light V2 USB-to-CAN interfaces. This application specific device offers a simple way of connecting a desktop or laptop computer with a USB 2.0 connector to an on-board computer in any vehicle by means of its 9-pin J1939 compliant CAN connector. The Kvaser Leaf Light product series provides reliable, low cost interface tools for connecting any CAN network to a PC or mobile computer in vehicle diagnostic applications and beyond.
Kvaser's Leaf Light V2 series is the workhorse of the CAN interface world. The newly launched Kvaser Leaf Light V2 supports high speed USB for CAN and offers high performance at low cost. Loss free transmission and reception of standard and extended CAN messages on the CAN bus is transmitted with a time stamp precision of 100 microseconds.
- The Kvaser Leaf Light V2 is a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.
- 8000 messages per second, each time-stamped with 100 microsecond accuracy
- Galvanic isolation, previously a more expensive option on Kvaser's original Leaf Light, now comes as standard on the Leaf Light v2, enhancing protection from power surges or electrical shocks.
- Low current consumption of 70 mA, reducing power drain from your laptop.
- Local buffering and pre-processing results in high performance and a reduction of time critical tasks for the PC.
- Leaf Light v2 comes with free software, free software updates and free support. Kvaser's easy-to-use Kvaser CANlib applications programming interface (API) has virtual hardware that simulates our real hardware, so you can start developing around the Leaf Light v2 interface right away.
|The information herein is subject to change without notice.|
|Error frame generation||No|
|Error frame detection||Yes|
|On board buffer||Yes|
|Maximum message rate, send||8000|
|Maximum message rate, receive||8000|
|Dimensions (WxLxH)||40x100x20 mm (1.6x3.9x0.8in.)|
|Kvaser Leaf V2 User’s Guide||Version 4.1.0|
|User's Guide for the Kvaser Leaf Light V2|
|Kvaser Leaf V2 J1939-13 Datasheet||Version 2014|
|Datasheet for the Kvaser Leaf Light V2 J1939-13|
|Kvaser Leaf Installation Guide||Version 1.2.189|
|Kvaser Leaf Installation Guide|
|Kvaser DIADEM Driver||Version 1.0.0|
|This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.|
|Kvaser Drivers for Windows||Version 5.6.0|
|Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.|
|Kvaser Device Firmware||Version 3.2.302|
|Firmware update for Kvaser Leaf (all types), Kvaser Memorator Professional, Kvaser Memorator SemiPro, Kvaser Memorator Light USBcan Professional, and Kvaser Blackbird.|
|Kvaser LIN Firmware||Version 3.3.33|
|Kvaser Leaf LIN and Kvaser DRVlin firmware upgrade|
|Kvaser CANKing||Version 5.3.889|
|A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.|
|Development Kits and Tools|
|Kvaser CANlib SDK||Version 5.6.0|
|Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately|
|Kvaser LabView VI Library for CAN||Version 6.1.0|
|Library for National Instrument's LabView version for all Kvaser CAN hardware.|
|Remove old drivers||Version 3.9c|
|Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.|
|XTM, Free LIN Viewer||Version 3.8sr5|
|A free of charge LIN bus viewer, works with Kvaser Leaf Professional LIN and/or Kvaser LAPcan and DRVlin.|
