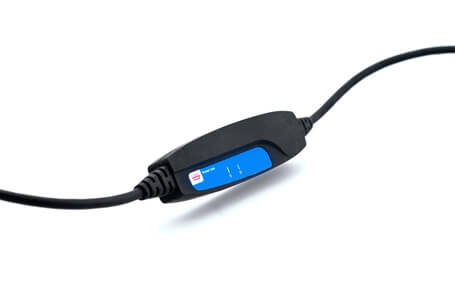

Kvaser Leaf Professional LIN

Save 12%
The Kvaser Leaf Professional LIN is a single-channel, high performance, USB interface for LIN (LIN 1.3 and 2.x) bus systems. A versatile and powerful interface that offers easy connection between your PC and LIN network, it includes Kvaser's patented MagiSync feature for synchronized time-stamping and Galvanic Isolation for protection against voltage spikes.
  • Messages are time-stamped and synchronized with a precision of 1 microsecond
  • Supports LIN 1.3 and 2.x
  • Excellent error handling
  • Supports silent mode for analyzing tools
  • Low power consumption
  • Excellent EMC performance
  • Polyurethane cabling for extreme environments
  • Galvanic isolation of the LIN bus driver stage to protect the hardware
  • 100% compatible with applications written for all Kvaser hardware with KVASER's LINlib
  • Equipped with a 110 cm (44 in.) long USB cable and a 30 cm (12 in.) long CAN cable
  • Interfaces the CAN bus with a 9-pin D-SUB connector or OBD2 connector
  • Designed for USB 2.0, backward compliant with USB 1.1
  • Quick and easy Plug-and-Play installation
  • A practically unlimited number of Kvaser Leafs can be connected via standard USB hubs for simultaneous use on a single PC
Galvanic Isolation Yes
Bitrate 1-20 kbit/s
Silent mode Yes
Error frame generation Yes
Error frame detection Yes
Weight 100 grams
Timestamp resolution 1
On board buffer Yes
Maximum message rate, send 0
Maximum message rate, receive 0
Sound Yes
Clock synchronization MagiSync
Dimensions (WxLxH) 25x100x20 mm (1.0x3.9x0.8in.)
