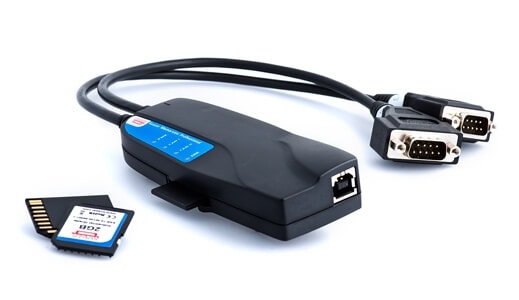

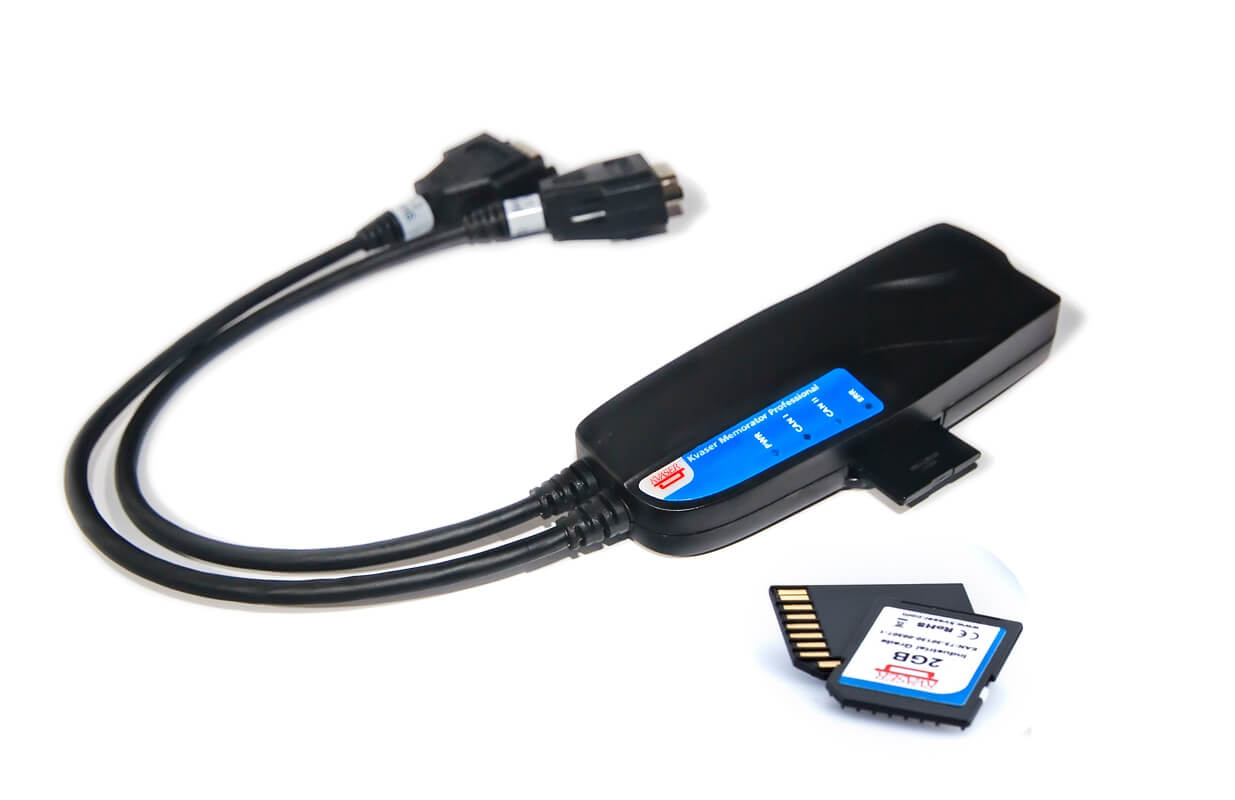

Kvaser Memorator Professional HS/HS CAN Datalogger

This product has been discontinued. Customers are encouraged to consider the Kvaser Memorator Pro 2xHS v2 (KV-00819-9).

The Kvaser Memorator Professional is a small, yet advanced portable CAN data logger which can also be used as a
CAN bus interface. The device can be configured in many different ways to achieve the most suitable and effective logging for any occasion.

Kvaser’s Memorator Professional contains an advanced set of features including Message Filtering, Error Detection Mode, Triggers, Battery Backup, an expandable SD Card slot, Linx J1587 compatible, Auto Transmit, Galvanic Isolation among other. Connecting the logger to a PC provides direct access for configuring baud rates, trigger conditions and filters using the standalone Kvaser Memorator Tools

Kvaser Memorator Professional Functions:

Triggers and Data Logger capabilities
  • Kvaser Memorator can log continuously, or logging can be triggered by creating advanced triggers based on messages, data signal values, error messages, external trigger's falling or rising edge, and I/O signals
  • Pre- and post-triggers are available without buffer size restrictions, limited by disk space only
  • Handles up to 20 000 msgs/s in standalone logger mode
  • Transmit messages to the bus network
  • External digital output that can drive a LED or a buzzer
  • < 250 ms boot up time
  • Supports Silent Mode - log bus traffic safely without interfering and "listen-only" mode for bus analysis tools
  • Kvaser Memorator Professional can filter out selectable messages and/or signals to be logged. The identifiers can be picked from a database, or all messages can be logged
  • Support for pass as well as stop filters
  • Create a counting pass filter to have a message logged at enumerated occurrence
Memory cards and functions
  • Standard MMC or SD type flash memory cards can be used - up to 2GB
  • Support for 16GB SDHC cards. Larger SDHC cards supported in the future - up to 32GB
  • Set up several devices in a daisy chain for larger logging capacity
  • Transfer recorded data over the USB interface at 1.4 MB/s or an SD card reader at 15 MB/s
Configuration software in the PC
  • Easy to use graphic configuration tool - Kvaser Memorator Professional Setup Tool
  • Configuration of the CAN controller, i.e. bit rate and filters
  • Configuration of the trigger conditions
  • Configuration of filter for messages to be stored
  • Configuration upload and download via USB
  • Using the included Kvaser Dispatcher software, a complete measurement setup can be turned into a self-installing package that is sent to a remote location to carry out a specific logging task
  • One device for desktop and laptop
  • Functionality of a standalone CAN bus data logger and a USB CAN bus interface in a single device
  • Support for Kvaser Linx J1587
  • Driver support for major operating systems
  • Quick and easy plug-and-play installation
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers
  • CAN messages are time-stamped with 2 microseconds resolution
  • Large on-board RAM buffer for CAN messages
  • 100% compatible with applications written for Kvaser Leaf, LAPcan, PCIcan, PCcan, USBcan, etc., with Kvaser's CANlib
  • Two CAN connections ISO-11898-2 high-speed, 10 kbit/s up to 1 Mbit/s
  • Galvanic isolation to protect the hardware
  • 130mA current consumption
  • Operating temperature range from -40 to + 85 C
  • Power from CAN bus or from the USB side
  • Built-in real time (calendar) clock with battery backup
  • Logger status is indicated with five externally visible LEDs
  • Plastic housing with dimension W*L*H about 50*90*25 mm (circa 2 x 3,5 x 1 inch)
Galvanic Isolation Yes
Bitrate 10-1000 kbit/s
Silent mode Yes
Error frame generation Yes
Error frame detection Yes
Weight 150 grams
Timestamp resolution 2
On board buffer Yes
Maximum message rate, send 20000
Maximum message rate, receive 20000
Sound No
Clock synchronization MagiSync
Dimensions (WxLxH) 50x90x25 mm (2.0x3.5x1.0in.)
