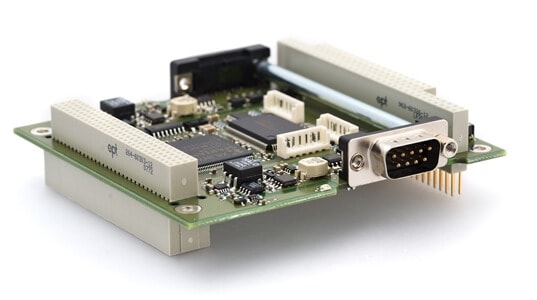

Kvaser PC104+ HS/HS DSUB

• Compliant with the PC/104-Plus specification
• Stack-through connector
• On-board 16-bit microcontroller
• Communicates with the PC through a fast DPRAM
• CAN Controller from Renesas (M16C)
• Supports CAN 2.0 A and 2.0 B (active)
• Supports Silent Mode
• High-speed ISO 11898 compliant driver circuits, supports bit rates up to 1 Mbit/s
• Optoisolated driver circuits with fast optocouplers
• CAN oscillator frequency: 16 MHz
• Quick and easy plug-and-play installation
• Dimensions 91 x 96 mm (approx. 3.6 x 3.8 in.)
• Interfaces the CAN bus with IDC Headers
• Wide temperature range, -40°C - +85°C

Property	Value
The information herein is subject to change without notice.
Galvanic Isolation	Yes
Bitrate	5-1000 kbit/s
Silent mode	Yes
Error frame Generation	Yes
Error Counters Reading	Yes
Interfaces	PC 104+
Certificates	CE, RoHS
Channels	2
Weight	100 grams
Length	96 mm
Height	20 mm
Timestamp resolution	1 µs
On board buffer	No
Maximum message rate, send	8000
Maximum message rate, receive	14000
Sound	No
Clock synchronization	N/A
Dimensions (WxLxH)	91x96x20 mm (3.6x3.8x0.8in.)
OS	Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Datasheet

Kvaser PC104+ HS/HS DSUB Datasheet

Kvaser PC104+ Users Guide

Kvaser PC104+ Users Guide V6.2.0

Kvaser PC104+ Firmware Firmware update for Kvaser PC104+
Version V3.7.115 Python module The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.17.748 Kvaser CANlib SDK Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.35.477 Kvaser SocketCAN Device Drivers Kvaser SocketCAN Drivers for Linux.
Version V1.7.153 Kvaser DIADEM Driver This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0 Kvaser Drivers for Windows Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version V5.35.477 Kvaser CANKing A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version V6.18.106 Kvaser LabView VI Library for CAN Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version V19.3.0 Kvaser Linux Driver and SDK Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.35.477 Remove old drivers Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c Cleanup Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
Version 3.9c
