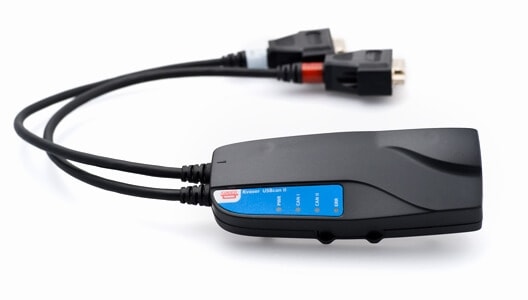

Kvaser USBcan II HS/SWCKV-00231-9
by Kvaser AB
Product is no longer available.
Kvaser's USBcan II HS/SWC is a dual-channel CANbus interface adapter featuring a standard USB 1.1 connection which is upward compatible with USB 2.0. This CAN-to-USB interface has an auto-transmit function for placing messages on the CANbus at set intervals.
This adapter comes in different configurations whereas the first CAN channel is for high-speed CAN, with the second CAN channel providing a single-wire CAN port (part# KV-00231-9).
- The Kvaser USBcan II provides a dual channel CAN bus interface through a standard USB interface.
- The USBcan II can be ordered with two high-speed channels, with one high-speed and one low-speed or with one-high speed and one single-wire CAN.
- Kvaser USBcan II is a flexible way of communicate with the CAN bus through a desktop PC or laptop.
- The USBcan II device is a USB 1.1 device. It also works with USB 2.0 in full-speed mode, i.e. 12 Mbit/s.
- It contains the powerful M16C microcontroller from Mitsubishi with two built-in CAN controllers.
- It handles CAN messages with 11 bit (CAN 2.0A) as well as 29 bit (CAN 2.0B) identifiers.
- Remote frames can be sent and received without restrictions.
- USBcan II can detect and generate error frames on the CAN bus.
|The information herein is subject to change without notice.|
|Current Consumption||5V and ca. 130mA if powered from the USB side. Ca. 850mW (9 – 30V DC) if powered from the CAN bus connector|
|Error frame generation||Yes|
|Error frame detection||Yes|
|Timestamp resolution (µs)||30 µs|
|On board buffer||Yes|
|Maximum message rate, send||6000 mps|
|Maximum message rate, receive||12000 mps|
|Dimensions (WxLxH)||50x90x25 mm (2.0x3.5x1.0in.)|
|OS||Win XP, Linux, Win 7, Win Vista, Win 10, Win 8|
|Kvaser USBcan II HS/SWC Datasheet|
|Kvaser Userguide USBcanII|
|Userguide for USBcan II
|Kvaser USBcan Comparison Table|
|Kvaser USBcan Product Comparison Table|
|Kvaser USBcanII Firmware|
|Firmware update for USBcan II (plastic housing).
|The Canlib module is a Python wrapper for Kvaser CANlib SDK.
|Kvaser CANlib SDK|
|Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
|Kvaser LabView VI Library for CAN|
|Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version V1vaser DIADEM Driver9.3.0
|Kvaser NIAdem driver|
|This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
|Kvaser Drivers for Windows|
|Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
|A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
|Kvaser LabView VI Library for CAN|
|Library for National Instrument's LabView version for all Kvaser CAN hardware.
|Kvaser Linux Driver and SDK|
|Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
|Remove old drivers|
|Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
|Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
