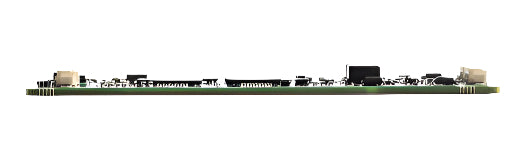

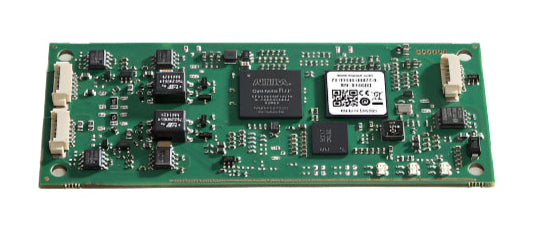

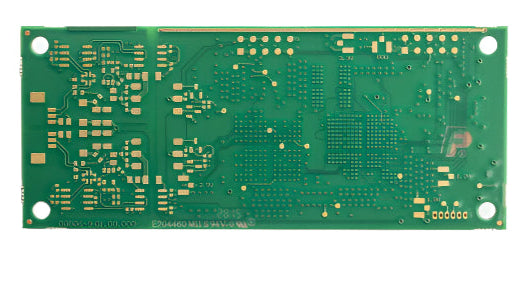

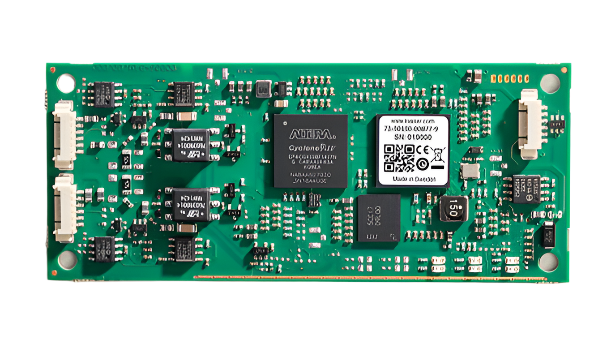

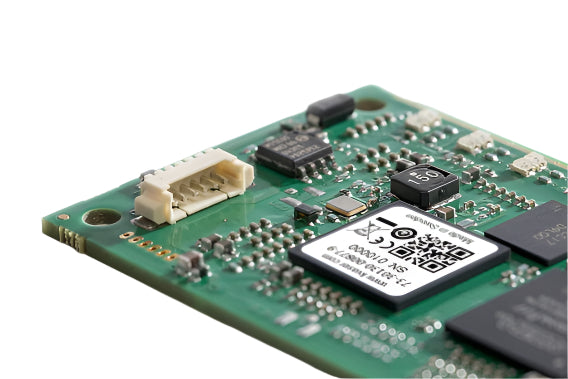

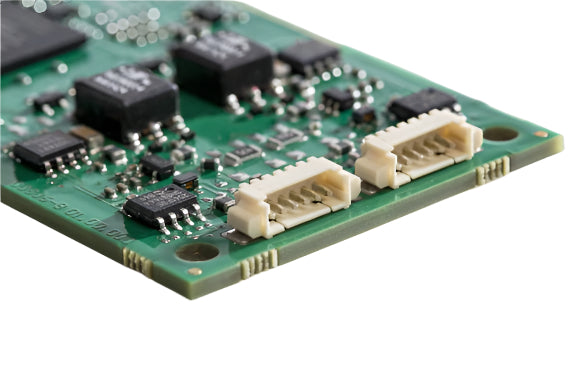

The USBcan Pro 2xHS v2 CB is a bare circuit board version of Kvaser's USBcan Pro 2xHS v2 dual channel CAN or CAN FD interface with scripting capability. The USBcan Pro 2xHS v2 CB is supplied 'bare board' i.e. without a housing, and can thus be built into any system. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.
- Supports CAN FD.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Power derived from the USB connection, CAN or an in-built power supply.
- Galvanic isolation.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
- Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
- Simultaneous operation of multiple devices.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Galvanic Isolation | Yes |
| Bitrate | 50-1000 kbit/s |
| Silent mode | Yes |
| Error frame generation | Yes |
| Error counters reading | Yes |
| Messages per second (send/receive) | 20000 mps |
| Temp Range | -40...+85 degC |
| Time Stamp R (µs) | 1 µs |
| Maximum message rate, send | 20000 |
| Maximum message rate, receive | 20000 |
| Sound | No |
| Current Draw | max 500mA |
| Dimensions (LxH) | 100x6 mm |
| Datasheet |
| Kvaser USBcan Pro 2xHS v2 CB Datasheet |
| Kvaser USBcan Pro 2xHS v2 CB User's Guide |
| Kvaser USBcan Pro 2xHS v2 CB User's Guide Version V3.3.210216 |
| Kvaser Firmware Update Tool |
| TFirmware Update tool for most Kvaser devices. Version V4.24.477 |
| Kvaser Canlib Android Library |
| Kvaser CANlib Android Library Version V1.2.0 |
| Linux SDK library |
| Linux SDK library. Version V5.35.477 |
| Python module |
| The Canlib module is a Python wrapper for Kvaser CANlib SDK. Version V1.17.748 |
| Kvaser CANlib SDK |
| Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately. Version V5.35.477 |
| Kvaser Drivers for Windows |
| Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus. Version V5.35.477 |
| Kvaser CANKing |
| A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended. Version V6.18.106 |
| Kvaser LabView VI Library for CAN |
| Library for National Instrument's LabView version for all Kvaser CAN hardware. Version V19.3.0 |
| Kvaser Linux Driver and SDK |
| Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality Version V5.35.477 |
| Remove old drivers |
| Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions. Version 3.9c |
| Cleanup |
| Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer. Version 3.9c |
