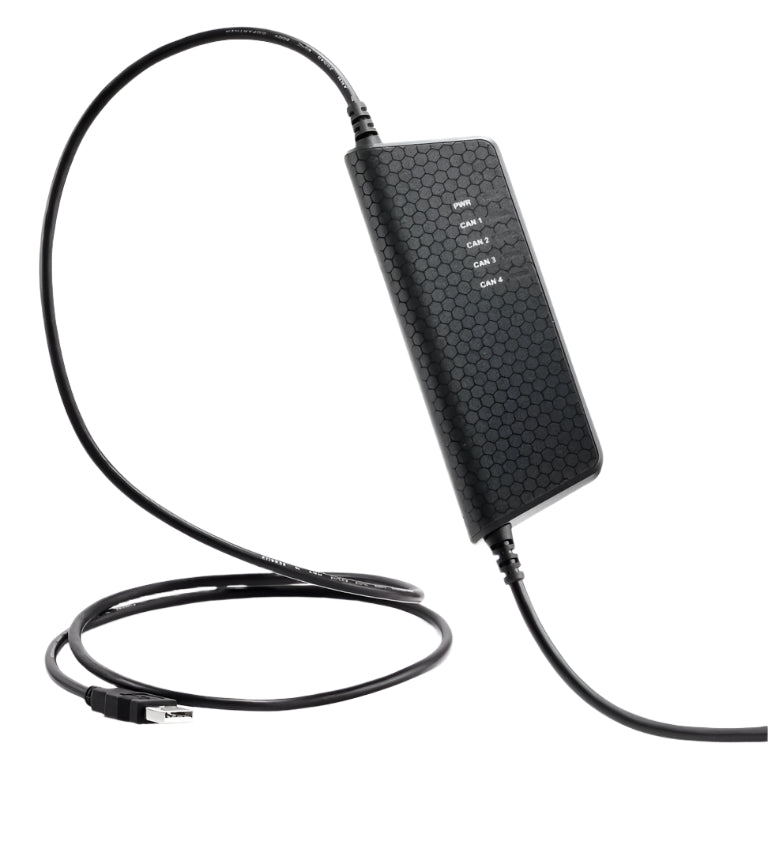

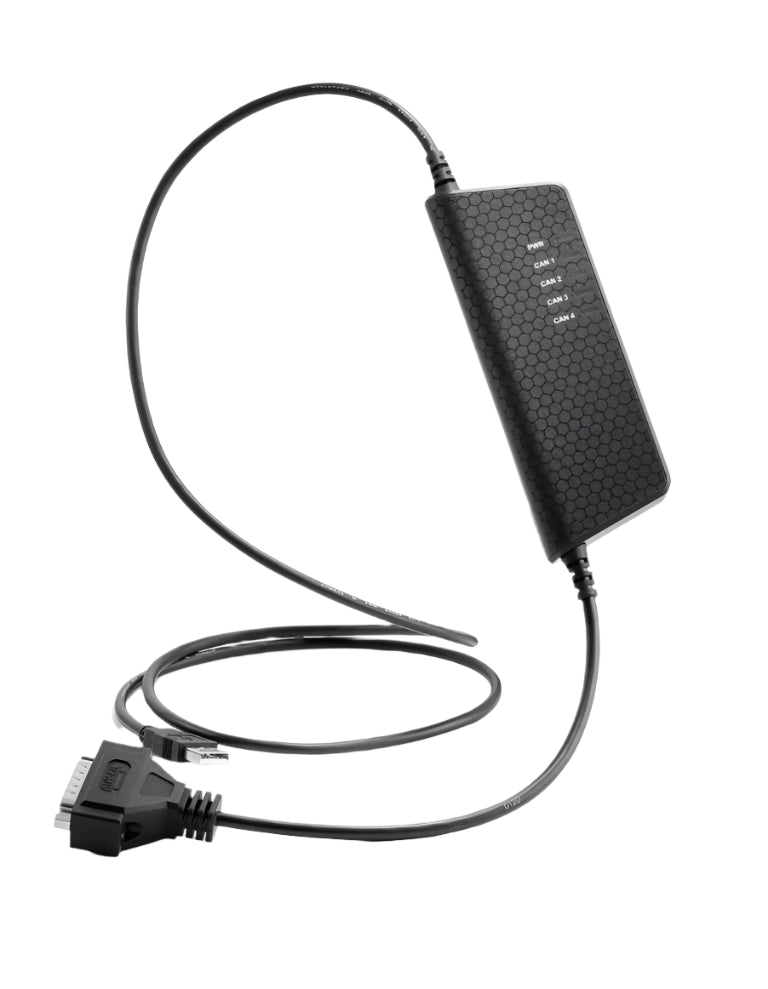

The Kvaser USBcan Pro 4xHS is an advanced, portable multi-channel CAN/CAN FD to USB real time interface that handles transmission and reception of standard and extended CAN messages on the CAN bus with a high time stamp precision. Features include t programming and MagiSync™, which makes it possible to synchronize time stamps across multiple Kvaser MagiSync™-enabled devices without requiring extra wires.
- Multi-channel USB CAN interface with Kvaser t programmability.
- 20 000 msg/s per channel, each timestamped with a resolution of 1 μs.
- Kvaser MagiSync™ – automatic time synchronization.
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Industrial grade temperature range, −40 oC to +85 oC.
- Galvanic isolation.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Simultaneous operation of multiple devices.
- Power is taken from the USB bus.

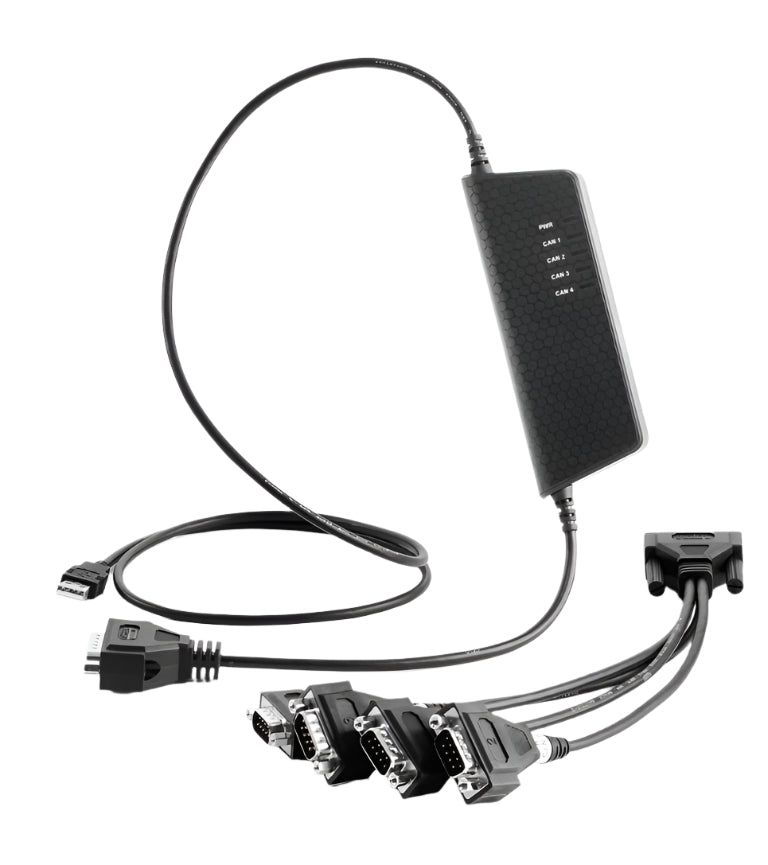

- Includes a 4-channel breakout cable.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Galvanic Isolation | Yes |
| Bitrate | 40-1000 kbit/s |
| CAN FD Bitrate | Up to 8 Mbit/s |
| Categories | Interfaces, Hardware, CAN |
| Certificates | CE, RoHS |
| Channels | 4 |
| Connectors | 26-pin HD D-SUB |
| Current Consumption | max 500 mA |
| Error Counters Reading | Yes |
| Interfaces | USB |
| OS | Linux, Win 7, Win 8, Win 10 |
| Silent mode | Yes |
| Error frame generation | Yes |
| Error counters reading | Yes |
| Weight | 150 g |
| Timestamp resolution (µs) | 1 µs |
| Messages Per Second, Sending | 20,000 mps |
| Message Per Second, Receive | 20,000 mps |
| Sound | No |
| Temp Range | -40 °C to +85 °C |
| Dimensions | Length: 170 mm (6.7"), Height: 20 mm (1.0") |
| Kvaser USBcan Pro 4xHS User's Guide |
| Kvaser USBcan Pro 4xHS User's Guide Version V1.1.211114 |
| Kvaser SocketCAN Device Drivers |
| Kvaser SocketCAN Drivers for Linux Version V1.9.322 |
| Kvaser Linux Drivers and SDK |
| Linux drivers and SDK for most Kvaser devices. Version V5.37.686 |
| Kvaser DIADEM driver |
| This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. Version V4.1.0 |
| Kvaser Drivers for Windows |
| Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus. Version V5.37.686 |
| Kvaser Firmware Update Tool |
| Firmware Update tool for most Kvaser devices. Version V4.26.686 |
| Python module |
| The Canlib module is a Python wrapper for Kvaser CANlib SDK. Version V1.19.205 |
| Kvaser CANKing |
| A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus. Version V6.20.210 |
| Kvaser LabView VI Library for CAN |
| Library for National Instrument's LabView version for all Kvaser CAN hardware. Version V19.3.0 |
| Kvaser CANlib SDK |
| Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately. Version V5.37.686 |
