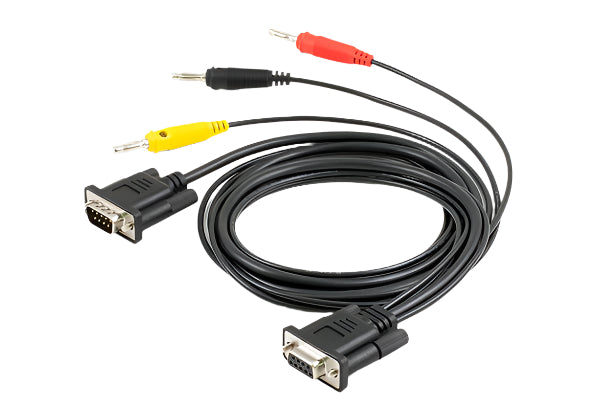

Peak System Technik IPEK-003008 LIN Connection Cable PCAN
Peak System Technik IPEK-003008 LIN Connection Cable PCAN pin diagram
Peak System Technik IPEK-003008 LIN Connection Cable PCAN
Peak System Technik IPEK-003008 LIN Connection Cable PCAN pin diagram

Images provided by manufacturer.

PEAK-System Technik

LIN Connection Cable for PCAN-LIN

SKU: IPEK-003008
(1)
$55

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

Pre-configured Cable Set for the PCAN-LIN Module

On the PCAN-LIN module, the field buses and the power supply are connected together via a D-Sub plug. However, for some applications a separate access to the LIN components is necessary.

The LIN connection cable for PCAN-LIN allows the tapping of individual lines. The LIN and the supply lines are lead directly out to separate plugs and the CAN lines are forwarded to a D-Sub plug.

The connection cable can be used without problems for CAN FD buses.

NOTE:* The LIN connection cable for PCAN-LIN is not suitable for use with our PC LIN interfaces.

Technical Specifications:

Pre-configured cable set for PCAN-LIN

  • Split-up of the lines from the CAN/LIN connector to:
    • CAN (D-Sub plug, 9-pin)
    • LIN (banana plug, 4 mm)
    • Power supply (banana plugs, 4 mm)
  • Without terminating resistor
  • Length about 0.75 m
  • LIN Connection Cable for PCAN-LIN

Additional information:

Suitable to be used with:

  • PCAN-LIN: Interface for LIN, CAN, and RS-232
