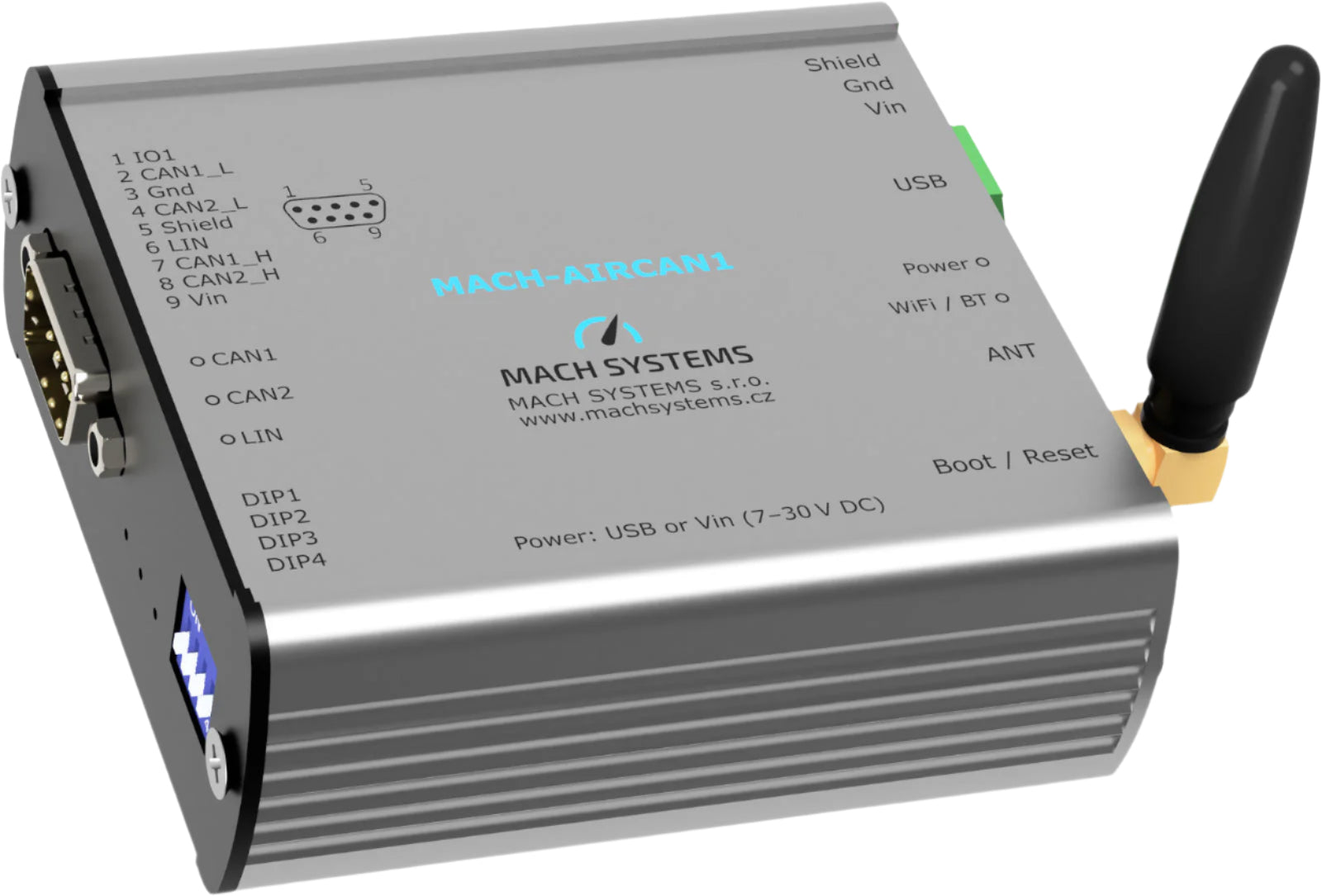

MA-MACH-AIRCAN1

A versatile WiFi and Bluetooth interface designed to serve as a wireless gateway for CAN(/FD) and LIN buses.

The wireless interface features two CAN channels with CAN FD support, one LIN channel, 2.4 GHz WiFi with support for both access point and client modes, Bluetooth 5, a USB 2.0 port, an analogue input, and a digital output. Its embedded web server allows for easy configuration and real-time monitoring.

The device offers an open communication protocol via WiFi, Bluetooth, and USB, providing seamless access to CAN(/FD) and LIN channels. It simplifies integration of wireless connectivity into existing systems. Additionally, two MACH-AIRCAN1 devices can be paired to create a CAN(/FD)-WiFi-CAN(/FD) bi-directional bridge, enabling the connection of two separate CAN(/FD) networks through a wireless tunnel.

For custom applications, a free C-language SDK is available for firmware development. This enables user applications to run directly on the MACH-AIRCAN1, and to use all the device’s peripherals.

Specification:

• WiFi (IEEE 802.11b/g/n) with AP and client modes
• Bluetooth 5
• 2x CAN channel with CAN FD support
• CAN FD baud rate up to 8 MBaud
• 1x LIN channel
• Support of LIN master/slave mode and master/classic checksum
• Analogue input and digital output
• Embedded web server for configuration and monitoring
• Communication protocol to access CAN and LIN channels over WiFi and Bluetooth
• Two devices can be paired to realize a wireless CAN(/FD)-CAN(/FD) bridge
• C-language SDK for user application development
• USB virtual COM port
• USB or externally powered
• Aluminum enclosure

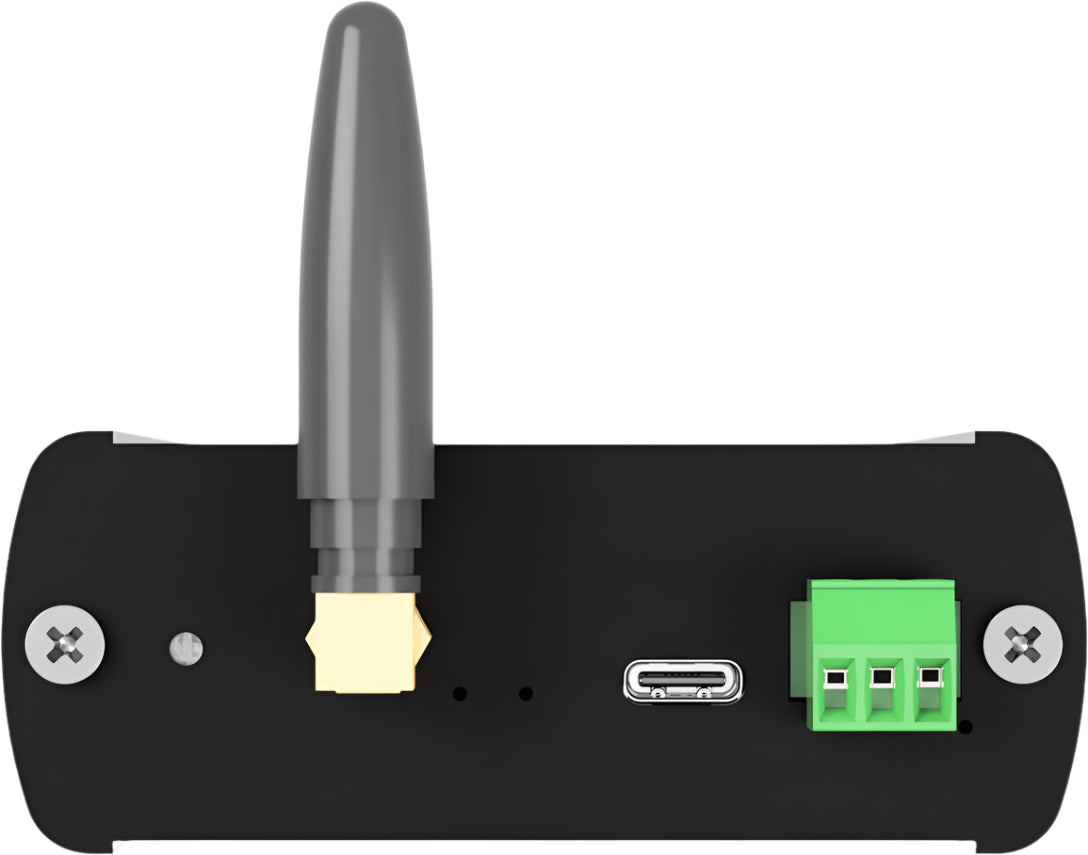

• SMA connector for WiFi/Bluetooth antenna
• DIN rail mounting possibility

Use Cases:

• WiFi to CAN(/FD) and LIN bus interface
• Bluetooth to CAN(/FD) and LIN bus interface
• Wireless CAN(/FD)-CAN(/FD) bridge
• USB to CAN(/FD) and LIN bus interface
• Users can develop a custom firmware based on the C language SDK
