PCAN-Adapter D-Sub to Screw Terminals
SKU #: IPEK-003025

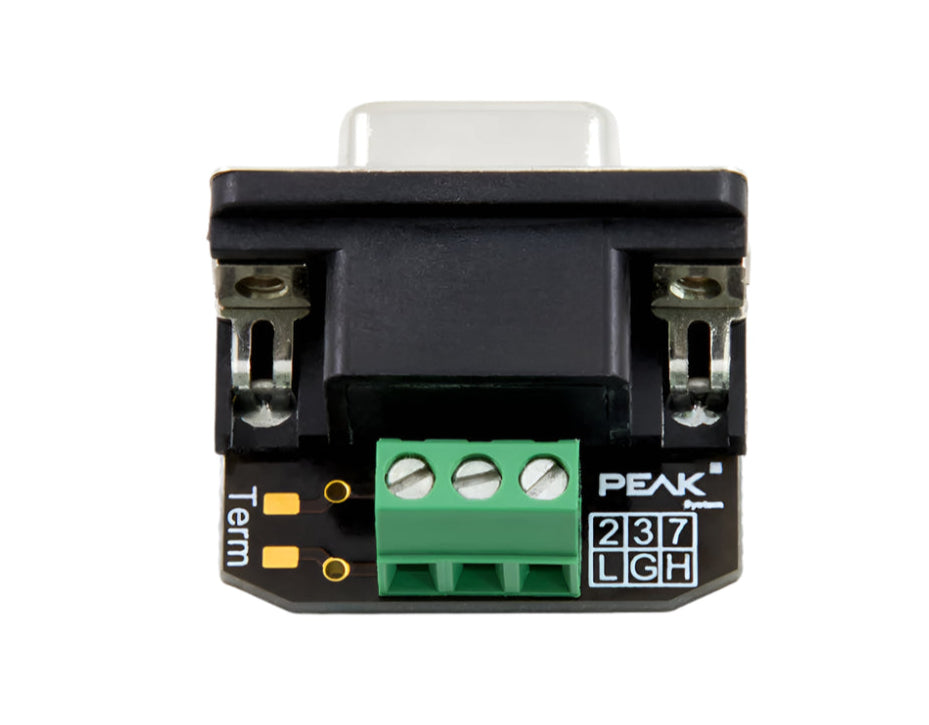

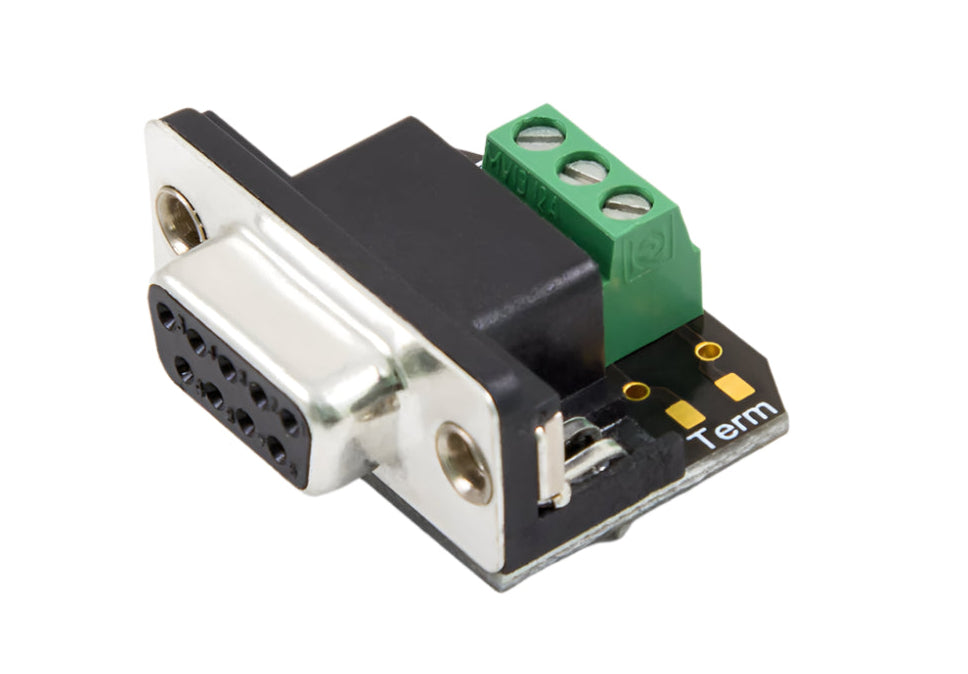

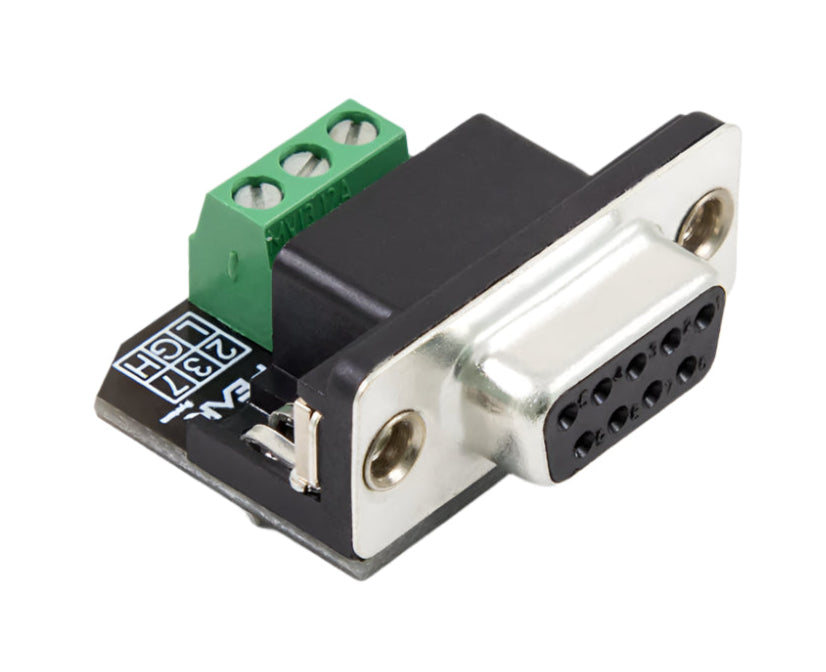

The adapter with a D-Sub socket connector and a three-pin screw terminal block allows easy connection of open cable ends of a CAN bus to a D-Sub connector. This allows customers to produce all conceivable connection variants themselves in a short time. Not only our PCAN products can thus be connected more flexibly to CAN buses.

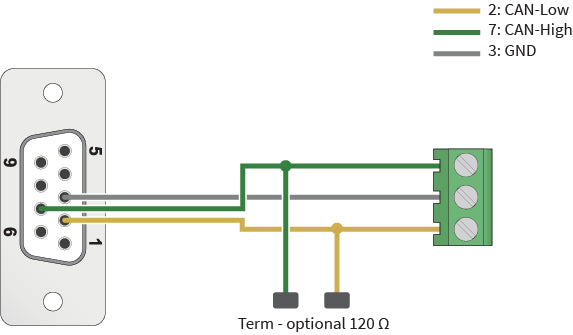

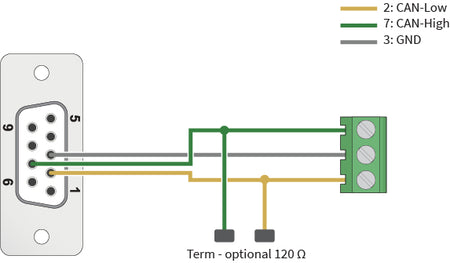

The D-Sub socket is assigned according to CiA® 303-1. A CAN bus termination can be added by the customer using an SMD or wired resistor on prepared solder pads.
- 3-pin screw terminal connector (Phoenix) to 9-pin D-Sub socket (according to CiA® 303-1)
- For connecting open cable ends
- Solder pads for SMD and wire for inserting a termination resistor
