PCAN-Cable M12
Couldn't load pickup availability
Orders placed before 2:30 Pacific Time usually ship the same day.
Items are delivered with essential accessories and easy-to-follow instructions.
Questions?

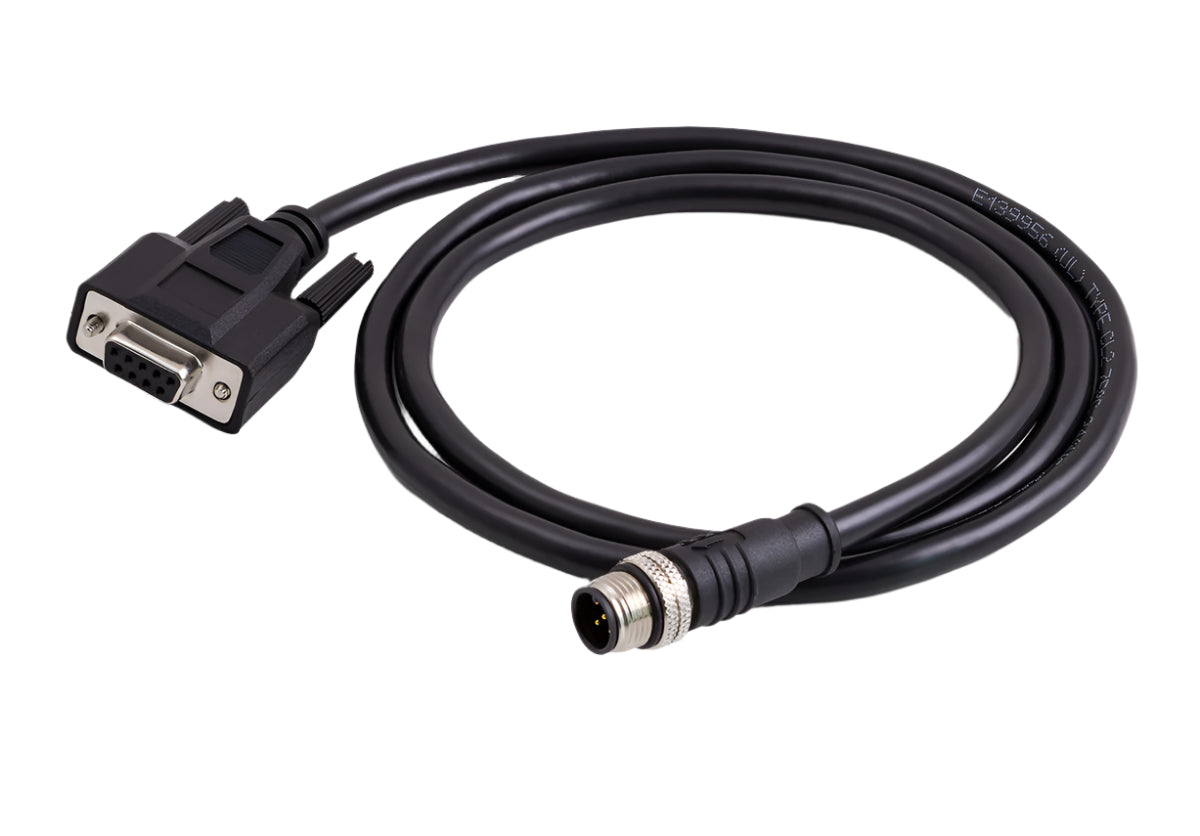

CAN Adapter Cable from D-Sub Socket to M12 Circular Connector
M12 circular connectors are robust and offer increased protection against environmental influences. They have thus established as a connection option to CAN buses for challenging operating conditions.
The standard NMEA 2000® from the National Marine Electronics Association specifies a manufacturer-independent communication via CAN on boats and ships and implies the use of certain M12 connectors.
The PCAN-Cable M12 routes the CAN lines of the D-Sub socket to an M12 circular connector. Additional lines for Shield and power supply were added according to the NMEA 2000® specification. This enables access with PEAK CAN interfaces.
TECHNICAL SPECIFICATIONS
- 9-pin D-Sub socket to 5-pin M12 circular connector (in accordance with CiA® 106 and NMEA 2000®)
- Length 1.0 m
- Without termination resistor
- Suitable for the use in CAN FD buses
- Suitable for NMEA 2000® connection and power supply
ADDITIONAL INFORMATION:
- The standard CAN FD: Support and compatible products.
- PCAN-CABLE M12: Other length and special cable makeup on request as special order.
Pin assignment D-Sub
Â
| 2: | CAN-L / NET-L |
| 3: | GND / NET-C |
| 6: | Shield |
| 7: | CAN-H / NET-H |
| 9: | VBATÂ +12 V / NET-S |
Pin assignment M12
| 1: | Shield |
| 2: | VBATÂ +12 V / NET-S |
| 3: | GND / NET-C |
| 4: | CAN-H / NET-H |
| 5: | CAN-L / NET-L |
Â
n/d
- Type CAN Hardware
- Vendor PEAK-System Technik
- SKU IPEK-003016
