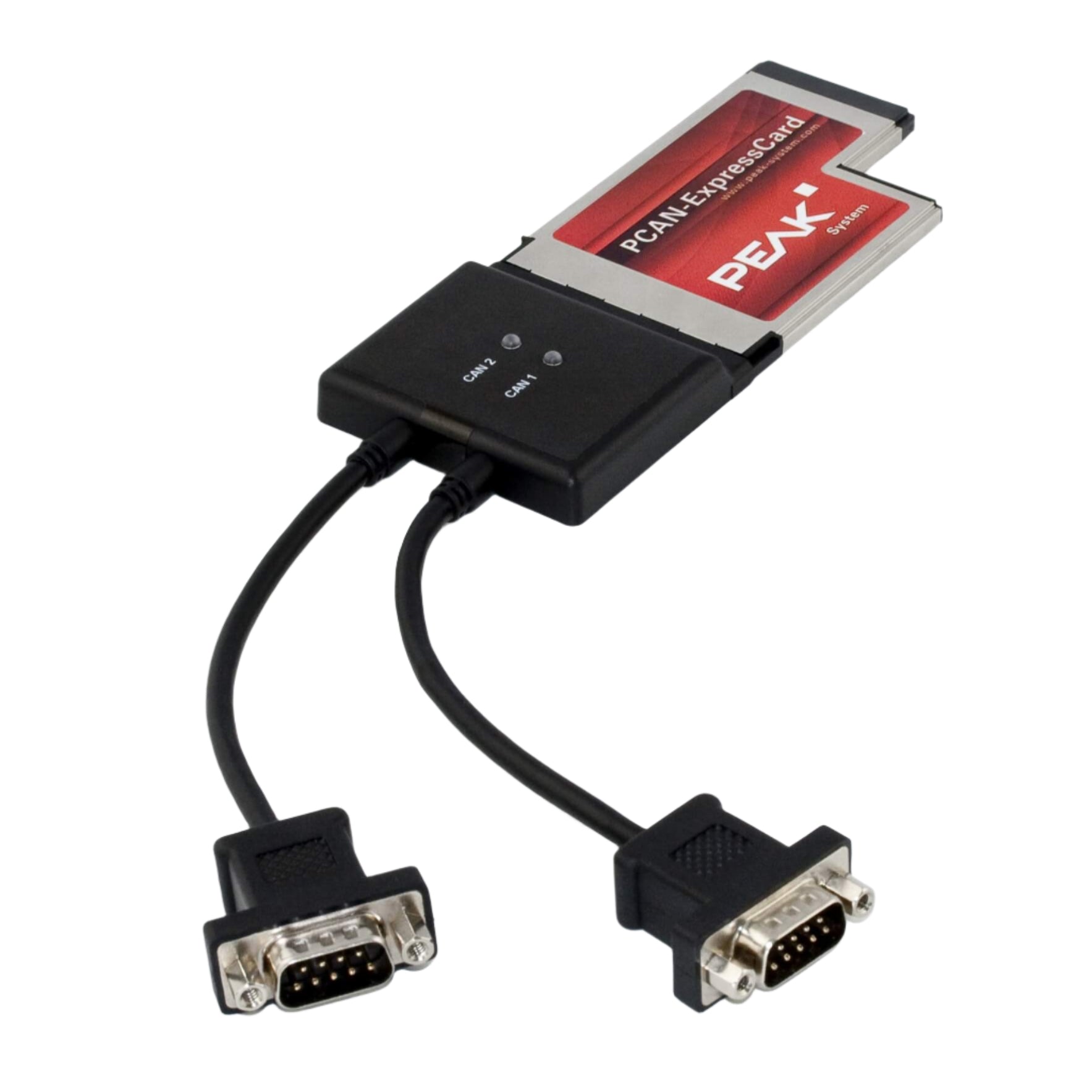

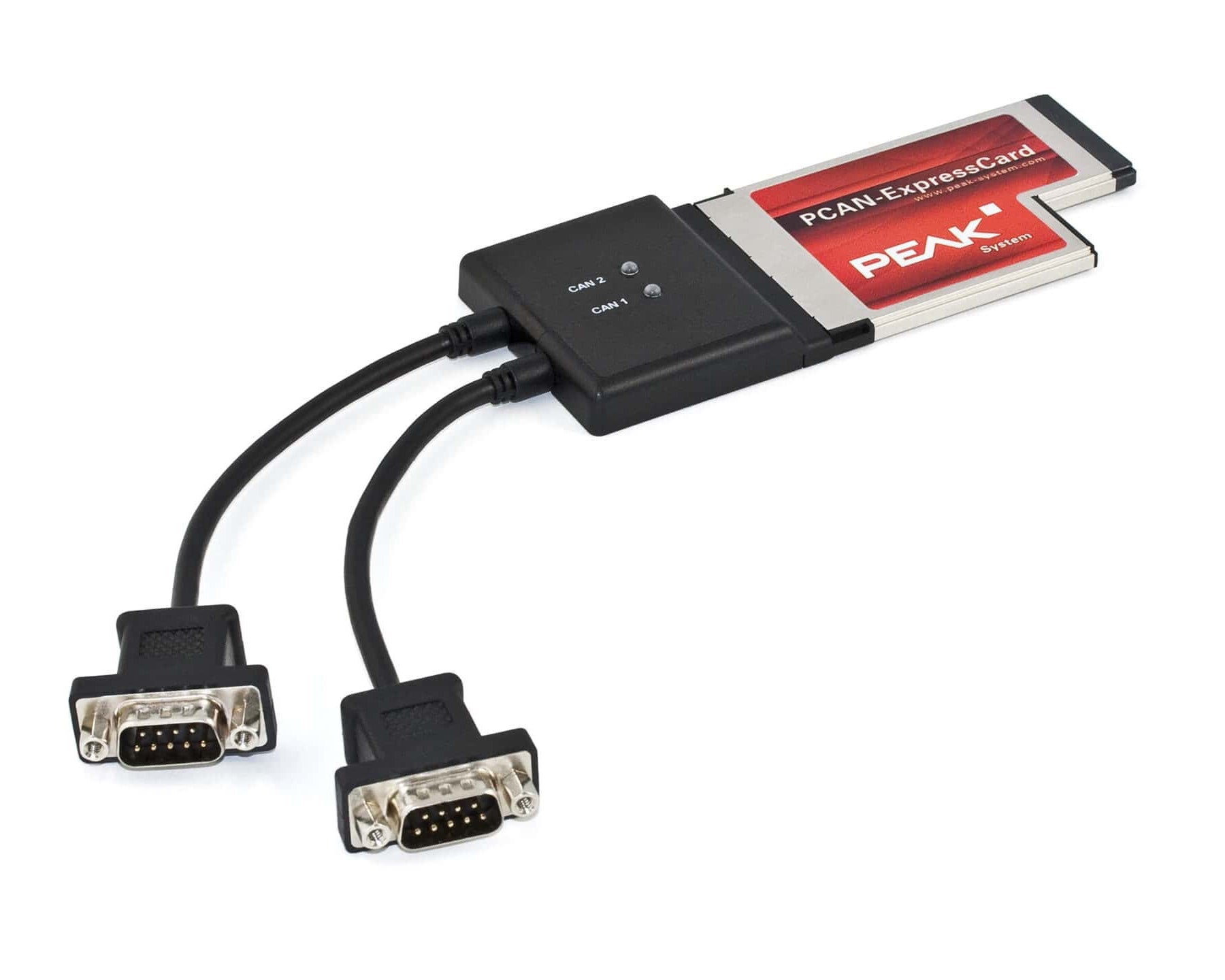

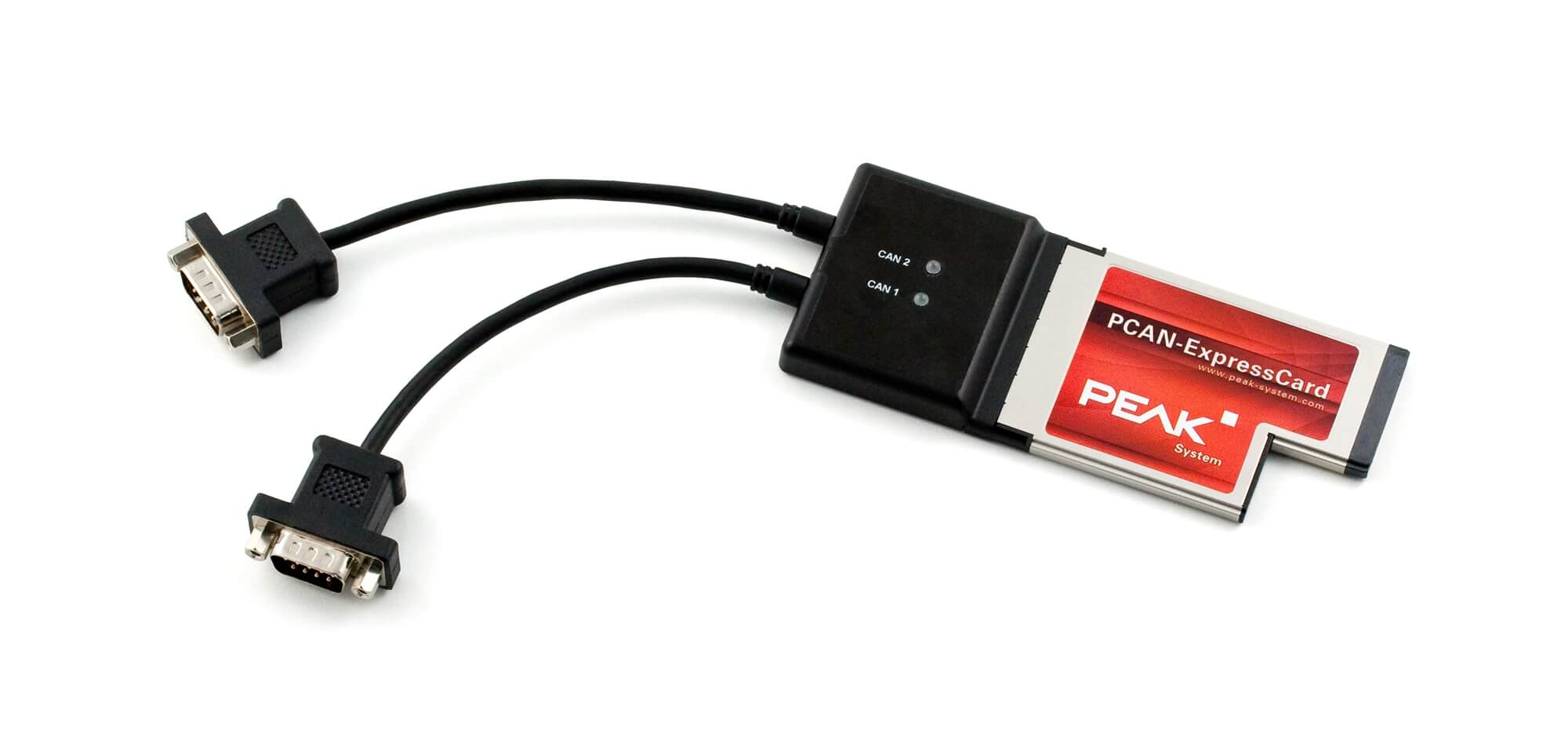

PCAN-ExpressCard (1ch/2ch)

SKU #: IPEH-003000, IPEH-003001

The PCAN-ExpressCard provides a connection between a CAN bus and a laptop or desktop PC with an ExpressCard/54 slot. Available in single or dual channel versions and galvanically separated versions which guarantee galvanic separation up to a maximum of 300 Volts between the PC and CAN sides. The PCAN-ExpressCard package includes device drivers for Windows® 7/8/10, Vista/XP (32/64-bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available.

NOTE: Product discontinued, available while supplies last! Current stock: 2* IPEH-003000, 2* IPEH-003001

  • Card for the ExpressCard slot
  • Form factor ExpressCard/54
  • Bit rates up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • NXP PCA82C251 CAN transceiver
  • Software option to switch a 5-Volts supply to the CAN connection, e.g. for external bus converter
  • Operating temperature range from 0 to 70 °C (32 to 158 °F)
  • Available as single-channel (IPEH-003000) or dual-channel version (IPEH-003001)
  • Galvanic isolation on the CAN connection up to 100 V, separate for each CAN channel (optional)
Interface(s) PC: ExpressCard Slot, type ExpressCard/54
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Power Consumption 1 channel max. 142 mA (1.5V), 245 mA (3.3V)
2 channel max. 142 mA (1.5V), 296 mA (3.3V)
Baud Rate CAN: max. 1 Mbit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Enclosure IP30
Transceiver CAN: NXP / Philips PCA82C251
Dimensions 116 x 54 x 12 mm
Weight 60, 80, 60, 80 g
Software Driver: Windows® 7/8, Vista, XP; Linux
Tools: PCAN-View for Windows®
Isolation 300 VDC (optional)
Controller(s) CAN: NXP / Philips SJA1000
Channels 1 or 2
I/O & IRQ automatically assigned via "plug n play"
Specification CAN: 2.0A (Standard format) and 2.0B (extended format)
Operating temperature 0°C to +70°C
Storage temperature -30°C to +100°C
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 55024:2003-10
EN 55022:2007-04
EC directive 2004/108/EG
Certifications CE, RoHS
PCAN-ExpressCard manual
User's Guide in English
PCAN-ExpressCard package
The package includes device drivers for Windows® 7/8, Vista/XP (32/64-bit), the PCAN-Basic API, the CAN monitor PCAN-View, and documentation (German and English)
