PCAN-ISO-TP API
Couldn't load pickup availability
Orders placed before 2:30 Pacific Time usually ship the same day.
Items are delivered with essential accessories and easy-to-follow instructions.
Questions?
An international standard for the transfer of data packages via CAN.
Above CAN (OSI layers 1 and 2).
The protocol covers the OSI layers 3 (Network Layer) and 4 (Transport Layer). It can transmit data packages of up to 4095 bytes per CAN message. The data bytes are transmitted segmented with multiple CAN frames.
The PCAN-ISO-TP API implements the functionality of the standard on the basis of 10 functions. They are categorized in Allocation, Configuration, Address Mapping Configuration, Information, and Communication.
PCAN-ISO-TP uses the PCAN-Basic programming interface to access the CAN hardware in the computer. PCAN-Basic is supplied with each CAN interface of PEAK-System.
- Implementation of the ISO-TP protocol (ISO 15765-2) for the transfer of data packages up to 4095 bytes via the CAN bus
- Windows® DLLs for the development of 32-bit and 64-bit applications
- Thread-safe API
- Physical communication via CAN or CAN FD using a CAN interface of the PCAN series
- Uses the PCAN-Basic programming interface to access the CAN hardware in the computer
System Requirements:
- Windows® 10, 8.1, 7 (32/64-bit)
- At least 2 GB RAM and 1.5 GHz CPU
- For the CAN bus connection: PC CAN interface from PEAK-System
- PCAN-Basic API
| Downloads | Â |
| PCAN-ISO-TP API | API for the transfer of data packages according to ISO-TP (ISO 15765-2) |

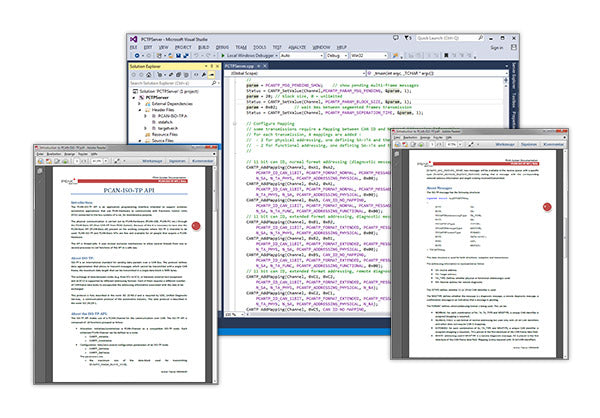

| PCAN-ISO-TP API documentation | |
| PCAN-Basic API | API for the development of applications with CAN and CAN FD connections for Windows® 10, 8.1, 7 (32/64-Bit) |
- Type CAN Software
- Vendor PEAK-System Technik
- SKU PCAN-ISO-TP API
