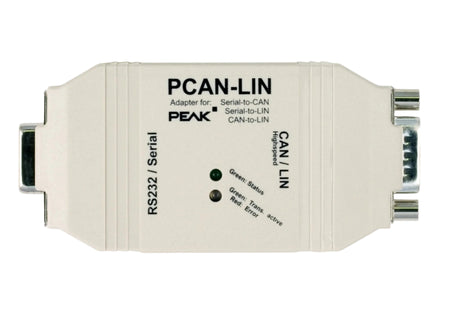

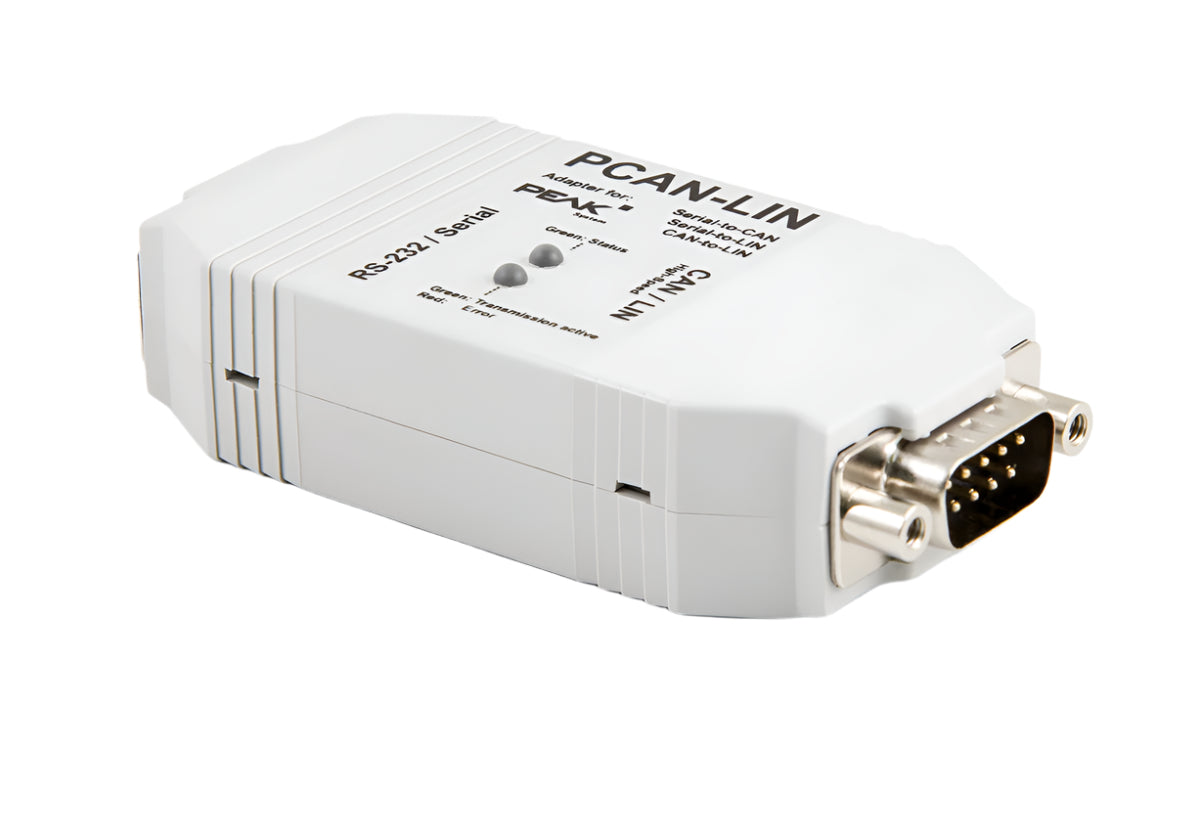

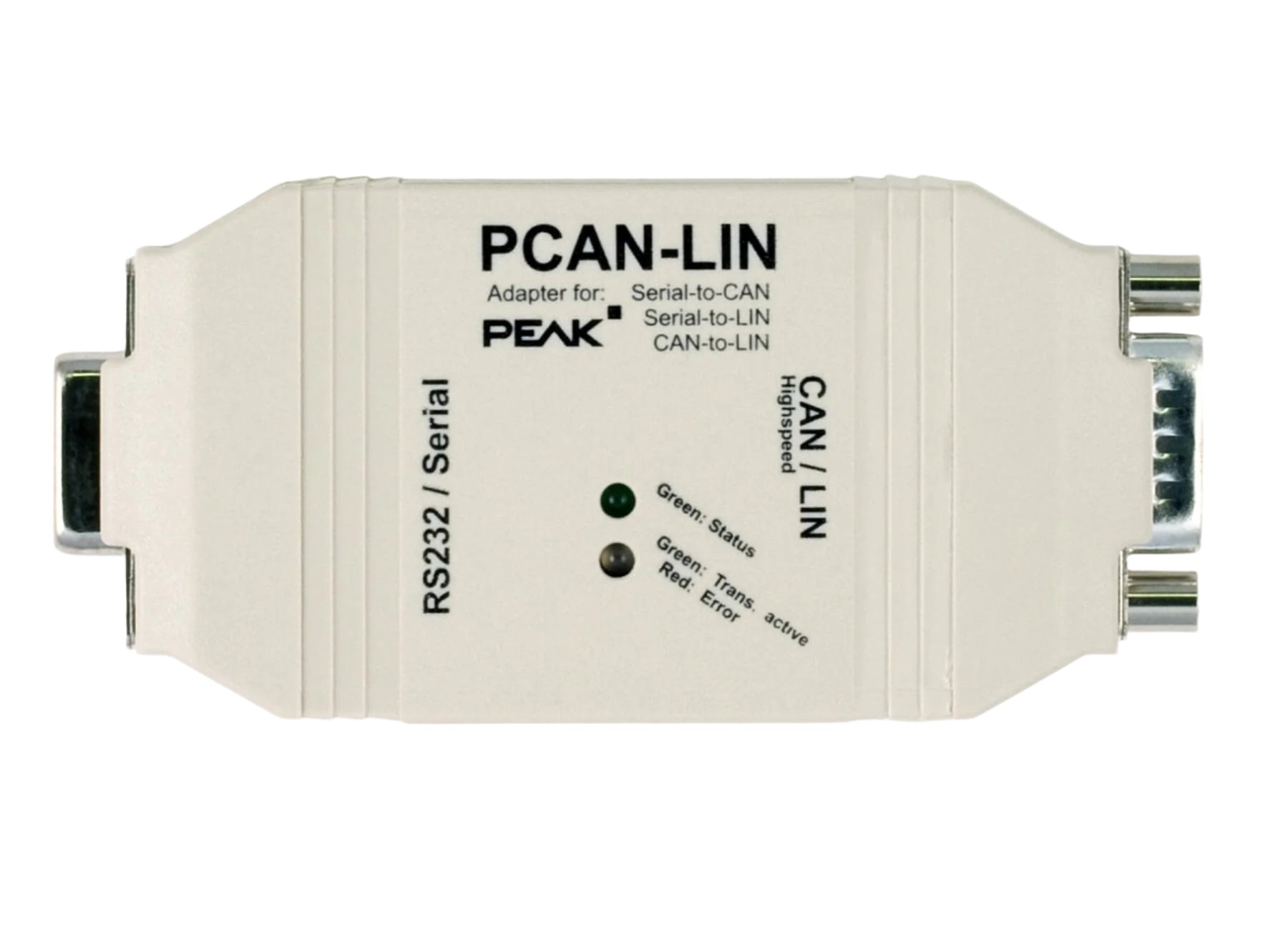

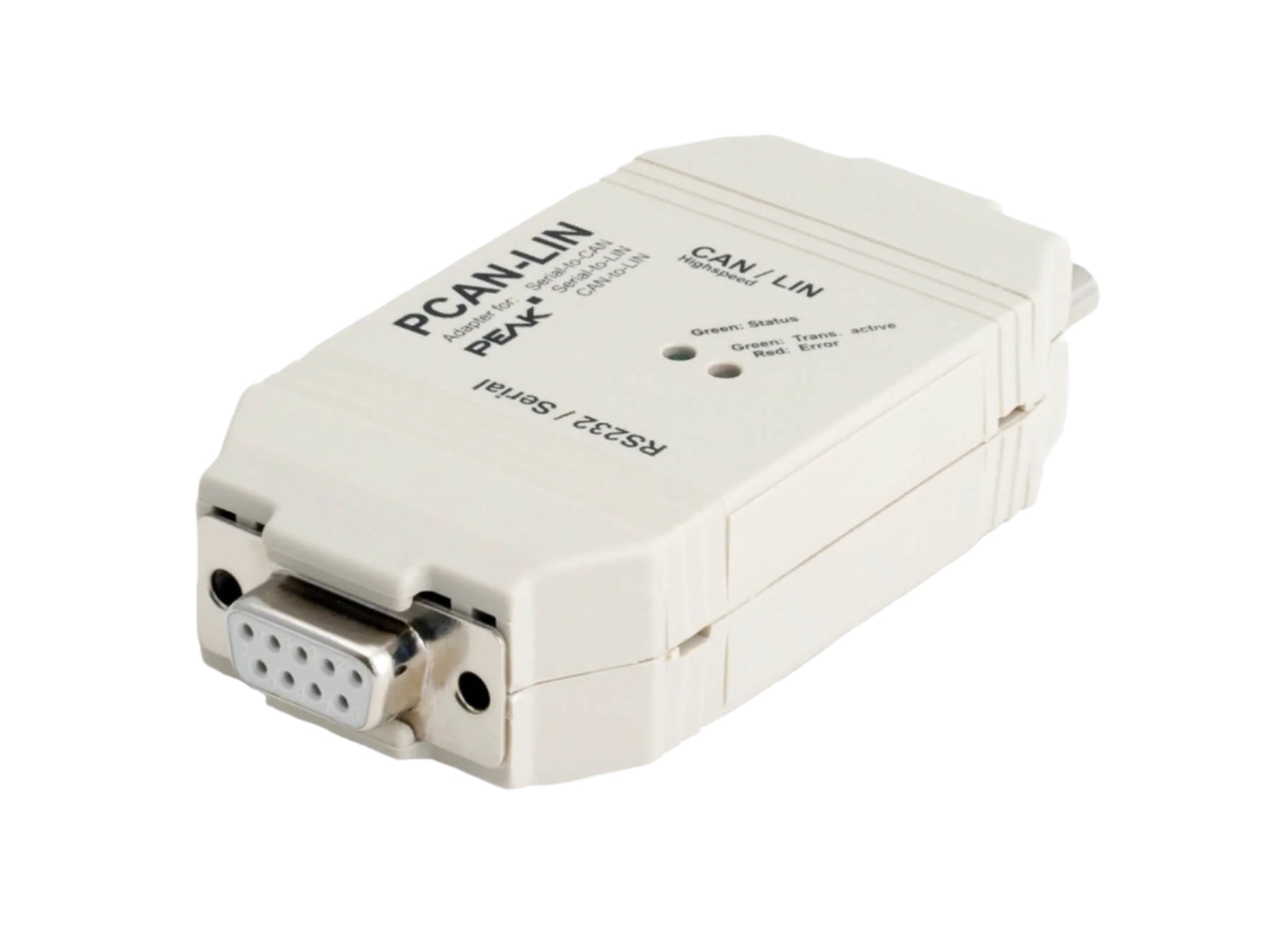

PCAN-LIN Interface (high-speed CAN)

SKU #: IPEH-002025
Save 8%
Original price $355
Current price $325

The PCAN-LIN module enables users to communicate over CAN, LIN and serial interface. The module is supplied in a plastic casing. The included firmware enables data exchange between the different bus systems, while configuration software allows setup of different operational modes. For instance, when configured as a LIN master, the PCAN-LIN can request data and send the incoming LIN data to the CAN bus and/or the serial interface. The default bit rate for LIN is 19200 bps. CAN data are directly routed to LIN without offset (offset 0). The default bit rate for CAN is 500 Kbps. The High Speed version has a maximum CAN speed of 1 Mbps.

  • Sending/receiving LIN 1.x and 2.0 frames
  • The standard bit rate is set to 19200 bit/s for LIN and to 500 kbit/s for CAN
  • Electrical decoupling available between RS-232 and CAN/LIN (maximum 1 kV, optional)
  • Available for use as LIN slave or master / slave
  • General-purpose gateway (or router when using Acceptance Code / Acceptance Mask feature) from:
    • RS-232 to LIN (and back)
    • CAN to LIN (and back)
    • RS-232 to CAN (limited bandwidth)
  • Individual LIN frames can be initiated via CAN or RS-232
  • Processing a user-definable LIN-ID list (scheduler with limited number of entries, cyclic handling if required)
  • Voltage supply 9 - 30 V
  • Optional simulation of LIN slaves. Data can be changed via CAN frames (firmware must be modified)
Interface(s) Serial: RS-232, max. 57.600 kBit/s
LIN: ISO 15765-2, LIN 1.x and LIN 2.x, max. 19.200 kBit/s
CAN transceiver Philips PCA82C251, max. 1 MBit/s, CAN 2.0A (Standard format) and 2.0B (Extended format), CAN controller Philips SJA1000
Power Consumption voltage: +8 … +18 V DC (via Pin 1 of the D-Sub male connector)
PCAN-LIN HS-CAN: max. 130 mA
Dimensions 92 x 44 x 22 mm
Weight 47 g
Operating temperature -40 … +85 °C (-40 … +185 °F)
Storage temperature -40 … +100 °C (-40 … +212 °F)
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 61000-6-3:2001
EN 61000-6-1:2001
EN 61000-6-4:2001
EN 61000-6-2:2001
EC directive 89/336/EEC
Certifications CE
PCAN-LIN manual
PDF Users Manual in English
PCAN-LIN protocol definition
PDF Protocol Definition Manual in English
PCAN-LIN package
PCAN-LIN Configuration software for Windows® and documentation in PDF format.
