PCAN-LIN Interface (high-speed/iso)

SKU #: IPEH-002029
Save 5%
Original price $399
Current price $379

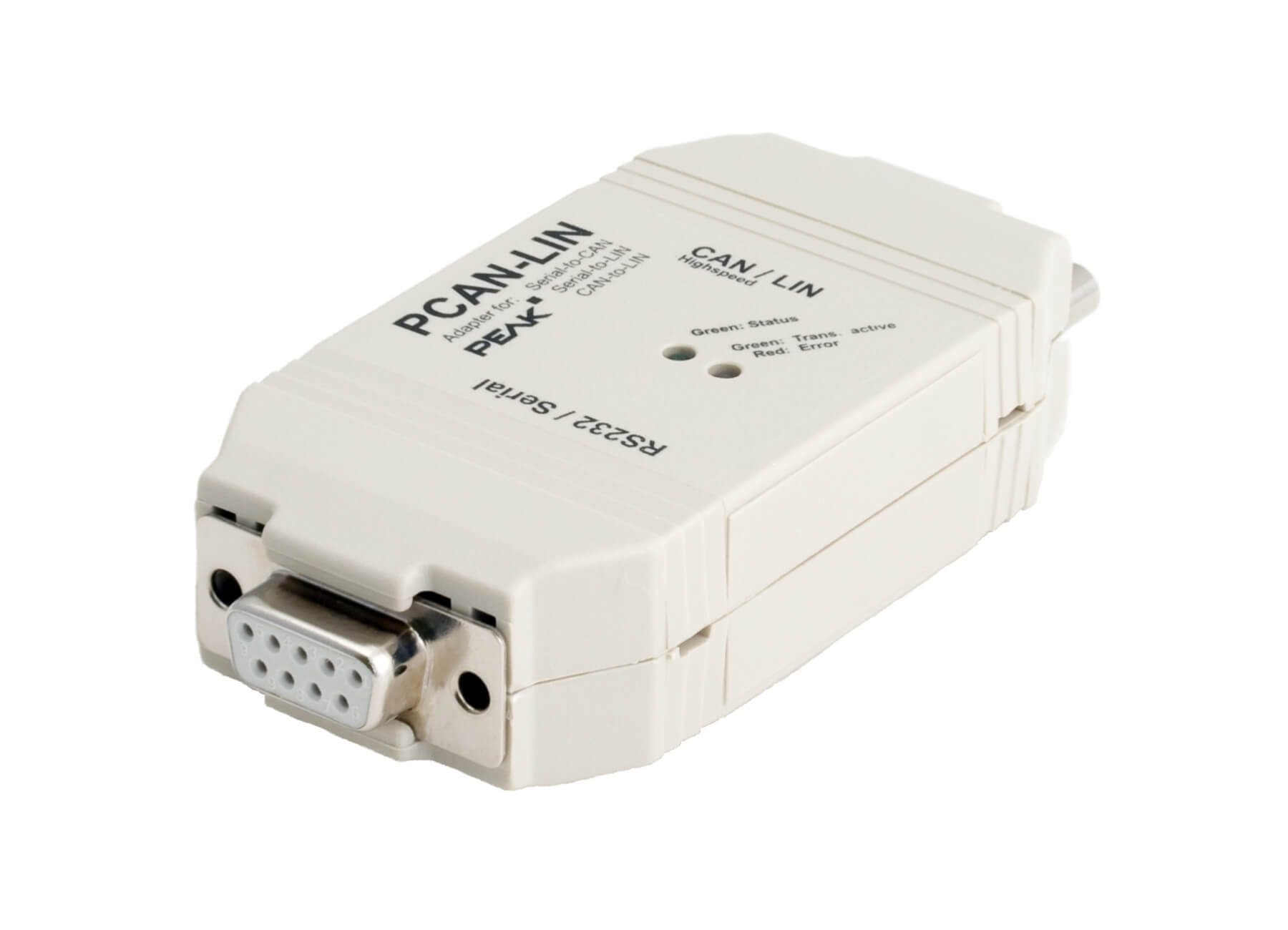

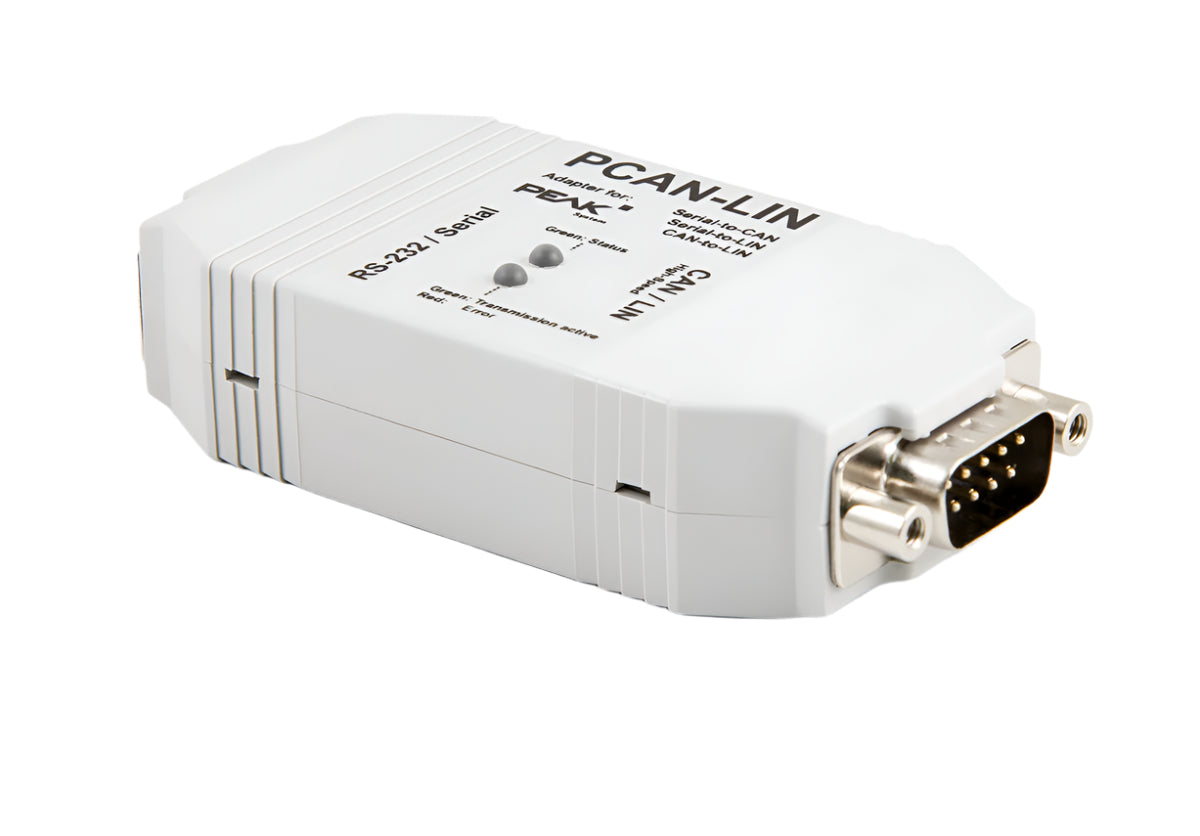

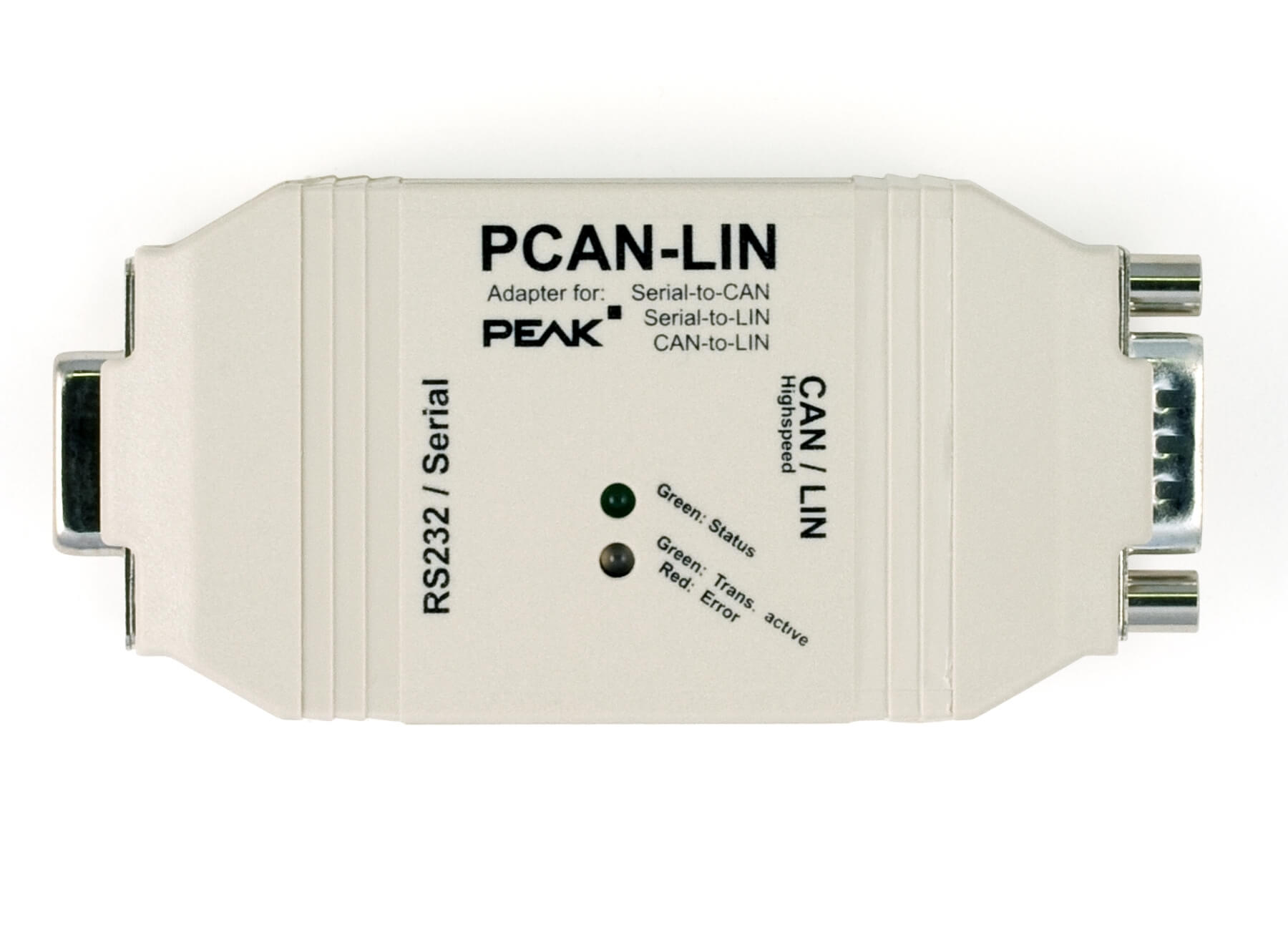

The PCAN-LIN module enables users to communicate over CAN, LIN and serial interface. The module is supplied in a plastic casing. The included firmware enables data exchange between the different bus systems, while configuration software allows setup of different operational modes. For instance, when configured as a LIN master, the PCAN-LIN can request data and send the incoming LIN data to the CAN bus and/or the serial interface. The default bit rate for LIN is 19200 bps. CAN data are directly routed to LIN without offset (offset 0). The default bit rate for CAN is 500 Kbps. The High Speed version with optical isolation has a max CAN speed of 1 Mbps with galvanic isolation between RS-232 and LIN/CAN of up to 1 kV.

  • Sending/receiving LIN 1.x and 2.0 frames
  • The standard bit rate is set to 19200 bit/s for LIN and to 500 kbit/s for CAN
  • Electrical decoupling available between RS-232 and CAN/LIN (maximum 1 kV, optional)
  • Available for use as LIN slave or master / slave
  • General-purpose gateway (or router when using Acceptance Code / Acceptance Mask feature) from:
    • RS-232 to LIN (and back)
    • CAN to LIN (and back)
    • RS-232 to CAN (limited bandwidth)
  • Individual LIN frames can be initiated via CAN or RS-232
  • Processing a user-definable LIN-ID list (scheduler with limited number of entries, cyclic handling if required)
  • Voltage supply 8 - 18 V
  • Optional simulation of LIN slaves. Data can be changed via CAN frames (firmware must be modified)
Power Supply +8 … +18 V DC
(via Pin 1 of the D-Sub male connector)
Power Consumption PCAN-LIN HS-CAN/iso: max. 140 mA
Serial RS-232, max. 57.600 kBit/s
LIN ISO 15765-2, LIN 1.x and LIN 2.x, max. 19.200 kBit/s
CAN PCAN-LIN HS-CAN: ISO 11898-2,CAN transceiver Philips PCA82C251, max. 1 MBit/s, CAN 2.0A (Standard format) and 2.0B (Extended format), CAN controller Philips SJA1000
Dimensions 92 x 44 x 22 mm
Weight 50g
Operating temperature -40 … +85 °C (-40 … +185 °F)
Storage temperature -40 … +100 °C (-40 … +212 °F)
Relative humidity 15 - 90 %, not condensing
EMC directives EN 61000-6-3:2001
EN 61000-6-1:2001
EN 61000-6-4:2001
EN 61000-6-2:2001
EC directive 89/336/EEC
Certifications CE
PCAN-LIN manual
Manual in English
PCAN-LIN protocol definition
Manual in English
PCAN-LIN package
PCAN-LIN Configuration software for Windows® and documentation in PDF format.
