SKU #: IPEH-002080

Universal I/O Module with CAN Interface

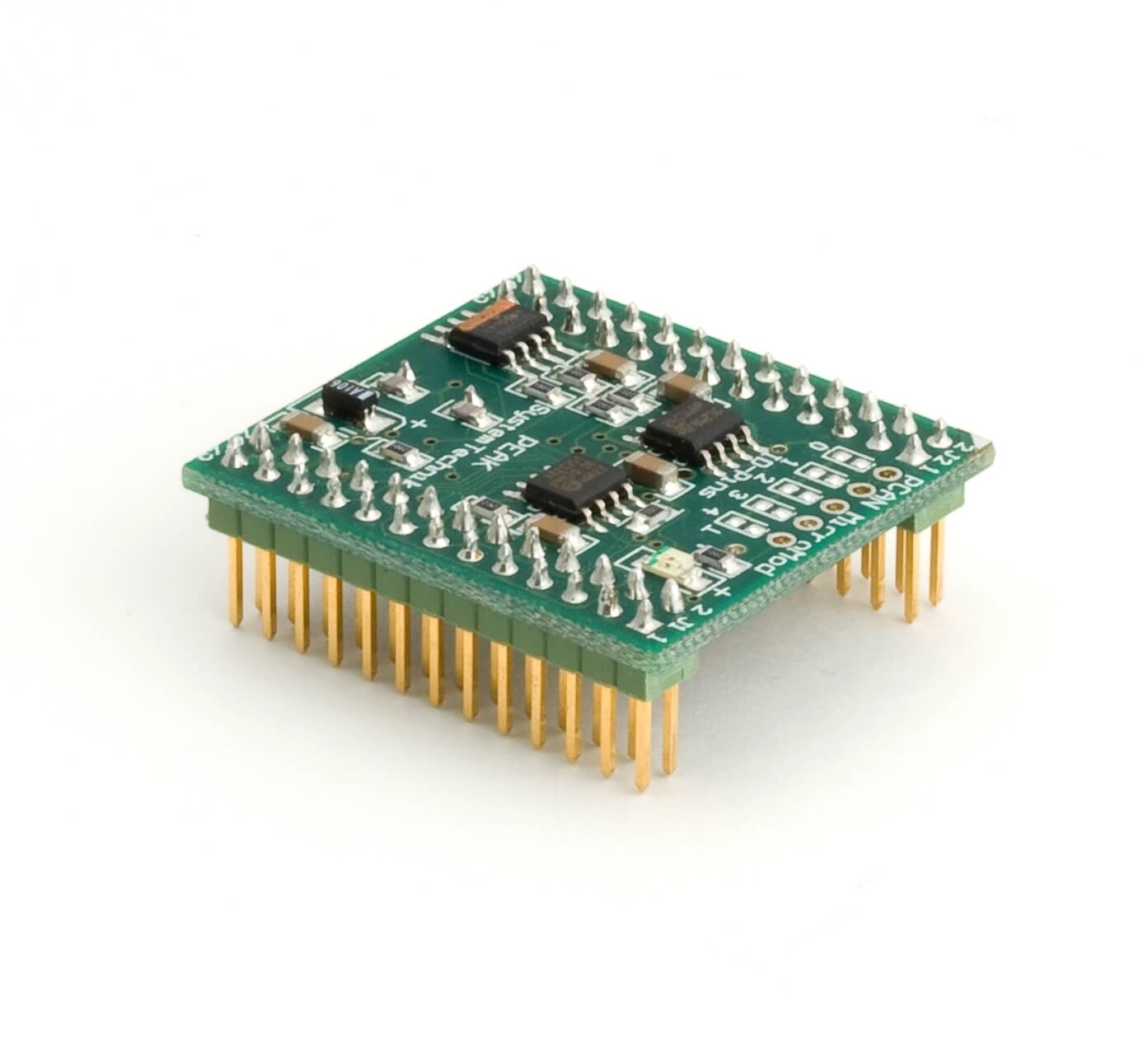

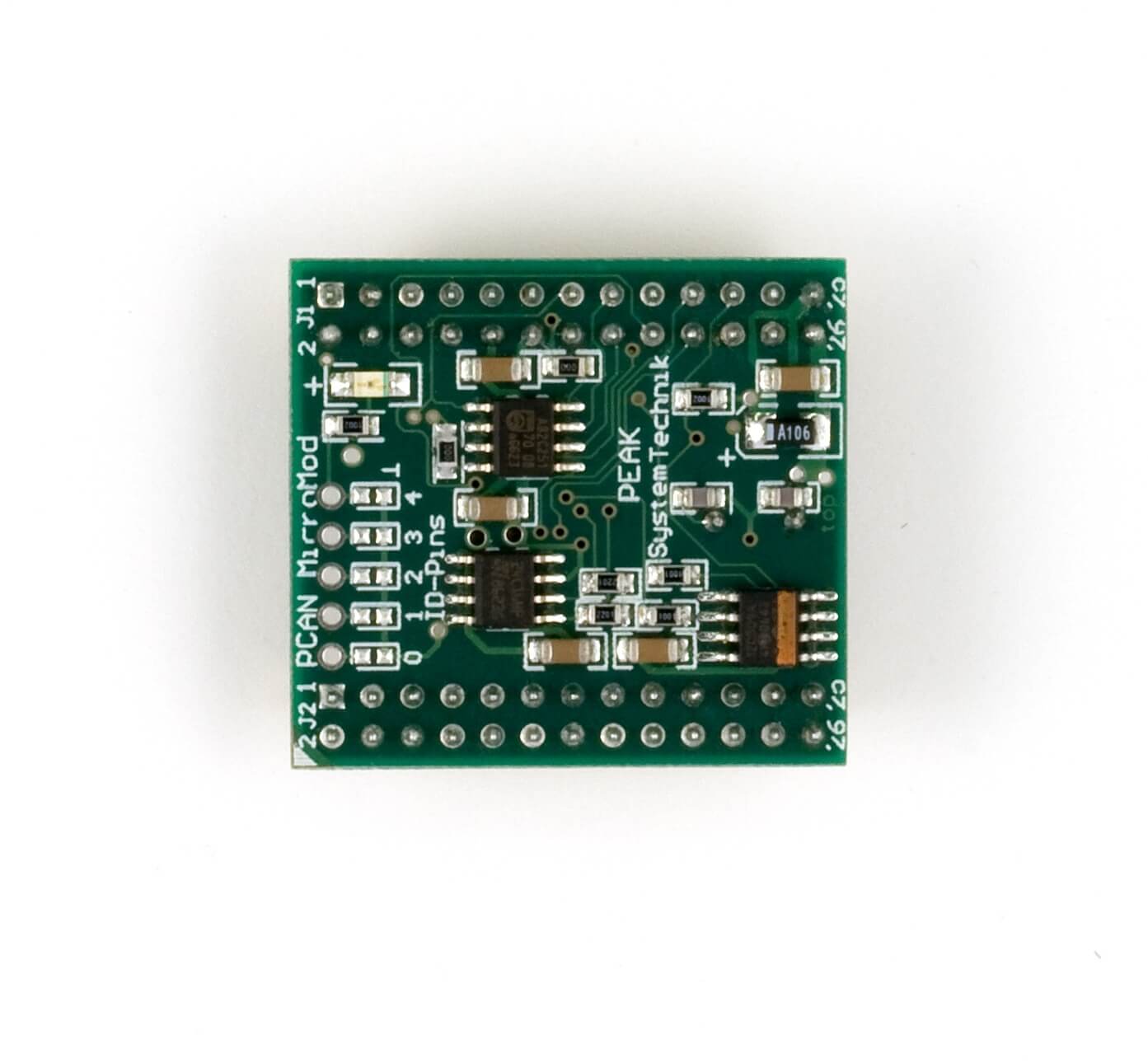

The PEAK PCAN-MicroMod is a subminiature (32 x 36 mm) insert-ready CAN node for OEM designs requiring a single regulated 5 VDC power supply. The integrated firmware allows for simple configuration of the target system with a Windows utility program. The configuration data is sent to the module via CAN. Up to 32 PCAN-MicroMods can be integrated in a single CAN network. Each individual module can be networked via CANbus, thus enabling its configuration data to be read, modified and stored.

A PCAN-MicroMod evaluation board is also available to simplify the development of custom application boards and firmware development. In addition, Analog 1&2 , Digital 1&2 , Mix 1&2 and Mix 3 PCAN-MicroMod motherboards are available which are application-ready CAN or CANopen I/O devices for use in a wide variety of distributed I/O systems.


  • Subminiature dimensions (32 x 36 mm)
  • Fujitsu MB90-F497 CAN controller
  • 8 x analog inputs, 10-bit, Vref 5V
  • 8 x digital inputs
  • 8 x digital outputs
  • 4 x PWM/frequency outputs, range 1 Hz to 20 KHz
  • Maximum of 32 MicroMods in one CAN network
  • Configurable via software for Windows® 8,7/Vista (32/64-bit)

Configuration software:

  • Periodic and edge-triggered sending of CAN messages
  • Logical linking of digital inputs
  • Direct conversion from analog inputs to CAN IDs
  • Analog values can be processed using characteristic curves or hysteresis function
  • Direct evaluation of rotary encoders
Power Consumption Supply voltage: +5 V DC
Current consumption: max. 160 mA
Digital inputs Count: 8
Connectors Connection strips: 2 double strips, each with 26 pins
Pin spacing: 100 mil (2.54 mm)
Control and communication Microcontroller: Fujitsu MB90F497G
Standard firmware: Configuration via reserved CAN ID 0x7e7
Frequency inputs Count: 4
Analog inputs Count: 8
resolution 10 bits
reference voltage 5 V
impedance 3.2 kΩ
Digital outputs Count: 8
Frequency/PWM outputs Count: 4(depending on firmware)
Properties with standard firmware Frequency inputs: Measuring range 1 Hz – 10 kHz (maximum depends on work load, min. 4 kHz)
Frequency/PWM outputs: 4 PWM (8-bit mode): 32 - 100 Hz, 4 - 10 kHz, frequency-dependent resolution 1.3 - 1.0 % - or - 2 PWM (16-bit mode, from firmware 2.5): 1 Hz - 10 kHz, frequency-dependent resolution 0.205 - 0.005 % (see User's Manual for more details) - or - 2 frequency: 1 Hz - 10 kHz, minimum step width 1 Hz
CAN Specification: ISO 11898-2, High-speed CAN (up to 1 Mbit/s); 2.0A (standard format); 2.0B (extended format) (from firmware 2.0)
Transceiver: NXP PCA82C251 (can be disconnected for use of an alternative transceiver on the motherboard)
Termination: none
Dimensions 32 x 35 x 13 mm (W x L x H) (see User's Manual for more details)
Weight 9 g
Operating temperature -40 - +85 °C (-40 - +185 °F)
Storage temperature -40 - +100 °C (-40 - +212 °F)
Relative humidity 15% - 90%, not condensing
PCAN-MicroMod manual
Manual in PDF format (English)
PCAN-MicroMod package
The package includes the configuration software PCAN-MicroMod Configuration for Windows®, the latest PCAN-MicroMod and the CANopen® firmware, all files for development, and documentation
PCAN-MicroMod Configuration
PCAN-MicroMod Configuration software for Windows® 10, 8.1,7 (32/64-bit)
