PCAN-MicroMod Analog 2

SKU #: IPEH-002207

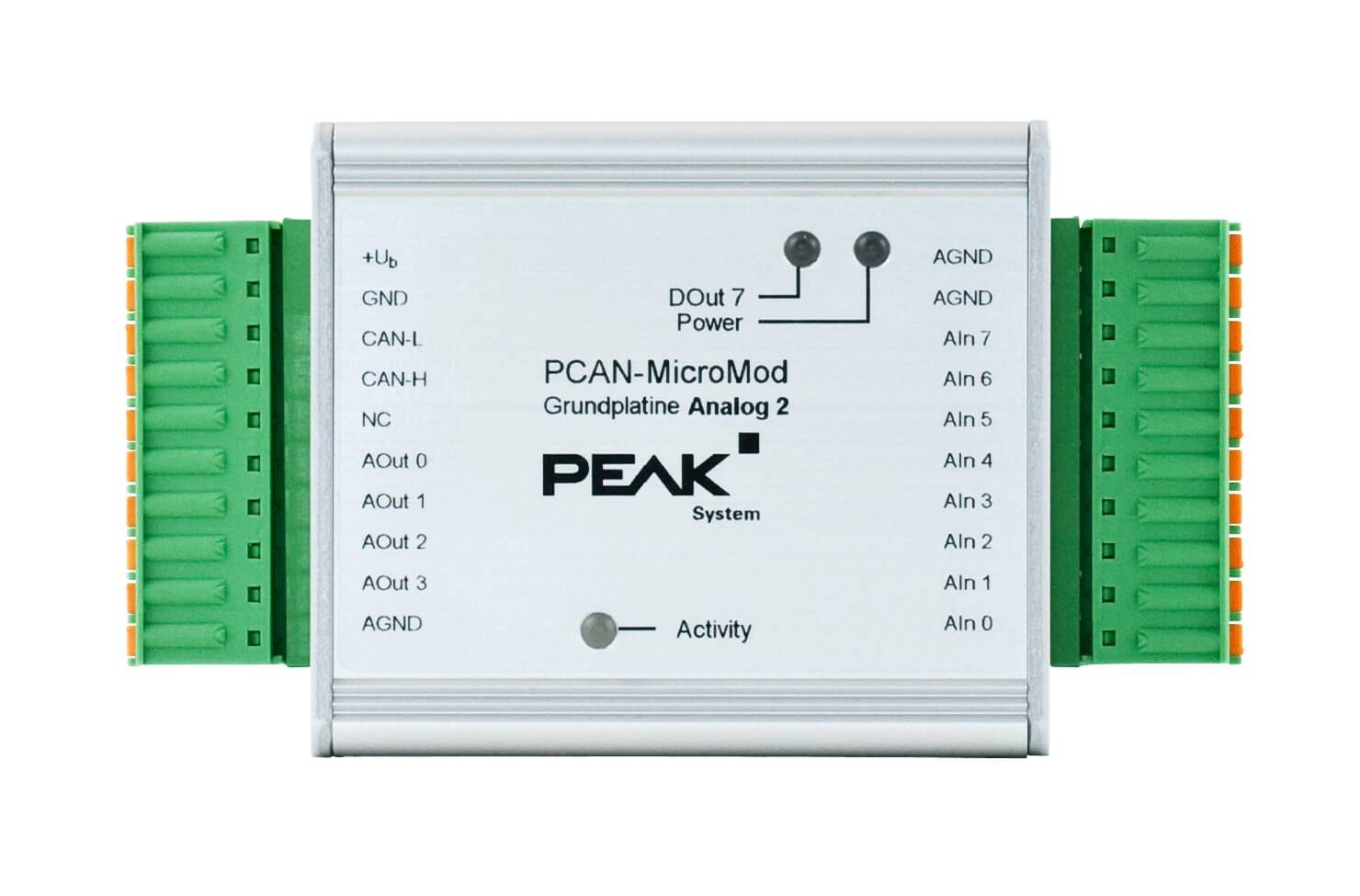

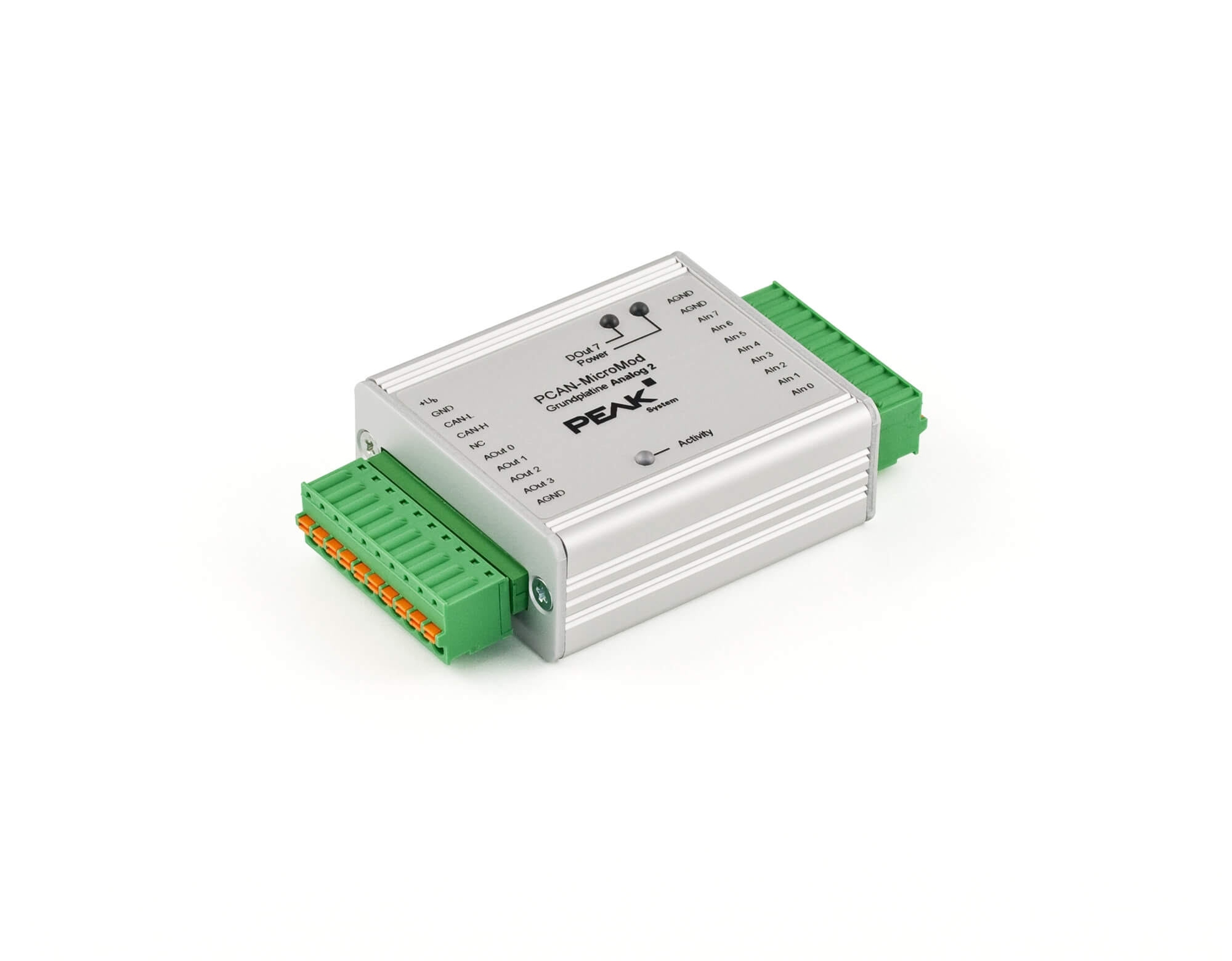

The motherboards for the PCAN-MicroMod provide an application-oriented environment. Typical characteristics of this product group include a wide supply voltage range and the protective circuit for the inputs and outputs. CANopen® firmware is available for all PCAN-MicroMod motherboards. The motherboards Analog 1 & 2 support general analog requirements.

  • Completely configurable using the Windows® software PCAN-MicroMod Configuration
  • Software low pass filter can be adjusted by means of configuration (1 - 1000 ms)
  • Communication through high-speed CAN
  • Operating voltage 11 - 30 V
  • Aluminum casing with spring terminal connectors. Optional DIN rail fixing option available
  • Extended operating temperature range from -40 to 85 °C (-40 to 185°F)

8 analog inputs with the following properties:

  • Bipolar measurement range +/-10 V
  • Resolution 16 bit
  • Sample rate depends on the number of used cahnnels (2 kHz/n)
  • Protection against under- and overvoltages

4 analog outputs with the following properties:

  • Voltage range 0 - 10 V (based on 12-bit DAC)
  • Output current 20 mA per channel
  • Short-circuit protection
Power Supply Operating voltage: 11 - 30 V DC (±5 %), 8 - 30 V w/o AOut
Current consumption: max. 200 mA
Ripple 5 V: < 50 mV (Ub = 12 V, 200 mA load)
Ripple analog: < 20 mV
Reverse-polarity protection: extant; can get ineffective by the wiring with other CAN nodes (danger of destruction of electronic components)
Analog Inputs Count: 8
Measuring range: -10 - +10 V, other measuring range on request
Resolution: 16 bit, 0.3125 mV/digit
Source impedance: < 500 kΩ
Overvoltage protection: extant
Low-pass time constant τ: Hardware: 1 ms, Software: 1 - 1000 ms (optional by configuration)
Analog outputs Count: 4
Type: DAC-based
Voltage range: 0 - 10 V
Resolution: 12 bit
Current output: 20 mA
Short circuit protection: extant
CAN Transmission standard: High-speed CAN ISO 11898-2, typ. 500 kbit/s, setup with PCAN-MicroMod Configuration (Windows software)
Termination: none
CAN ID reserved for configuration transfer: 0x7E7
Module number at delivery (for configuration transfer): 0
Peculiarity Interference Immunity Tests: compliant to IEC 61000 and DIN EN 61326
Surge: ±500 V (specification industrial sector: ±1 kV) [see User's Manual for more details]
Line-conducted HF compatibility: 10 Veff (specification: 3 Veff)
Dimensions 55 x 68 x 24 mm, see User's Manual for more details - Casing size (incl.connectors)
Weight 108 g
Operating temperature -40 - +85 °C (-40 - +185 °F)
Storage temperature -40 - +100 °C (-40 - +212 °F)
Relative humidity 15% to 90% (non-condensing)
Ingress protection (IEC 60529) IP20
EMC DIN EN 61326-1:2008-06, EC directive 2004/108/EG
