Please note: The product is only available in smaller quantities. Unfortunately, larger quantities can no longer be produced. Please see the PCAN Micromod FD series for new projects.

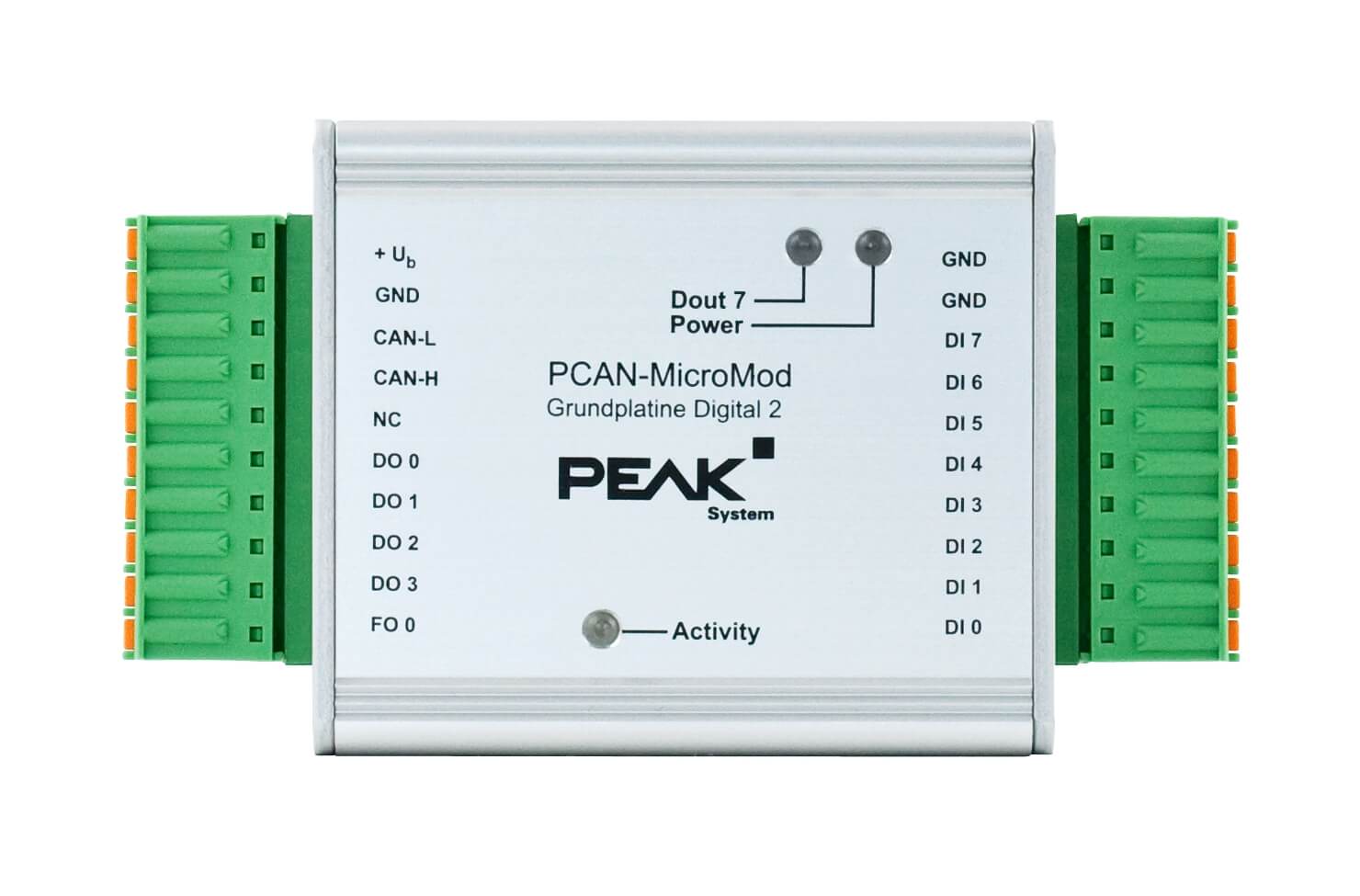

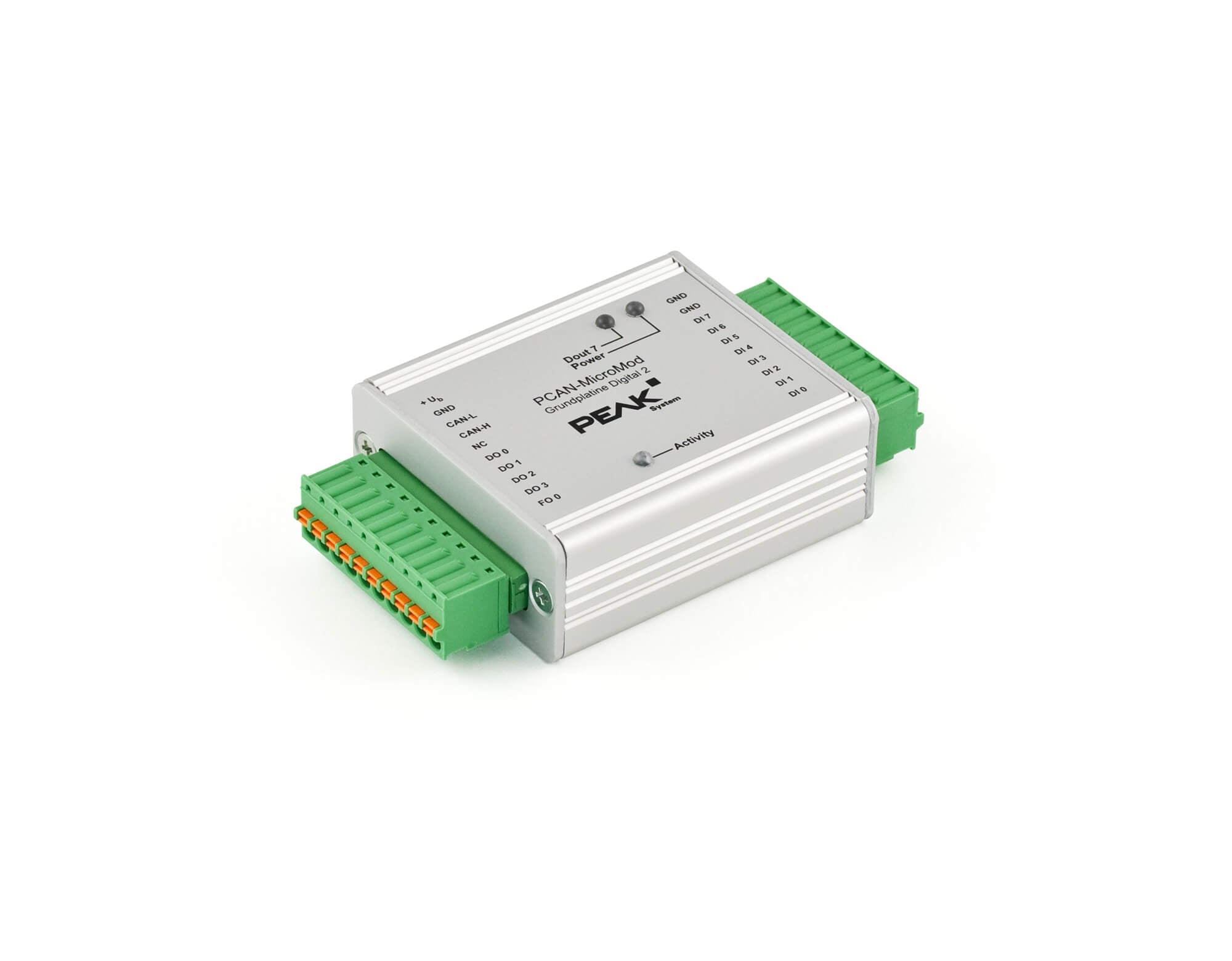

PEAK PCAN-MicroMod Motherboards represent a family of implementation-ready CAN or CANopen I/O systems suitable for a wide range of industrial control applications. Typical characteristics of this product group include a wide supply voltage range and the protective circuit for the inputs and outputs. Each motherboard comes with a PCAN-MicroMod installed and is enclosed in a compact and robust aluminum casing. Firmware included in the MicroMod CPU module handles all input/output processing and CAN communication and each is completely configurable using the Windows® PCAN-MicroMod configuration software. The PCAN-MicroMod evaluation board is also available to jump-start custom development.
- Completely configurable using the Windows® software PCAN-MicroMod Configuration
- Communication through High-speed CAN
- Operating voltage 8 - 26 V
- Aluminum housing with spring terminal connectors. Optional DIN rail fixing option available
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
- CANopen firmware available upon request
8 digital inputs with the following properties:
- Pull-up or Pull-down circuit selectable in groups (3 groups)
- Voltage level difference 5 - 18 V
- Schmitt trigger behaviour, inverting
- Low pass behaviour
- Parallel switching of one frequency input for 4 digital inputs for an alternative use (e.g. for fast status changes, counters)
5 digital outputs with the following properties:
- 4 high-side switches, max. 34 V, 1.1 A
- 1 fast Low-side switch, max. 55 V, 0.75 A ("frequency output")
- Short-circuit protection
- Status LEDs for power supply and digital output
| Power Supply | Operating voltage +Ub: 8 - 26 V DC (±5 %) Current consumption: max. 200 mA (w/o output driver), typ. 35 mA at 12 V w/o load Ripple (5 V): < 50 mV (+Ub = 12 V, 200 mA load) Reverse-polarity protection: extant; can get ineffective by the wiring with other CAN nodes (danger of destruction of electronic components) |
| Digital inputs | Count: 8 Switching thresholds: UIH = 4 V; UIL = 3 V, contact or logic level Input impedance: 2.7 kΩ Open input: Pull-up, optionally pull-down (in groups) Overvoltage protection: extant Low-pass: fg = 7 kHz Special feature: Frequency inputs of the PCAN-MicroMod parallel (only DI 0 to DI 3) |
| Digital outputs | Count: 5 Type: DOut: High-side, FOut: Low-side Voltage proof: DOut: < 43 V, FOut: < 55 V Output current: DOut x: 1.1 A, FOut: 0.75 A (constant current, all outputs active) Short circuit protection: extant; short-circuit currents: DOut x: 4 A, FOut: 1.2 A |
| CAN | Transmission standard: High-speed CAN ISO 11898-2, typ. 500 kbit/s, setup with PCAN-MicroMod Configuration (Windows software) Termination: none CAN ID reserved for configuration transfer: 0x7E7 Module number at delivery (for configuration transfer): 0 |
| Peculiarity Interference Immunity | Tests: compliant to IEC 61000 and DIN EN 61326 Surge: ±500 V (specification industrial sector: ±1 kV)1 Line-conducted HF compatibility: 10 Veff (specification: 3 Veff) |
| Dimensions | 55 x 68 x 24 mm - Casing size (incl.connectors) |
| Weight | 107 g |
| Operating temperature | -40 - +85 °C (-40 - +185 °F) |
| Storage temperature | -40 - +100 °C (-40 - +212 °F) |
| Relative humidity | 15% to 90% (non-condensing) |
| Ingress protection (IEC 60529) | IP20 |
| EMC | DIN EN 61326-1:2008-06, EC directive 2004/108/EG |
| PCAN-MicroMod Digital 1 & 2 manual |
| User's Guide in English |
| PCAN-MicroMod CANopen® firmware manual |
| CANopen Firmware Manual in English |
| PCAN-MicroMod package |
| The package includes the configuration software PCAN-MicroMod Configuration for Windows®, the latest PCAN-MicroMod and the CANopen® firmware, all files for development, and documentation (German and English) |
| PCAN-MicroMod Configuration |
| PCAN-MicroMod Configuration software for Windows® 10, 8.1, 7 (32/64-bit) |
