PCAN-MicroMod FD

SKU #: IPEH-003080

Universal I/O Module with CAN FD Interface

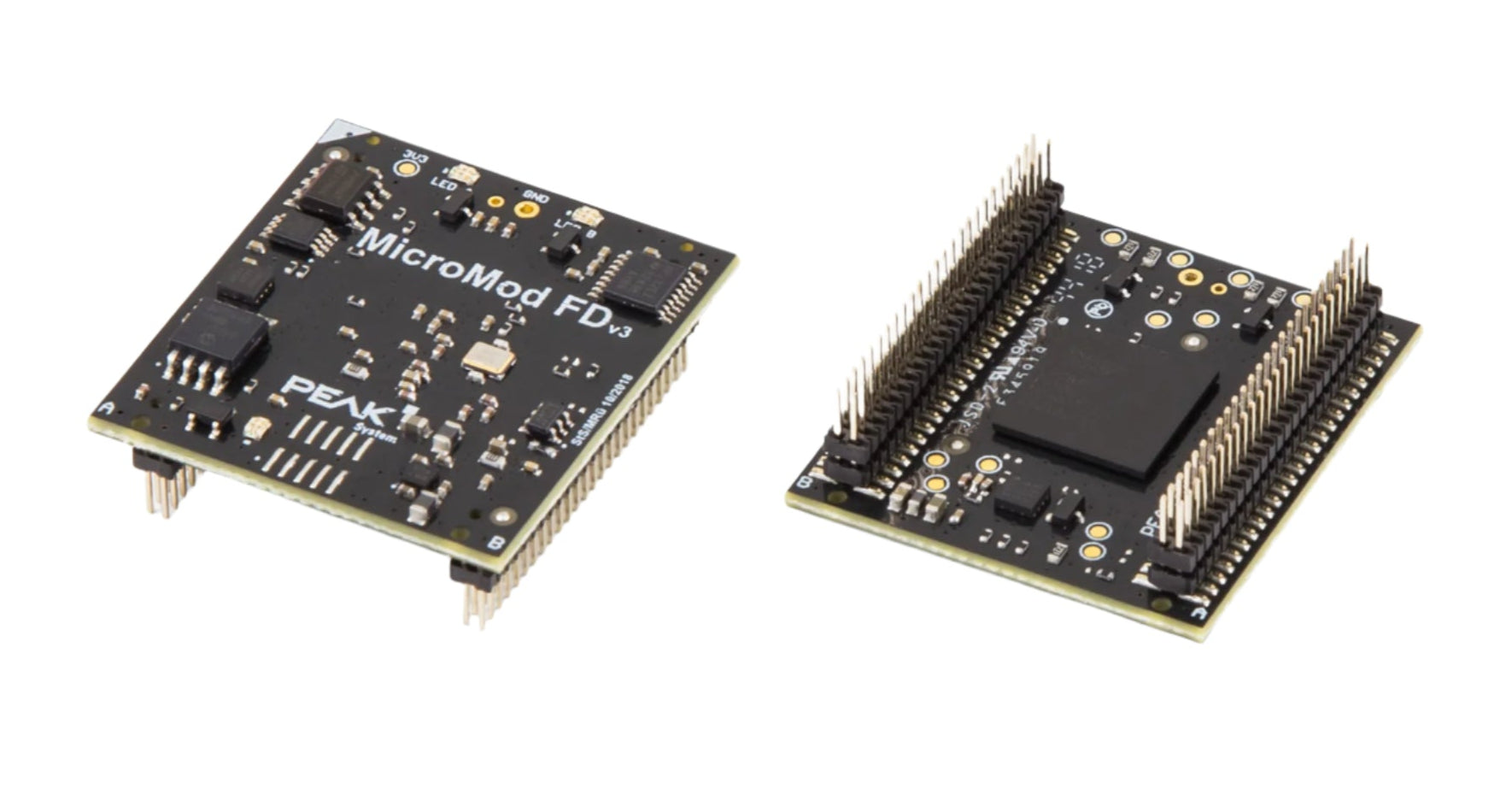

The PCAN-MicroMod FD is a small plug-in board with CAN and CAN FD connection on the one side and various physical inputs and outputs on the other side. The logical linking of both sides is done by the microcontroller NXP LPC54618. With the PCAN-MicroMod FD, electronics developers can easily integrate I/O functionality with CAN connection into their project.

The PCAN-MicroMod FD is configured using the supplied Windows software. In addition to simple I/O mapping to CAN IDs, function blocks are also available for processing the data. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus.

For the PCAN-MicroMod FD, ready-to-use motherboards in an aluminum housing and an evaluation board for the development of own applications are available.

All PCAN-MicroMod FD products can alternatively be operated with CANopen firmware. Licenses for the CANopen/CANopen FD firmware are available from our partner Embedded Systems Academy.


MicroMod FD:

  • Plug-in board with 2 double pin strips of 50 pins each, 50 mil pitch (1.27 mm)
  • NXP LPC54618 microcontroller with Arm® Cortex® M4 core
  • High-speed CAN connection (ISO 11898-2)
    • Complies with CAN specifications 2.0 A/B and FD
    • CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 10 Mbit/s
    • CAN bit rates from 20 kbit/s up to 1 Mbit/s
    • Microchip MCP2558FD CAN transceiver
  • 8 analog inputs
    • Measuring range unipolar 0 to 3 V
    • Resolution 12 bit, sample rate 1 kHz
  • 8 digital inputs
  • 8 digital outputs
  • 2 frequency outputs
  • Selective configuration of up to 16 devices in a CAN network based on the module ID
  • Voltage supply 3.3 V
  • Dimensions: 33 x 36 mm
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
  • Supply
    • Supply voltage : 3.3 V DC
    • Current consumption : 180 mA max.
  • Connectors
    • Connection strips : 2 double strips, each with 50 pins
    • Grid : 50 mil (1.27 mm)
  • Control and Communication
    • Microcontroller : NXP LPC54618, Arm® Cortex® M4 Core
    • Standard firmware : Configuration via reserved CAN ID 7E7h
  • CAN
    • Channels : 1
    • Specification : ISO 11898-2, CAN 2.0 A/B and CAN FD
    • Transceiver : Microchip MCP2558FD
    • Nominal bitrates : 20 kbit/s – 1 Mbit/s
    • CAN FD data bitrates : 20 kbit/s – 10 Mbit/s
    • Galvanic isolation : none
    • Termination : none
PCAN-MicroMod FD manual
FD Manual in PDF format
PCAN-MicroMod FD Evaluation Board manual
FD Evaluation Board Manual in PDF format
PCAN-MicroMod FD Configuration tutorial
Configuration Manual in PDF format
PCAN-MicroMod FD CANopen® firmware manual
Firmware Manual in PDF format
PCAN-MicroMod FD Configuration
PCAN-MicroMod Configuration software for Windows® 10, 8.1,7 (32/64-bit)
PCAN-MicroMod FD Configuration tutorial - Example Files
Configuration tutorial - Example Files
PCAN-MicroMod FD CANopen package
Package with CANopen EDS files for the PCAN-MicroMod FD products
PEAK-Flash
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters
