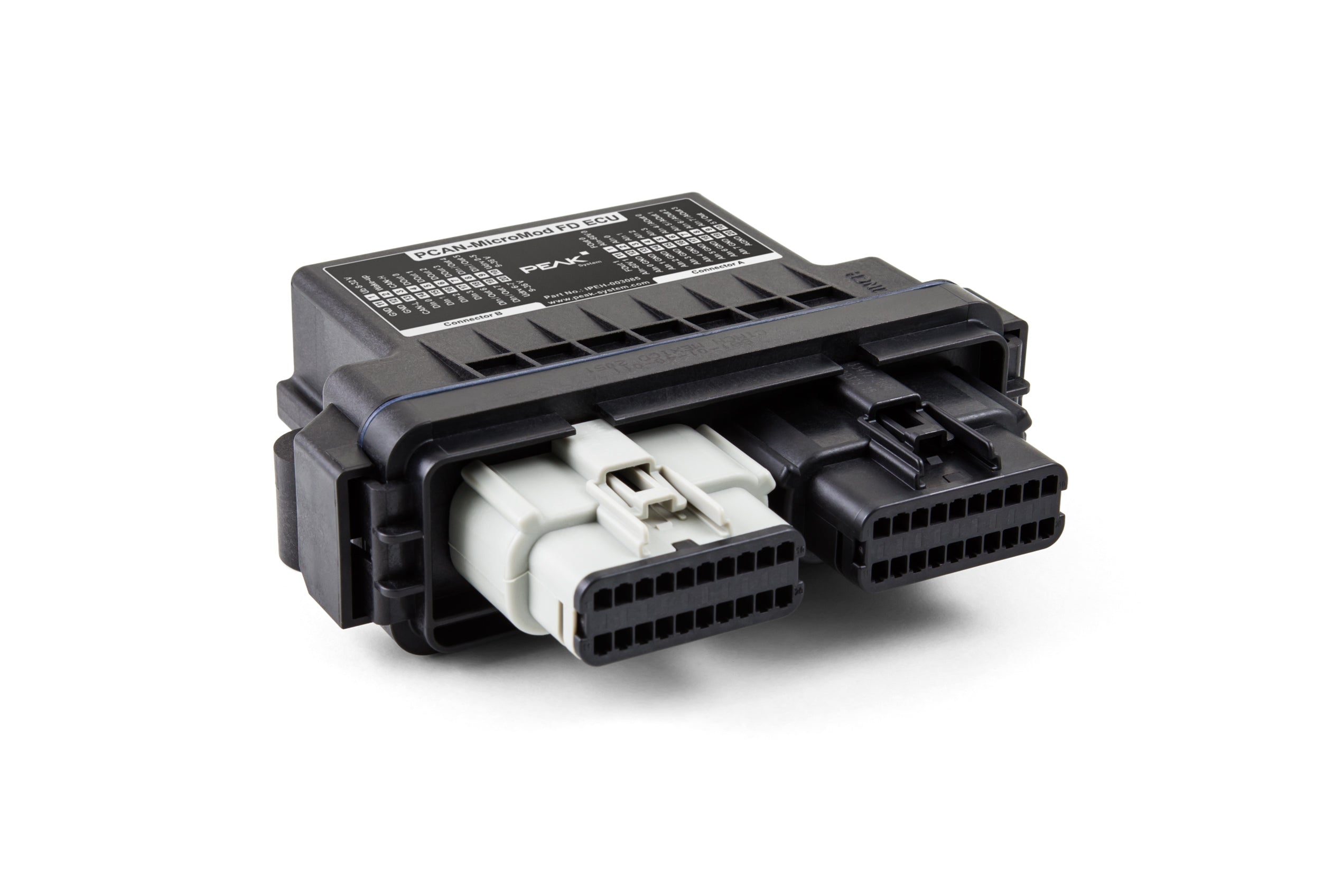

Universal, Configurable Control Unit with I/O and CAN FD Connection
The PCAN-MicroMod FD ECU serves as a versatile control module, engineered for the seamless integration of bespoke peripherals in automotive systems. It is equipped with a CAN FD connection and an array of both analog and digital I/Os to cater to a broad spectrum of requirements.

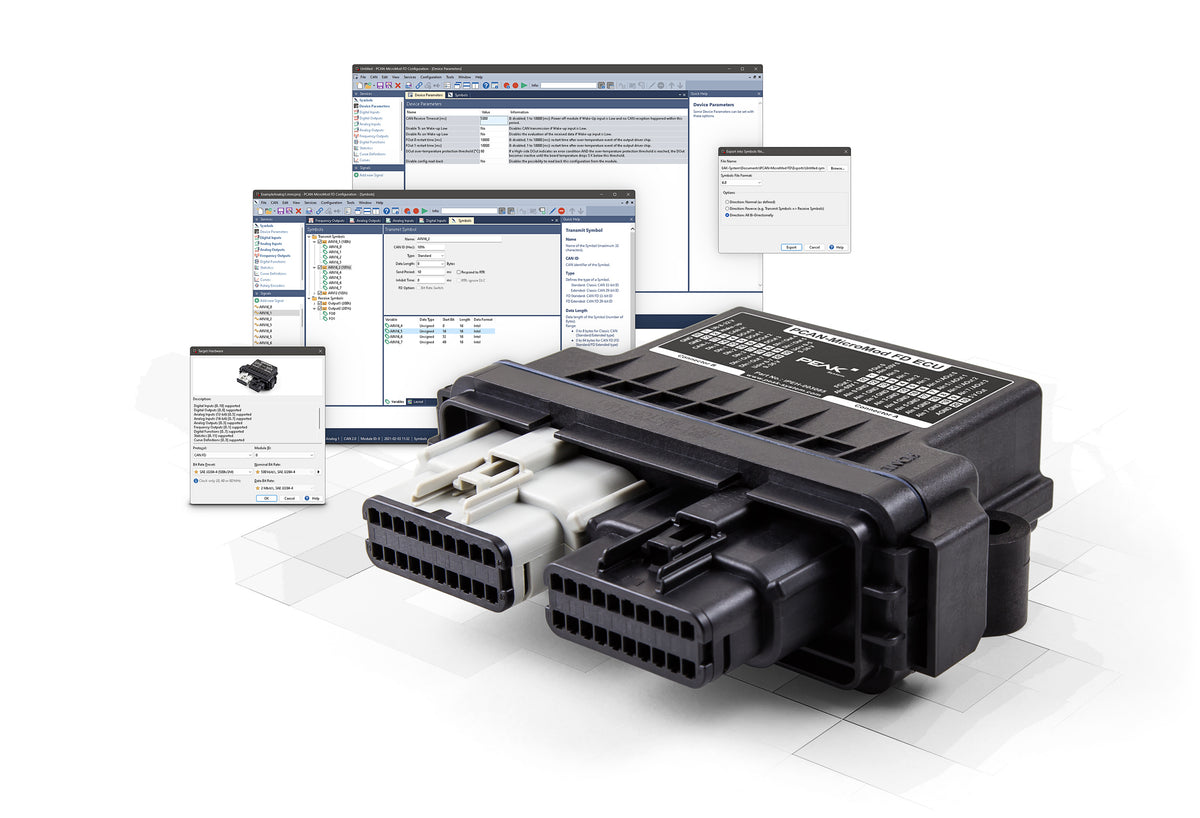

PCAN-MicroMod FD products are configured with a free Windows® software. In addition to simply mapping I/Os to CAN IDs, function blocks for processing the data are also available. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an autonomous CAN node.
Constructed with a robust casing and dual automotive connectors, this unit is specifically designed to withstand the rigors of utility and heavy-duty vehicular applications, even under the most challenging conditions.
Note: the configuration requires a PEAK-System interface.
- Module with integrated PCAN-MicroMod FD
- High-speed CAN connection (ISO 11898-2)
- Complies with CAN specifications 2.0 A/B and FD
- Wake-up by CAN bus or by separate input
- 4 digital inputs
- 8 analog inputs, 4 alternatively usable as analog output
- 8 digital outputs with High-side switches
- 2 outputs with 5 A and 6 outputs with 2 A
- 4 alternatively usable as a digital input or additionally for reading back the output level
- Voltage range adjustable: 0 to 5 V or 0 to 10 V
- 2 frequency outputs<br>Low-side switches (3 A)

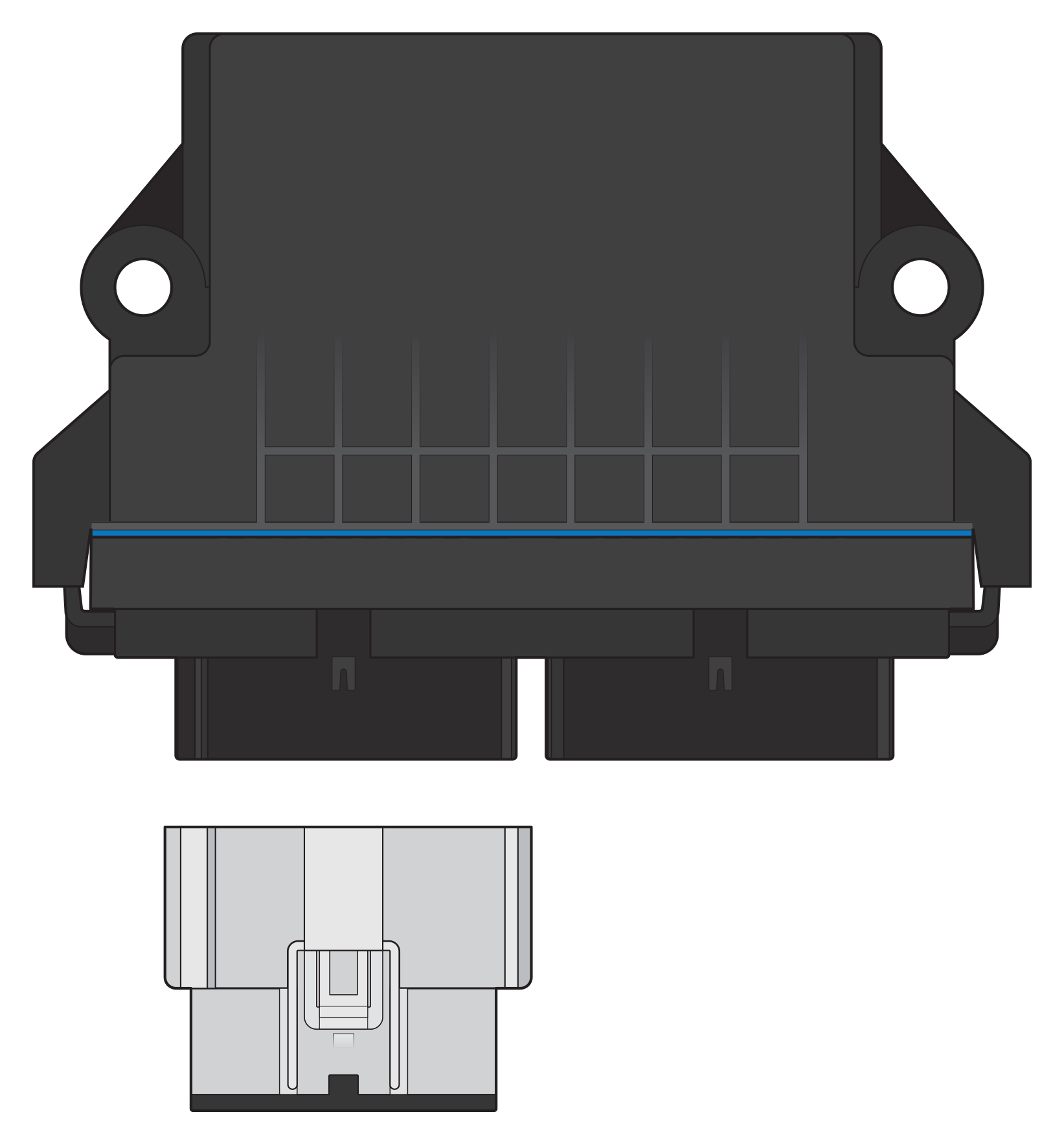

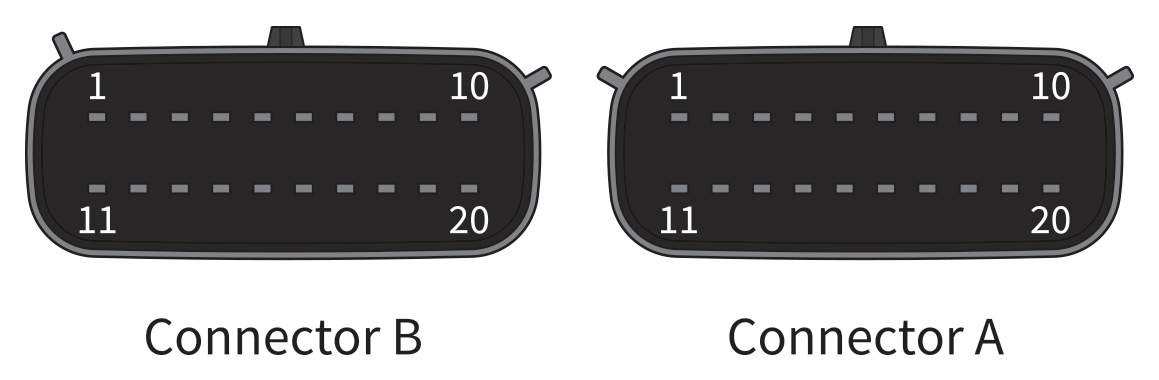

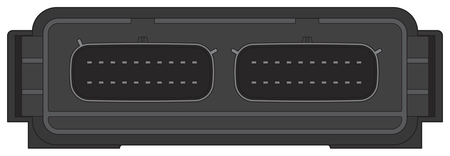

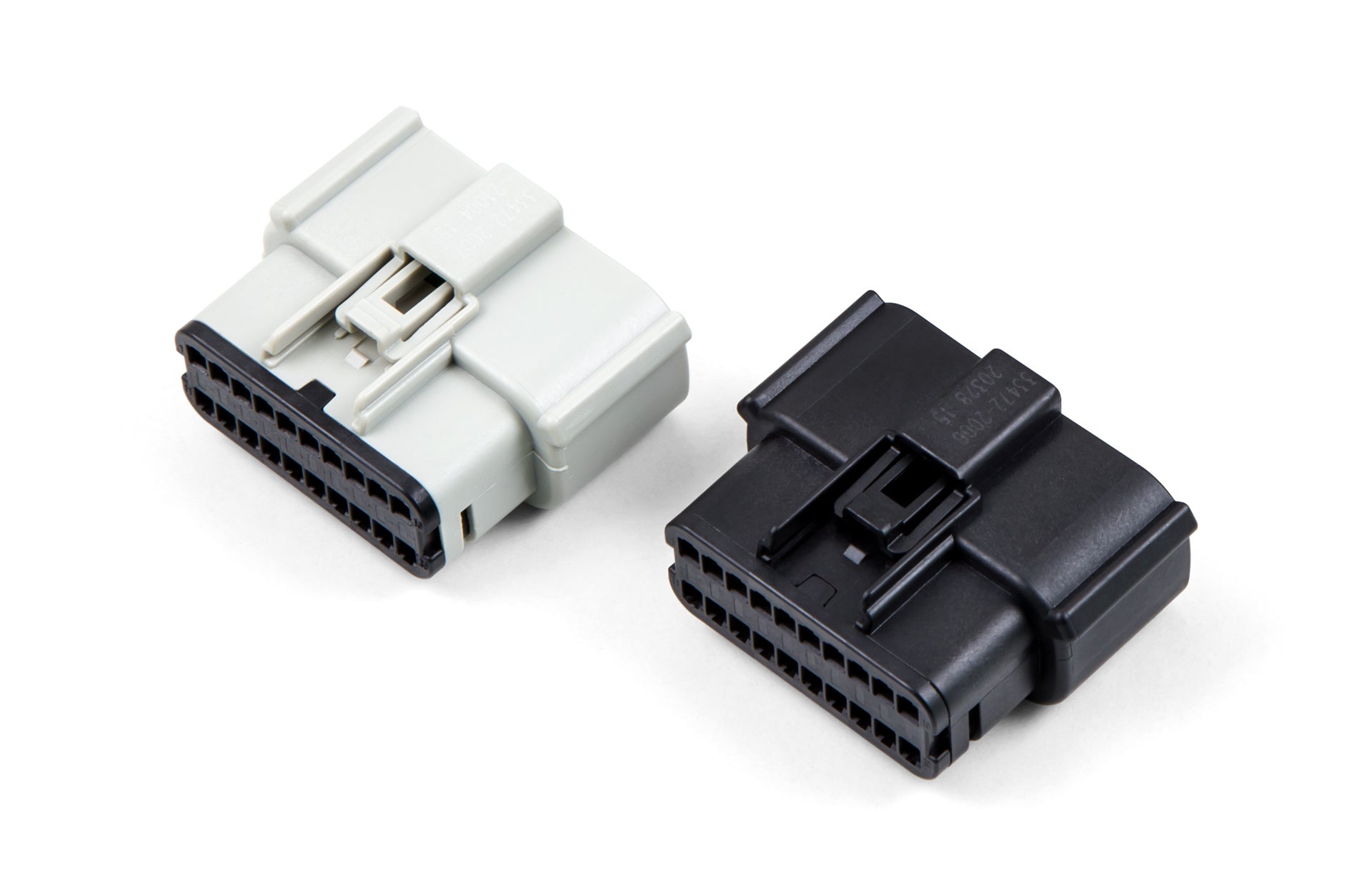

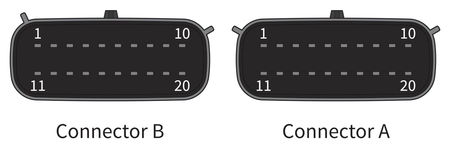

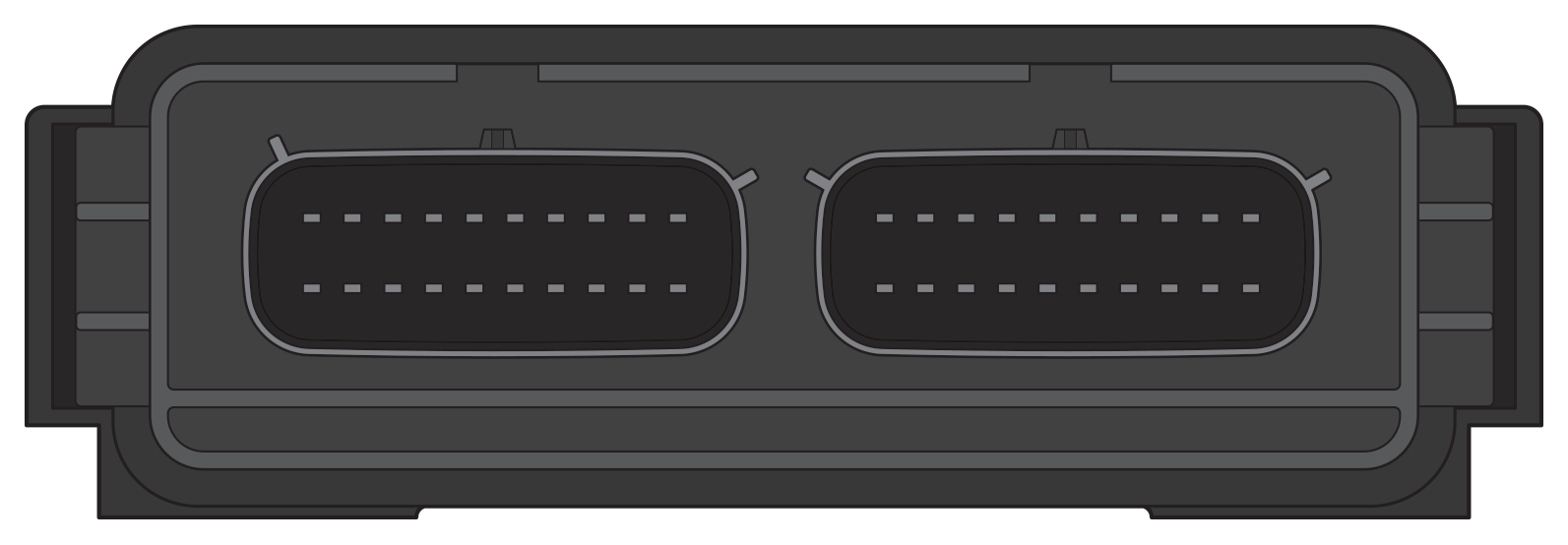

- Connections for CAN, I/O, and power supply via two 20-pole automotive connectors (Molex MX150)

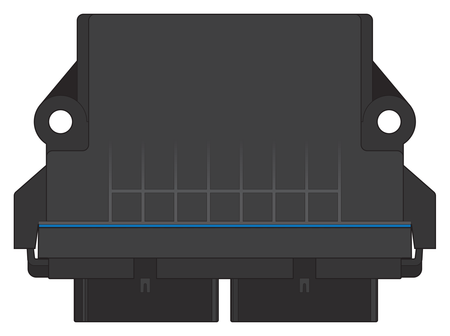

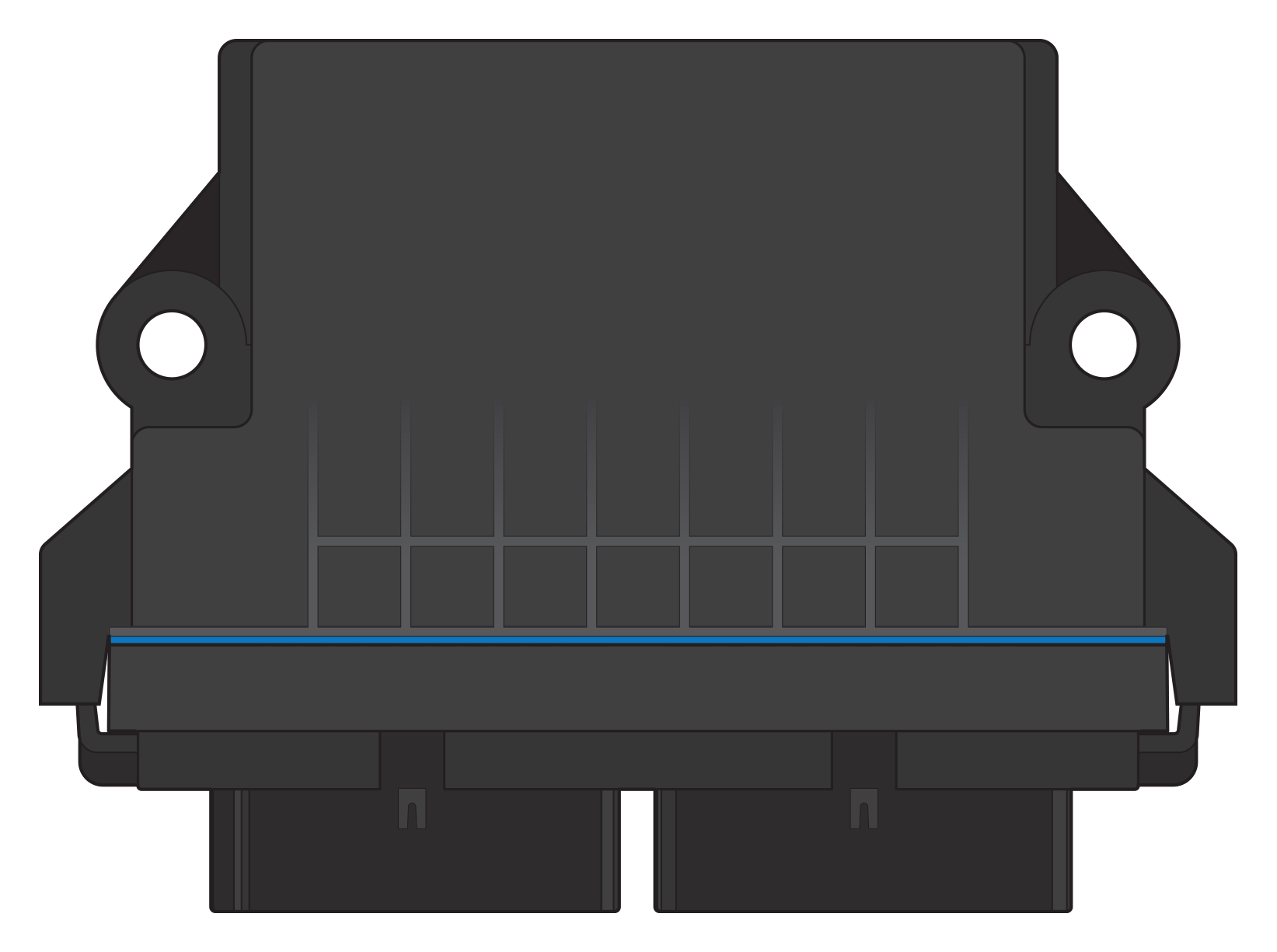

- Plastic casing with increased Ingress Protection IP67 and flange
- Operating voltage 8 to 32 V; suitable for use in 12 and 24 V vehicle electrical systems
- Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
- E1 type approval
