PCAN-MicroMod Mix 3

IPEH-002206
$369.00

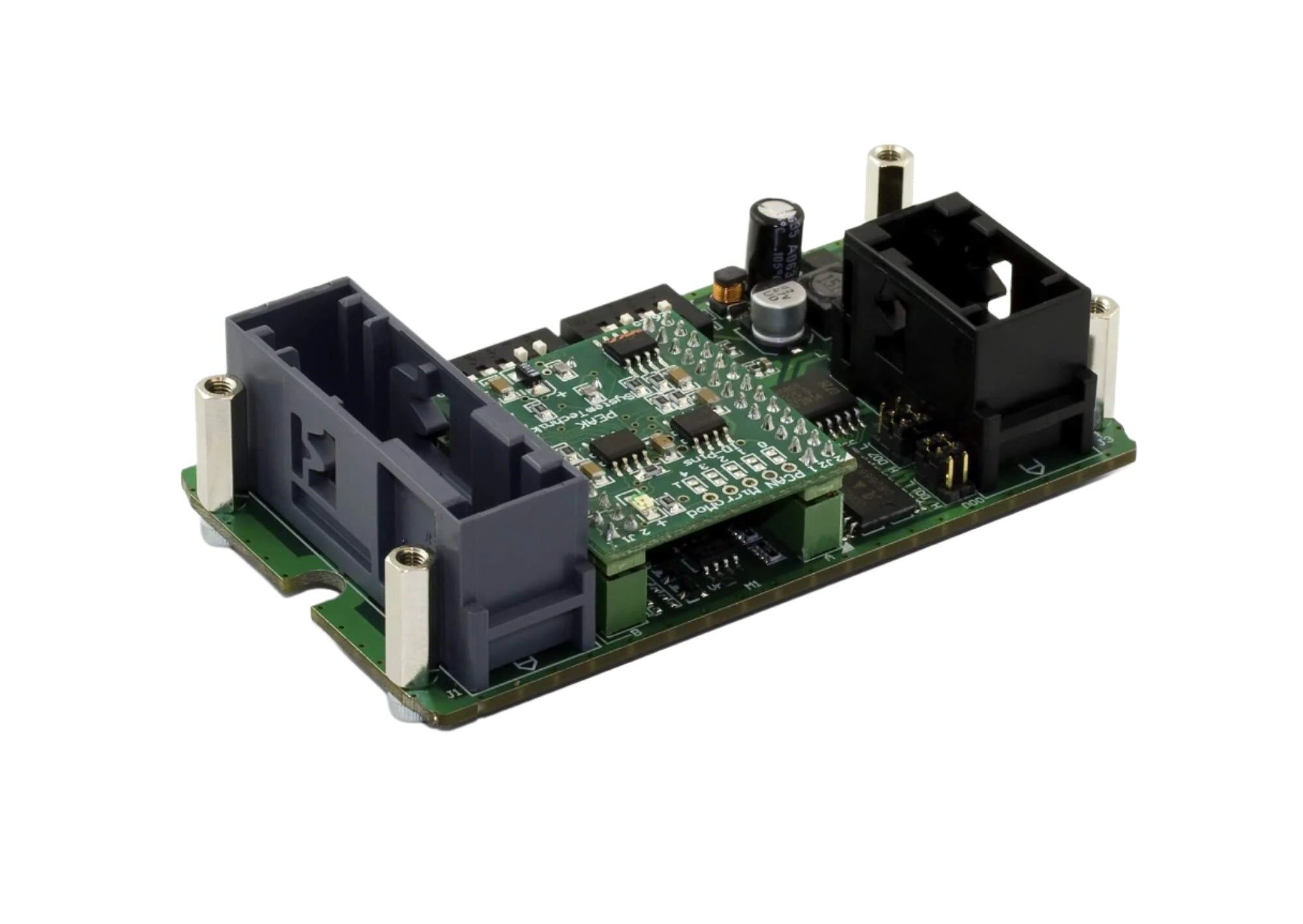

The motherboards for the PCAN-MicroMod provide an application-oriented environment. Typical characteristics of this product group include a wide supply voltage range and the protective circuit for the inputs and outputs. CANopen® firmware is available for all PCAN-MicroMod motherboards. The Mix 3 motherboard allows the use of all inputs and outputs available on the PCAN-MicroMod, which opens up a wide range of potential applications in the automotive and industrial sectors.
  • Completely configurable using the Windows® software PCAN-MicroMod Configuration
  • Communication through High-speed CAN
  • Operating voltage 12 V DC nominal, 8 - 26 V possible

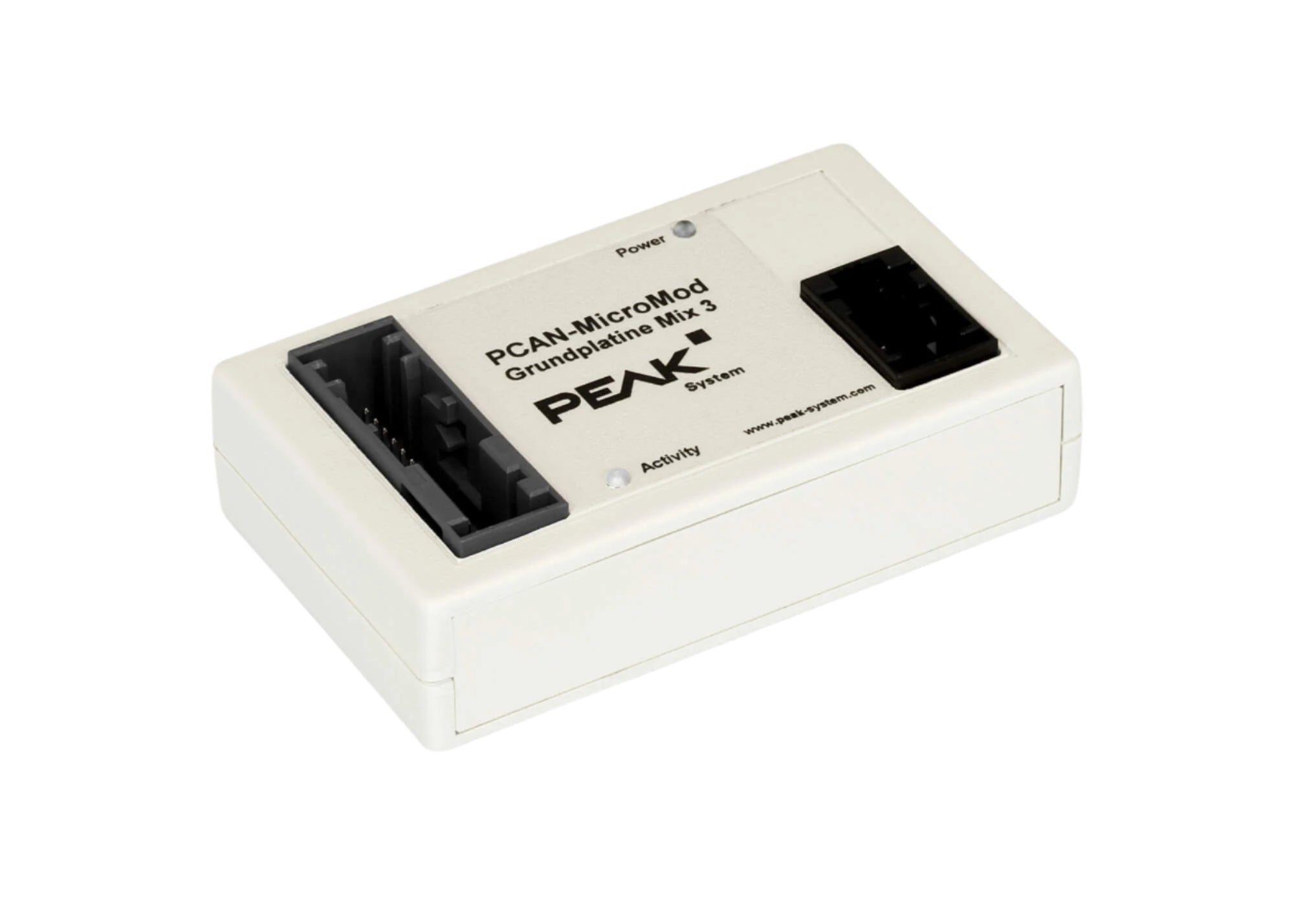

  • Plastic casing with Tyco automotive connectors
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)

8 analog inputs with the following properties:

  • Measuring range unipolar 0 – 4.1 V (can be expanded using resistive dividers)
  • Resolution 10 bit, sample rate 1 kHz
  • Protection against voltage dips and surges
  • Low pass behavior

8 digital inputs with the following properties:

  • Schmitt trigger behavior (Vh = 4 V, Vl = 2,5 V)
  • Voltage level difference 5 - 18 V
  • Pull-up or pull-down switching can be set for each channel
  • Low pass behavior

4 frequency inputs (differences to the digital inputs):

  • Scanned frequency range 0 – 10 kHz

8 digital outputs with the following properties:

  • High-side drivers, 350 mA continuous current, 500 mA short-circuit current
  • 4 outputs switchable in low-side drivers, 700 mA continuous current, 1 A short-circuit current
  • Short-circuit protection

4 PWM/frequency outputs with the following properties:

  • Low-side drivers, 350 mA continuous current, 1 A short-circuit current
  • 2 outputs switchable to high-side drivers, 1,5 A continuous current, 5 A short-circuit current
  • Short-circuit protection
Power Supply Voltage supply VBat motherboard: 12 V DC nom., 8 - 26 V possible
Voltage supply VHSout high-side drivers: 12 V DC nom., 8 - 33 V possible
Current consumption: 60 mA at 12 V on VBat (all outputs passive)
Digital Inputs Count: 8
Input voltage Low: < 3.2 V
Input voltage High: > 4.0 V
Maximum input voltage: 18 V
Circuit: open (130 kΩ, weak pull-down), pull-up (4.7 kΩ), pull-down (4.7 kΩ)
Further properties: Schmitt trigger behavior, inverting
Digital Outputs Count: 8
Circuit: High-side switch, 4 outputs alternatively configurable as low-side switch, Short circuit protection
Constant current: High-side: max. 350 mA; Low-side: max. 700 mA
Short-circuit current: High-side:500 mA; Low-side: 1 A
Analog Inputs Count: 8
Measuring range: 0 - 4.1 V, unipolar, extensible through voltage divider with resistors
Resolution: 10 bit
Input impedance: 100 kΩ (at measuring range 4.1 V)
Source impedance: < 5 kΩ
Sample rate: 1000 samples/s
Low-pass: τ = 2.5 ms
Further properties: Pull-down circuit, Protection against under voltage and over voltage
Frequency/PWM outputs Count: 4, can be used as 4* PWM outputs 8-bit, or 2* PWM outputs 16-bit, or 2* frequency outputs
Circuit: Low-side switch, 2 outputs alternatively configurable as high-side switch, short circuit protection
Constant current: Low-side: max. 350 mA; High-side: max. 1.5 A
Short-circuit current: Low-side:1 A; High-side: 5 A
Maximum frequency: Low-side: 10 kHz; High-side: 1.5 kHz
CAN Transmission standard: High-speed CAN ISO 11898-2, typ. 500 kbit/s, setup with PCAN-MicroMod Configuration (Windows software)
Termination: none
CAN ID reserved for configuration transfer: 0x7E7
Module number at delivery (for configuration transfer): 0
Dimensions 100 x 60 x 27 mm, see User's Manual for more details - Casing size (incl.connectors)
Weight 100 g
Operating temperature -40 - +85 °C (-40 - +185 °F)
Storage temperature -40 - +100 °C (-40 - +212 °F)
Relative humidity 15% to 90% (non-condensing)
Ingress protection (IEC 60529) IP20
EMC DIN EN 61326-1:2008-06, EC directive 2004/108/EG
