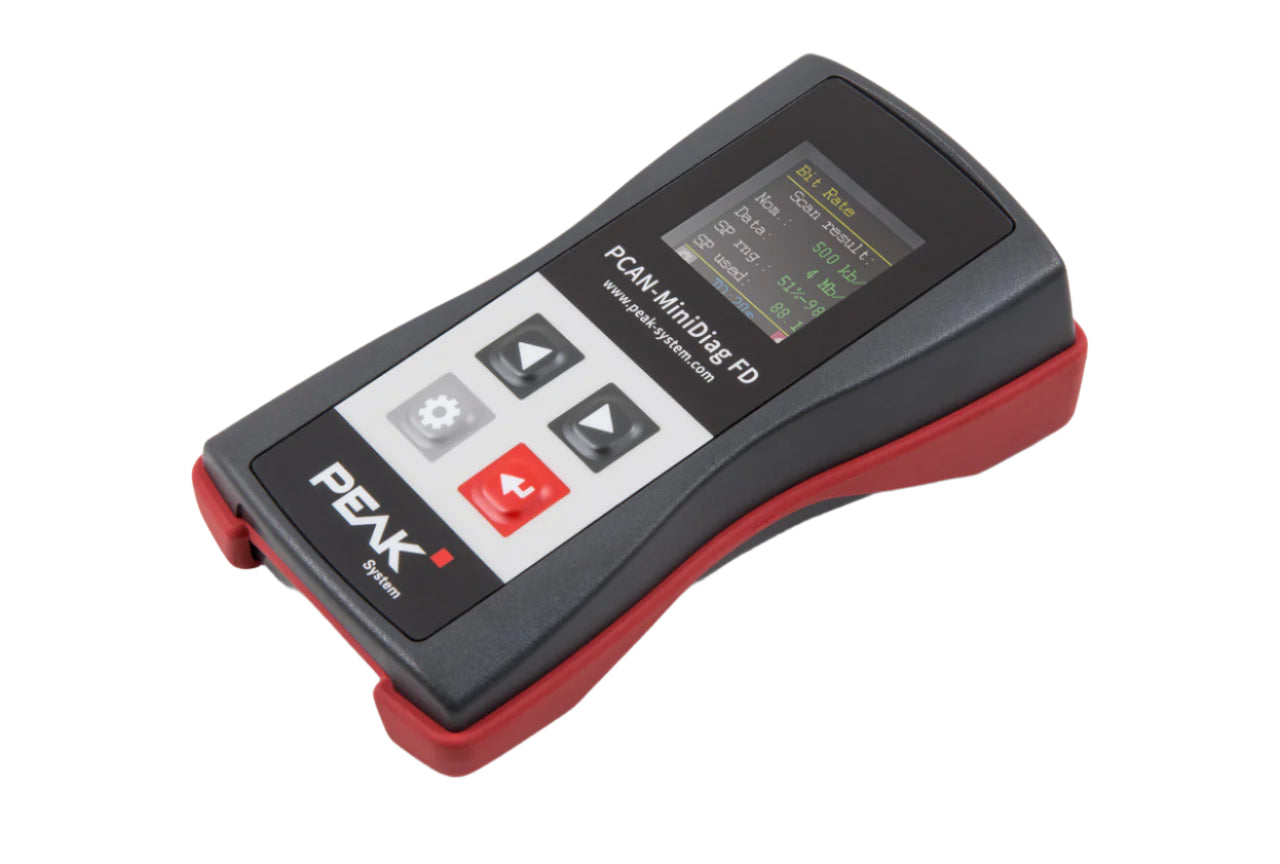

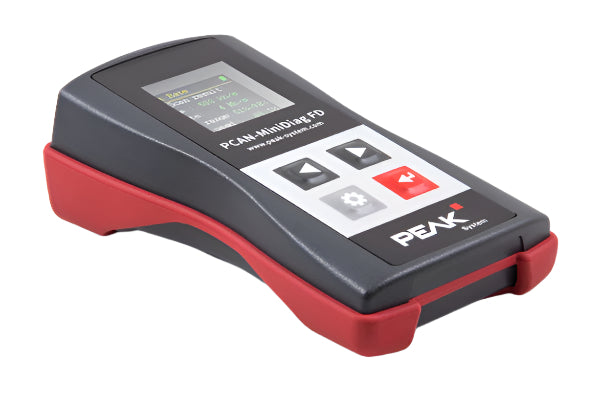

Compact Diagnostic Device for CAN & CAN FD Buses
The PCAN-MiniDiag FD is a compact, low-cost handheld device for basic diagnostics and verification of CAN and CAN-FD buses. Service technicians and developers can easily access networks of vehicles, machines or industrial equipment on site whose configuration is unknown. For this purpose, the nominal bit rate for CAN and the data bit rate for CAN FD are determined by bit-timing measurements. In addition, the device has measurement functions for termination, bus load and the levels applied to the CAN connection.
The PCAN-MiniDiag FD has a high degree of protection due to the membrane keypad and its housing. The power supply is provided by three replaceable batteries.
The CAN FD (CAN with Flexible Data rate) standard is characterized above all by higher bandwidths for data transmission. The maximum 64 data bytes of a CAN FD frame (instead of 8 previously) can be transmitted at bit rates of up to 10 Mbit/s. CAN FD is backwards compatible with the CAN standard 2.0 A/B, so that CAN FD nodes can be used in existing CAN networks. However, the CAN-FD extensions are not applicable.
-

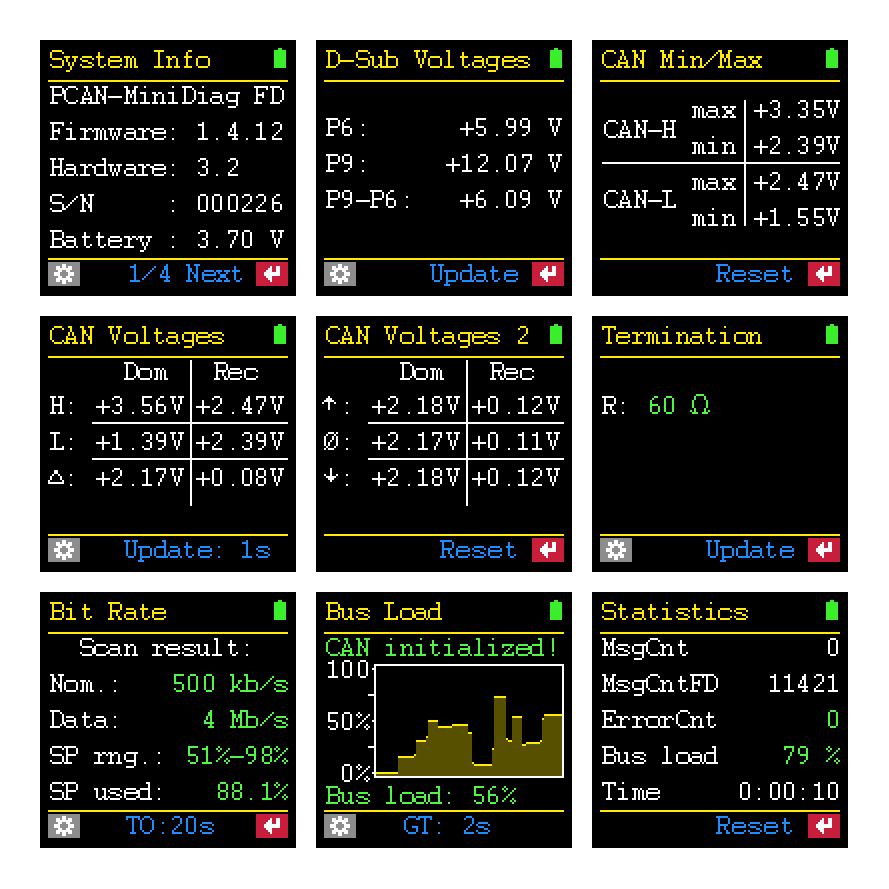

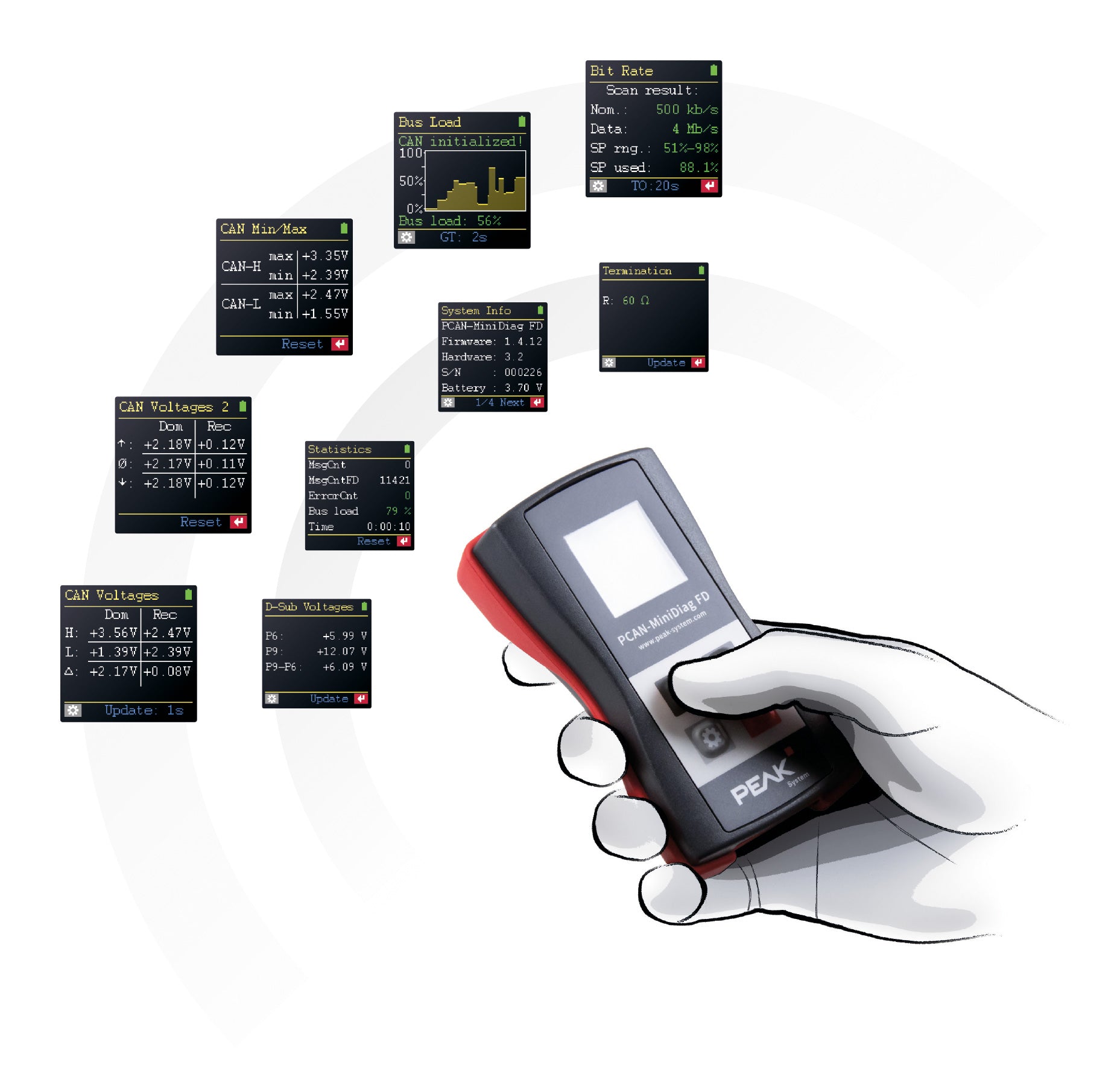

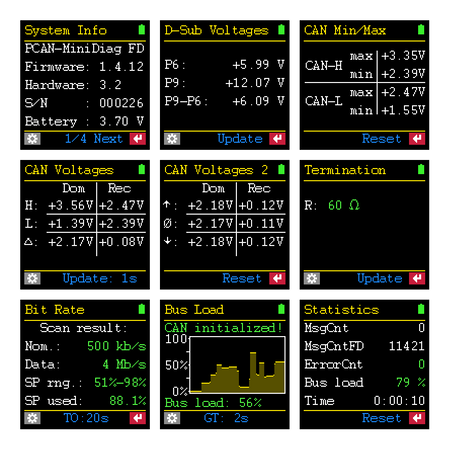

System Info:Â Indication of firmware and hardware version, serial number, and battery voltage
-
D-Sub Voltages:Â Voltage check at the pins 6 and 9 in the range from -40 to +43Â V
-
CAN Min/Max:Â Measurement of minimum and maximum voltage values for CAN-High and CAN-Low in the range from -5 to +8Â V
-
CAN Voltages:Â Measurement of dominant and recessive levels for CAN-High and CAN-Low in the range from -5 to +8Â V
-
CAN Voltages 2:Â Measurement of minimum, mean, and maximum values of the dominant and recessive levels
-
Termination:Â Measurement of the termination on the CAN bus
-
Bit Rate:Â Automatic detection of bit rates via exact bit timing measurements or manual bit rate configuration
-
Bus Load:Â Measurement of the CAN bus load with display in diagram
- Statistics:Â Counter for CAN, CAN FD, and error frames
Technical Specifications
- High-speed CAN connection (ISOÂ 11898-2)
- Complies with CAN specifications 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO standards
- CAN FD bit rates for the data field (64Â bytes max.) from 66.6Â kbit/s up to 10Â Mbit/s
- CAN bit rates from 10Â kbit/s up to 1Â Mbit/s
- Microchip MCP2558FD CAN transceiver
- CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)
- No influence on the CAN bus due to permanent listen-only mode
- OLED display with 128 x 128Â pixel resolution
- Power supply via exchangeable batteries (3 x Micro AAA with 1.2Â V or 1.5Â V)
- Operation via membrane keypad with four keys
- Plastic casing with increased Ingress Protection IP42
- Dimensions: 122 x 69 x 44Â mm
- Operating temperature range from -10 to +50 °C (14 to 122 °F)
Scope of Supply
- PCAN-MiniDiag FD in plastic casing
- Batteries (4 x 1.5Â V Micro AAA)
- Manual in PDF format
- Printed quick start guide
PCAN-MiniDiag FD manual:Â DOWNLOAD
PCAN-MiniDiag FD quick start: DOWNLOAD
