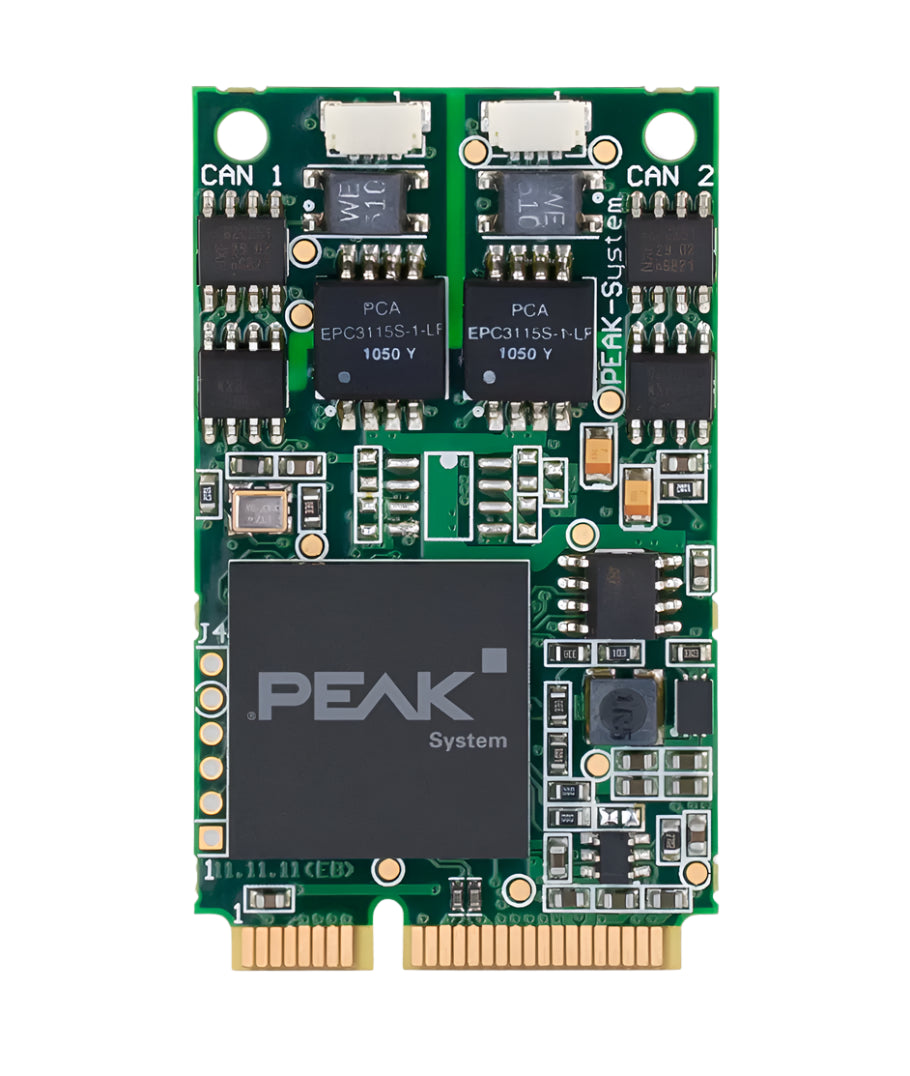

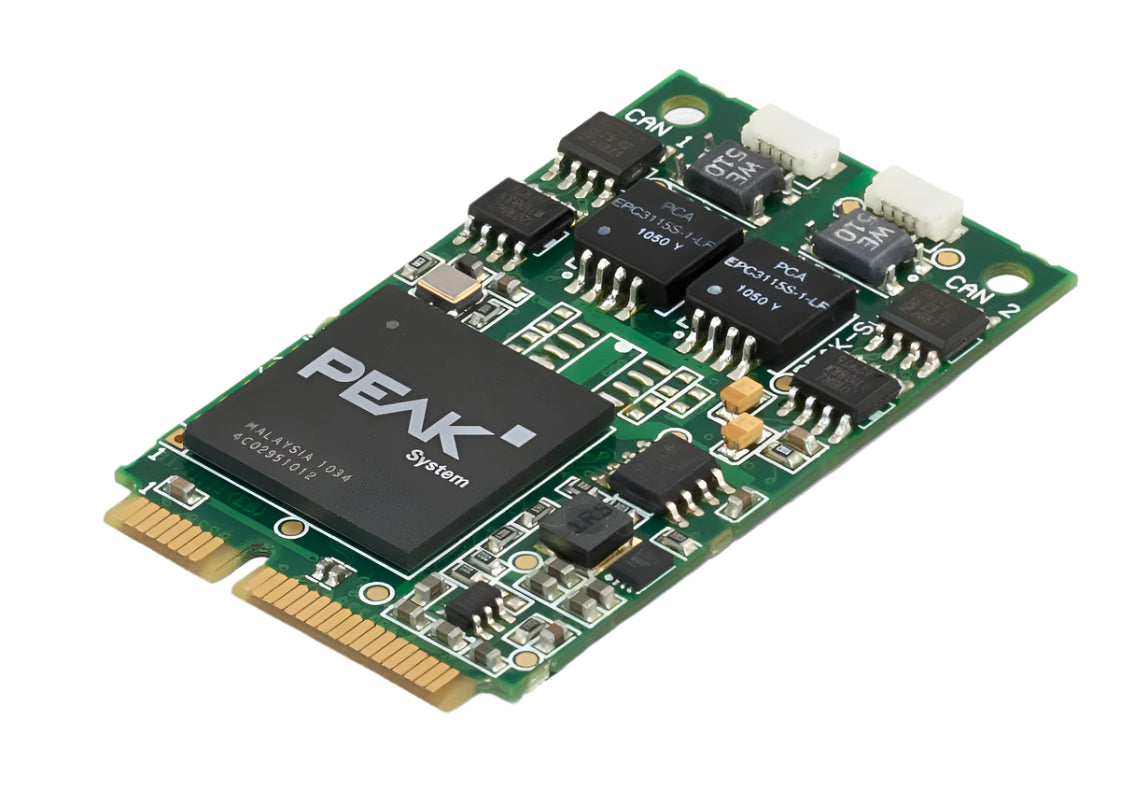

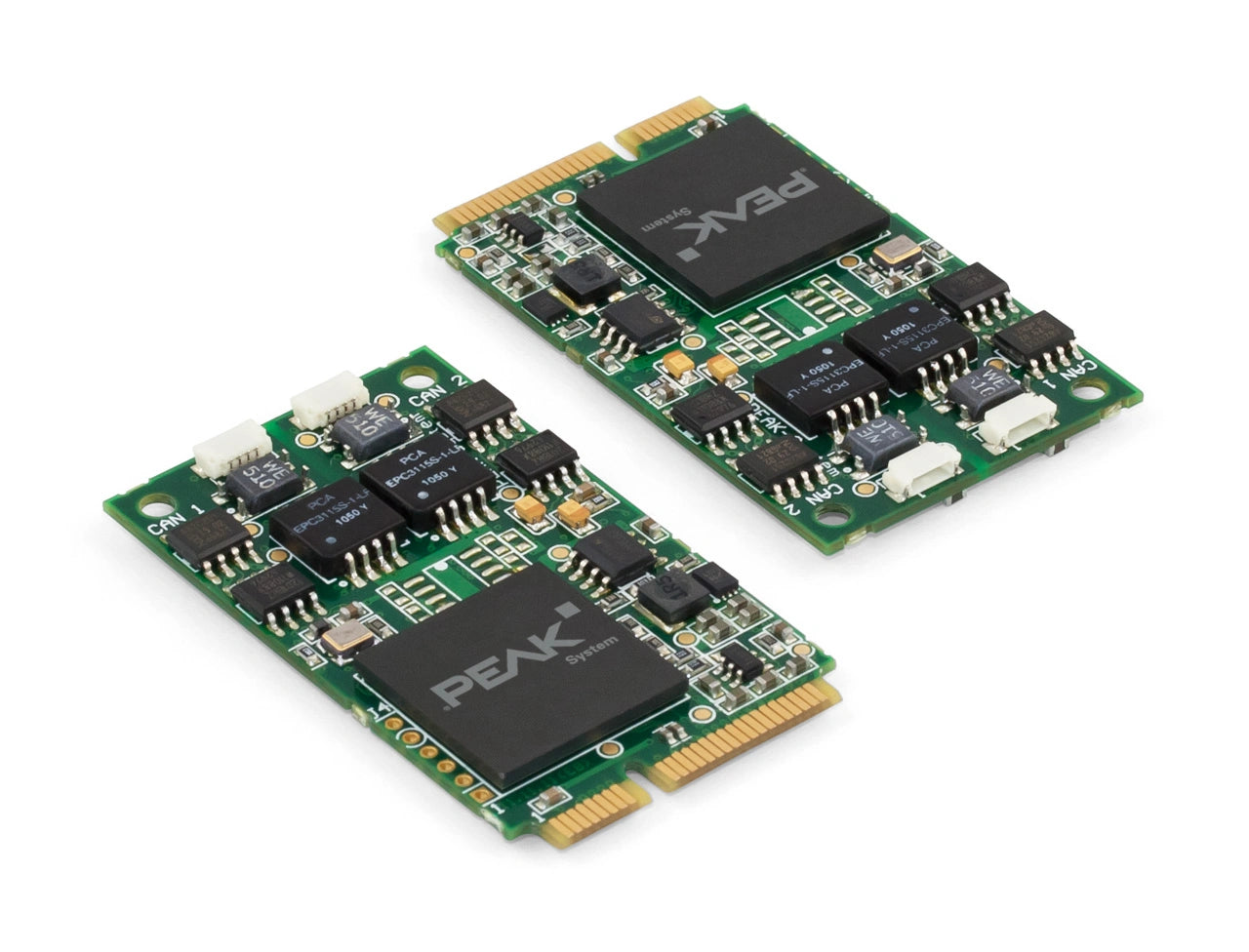

PCAN-miniPCIe card, iso (1ch/2ch)
Regular price
$307 USD
Couldn't load pickup availability
Orders placed before 2:30 Pacific Time usually ship the same day.
Items are delivered with essential accessories and easy-to-follow instructions.
Questions?
Allows embedded PCs and laptops with PCI Express Mini slots to be integrated into CAN networks.
Between the computer and the CAN side there is galvanic isolation up to a maximum of 300 volts. The card is available as a single or dual channel version.
SPECIFICATIONS
- CAN interface for the PCI Express Mini slot (uses PCIe lane)
- 1 or 2 High-speed CAN channels (ISOÂ 11898-2)
- CAN bus connection via connection cable and D-Sub, 9-pin (in accordance with CiA® 106)
- Bit rates from 5Â kbit/s up to 1Â Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- FPGA implementation of the CAN controller (SJA1000 compatible)
- NXP PCA82C251 CAN transceiver
- Galvanic isolation on the CAN connection up to 300Â V, separate for each CAN channel
- Extended operating temperature ranges from -40 to +85 °C (-40 to +185 °F
Scope of Supply:
- PCAN-miniPCIe card
- Connection cable including D-Sub plug for each channel
- Device drivers for Windows® 11 (x64), 10 (x64), and Linux
- CAN monitor PCAN-View for Windows® Details ...
- Programming interface PCAN-Basic for developing applications with CAN connection Details ...
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
DOWNLOADS
Device driver setup for Windows  DOWNLOAD
PEAK-System installation package for PC interface device drivers for Windows® 11 (x64/ARM64), 10 (x64). Included tools: PEAK Settings, PCAN-View, PLIN-View Pro, and Virtual PCAN-Gateway. Included APIs: PCAN-Basic, PLIN-API, and PCAN-RP1210.
CAN device driver for Linux     DOWNLOAD
Device drivers for PEAK CAN interfaces running on Kernel 2.6 and higher.
PCAN-miniPCIe manual         DOWNLOAD
PEAK-Flash 3Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOWNLOAD
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-Basic APIÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOWNLOAD
API for the development of applications with CAN and CAN FD connections for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-Basic API (Linux)Â Â Â Â Â Â Â Â Â DOWNLOAD
API for the development of applications with CAN connection for Linux.
API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP) for Windows® 11 (x64/ARM64), 10 (x86/x64).
PCAN-XCP APIÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOWNLOAD
API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP) for Windows® 11 (x64/ARM64), 10 (x86/x64).
PCAN-ISO-TP APIÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOWNLOAD
API for the transfer of data packages according to ISO-TP (ISO 15765-2) for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-UDS APIÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOWNLOAD
API to communicate with control devices according to UDS (ISO 14229-1) for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-OBD-2 APIÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â DOWNLOAD
API for the vehicle diagnostics according to OBD-2 (ISO 15765-4) for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-PassThru APIÂ Â Â Â Â Â Â Â Â Â Â Â Â DOWNLOAD
Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows® 11 (x64/ARM64), 10 (x64) includes interface DLLs, a configuration software, and the PCAN-ISO-TP API. The download also contains the documentation (English).
Suitable to be used with:
- PCIe-miniPCIe Adapter: PCI Express Low-Profile Adapter for PCI Express Mini Cards
- Type PC-CAN Interfaces
- Vendor PEAK-System Technik
- SKU IPEH-003048
Order by 2:30PM Pacific Standard Time to get delivery sent out same day!
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
