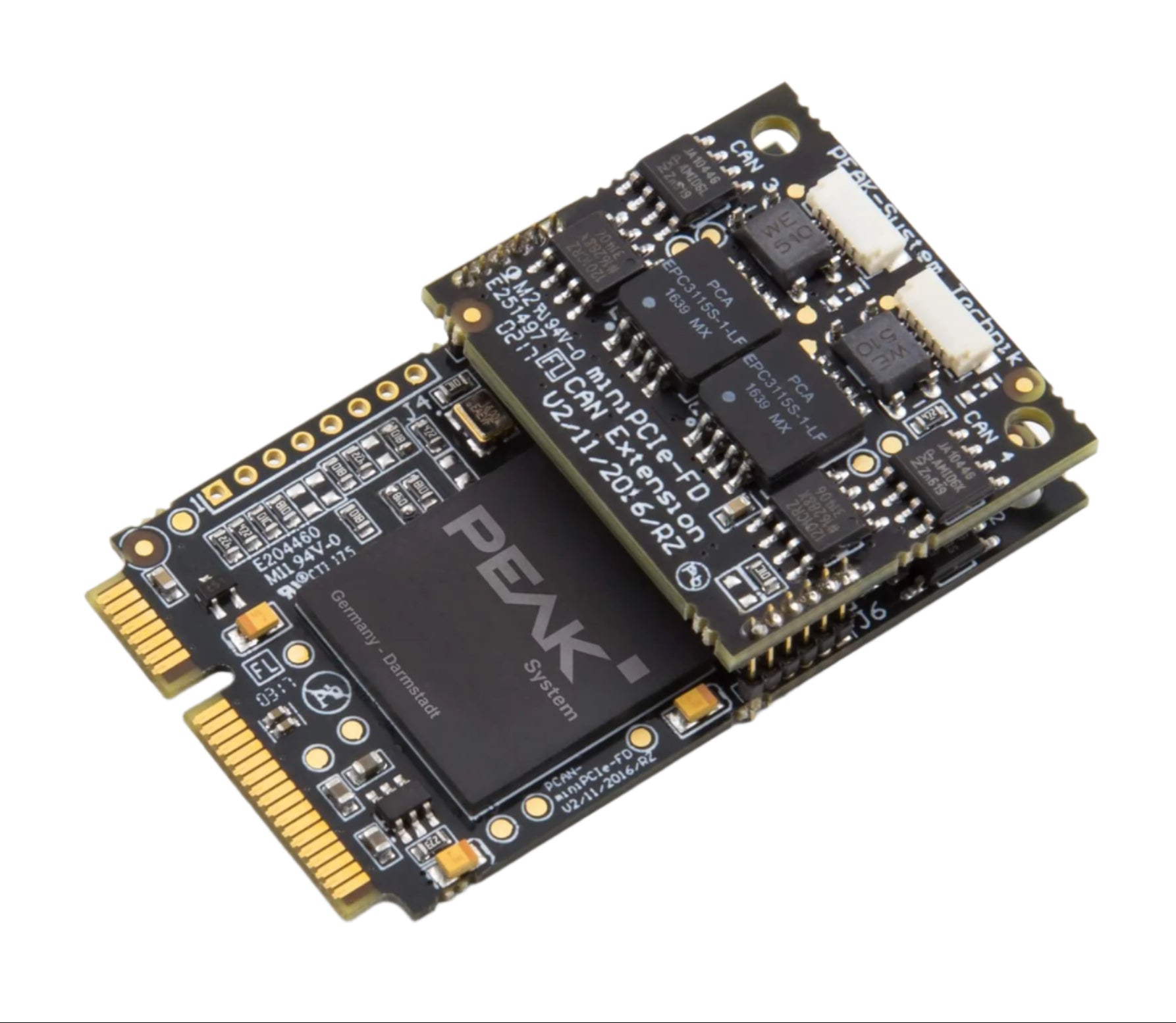

a CAN FD network.- CAN FD interface for PCI Express Mini slot (uses PCIe lane)
- Available with 1, 2 or 4 high-speed CAN channels
- Form factor PCI Express Mini (only for single and dual channel version, not for four-channel version due to extra height)
- CAN FD bus connection via connection cable and D-Sub, 9-pin (in accordance with CiA® 303-1)
- CAN FD bit rates 25 kBit/s up to 12 Mbit/s for the data field (max 64 bytes)
- CAN bit rates 25 kBit/s up to 1 Mbit/s
- Compliant with CAN FD specifications, downward compatible 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Galvanic isolation of the CAN signals up to 300 V, separate for each CAN channel
- PCIe data transfer via bus master DMA
- DMA memory access operations with 32- and 64-bit addresses
- Measurement of bus load including error frames and overload frames on the physical bus
- Space-saving dimensions thanks to SMD technology
- Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
| Interface(s) | PC: PCI Express Mini Slot (uses PCIe lane, not USB), 52-pin CAN (via cable): D-Sub (m), Pin assignment according to specification CiA 303-1 |
|---|---|
| Power Consumption | 1.5VDC: 180mA max. (1-ch, 2-ch, 4-ch) 3.3VDC: 230mA max. (1-ch); 330mA (2-ch); 450mA (4-ch) |
| Baud Rate | CAN: 25 kBit/s ... 1 Mbit/s CAN FD: 25 kBit/s ... 12 MBit/s |
| Pinout | CAN_H = 7, CAN_L = 2, CAN_GND = 3) |
| Transceiver | CAN: NXP TJA1044GT |
| Dimensions | 30 x 51 x 4 mm (Single and Dual Channel) 30 x 51 x 12 mm (Four Channel) |
| Weight | 8 grams (circuit board 1- and 2-channel), 11 grams (4-channel) Cable + D-Sub: max 16 grams |
| Software | Driver: Windows® 10, 8.1, 7 and Linux Tools: PCAN-View for Windows® |
| Connector(s) | DB-9 male using adapter cables, 20 cm cable length (other length options upon request) |
| Protocols | CAN FD ISO 11898-1:2015, CAN-FD non-ISO, CAN 2.0A/B |
| Channels | 1, 2 or 4 |
| I/O & IRQ | automatically assigned via "plug n play" |
| Isolation | 300 VDC |
| Specification | CAN FD 1.0 (compatible with CAN 2.0) |
| Operating temperature | -40°C to +85°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 15% to 90% (non-condensing) |
| Certifications | CE |
| PCAN-miniPCIe FD manual |
| PDF User's Manual in English |
| Device driver setup for Windows |
| Installation package from PEAK-System for device drivers and tools for Windows ® 10, 8.1 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway. |
| Device drivers for Linux |
| Device driver for PEAK CAN interfaces from Kernel 2.6. |
| PCAN-View |
| Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-Basic API |
| API for developing applications with CAN and CAN FD connections for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-Basic API (Linux) |
| API for developing applications with CAN connection for Linux. |
| PCAN-CCP API |
| API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-XCP API |
| API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-ISO-TP API |
| API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-UDS API |
| API for communication with control units according to UDS (ISO 14229-1) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-OBD-2 API |
| API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-PassThru API |
| Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 10, 8.1 (32/64-bit) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download. |
