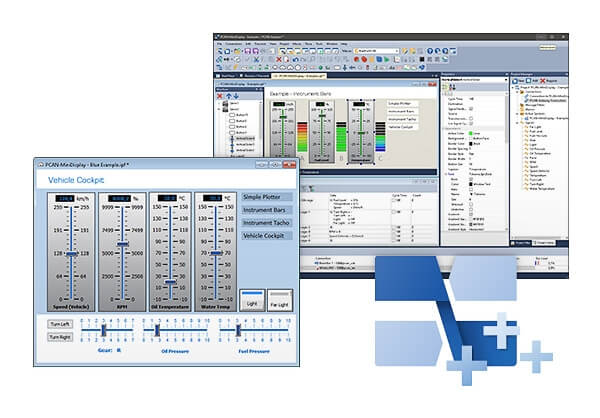

PCAN- IPES-006088 Panel plug-in for PCAN Explorer 6 data screen examples

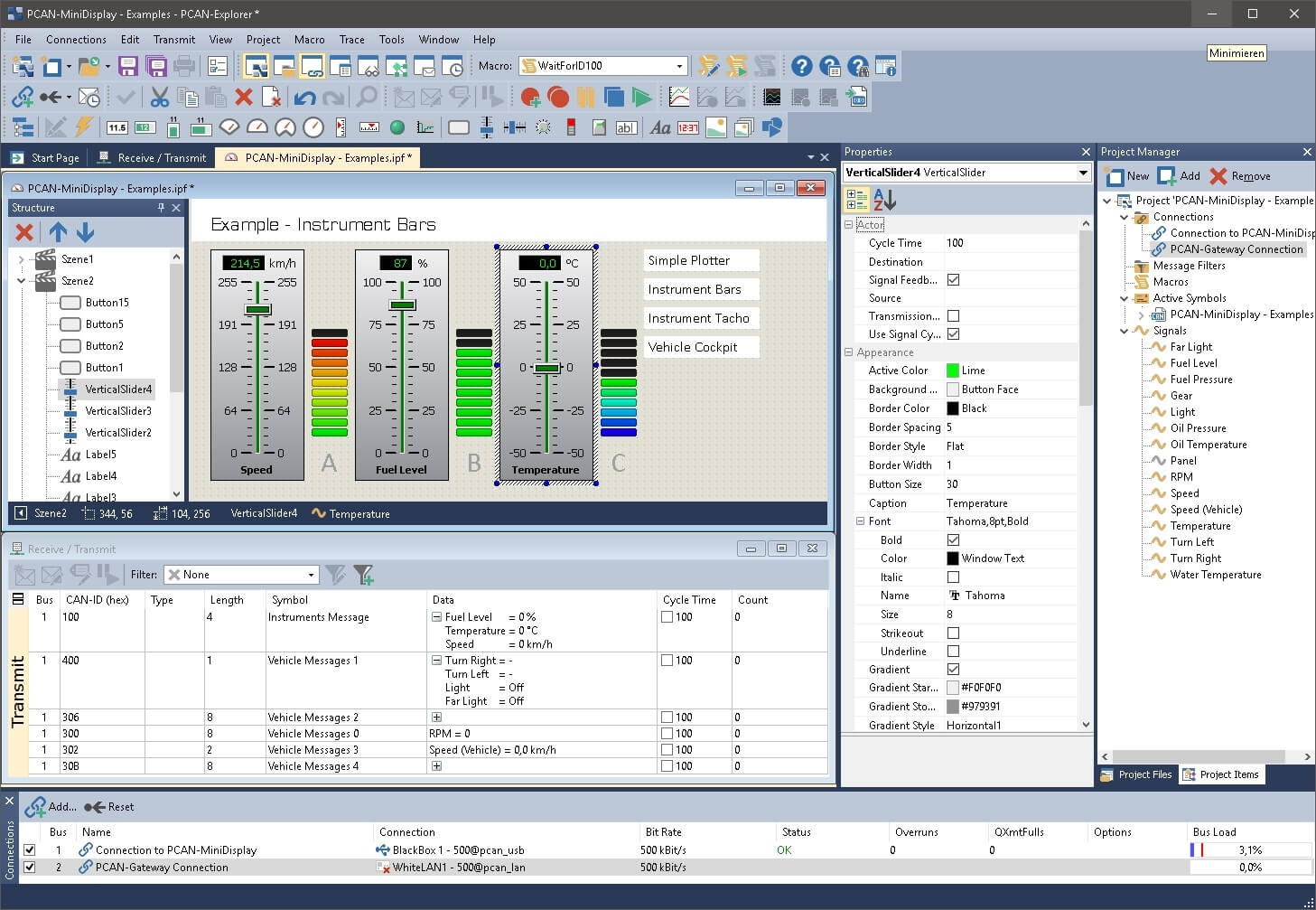

PCAN IPES-006088 - Panel plug-in for PCAN Explorer 6 data screen view PCAN-MiniDisplay example screen
PCAN- IPES-006088 Panel plug-in for PCAN Explorer 6 data screen examples

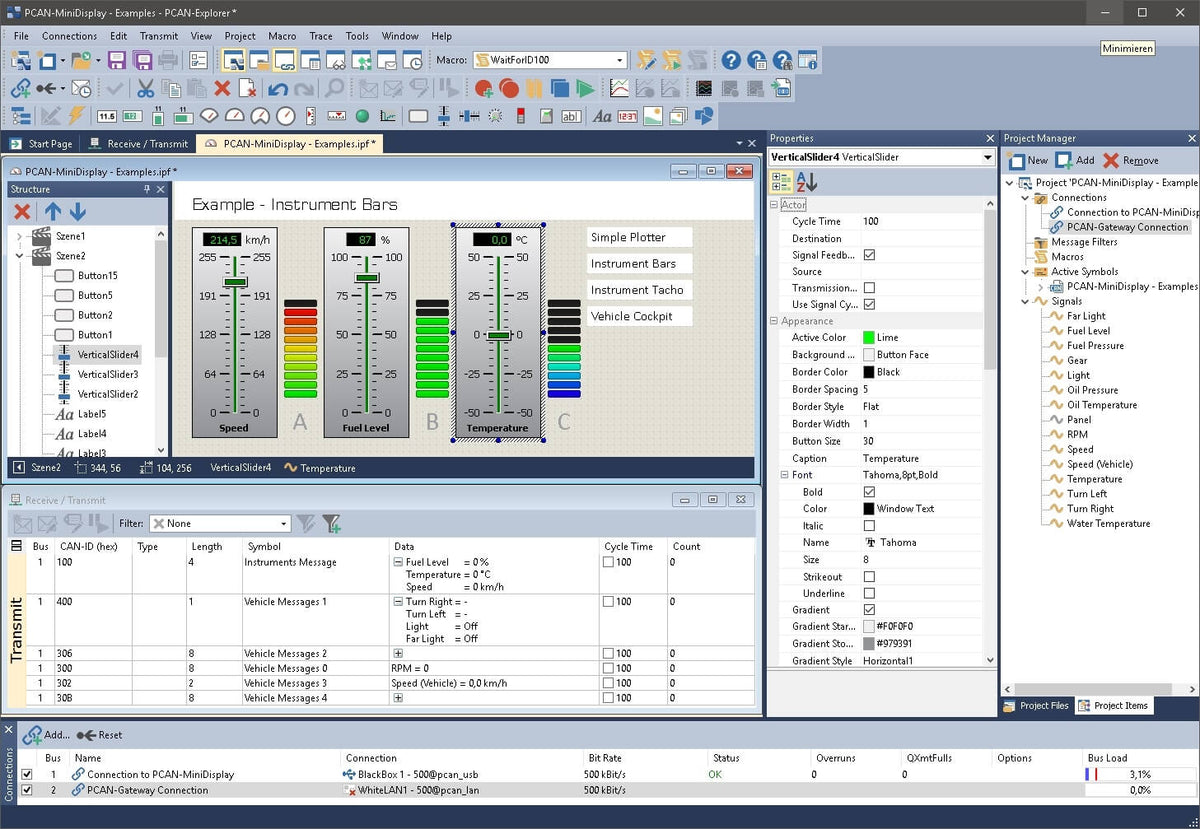

PCAN IPES-006088 - Panel plug-in for PCAN Explorer 6 data screen view PCAN-MiniDisplay example screen

Images provided by manufacturer.

PEAK-System Technik

PCAN-Panel plug-in for PCAN Explorer 6

SKU: IPES-006088
(2)
$213

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

Allows the graphic representation of digital and analog signals using different display instruments



The new PCAN Explorer 7 software is now available.

Please note* PCAN Explorer 6 will not be supported after January 2027.

PEAK's powerful PCAN-Explorer V6 software the Instruments Panel Add-in is one of four optional add-ins available for PCAN Explorer 6. The help of integrated input options and graphical control elements desired signals can be produced and transmitted onto the CAN-bus, allowing easy simulation of complex CAN applications.

Note: If this plug-in is for previously purchased PCAN Explorer Software, the serial number of the previously purchased PCAN-Explorer V6 is required. Please include the serial number in the "notes" section of the shopping cart to prevent any delays in fulfilling the order.

Note: Please provide your PCAN Explorer 6 original "License Id" in the notes section of the checkout process.


  • Representation of analog and digital signals from received CAN messages using different display instruments
  • In addition to potentiometers, switches, and sliding controllers input fields can be used to generate CAN messages
  • Selection and configuration of multiple elements at the same time
  • Extensive configuration of the properties of one or more elements using the new Property Window
  • The new Instruments Panel object model enables complete automation using COM and scripts
  • Representation of different scenes on the same panel during running time
  • Signal-dependent display of image lists and scenes
  • Free positioning of the instruments using drag & drop, or numerical inputs for spot-on positioning
  • Loading and storing of complete panel configurations

Delivery contents:

  • Instruments Panel Add-in software
  • Single user license
  • Documentation in HTML help format
