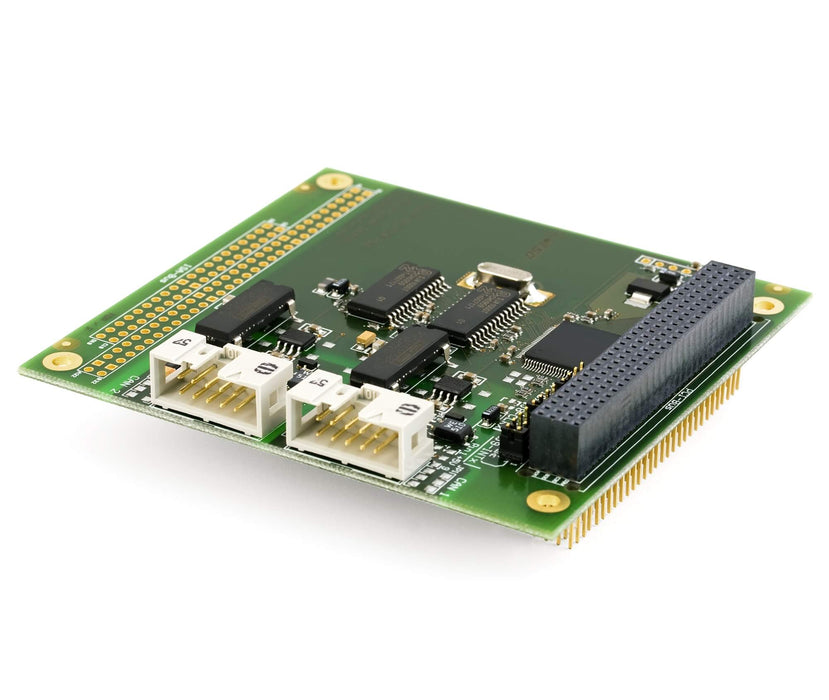

PCAN-PC/104plus Adapter (1ch/2ch)
SKU #: IPEH-002094, IPEH-002095
The PCAN-PC/104-Plus card enables the connection of two CAN networks to a PC/104-Plus system. Up to four cards can be operated, with each piggy-backing off the next. The CAN bus is connected using a 9-pin D-sub plug on the slot array supplied. The PCAN-PC/104plus card package includes device drivers for Windows® 7/8/10, Vista/XP (32/64Bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available.
- Form factor PC/104
- Use of the 120-pin connection for the PCI bus
- Up to four cards can be used in one system
- Transfer rates up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Connection to CAN bus through D-Sub slot array, 9-pin (in accordance with CiA® 102)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- 82C251 CAN transceiver
- Hardware can be reset via software
- 5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external transceiver
- Dual-channel version available
- Optional PC/104 stack-through connector - contact Phytools for pricing and availability
Interface(s) | PC: PC/104-Plus (version 2.0), 32 bit PCI-bus, for 3.3V and 5V CAN: ISO 11898-2, complies with CiA-recommendation DS 102 |
Power Consumption | 1 channel max. 150 mA 2 channel max 280 mA |
Baud Rate | CAN: max. 1 Mbit/s |
Pinout | C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3) |
Transceiver | CAN: NXP / Philips PCA82C251 |
Dimensions | 96 x 91 x 15 mm |
Weight | 46, 50, 47, 53 g |
Software | Driver: Windows® 7/8, Vista, XP; Linux Tools: PCAN-View for Windows® |
Controller(s) | CAN: NXP / Philips SJA1000 |
Connector(s) | 10-pin Upright Connector |
I/O & IRQ | automatically assigned via "plug n play" |
Specification | CAN: 2.0A (Standard format) and 2.0B (extended format) |
Operating temperature | -40°C to +85°C |
Storage temperature | -40°C to +125°C |
Relative humidity | 15% to 90% (non-condensing) |
EMC directives | EN 55024:2003-10 EN 55022:2003-09 EC directive 89/336/EEC |
Certifications | CE, RoHS |
PCAN-PC/104-Plus manual |
PDF Manual in English |
PCAN-PC/104-Plus package |
Device drivers for Windows® 10, 8.1, 7 and Linux (32/64-bit), the PCAN-Basic API, the CAN monitor PCAN-View, and documentation (German and English) |
New Device Driver 3.x Important Information
