PCAN-PCI/104 Express Insert-card (1ch/2ch)

IPEH-003054
$289.00
NOTE: The manufacturer has stopped building the non-isolated version of this PCAN-PCI/104-Express card effective 6/11/2014. Customers are encouraged to migrate to the optically isolated product version. Part# IPEH-003054 will be replaced by IPEH-003056, the dual channel version part# IPEH-003055 will be replaced by IPEH-003057.

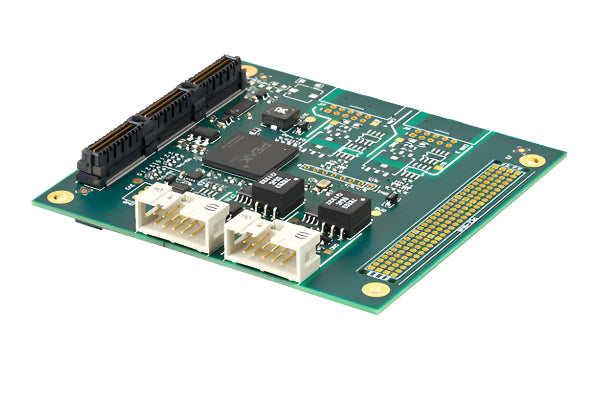

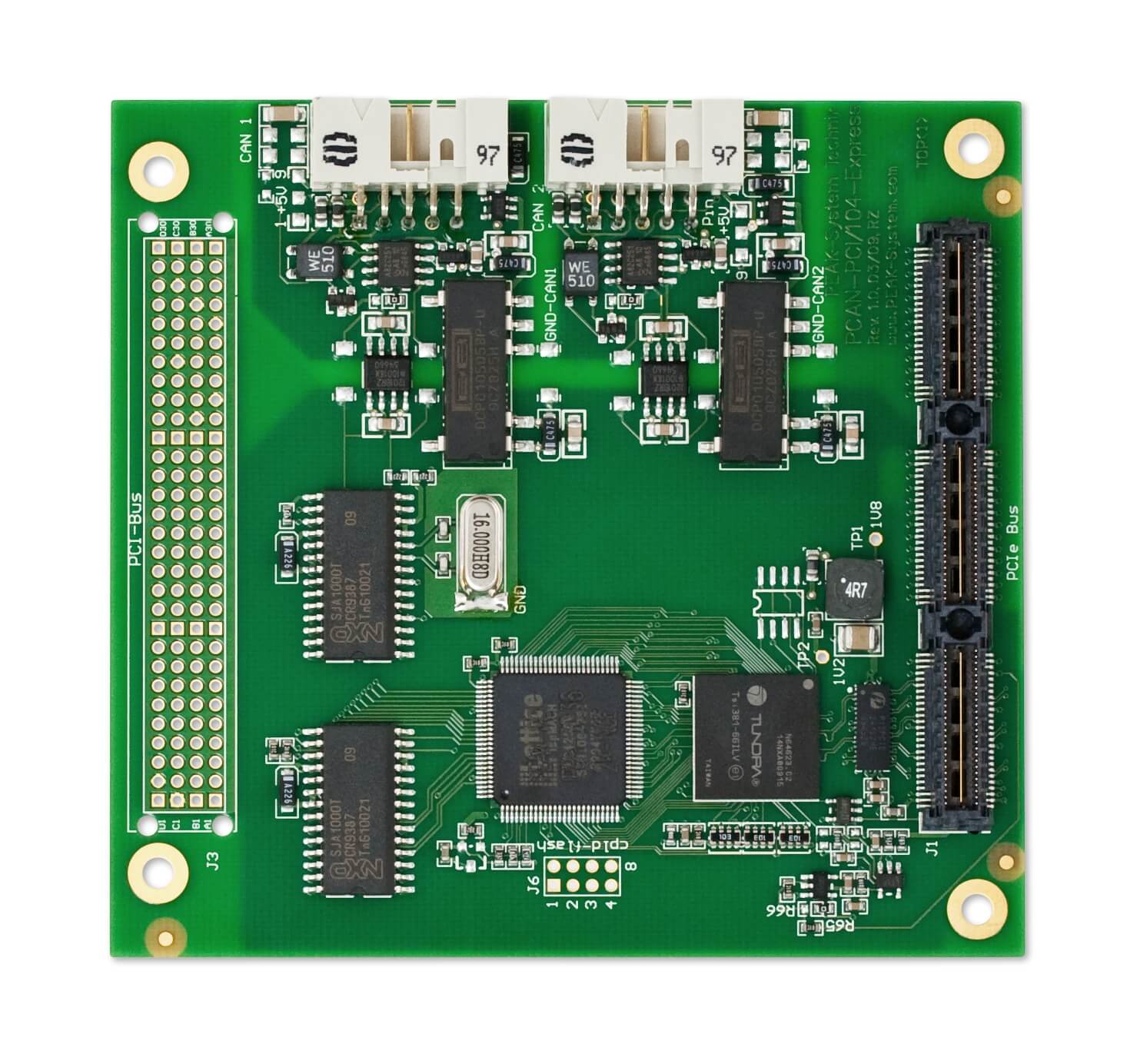

The PCAN-PCI/104-Express card enables the connection of one or two CAN networks to an embedded computer with PCI/104-Express slots. Up to three cards can be stacked together. Physical CAN bus connection is established using a 9-pin D-Sub plug on the included slot bracket. The card is available as a single or dual channel version. The PCAN-PC/104-Express card package includes device drivers for Windows® 7/8/10, Vista/XP (32/64Bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available.
  • PCI/104-Express card, 1 lane (x1)
  • PC/104 Form factor
  • Up to three cards can be used in one system
  • Bit rates up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • NXP PCA82C251 CAN transceiver
  • 5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
  • Includes slot bracket with D-Sub connectors for the CAN bus
  • Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
  • Dual-channel version available
  • Optional PC/104 stack-through connector - contact Phytools for pricing and lead time
Interface(s) PC: PC/104-Express PCIe/104
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Power Consumption 1 channel isolated max 250mA (3.3V), 120 mA (5.0V)
2 channel isolated max 250mA (3.3V), 150mA (5.0V)
Baud Rate CAN: max. 1 Mbit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver CAN: NXP PCA82C251
Dimensions 90.1 x 95.9 x 15 mm
Weight 44g (single CAN), 50g (dual CAN)
Software Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit)
Tools: PCAN-View for Windows®
Controller(s) CAN: NXP SJA1000
Channels 1 or 2
I/O & IRQ automatically assigned via "plug n play"
Isolation 500 VDC
Specification CAN: 2.0A (Standard format) and 2.0B (extended format)
Operating temperature -40°C to +85°C
Storage temperature -40°C to +125°C
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 55024:2003-10
EN 55022:2007-04
EC directive 89/336/EEC
Certifications CE, RoHS
