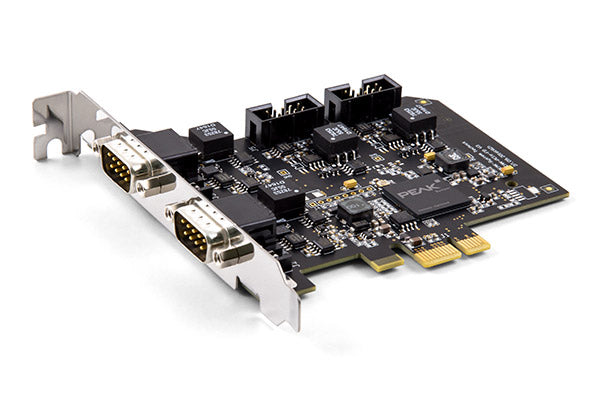

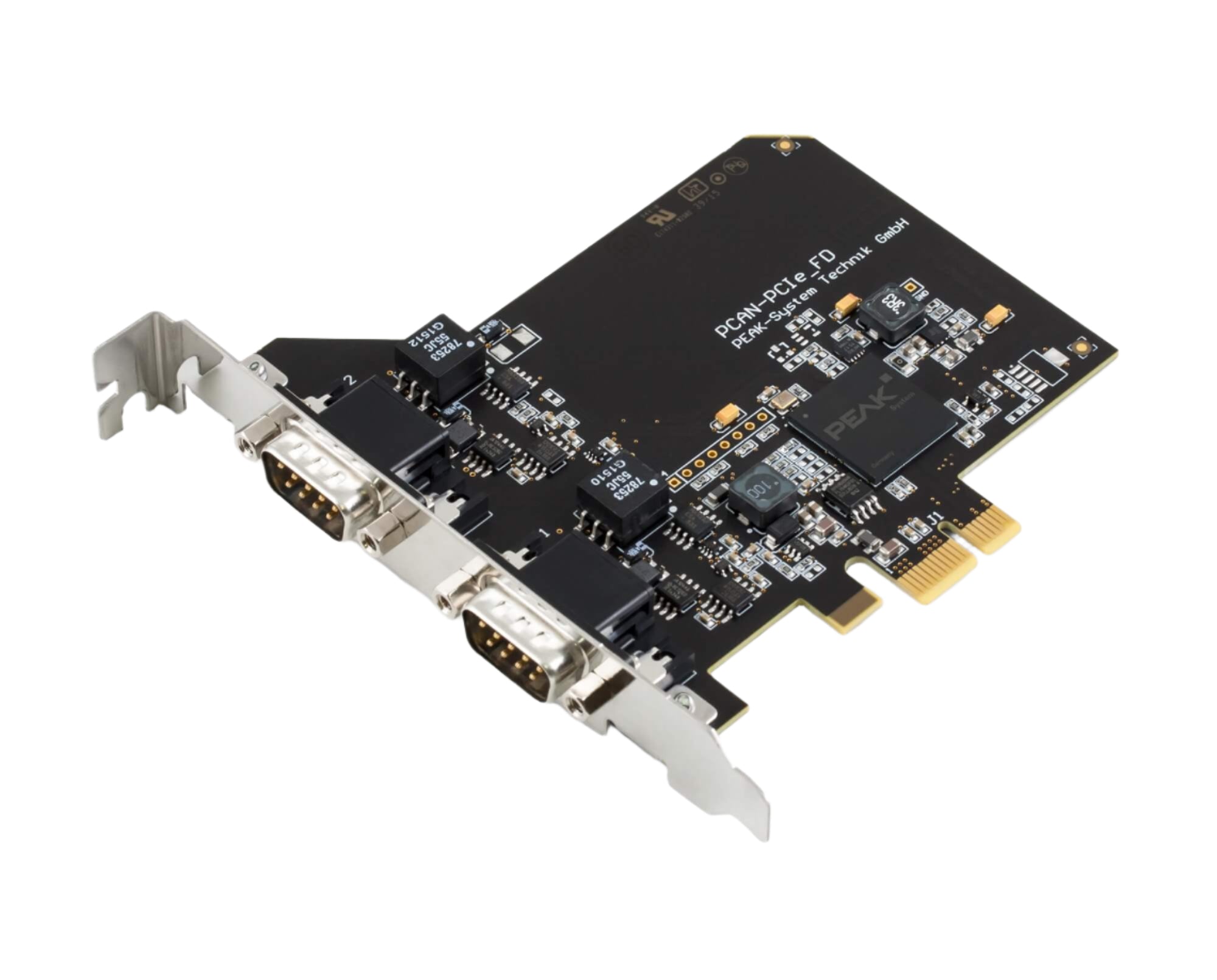

- PC plug-in card (PCIe-x1) for PCI Express slots
- 1, 2 or 4 High-speed CAN channels (ISO 11898-2)
- Complies with CAN specifications 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO standards switchable
- CAN FD bit rates for the data field (64 bytes max.) from 25 kbit/s up to 12 Mbit/s
- CAN bit rates from 25 kbit/s up to 1 Mbit/s

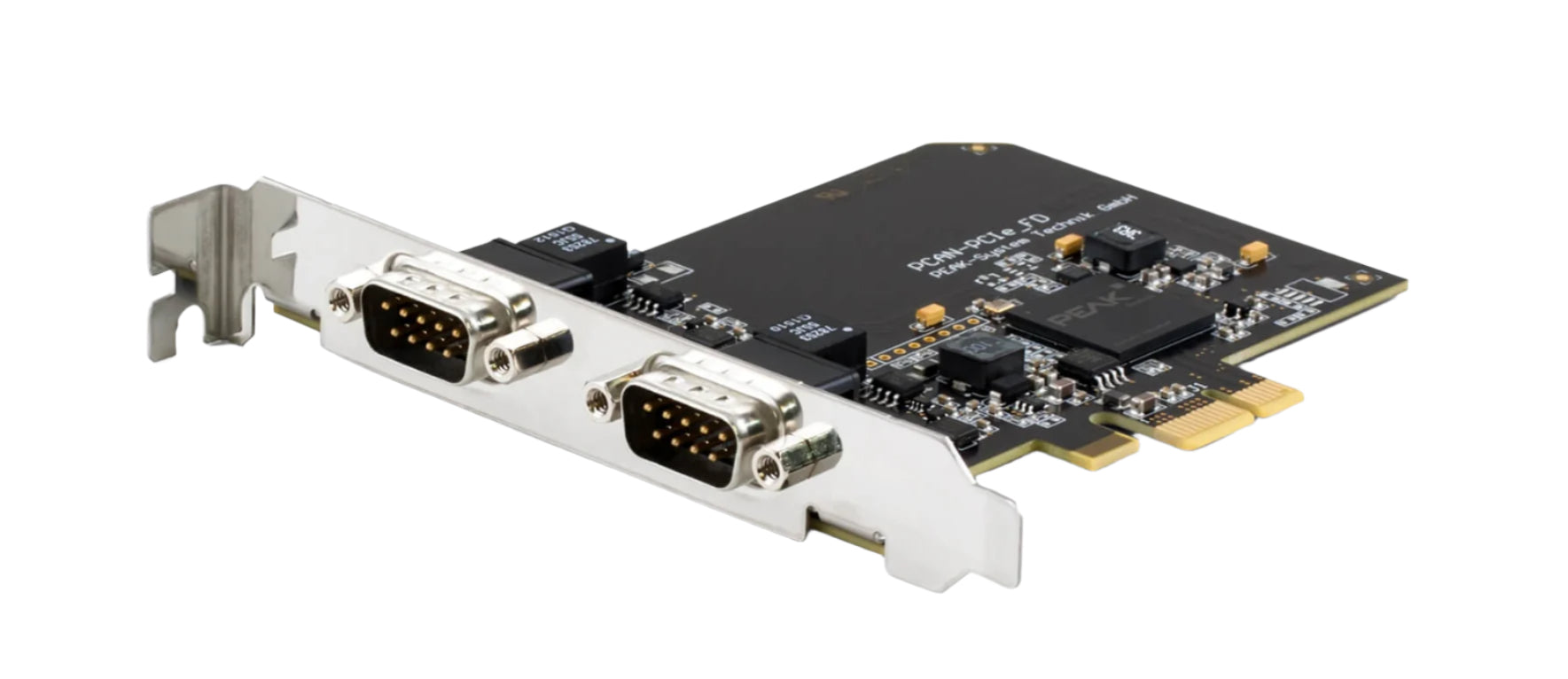

- CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
- FPGA implementation of the CAN FD controller
- NXP TJA1044GT CAN transceiver
- Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
- CAN termination can be activated through a solder jumper, separately for each CAN channel
- PCIe data transfer via bus master DMA
- DMA memory access operations with 32- and 64-bit addresses
- Measurement of bus load including error frames and overload frames on the physical bus
- Induced error generation for incoming and outgoing CAN messages
- 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
- Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
| Interface(s) | PC: PCI Express x1 (1 Lane) CAN: ISO 11898-2, complies with CiA-recommendation DS 102 CAN FD 1.0 |
| Power Consumption | 1 channel: tbd 2 channel: max. 200mA (@3.3V), 30 mA (@12V) 4 channel: tbd |
| Baud Rate | CAN: 25 kBit/s - 1 Mbit/s CAN FD: 25 kBit/s - 12 Mbit/s |
| Pinout | C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3) |
| Transceiver | NXP TJA1044GT |
| Dimensions | 121 x 114 mm |
| Weight | 55g (single channel); 66 g (dual channel); tbd g (four channel) |
| Software | Driver: Windows® 10, 8.1, 7; Linux Tools: PCAN-View for Windows® |
| Controller(s) | FPGA Implementation |
| Channels | 1, 2 or 4 |
| I/O & IRQ | automatically assigned via "plug n play" |
| Isolation | Up to 500 VDC, separate for each CAN channel |
| Specification | CAN FD 1.0 (compatible with CAN 2.0) |
| Operating temperature | -40°C to +85°C |
| Storage temperature | -40°C to +125°C |
| Relative humidity | 15% to 90% (non-condensing) |
| EMC directives | EN 55024:2011-09 EN 55022:2011-12 EC directive 2004/108/EG |
| Certifications | CE, RoHS |
| PCAN-PCI Express FD manual |
| User Manual in English |
| Device driver setup for Windows |
| Installation package from PEAK-System for device drivers and tools for Windows ® 10, 8.1 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway. |
| Device drivers for Linux |
| Device driver for PEAK CAN interfaces from Kernel 2.6. |
| PCAN-View |
| Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-Basic API |
| API for developing applications with CAN and CAN FD connections for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-Basic API (Linux) |
| API for developing applications with CAN connection for Linux. |
| PCAN-CCP API |
| API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-XCP API |
| API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-ISO-TP API |
| API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-UDS API |
| API for communication with control units according to UDS (ISO 14229-1) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-OBD-2 API |
| API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 10, 8.1 (32/64-bit). |
| PCAN-PassThru API |
| Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 10, 8.1 (32/64-bit) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download. |
| Bit Rate Calculation Tool (Windows Version) |
| Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit). |
| Bit Rate Calculation Tool (Android Version) |
| Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit). |
| Bit Rate Calculation Tool (iOS Version) |
| Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit). |
