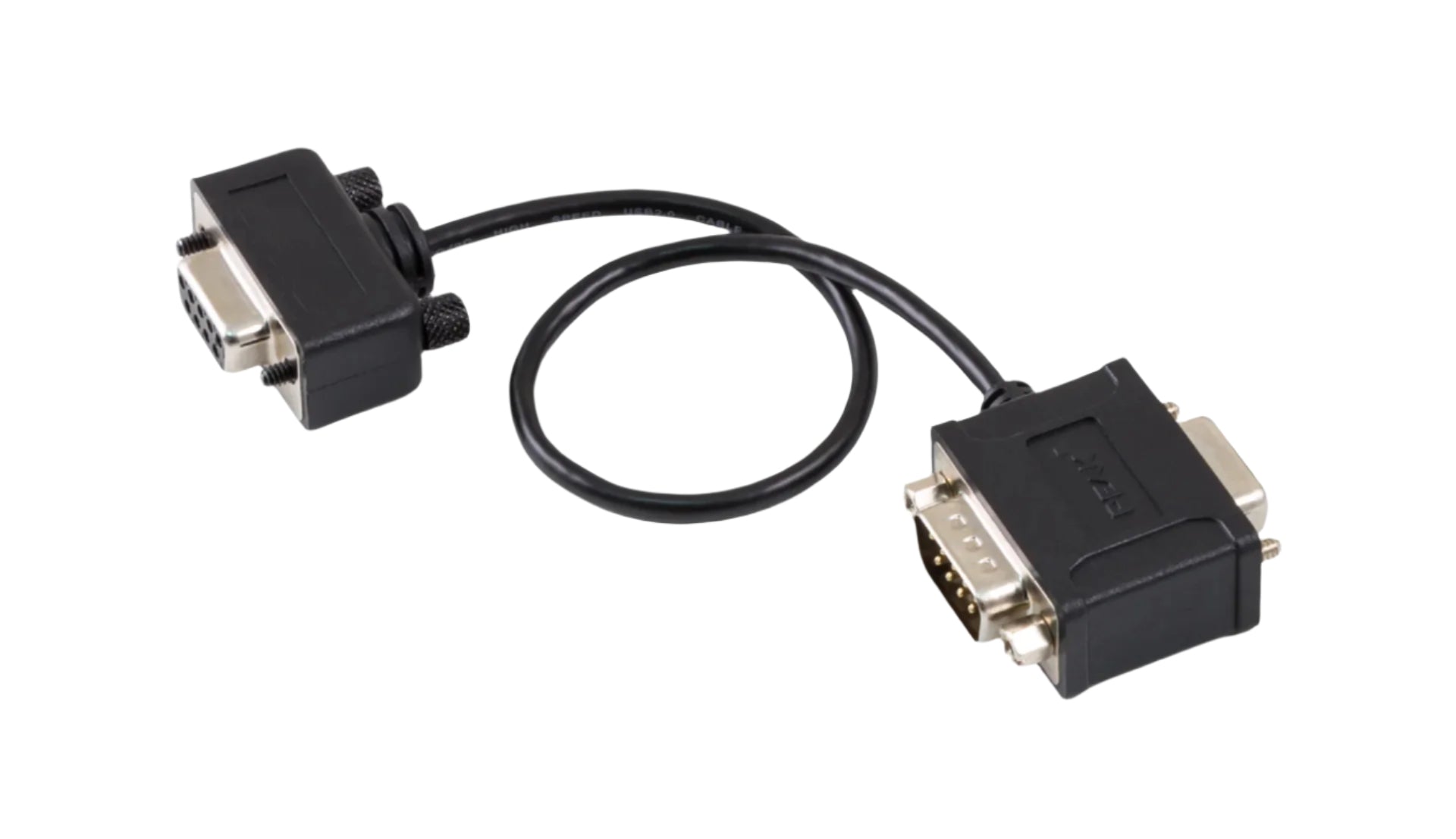

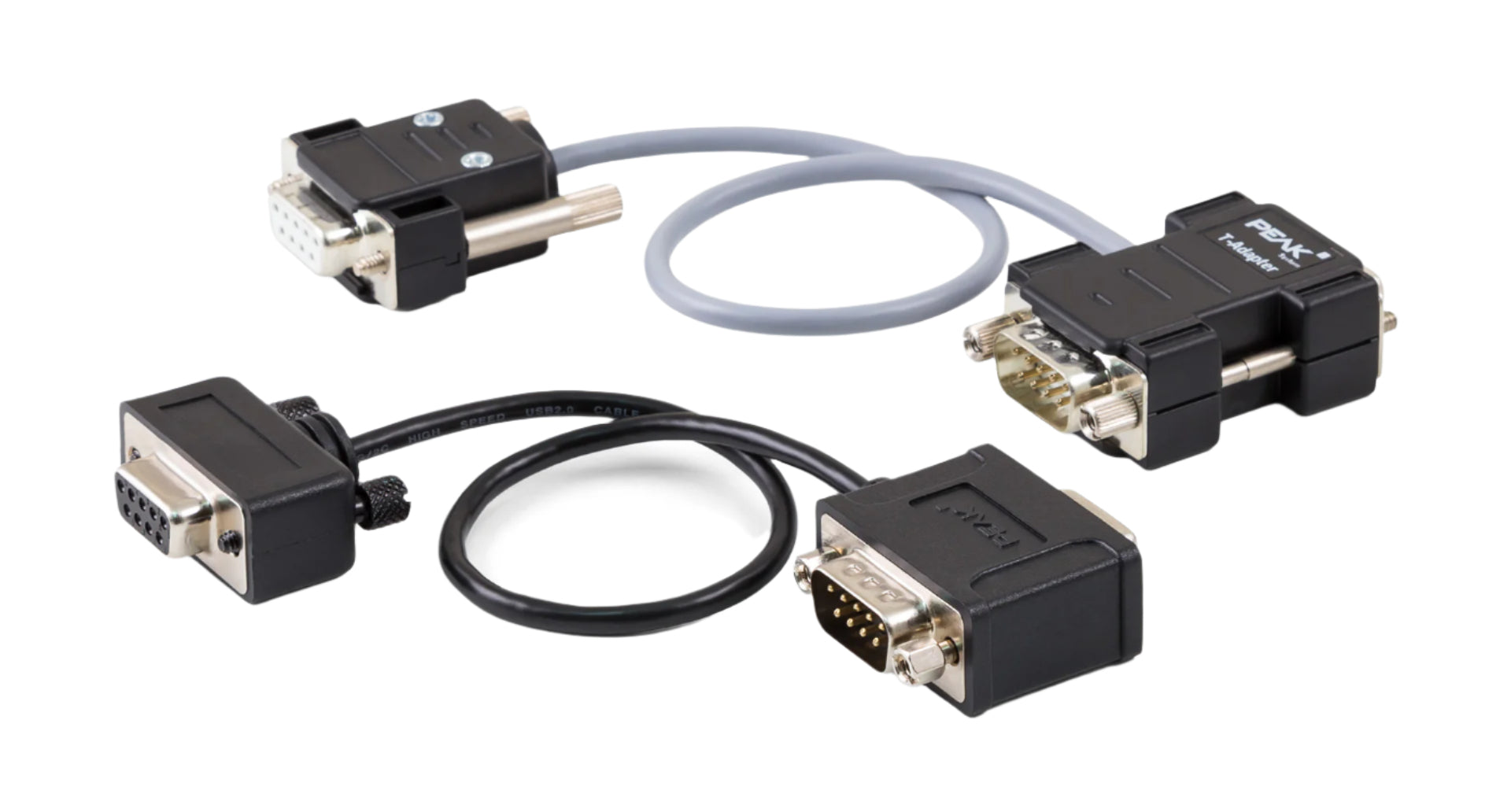

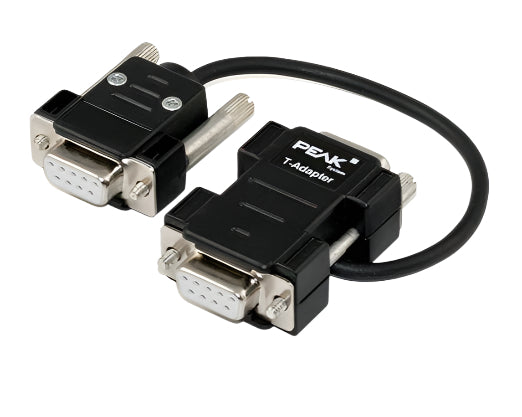

PCAN T-Adapter
Click or scroll to zoom
Tap or pinch to zoom
PCAN T-Adapter
PCAN T-Adapter

PCAN T-Adapter

IPEK-003003
by PEAK-System Technik
$35
Lowest price - guaranteed

T-Adapter for CAN Tapping

The PCAN-T-Adapter creates a tap connection to the data cables and the ground within a CAN bus in order to be able to connect a CAN node. In this case, the CAN node is not terminated.

The PCAN-T-Adapter can be used for both CAN FD and Classic CAN buses.

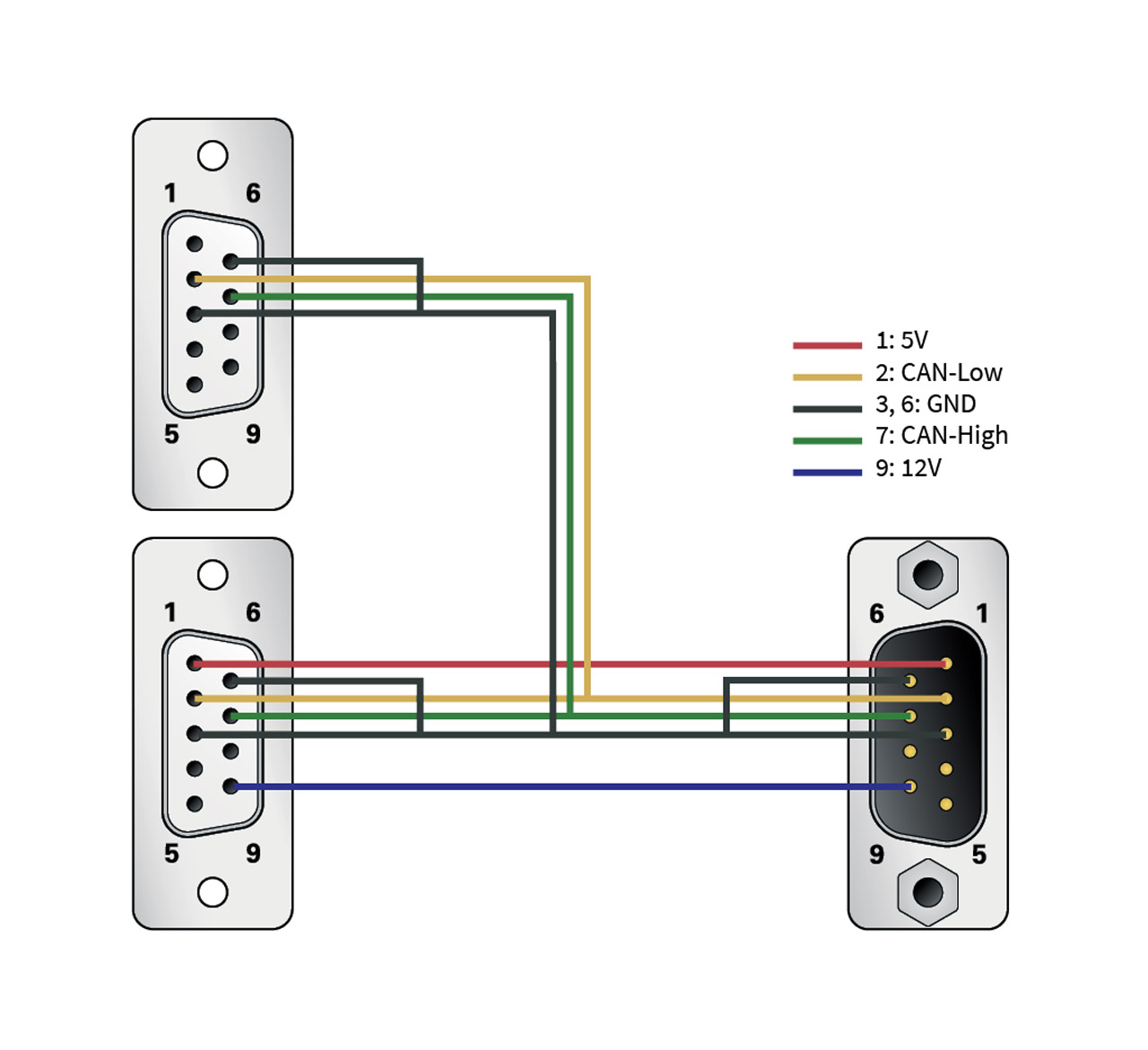

  • 9-pin D-Sub socket to 9-pin D-Sub connector and D-Sub socket (in accordance with CiA® 102)
  • CAN tap length about 20 cm
  • Unterminated

Special cable makeup on request
