PCAN-Trace Data Logger

SKU #: IPES-002027

Comprehensive CAN Data Logger from PEAK

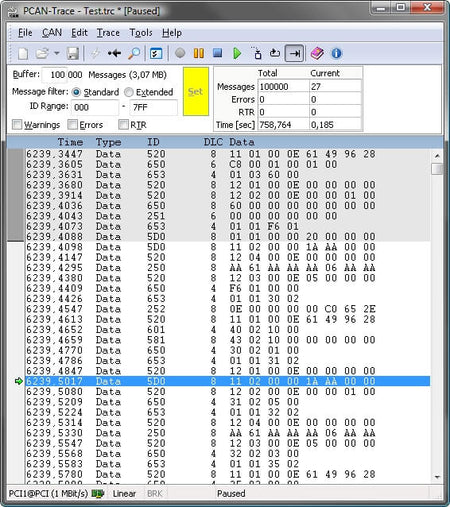

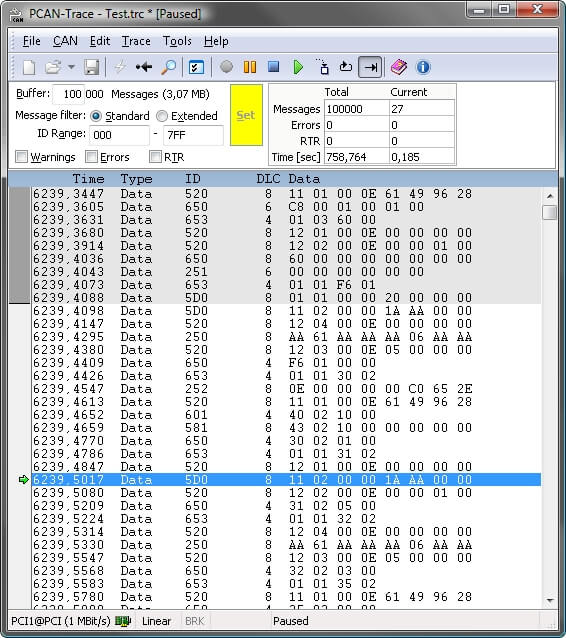

The PEAK PCAN-Trace program is a data logger which is capable to record up to 9,999,000 CAN messages. All messages from the connected CAN bus are quickly recorded and saved in a trace file. Previously recorded message sequences can also be loaded into the buffer and then be played back on the CAN bus. The program displays the number of received messages, and identifies the types of the messages (data frame, error frame, RTR frame).

The software offers a linear or ring buffer mode for CANbus recording. PCAN-Trace also provides an option to play back CAN messages in single step mode. With the help of playback mode breakpoints frame analysis and tracing is simplified.

  • Log facility for up to 9,999,000 CAN messages

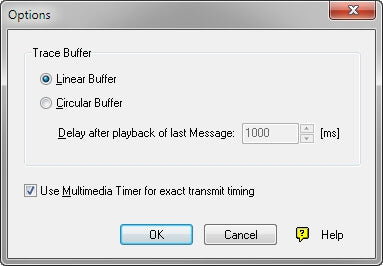

  • Choice of linear buffer or ring buffer (in receive and playback mode)
  • Displays number and type of received CAN messages
  • Adjustable message filter
  • Support for 11-bit and 29-bit IDs
  • Facility to play back CAN messages that have been recorded using
    PCAN-Explorer or PCAN-View, even in single-step mode
  • Playback of selected areas of a CAN message record

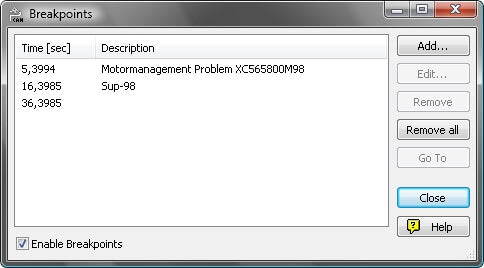

  • Breakpoints can be used in playback mode
  • Received data can also be viewed in a text editor
  • Control of the software via the command line

Delivery Contents

  • PCAN-Trace installation CD
  • Single user license
  • Documentation in HTML help format
