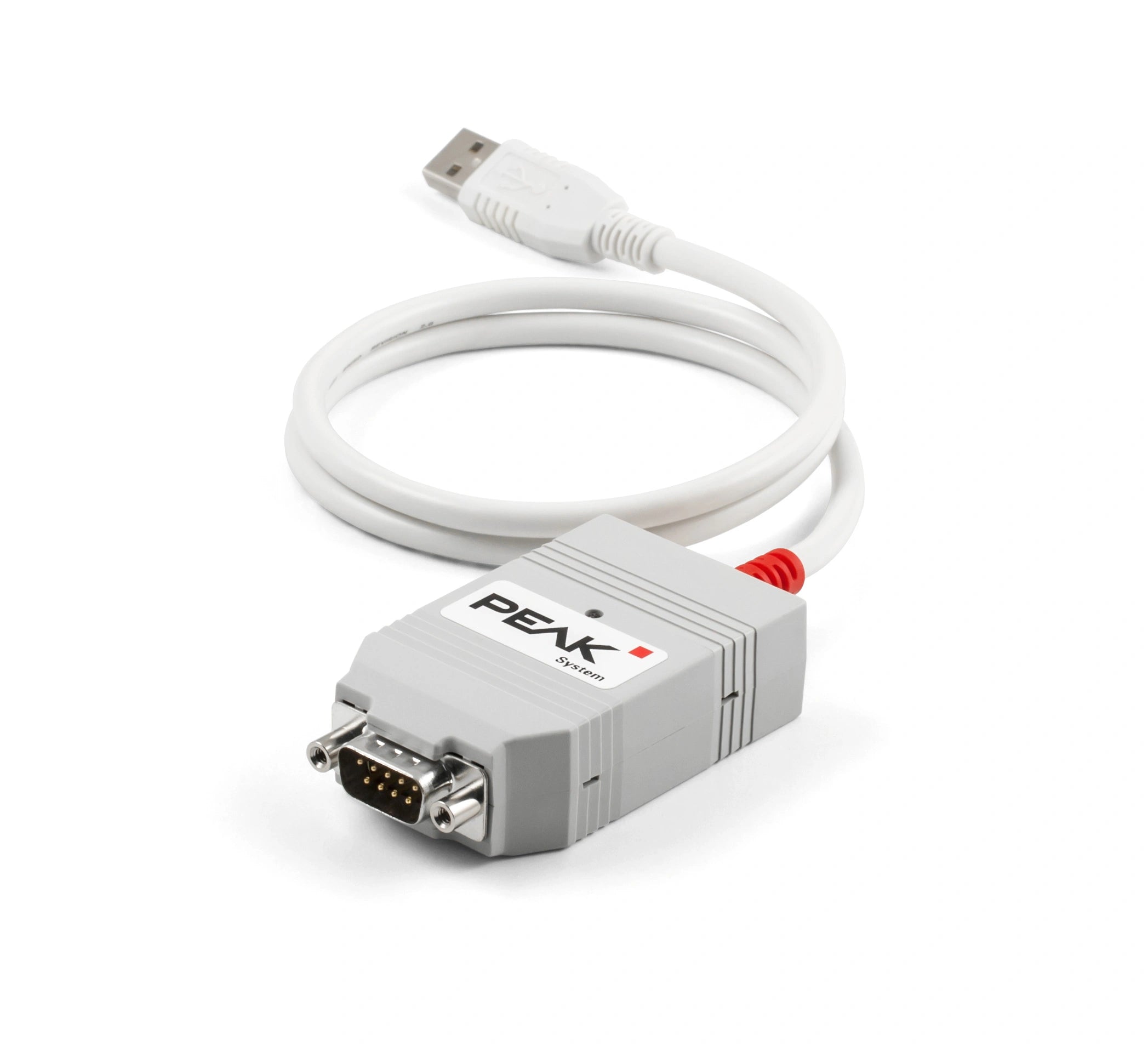

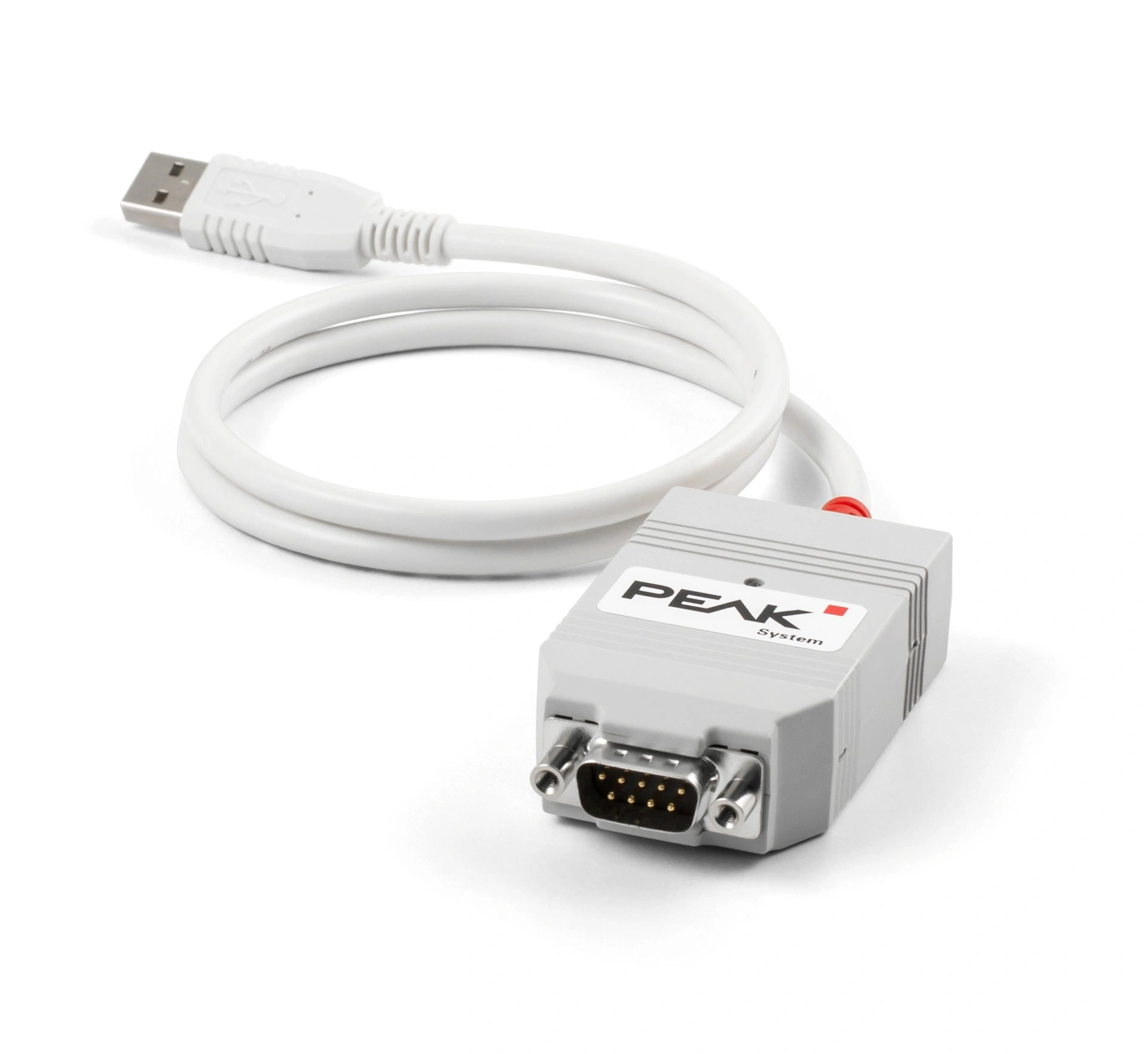

- Interface in compact plastic casing
- CAN transfer rates up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via D-Sub, 9-pin (to CiA® 102)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- NXP PCA82C251 CAN transceiver
- Hardware can be reset via software
- 5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external transceiver
- Voltage supply through USB bus
- USB connection (USB 1.1, compatible with USB 2.0 and USB 3.0)

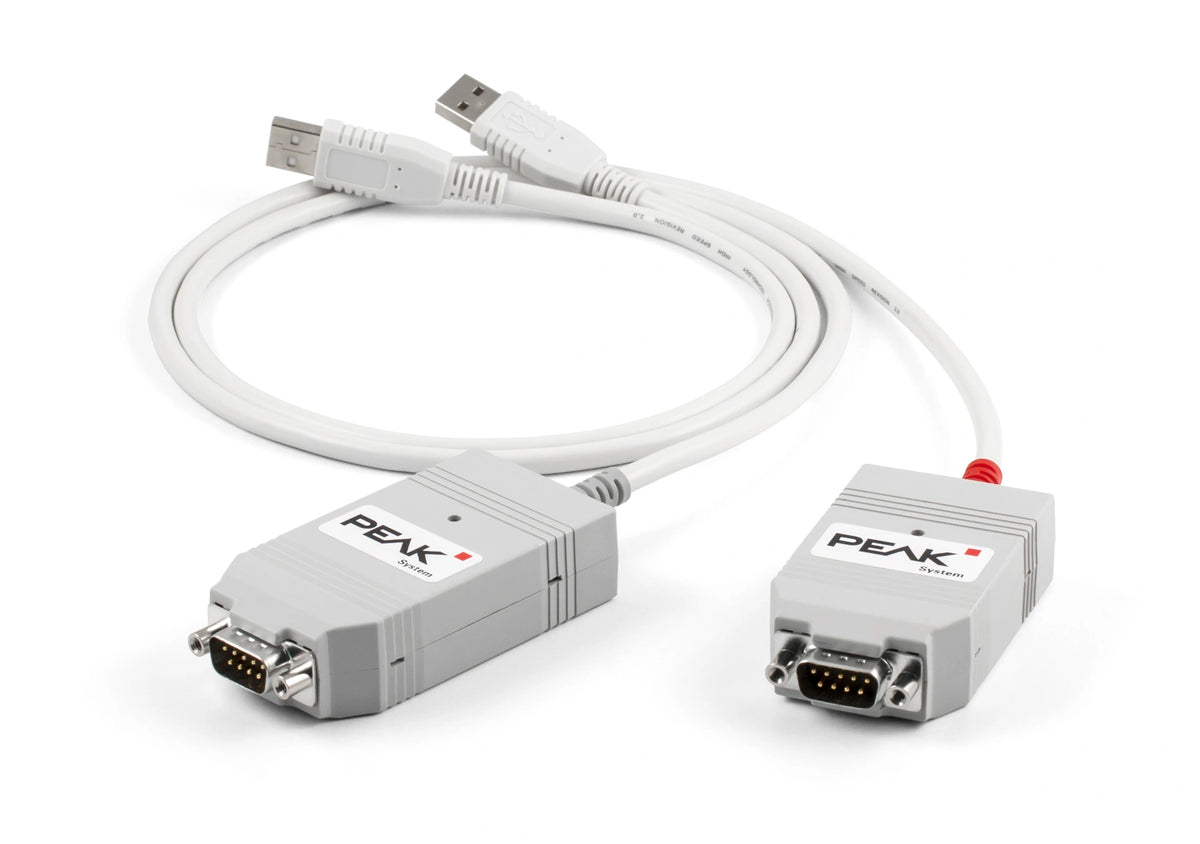

- Optional galvanic isolation on the CAN connection up to 500 V (see IPEH-002022)
| Power Consumption | 1 Channel max. 200mA |
|---|---|
| Baud Rate | CAN: max. 1 MBit/s |
| Pinout | C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3) |
| Transceiver | CAN: NXP / Philips PCA82C251 |
| Dimensions | 75 x 43 x 22 mm |
| Weight | 78 g |
| Software | Driver: Windows® 11 (x64) and 10 (x86/x64) and Linux Tools: PCAN-View for Windows® |
| Controller(s) | CAN: NXP / Phillips SJA1000 |
| Connector(s) | PC: USB plug type A, USB Full-speed mode, compatible to USB 1.1, 2.0 and USB 3.0 CAN: ISO 11898-2, complies with CiA-recommendation DS 102 |
| I/O & IRQ | automatically assigned via "plug n play" |
| Specification | CAN: 2.0A (Standard format) and 2.0B (extended format) |
| Operating temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Relative humidity | 15% to 90% (non-condensing) |
| Enclosure | IP20, Plastic Enclosure |
| EMC Directive | EN 55024:2003-10 EN 55022:2007-04 EC directive 2004/108/EG |
| Certifications | CE, RoHS Complies with EU Directive 2011/65/EU (RoHS 2) + 2015/863/EU. |
| PCAN-USB Manual |
| PDF User's Manual in English |
| Device driver setup for Windows |
| Installation package from PEAK-System for device drivers and tools for Windows ® 11 (x64) and 10 (x86/x64) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway. |
| Device drivers for Linux |
| Device driver for PEAK CAN interfaces from Kernel 2.6. |
| PCAN-USB firmware |
| Firmware upgrade |
| PCAN-View |
| Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 11 (x64) and 10 (x86/x64). |
| PCAN-Basic API |
| API for developing applications with CAN and CAN FD connections for Windows ® 11 (x64) and 10 (x86/x64). |
| PCAN-Basic API (Linux) |
| API for developing applications with CAN connection for Linux. |
| PCAN-CCP API |
| API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 11 (x64) and 10 (x86/x64). |
| PCAN-XCP API |
| API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 11 (x64) and 10 (x86/x64). |
| PCAN-ISO-TP API |
| API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 11 (x64) and 10 (x86/x64). |
| PCAN-UDS API |
| API for communication with control units according to UDS (ISO 14229-1) for Windows ® 11 (x64) and 10 (x86/x64). |
| PCAN-OBD-2 API |
| API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 11 (x64) and 10 (x86/x64). |
| PCAN-PassThru API |
| Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 11 (x64) and 10 (x86/x64) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download. |
| Bit Rate Calculation Tool (Windows Version) |
| Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 11 (x64) and 10 (x86/x64). |
| Bit Rate Calculation Tool (Android Version) |
| Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 11 (x64) and 10 (x86/x64). |
| Bit Rate Calculation Tool (iOS Version) |
| Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 11 (x64) and 10 (x86/x64). |
| Windows CE6 package |
| PCAN-CE package for Microsoft Windows ® CE 6.x. |
| Windows 2000 package |
| Windows ® 2000 device driver including CAN monitor PCAN-View. |
