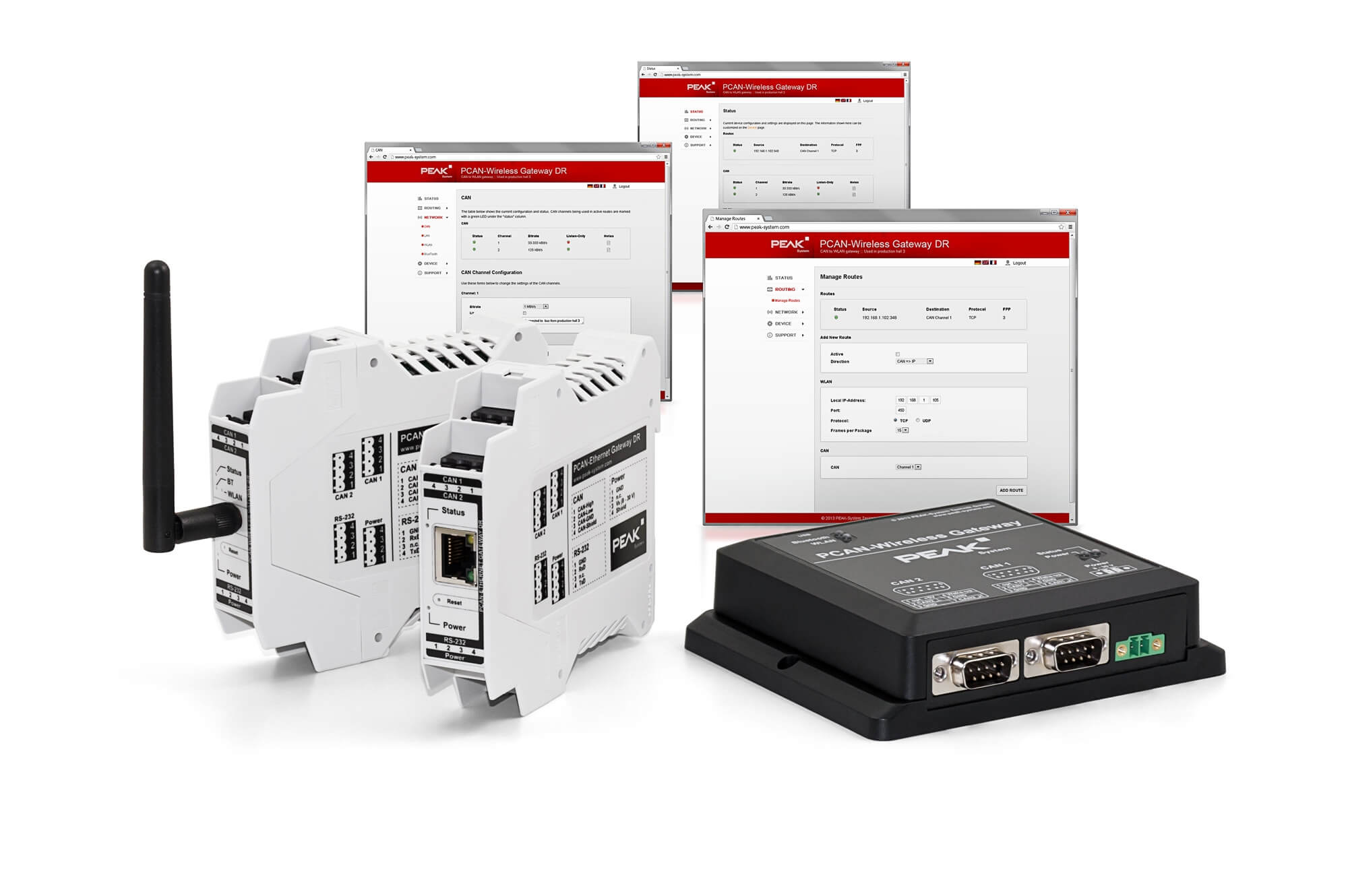

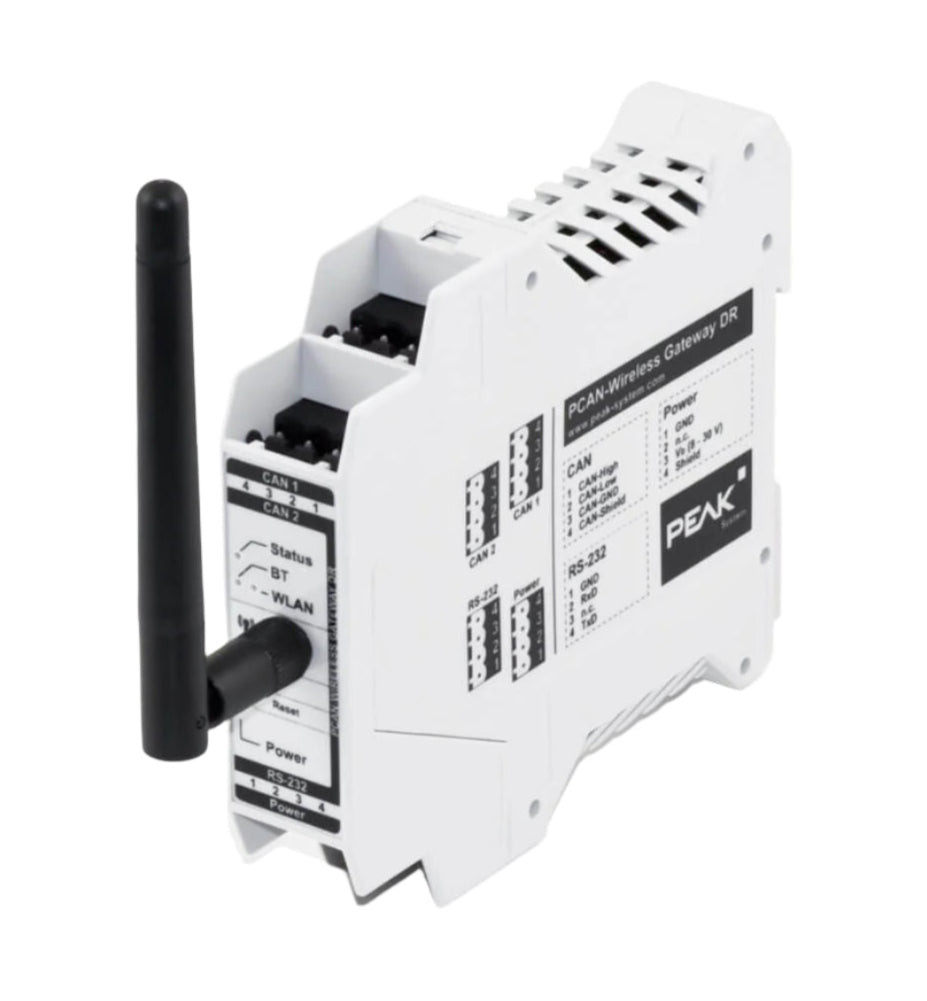

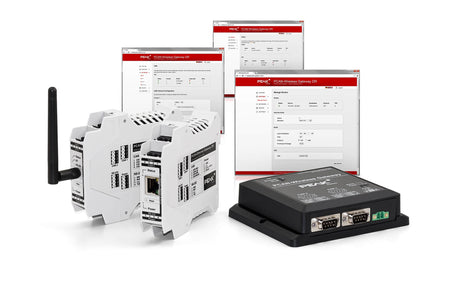

The PCAN-Wireless Gateway DR allows the connection of different CAN busses over IP networks. CAN frames are wrapped in TCP or UDP message packets and then forwarded via the IP net from one device to the other. The PCAN-Wireless Gateway DR provides one WLAN connection and two High-speed CAN interfaces. With its DIN rail casing and the support of the extended temperature range, the module is suitable for use in an
industrial environment.
The configuration of the device is done via a comfortable web interface. Besides a variety of status information, settings for the device itself, for the communication interfaces, and for message routing are provided.
PCAN-Wireless LAN Gateway DR manual in PDF format (English)
industrial environment.
The configuration of the device is done via a comfortable web interface. Besides a variety of status information, settings for the device itself, for the communication interfaces, and for message routing are provided.
- ARM9 Freescale iMX257 with 16 kByte Level 1 Cache and 128 kByte internal SRAM
- 256 MByte NAND Flash and 64 MByte DDR2 RAM
- Linux operating system (version 2.6.31)
- RS-232 connector for serial data transfer (reserved for future use)
- Connections for CAN, RS-232, and power supply via 4-pole screw-terminal strips (Phoenix)
- Reboot and reset of the device to factory defaults with a reset button
- Configuration of the network interfaces and the message forwarding through a web interface
- Plastic casing (width: 22.5 mm) for mounting on a DIN rail (DIN EN 60715 TH35)
- LEDs for device status, WLAN, and power supply
- Voltage supply from 8 to 30 V
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
WLAN properties
- WLAN IEEE 802.11 b/g
- 2.4 GHz dipole antenna, connection via RP-SMA aerial socket
- Data transmission using TCP or UDP
- Bluetooth 2.1 + EDR, Class 1 (reserved for future use)
CAN properties
- Two High-speed CAN channels (ISO 11898-2)
- Bit rates up to 1 Mbit/s
- NXP PCA82C251 CAN transceiver
- Galvanic isolation of the CAN channels up to 500 V against each other, against RS-232 and the power supply
- Compliant with CAN specifications 2.0A and 2.0B
| Connectors | CAN: 2* screw terminal block, 4-pin (Phoenix Contact MSTB 2.5/4-ST BK - order# 1756298) Antenna: RP-SMA antenna socket RS-232: screw terminal block, 4-pin (Phoenix Contact MSTB 2.5/4-ST BK - order# 1756298) Power: screw terminal block, 4-pin (Phoenix Contact MSTB 2.5/4-ST BK - order# 1756298) |
|---|---|
| CAN Interface | Specification: High-speed CAN per ISO 11898-2, 2.0A (standard format) and 2.0B (extended format) Bit rates: 5 kBit/s...1 MBit/s Transceiver: NXP PCA82C251 Galvanic isolation: Isolation of the CAN channels up to 500V against each other and against RS-232 and the power supply Bus termination: None Listen-only mode: switchable for CAN channel 1 and 2 |
| WLAN Interface | Protocol: TCP, UDP Antenna: 2.4 GHz dipole Encryption: WPA, WPA2 Bit rates: 11 MBit/s - 54 MBit/s Frequency: 2.4 GHz, 14 channels Standard: IEEE 802.11 b/g Wireless module: WIBEAR-SF1, FCC ID: PV7-WIBEAR-SF-STA 9EN300328, EN301489-1/-17, EC directive 1999/519/EC |
| Power Supply | Supply voltage: +8 … +30 VDC Current consumption: max. 450mA@8V, max. 300mA@12V, max. 100mA@30V, |
| Dimensions | Unit size: 22.5 x 99 x 114.5 mm, see dimensional drawing in the PCAN-Wireless Gateway DR User's Manual - attachment B |
| Weight | 111g (with antenna) |
| Operating temperature | -40°C to +85 °C (-40 to +185 °F) |
| Storage temperature | -55°C to +125 °C (-67 to +257 °F) |
| Relative humidity | 15% to 90% (non-condensing) |
| EMI/Protection | EN 55024: 2011-09 EN 55022: 2011-12 EC directive 2004/108/EG IP20 (DIN EN 60529) |
| Certifications | CE |
