PCIe-M.2 Low-Profile Adapter

SKU #: IPEH-003023
New

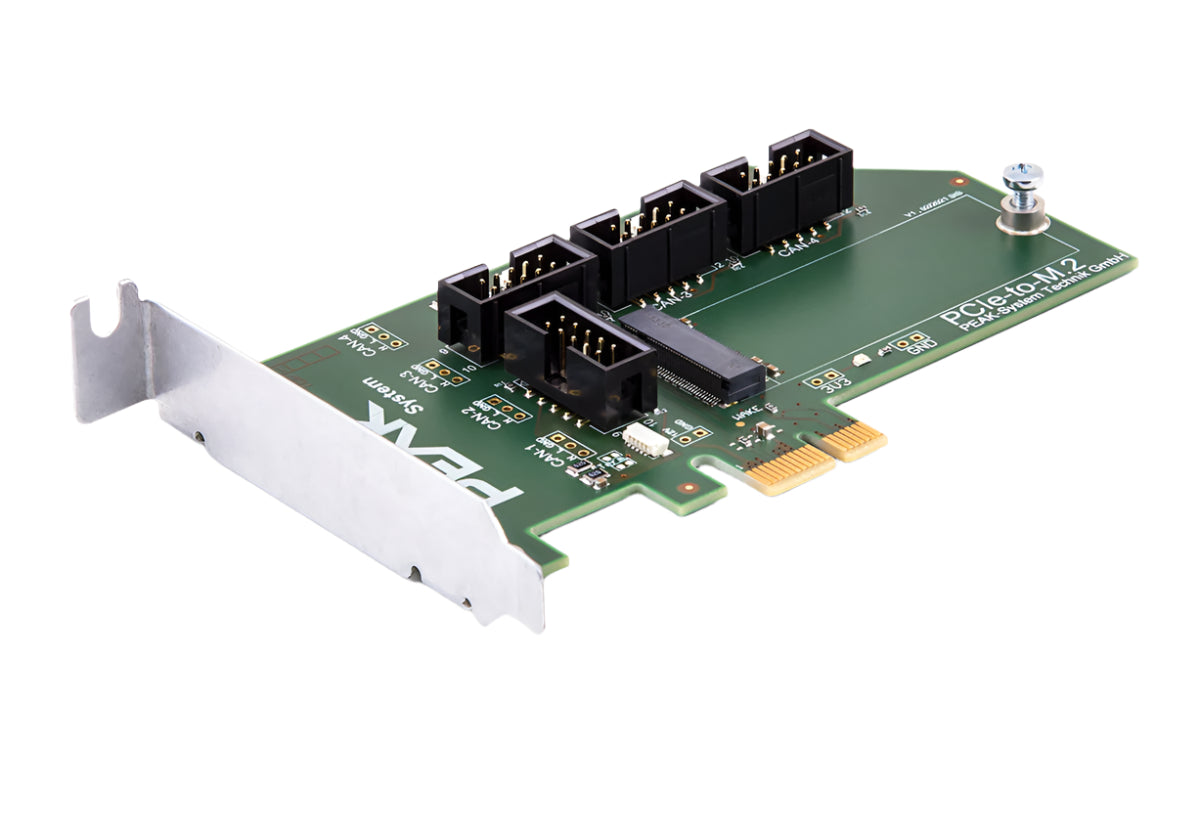

PCI Express Low-Profile Adapter for M.2 Cards

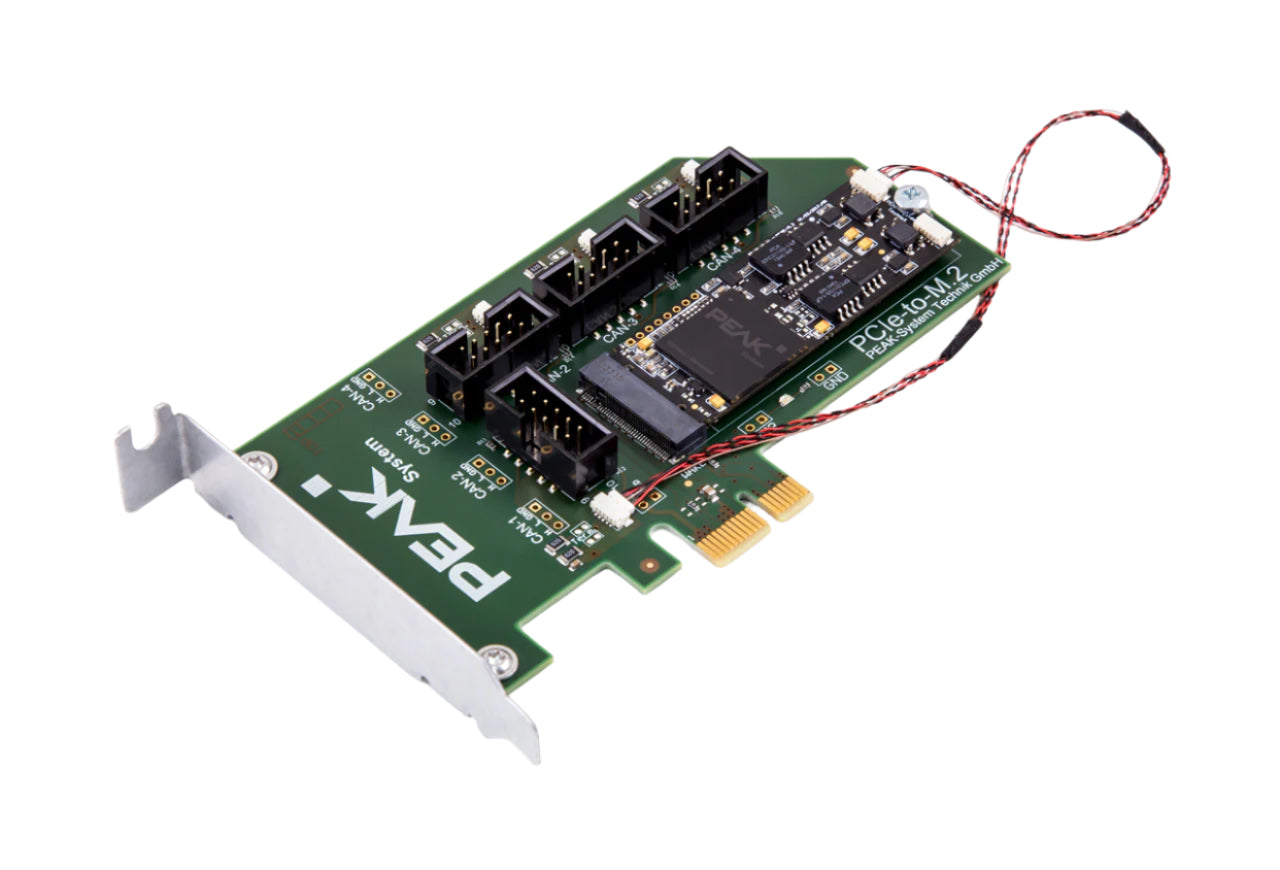

The PCIe-M.2 Low-Profile adapter allows the use of a plug-in card of the M.2 type in a PC with a low-profile housing. The adapter card is primarily designed for operation with the CAN interface PCAN-M.2. Besides the regular D-Sub connection cables of the PCAN-M.2, the connection of up to four CAN channels can be done via pin connectors or solder connections. In addition, each CAN connection is equipped with an activatable split termination.

  • Low Profile form factor
  • PC plug-in card (PCIe x1) for the PCI Express slot
  • Screw fixing for a card of the type M.2 (2260/M-Key)
  • CAN connection optionally via
    • D-Sub connection cable of the PCAN-M.2
    • Pin connector, 10-pin
    • Solder connectors
  • CAN termination can be activated through a solder jumper, separately for each CAN channel
  • Status LED for power supply
  • Supply voltage of the adapter of 3.3 V
  • Extended operating temperature range from -40 to +85 °C (-40 to + 185°F)
