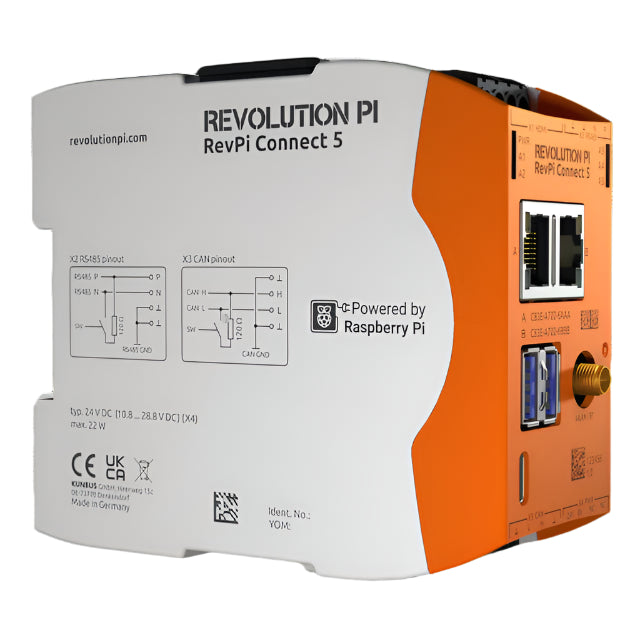

- Powered by the Raspberry Pi Compute Module 5 (CM5) with a quad-core ARM Cortex-A76 processor running at 2.4 GHz.
- Equipped with 4 GB or 8 GB LPDDR4X RAM and 32 GB eMMC storage.

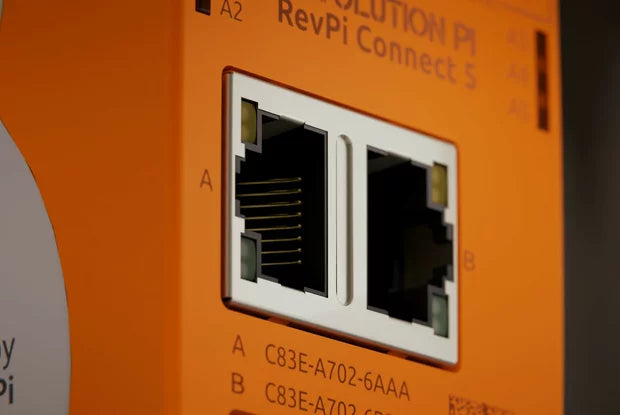

- 2x independent Gigabit Ethernet (RJ45) ports for seamless network integration.
- 2x USB 3.2 Gen 1 ports supporting data transfer speeds up to 5 Gbps.
- Optional wireless connectivity with WLAN and Bluetooth capabilities.
- Optional RS485 interface for serial communication with industrial devices
- Optional CAN FD interfaces (up to two) for high-speed communication in automotive and industrial applications

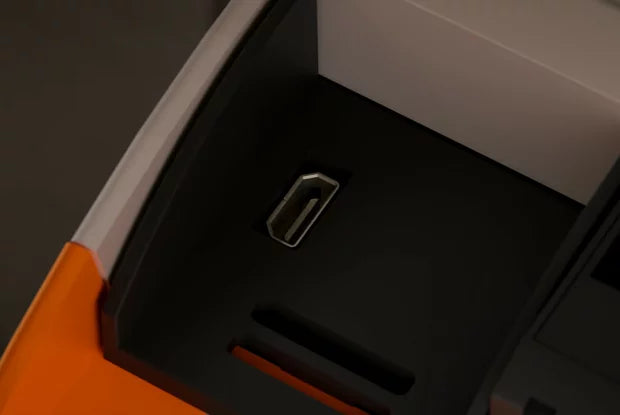

- 1x Micro-HDMI 2.0a port supporting 4K resolution at 60 fps, enabling connection to monitor and touchscreens.
- 1 x RP-SMA socket for connecting an external WLAN/BT antenna (2.4/ 5 GHz), not available on Article No. 100376 and 100378.

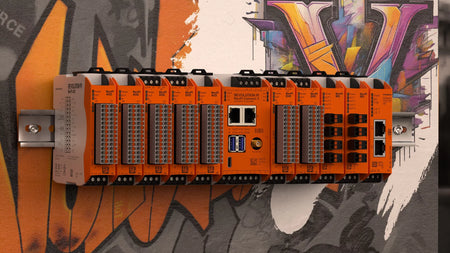

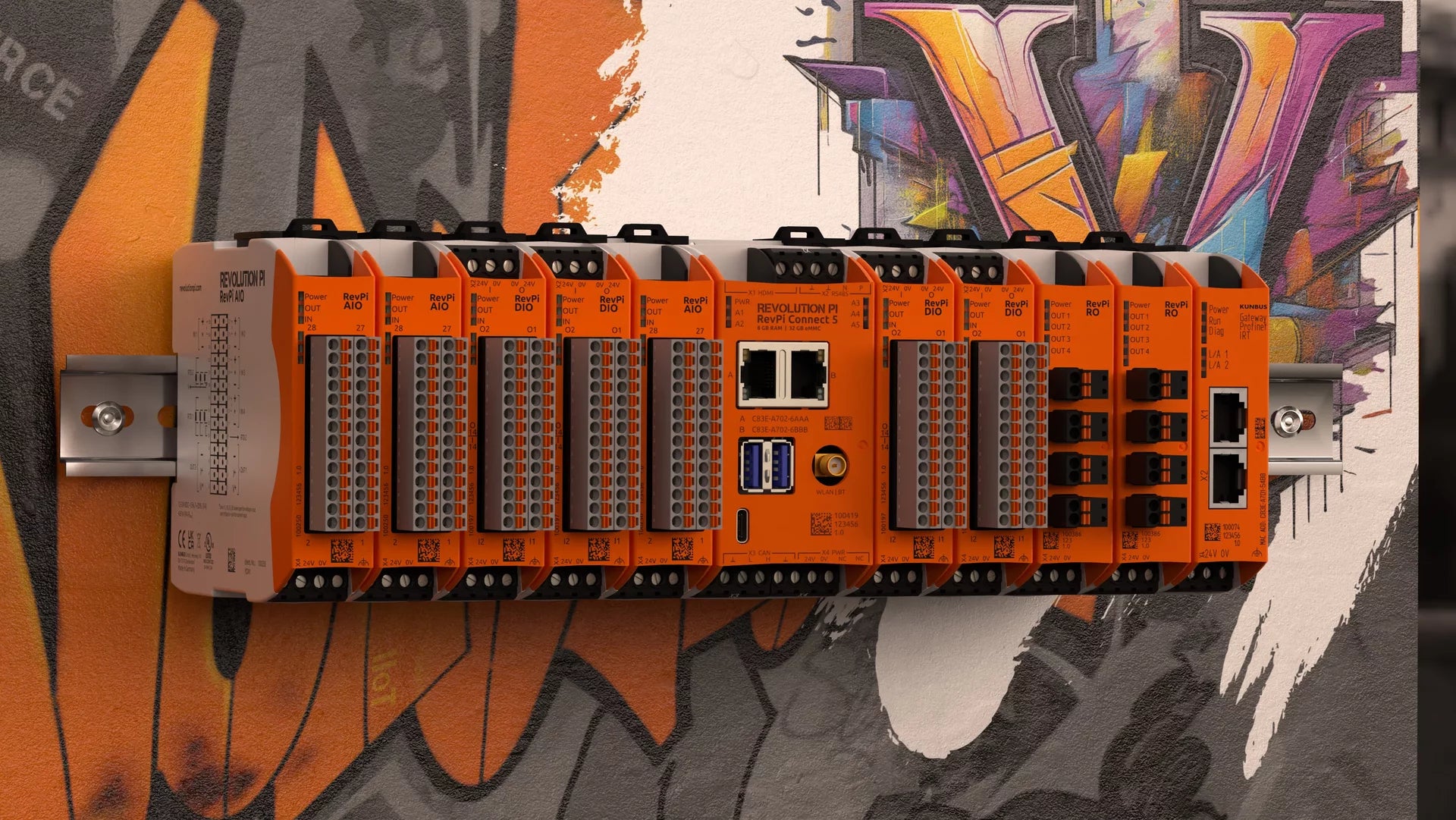

- 2x PiBridge interfaces for modular expansion with RevPi I/O modules and gateways, allowing connection of up to 10 expansion modules (including a maximum of two gateways).
- Compliant with PLC standard EN 61131-2, ensuring reliability in industrial environments.
- Operating temperature ranges from 25 ... +60 °C.
- Robust DIN rail mountable housing for secure installation in control cabinets.
- Integrated Trusted Platform Module (TPM) 2.0 for secure storage of cryptographic keys and sensitive data.
- Real-Time Clock (RTC) backed by a CR2032 lithium battery with an approximate lifespan of 10 years.
- Hardware watchdog timer to automatically reset the system in case of software failures.
- Default support for Modbus RTU and Modbus TCP with client and server functionalities
- User-specific control and HMI software can be optionally used
- Supports Docker containers for application virtualization.
- Compatible with various programming languages and tools, including Python, Node-RED, and CODESYS.
| Housing dimensions (HxWxD) | 96 x 45 x 115 mm (incl. RP-SMA socket) |
|---|---|
| Housing type | DIN rail housing for TH35 according to DIN EN 60715 |
| Housing material | Polycarbonate |
| Weight | Approx. 290 g (incl. connectors) |
| IP Code | IP20 |
| Power supply | 10.8 ... 28.8 V DC |
| Max. power consumption | 20 W (incl. 2 x 900 mA USB load) |
| Operating temperature | -25 ... +60 °C |
| Storage temperature | -40 °C to +85 °C |
| Humidity (40 °C) | up to 93 % (non-condensing) |
| Interfaces |
0 / 1x RS485 (see Variants) |
| Connectors |

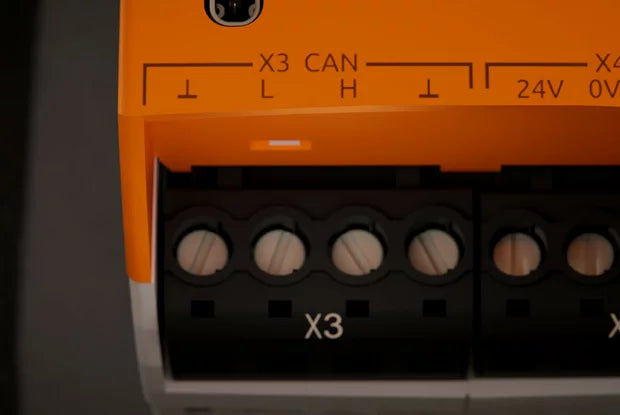

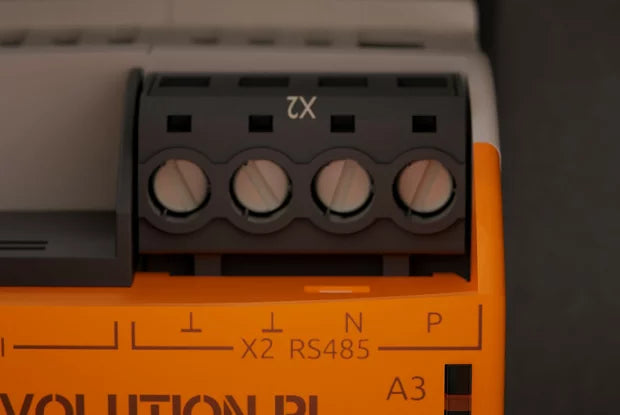

1 x 4-pole screw-type terminal (X2 connector) for RS485 (see 1 x 4-pole screw-type terminal (X2 and X3 connector) for CAN 1 x 4-pole screw-type-terminal (X4 connector) for power supply |
| Processor | Broadcom BCM2712, Quad-core ARM Cortex-A76 |
| Clock rate | 2.4 GHz |
| Processor cooling | Passive with heat sink |
| RAM | 4 GB or 8 GB LPDDR4X |
| Flash memory | 32 GB eMMC |
| Number of digital input channels | 1 |
| Input Type | 24 V control voltage (e.g. for power-good signal of a UPS) |
| Input Threshold | approx. 10 V DC (0 -> 1) resp. 7 V DC (1 -> 0); input current 2.4 mA (according to IEC 61131-2) |
| Number of digital output channels | 1 |
| Output type | opto-decoupled solid state relay, normally open, max. 30 V, 300 mA DC, any polarity |
| Software interface for input and output | Via GPIOs and process image. |
| Hardware watchdog functionality | Watchdog in RTC device, freely configurable watchdog character device |
| Compatible modules for system expansion | All RevPi IO modules can be connected via the PiBridge system bus. Up to 5 modules can be connected on each side of the device. |
| EMC interference emission | according to IEC 61000-6-4 Emission standard for industrial environments |
| EMC immunity | according to IEC 61000-6-2 Immunity standard for industrial environments |
| RTC Buffer | CR2032 lithium battery, lifetime approx. 10 years |
| Optical indicator | 5 status LEDs; 5 x red/green/blue, freely programmable, 1 x red/green |
| RoHS conformity | Yes |
| CE conformity | Yes |
| Technical Data Sheet |
| RevPi Connect 5 Technical Data Sheet |
