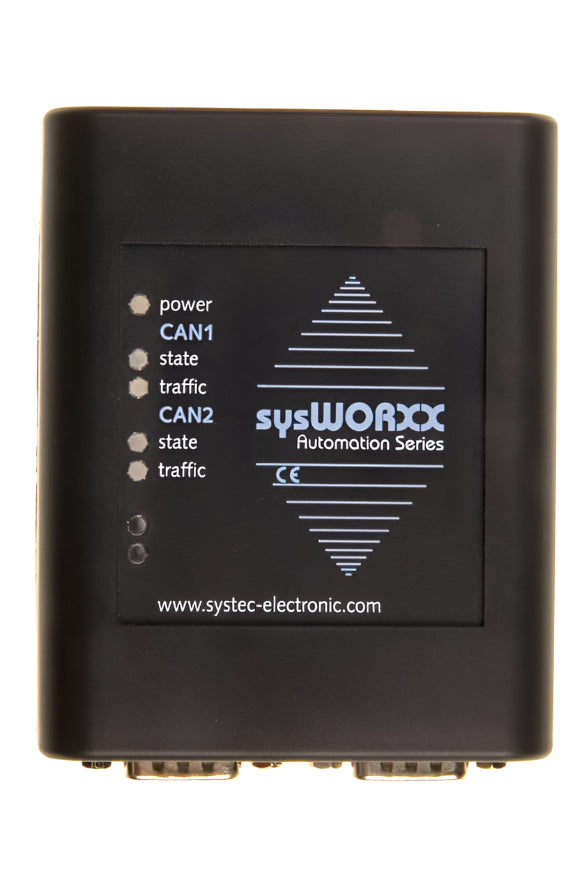

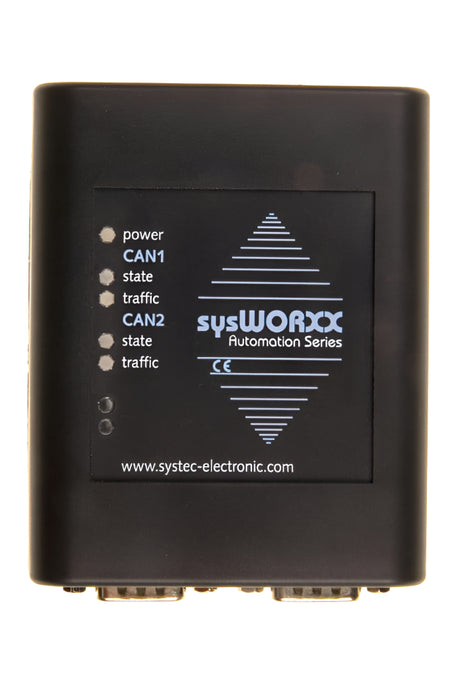

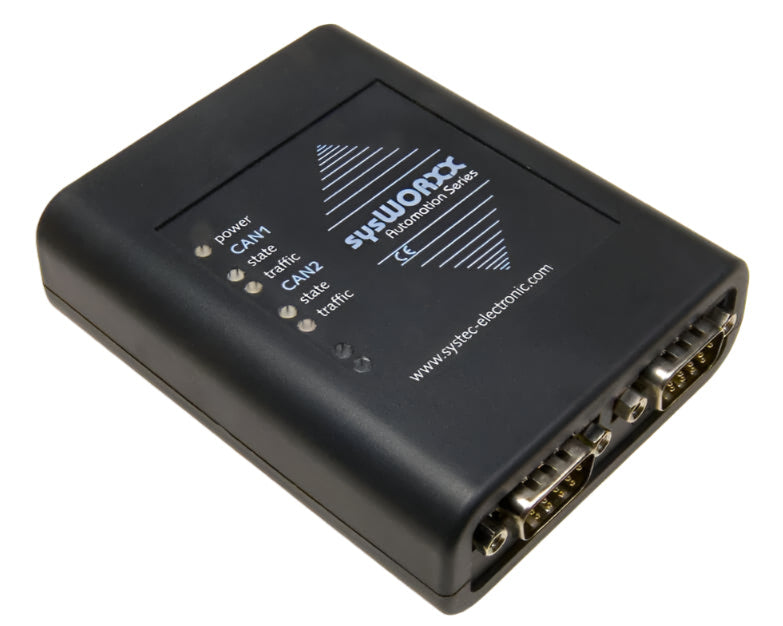

SYS TEC USB-CANmodul2 (low&high speed)

SKU #: SYS-3204019

The SYS TEC USB-CANmodul2 CAN-USB converter is an extended version of our USB-CANmodul1 and is designed to provide a highly flexible, yet cost-efficient CAN-bus interface for connecting a CAN bus network to a PC via USB port. Messages are tunneled transparently and therefore support all common higher-layer CAN-based protocols, such as CANopen, SDS, DeviceNet or J1939. Its new 32-bit CPU core ensures reliable communication even during times of high busload and provides precise message time stamps. This version features dual CAN with 1x low-speed CAN transceiver TJA1054, 1x high-speed isolated CAN transceiver 82C251.

The PC driver allows for easy plug&play installation and supports simultaneous operation of up to 64 USB-CANmodul2 on the same PC. CAN USB Converter with Low-speed and single-wire CAN transceivers are available on different device versions. An 8-bit digital I/O port is also included. With its high flexibility at an extremely attractive price, the USB-CANmodul2 is an ideal solution for any CAN-bus based development, service and maintenance tasks in a wide range of applications.

  • One high-speed CAN interface (82C251)
  • One low-speed CAN interface (TJA1054)
  • Time-stamped CAN messages
  • Reliable error handling
  • Supports "listen-only" mode for use with analyzing tools
  • 8-bit digital I/O extension port (TTL-level)
  • Low power consumption, USB powered
  • Excellent EMC performance
  • Works with USB2.0 hubs
  • Quick and easy Plug&Play installation
  • Up to 64 CAN-channels can be used simultaneously on the same PC

Software Support:

  • Configuration tool for managing multiple USB-CANmodul2 devices
  • CANinterpreter Light - a simple CAN monitor that allows for reception and transmission of CAN messages
  • Programmers API and demo source for Microsoft Visual C++, Delphi, Visual Basic .NET
  • Device drivers available for Windows 2000/XP/Vista/7

Delivery Contents:

  • Assembled and tested device
  • USB cable (6 ft.)
  • CD-ROM with documentation and device drivers
  • CANinterpreter Light CAN bus monitor
  • Evaluation versions of CAN-REport and CANopen Configuration Suite
  • High-speed CAN interface according to ISO 11898-2
  • Low-speed CAN interface according to ISO 11898-3
  • Single-wire CAN interface according to ISO 11898-3 optional
  • Supported high-speed CAN transceivers: 82C251, SN65HVD23x, TLE6250G, TJA1050
  • Supported low-speed CAN transceivers: TJA1041, TJA1054
  • Supported single-wire CAN transceiver: AU5790
  • Supported LIN transceiver: TJA1020
  • Supported bit rates: 5 to 1000 kbps
  • Supports 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Optional galvanic isolation (no external power supply required, up to 500V)
  • USB full-speed function device, USB 2.0 compliant, transmission type: bulk, 12 Mbps
  • CAN-bus interface connector: SUB-D9
  • LEDs for power supply, CAN status and CAN traffic for each channel
  • CE compliant
  • Power consumption 200mA (typical), USB powered
  • Dimensions: 78 x 68 x 18 (LxWxH in mm)
  • Weight: ax. 80g
  • Operating temperature: -40°C to +85°C
User Manual
USB-CANmodul User Manual
Software Manual
CANopen API for .NET - Software Manual
Product Flyer
USB-CANmodul Series - Product Flyer
USB-CANmodul Utility Disk
V6.03 - Driver for Windows Vista / Windows 7 / Windows 8 / LabView
USB-CANmodul driver package for Windows CE
V1.02 - Driver for WinCE 5.0 and WinCE 6.0
CANopen API for .NET
P/N SO-1088 - V5.46 - Release May 2010
Linux SocketCAN Driver for USB-CANmodul series
Release Version V0.8.0
