SKU #: SYS-3204004

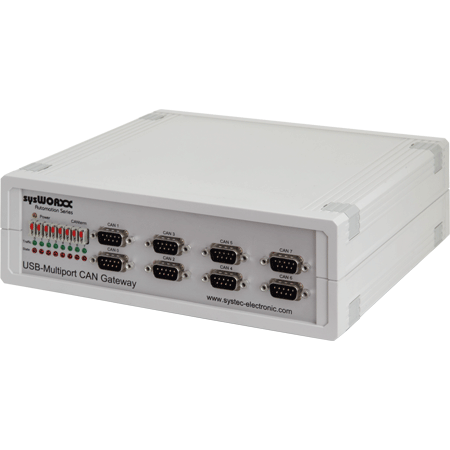

As a member of the successful USB CAN Gateway family from SYS TEC, the USB-CANmodul8 version bundles 8 CAN-channels in one device, connected to the PC via high-speed USB2.0 with up to 480Mbps transfer rate. This USB-CAN Module allows a most comfortable, yet cost efficient way to transfer CAN-bus messages in distributed systems that require a centralized data collection, like used in automotive applications, research institutes or laboratories. As all other versions of the SYS TEC USB-CANmodul series, the USB-CANmodul8 supports all common higher-layer CAN-based protocols, such as CANopen, SDS, DeviceNet or J1939. Its new 32-bit CPU core ensures reliable communication even at high busload, and provides precise message time stamps. The PC driver allows for easy plug&play installation and supports simultaneous operation of up to 64 USB-CANmodul devices on the same PC. With its extremely attractive price-performance ratio and the compact design, the USB-CANmodul8 is ideal suited for servicing and maintenance tasks of CAN-bus systems.

  • Eight high-speed CAN interfaces
  • USB2.0 high-speed up to 480 Mbps
  • Time-stamped CAN messages
  • Reliable error handling
  • Supports "listen-only" mode for use with analyzing tools
  • 19" rack-mounted option available

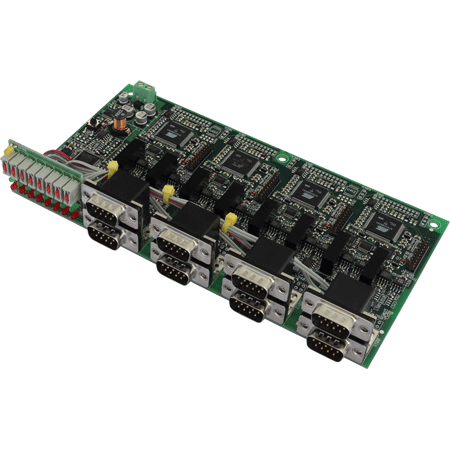

  • open frame version also available for direct OEM integration
  • Low power consumption, USB powered
  • Excellent EMC performance
  • Works with USB2.0 hubs
  • Quick and easy Plug&Play installation
  • Up to 64 CAN-channels can be used simultaneously on the same PC

Software Support:

  • Configuration tool for managing multiple USB-CANmodul2 devices
  • CANinterpreter Light - a simple CAN monitor that allows for reception and transmission of CAN messages
  • Programmers API and demo source for Microsoft Visual C++, Delphi, Visual Basic .NET
  • Device drivers available for Windows 2000/XP/Vista/7

Delivery Contents:

  • Assembled and tested device
  • USB cable (6 ft.)
  • CD-ROM with documentation and device drivers
  • CANinterpreter Light CAN bus monitor
Property Value
The information herein is subject to change without notice.
Available CAN channels: 8
PC connection: USB V2.0 high-speed up to 480 Mbps
CAN interface: 8 CAN interface, high-speed CAN according ISO 11898-2, optical isolated
CAN transceiver: high-speed CAN: 82C251
CAN specification: CAN 2.0A (11-bit identifier)
CAN 2.0B (29-bit identifier)
CAN connector: SUB-D9
CAN bit rate: 10kbps to 1Mbps
CAN bus features: Remote frames
Listen only mode
Time stamp for received messages
Receiving the transmit echo including time stamp
Automatically transmission of cyclical messages by the module
Software support for Windows® OS: USB-CANmodul Control - Configuration tool for managing multiple USB-CANmodul devices
PCAN View - a simple CAN monitor that allows for reception and transmission of CAN messages
Programmers support for Windows OS: Comprehensive programmers API including demo source for Microsoft Visual C++, LabView, Visual Basic .NET
CANopen API for .NET - based on SYS TEC CANopen Stack and allows for easy implementation of CANopen-enabled applications
Programmers support for Linux OS: SocketCAN based API (Linux Kernel version 2.6.32 or higher)
Device driver: Windows® 7/Vista/XP (32/64 bit), Windows® 2000, Linux, WinCE 5.0, WinCE 6.0
LED indicators: LEDs for power supply, CAN state, CAN traffic

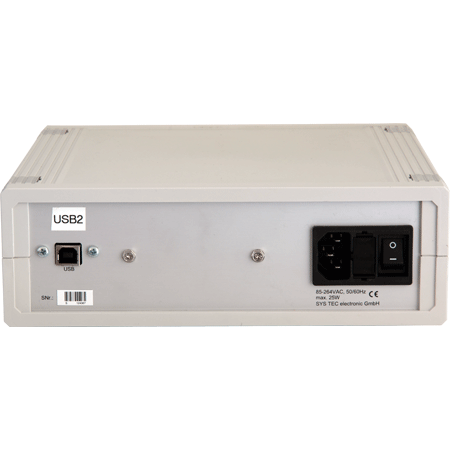

Power supply: 85 ... 264 VAC, optional 9 ... 36 VDC
Current consumption: self-powered
Operating temperature: 0ºC to +55ºC
Housing: table case, 1HU 19” rack-mounted or open frame
Weight: 1062g
Dimensions: 200 x 224 x 72 (LxWxH, in mm)
User Manual
USB-CANmodul User Manual
Software Manual
CANopen API for .NET - Software Manual
Product Flyer
USB-CANmodul Series - Product Flyer
USB-CANmodul Utility Disk
V6.03 - Driver for Windows Vista / Windows 7 / Windows 8 / LabView
USB-CANmodul driver package for Windows CE
V1.02 - Driver for WinCE 5.0 and WinCE 6.0
CANopen API for .NET
P/N SO-1088 - V5.46 - Release May 2010
Linux SocketCAN Driver for USB-CANmodul series
Release Version V0.8.0
