Single channel Mini PCI Express CAN/CAN FD interface; PC communication over USB system bus.

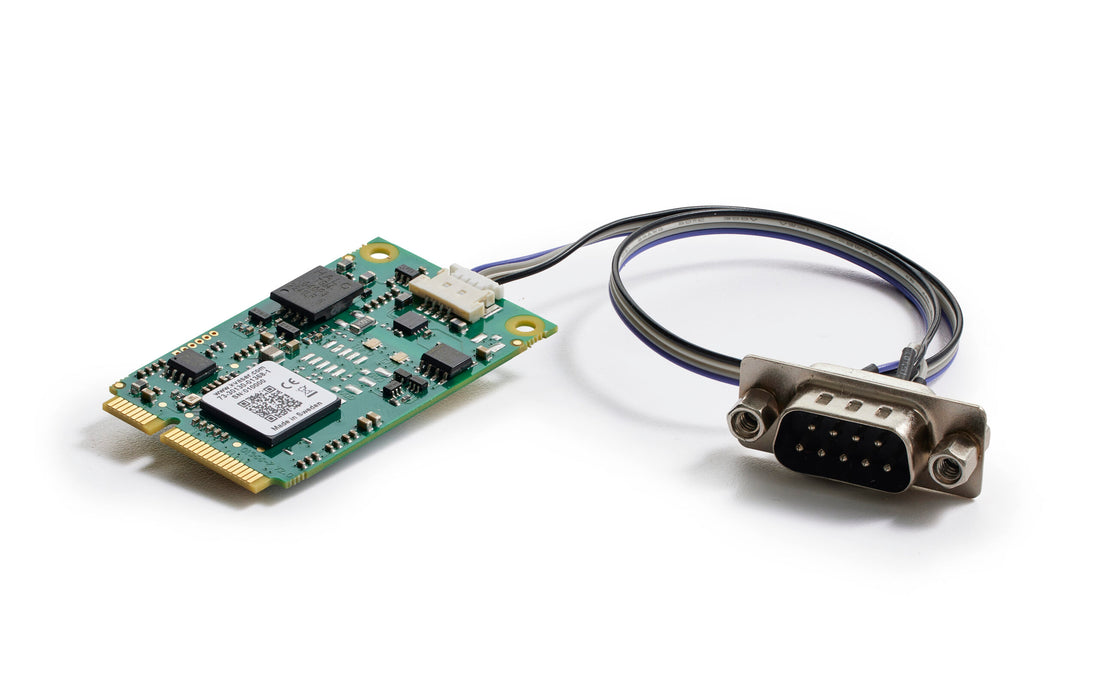

The Kvaser Mini PCIe 1xCAN (01368-1) is a compact CAN board that adds CAN/CAN FD capabilities to any standard computer. As the successor to the Mini PCI Express HS (00688-1), it supports CAN FD up to 8 Mbit/s, with a 1 µs timestamp resolution, a CAN bitrate range of 20 kbit/s to 1 Mbit/s, and a message rate of 20,000 msg/s.
This board connects via USB 2.0 through a Mini PCI Express socket, ideal for setups with limited PCI Express lanes. For USB lane-based communication within the Mini PCI Express socket, the Mini PCI Express 1xCAN (01420-6) is recommended.
Equipped with next-generation SIC transceivers, the board improves signal quality at high bitrates and minimizes signal ringing, common in high-speed networks like CAN FD with longer stubs. It also includes error frame generation capabilities.
- Supports a bit rate from 40 to 1000 kbit/s and a CAN transfer rate up to 20000 messages/s.
- Time stamp accuracy is 25 µs.
- Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.
- A 4 pin Molex connector provides single CAN channel access.
- Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
- Operates over the industrial temperature range of -40 to +85°C.
- Kvaser's free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
- Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download
- Support for SocketCAN, see elinux.org for details.
- Includes Molex to DSUB9 cable adapter.
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |
| Galvanic Isolation | Yes |
| Bitrate | 40-1000 kbit/s |
| Silent mode | Yes |
| Error frame generation | No |
| Error frame detection | Yes |
| Weight | 6 grams |
| Timestamp resolution | 25μs |
| On board buffer | No |
| Maximum message rate, send | 18000 |
| Maximum message rate, receive | 20000 |
| Sound | No |
| Clock synchronization | N/A |
| Temperature range | -40°C to +85°C |
| Dimensions (WxLxH) | 30x50x5mm |
| Silent mode | Yes |
| Error frame generation | Yes |
| Error frame detection | Yes |
| Weight | 5 grams |
| Timestamp resolution | 1 μs |
| On board buffer | N/A |
| Maximum message rate, send | 20000 |
| Maximum message rate, receive | 20000 |
| Sound | No |
| Clock synchronization | N/A |
| Temperature range | -40°C to +85°C |
| Dimensions (WxLxH) | 30x51x5mm |
| Datasheet |
| Kvaser Mini PCI Express HS Datasheet |
| <Kvaser Mini PCI Express Users Guide |
| User guide for Kvaser Mini PCI Express Version V1.0.0 |
| Kvaser DIADEM Driver |
| This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. Version 1.0.0 |
| Kvaser Drivers for Windows |
| Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus. Version 5.6.0 |
| Kvaser CANKing |
| A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended. Version 5.3.889 |
| Kvaser CANlib SDK |
| Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately Version 5.6.0 |
| Kvaser LabView VI Library for CAN |
| Library for National Instrument's LabView version for all Kvaser CAN hardware. Version 6.1.0 |
| Kvaser Linux Driver and SDK |
| Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality Version 5.3.0 |
| Remove old drivers |
| Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions. Version 3.9c |
| Cleanup |
| Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer. Version 3.9c |
