What is the warranty for Peak-System products?

Here is the complete hardware warranty section from the supplier. PCAN Adapter: PCAN-USB Adapter & PCAN-USB Adapter (Isolated)

I have a PCAN Adapter and have severed my cable to the service port on the engine. I am trying to confirm the wiring to the data link (from the CAN bus side).

These images show the pinout of the CAN bus side: Image 1 Image 2

Do you have a comparable product to Vector’s CANape and canoe/canalyzer?

You may want to look at the PCAN-USB Adapter with PCAN-Explorer 6 from PEAK. It will not be an exact 1:1 replacement, however.

Will the PCAN Adapter (2021, 2022, 4022, etc.) work with my [XYZ] device?

The PEAK PCAN-USB Adapter is a generic CAN interface for PC which allows CAN data exchange according to ISO 11898-2 with CAN bitrates of up to 1 Mbit/s. You will need to check if your devices also use a High-speed CAN connection per ISO 11898-2 standard. If they do, the chances are good that the PCAN-Adapter will work for you. We offer a 30-day money-back guarantee in the event it does not meet your needs.

What chips/circuitry are inside the PCAN USB Adapter?

The PCAN-USB Adapter has an FPGA with all the CAN controller circuitry, power supply circuits, and a CAN transceiver. For additional details, see the features section.

How does it handle 3.3 volt?

The PCAN-USB Adapter (IPEH-002021/22) will work with any CAN device that is ISO 11898-2 compliant. The adapter uses an NXP PCA82C251 CAN transceiver. Here is a link to the transceiver datasheet for full details on CAN voltages: PCA82C251 Datasheet

I ordered 3 PCAN USB adapters. If I want to connect two of them to talk to each other, and they are the only nodes on the CAN bus, what do I need to accomplish this?

You will need a terminated CAN cable such as our PCAN-Cable 2. Or something similar if you already have existing CAN cables. The DB-9 connector on the PCAN-USB Adapter is male. The cable has female connectors and the needed 120 Ohm termination resistors installed at both ends.

What chips/circuitry are inside the PCAN USB Adapter?

The PCAN-USB Adapter has an NXP CAN controller SJA1000 with 16 MHz clock frequency and an NXP CAN transceiver PCA82C251.

I am searching for a professional CAN Bus analyzer. We need the capability to monitor CAN Bus traffic and identify when message faults occur.

The PCAN-USB Adapter with PCAN-Explorer 6 software will serve your needs best!

I purchased the PCAN-USB Adapter (isolated). What else is required to record and then playback J1939 data?

The PCAN-Explorer V6 software with the J1939 add-in will work. We offer a 30-day trial with full functionality. Email us for your trial today.

I see the PCAN USB interface connects to a USB port, and the description says the interface is Linux compatible via SocketCAN. Does the driver present the socketCAN interface 'itself' (the USB interface being transparent), or will I have to provide the transport between the USB interface and the socketCAN interface?

The PEAK-System Linux page answers many of these questions and more. (SocketCAN is relevant for the SYSTEC USB-CANmodul from a different manufacturer.

I think the PCAN-USB Adapter (isolated) will work for the J1939 task I have. What do I need to be able to record and then playback that data?

The PCAN-Explorer V6 software with the J1939 add-in will work. PCAN-Explorer 6 Software

I purchased the PCAN-USB Adapter. Where can I download the driver for this USB adapter?

Windows and Linux drivers can be downloaded from the “Downloads” tab on the product page beneath the product description.

I have a IPEH-002262-KSM01. Do you have any example projects/files for this device? More than the examples provided in the manual?

The manufacturer has packaged all available files and demo projects into this download .

Is your CANopen Source Code UL (Underwriter Laboratories) certified?

No, our products are European, and CE certification is used for hardware, not software.

Can I download the software?

No, the process of getting the software ready and delivered via FTP transfer from SYSTEC usually takes one to two business days.

How do I set a custom CAN baud rate, for example, 333 kHz?

It is not possible to configure a CAN baud rate of exactly 333 kbit/s on the CAN-Ethernet Gateway V2. However, a baud rate of 333,333 kbit/s can be configured and has been tested. Please refer to the user's manual (section 6.4) for instructions on setting the gateway to this CAN baud rate.

Does the CANmodul1 require that a 120-ohm resistor be connected at the input port/CAN side?

Yes, a 120-ohm termination resistor is required at both ends of a CAN bus. If the CANmodul1 happens to be at the end, then an external bus termination is needed.

Will the CAN controller automatically determine whether it's a Standard or Extended ID?

Correct, no special settings are needed. The CAN controller automatically detects if it's 2.0A (11-bit identifier) or 2.0B (29-bit identifier) CAN specification.

What is the return policy?

Most unopened items in new condition and returned within 90 days will receive a refund or exchange. Some items have a modified return policy noted on the receipt or packing slip. Items that are opened or damaged or do not have a receipt may be denied a refund or exchange. Items purchased online or in-store may be returned to any store. Online purchases may be returned via a major parcel carrier. Click here to initiate a return.

How long does it take to process a refund?

We will reimburse you for returned items in the same way you paid for them. For example, any amounts deducted from a gift card will be credited back to a gift card. For returns by mail, once we receive your return, we will process it within 4–5 business days. It may take up to 7 days after we process the return to reflect in your account, depending on your financial institution's processing time.

What is the policy for late/non-delivery of items ordered online?

Our local teams work diligently to make sure that your order arrives on time, within our normaldelivery hours of 9AM to 8PM in the recipient's time zone. During busy holiday periods like Christmas, Valentine's and Mother's Day, we may extend our delivery hours before 9AM and after 8PM to ensure that all gifts are delivered on time. If for any reason your gift does not arrive on time, our dedicated Customer Service agents will do everything they can to help successfully resolve your issue. Click here to complete the form with your order-related question(s).

When will my credit card be charged?

We'll attempt to securely charge your credit card at the point of purchase online. If there's a problem, you'll be notified on the spot and prompted to use another card. Once we receive verification of sufficient funds, your payment will be completed and transferred securely to us. Your account will be charged in 24 to 48 hours.

Will I be charged sales tax for online orders?

Local and State sales tax will be collected if your recipient's mailing address is in: Arizona California Colorado

What software options do I need to purchase for the GEMAC CAN-Bus Tester 2?

There are 5 different add-on software licenses available. You will need one of the add-on licenses if you use a higher layer protocol such as CANopen, J1939, DeviceNet. There are also options for using a Protocol Monitor for one of these protocols. If you just use plain CAN, you may consider the Protocol Monitor CAN-License key for Protocol Monitor CAN (transmit / receive). The available licenses are as follows: CAN-Bus Tester 2: CANopen bus add-on $1039 CAN-Bus Tester 2: DeviceNet bus add-on $1239 CAN-Bus Tester 2: J1939 bus add-on $659 CAN-Bus Tester 2: Protocol Monitor CAN (Rx/Tx) $649 CAN-Bus Tester 2: Protocol Monitor CANopen (Receive) $519 CAN-Bus Tester 2: Protocol Monitor J1939 (Receive) $519

I'm looking at a GEMAC CAN-bus tester 2 for testing of CAN networks in our machines. Will I be able to debug the hardware side with the package by itself? What does the protocol monitor add-on do?

The protocol monitor does the following: CAN: Reception of CAN message frames incl. filtering, Transmission of CAN message frames and sequences (message lists) What level of testing do you plan to do? We're looking at debugging hardware issues with the network, would like to be able to determine problem messages/nodes on the network. I would recommend getting the protocol monitor license along with the CAN bus tester 2 device. Or you can buy the unit by itself first (available from stock) and see if you are okay without that license. You can always buy it at a later point.

What tools are available for developing a Windows-based CANopen application to talk to various CAN devices?

Phytools offers a number of different solutions for CANopen development on a Windows-based system. If you are looking for a full-featured CANopen source code package, we suggest the SYSTEC CANopen Source Code SO-877. This software is a full buyout license, meaning there will be no additional runtime fees or royalties for deployed products with this code inside. It can be used in combination with any SYSTEC CAN interface module. For developing PC-based applications in Windows, we recommend the CANopen Magic Pro DLL developed by our partner Embedded Systems Academy. This software works in combination with any PC-CAN interface made by PEAK-System Technik, such as their popular PCAN-USB Adapters. Embedded Systems Academy also has other CANopen network configuration tools that may be of interest. You can find more information on the Embedded Systems Academy page.

Are there any limitations to the CANopen Magic evaluation copy?

Yes, there are limitations to the CANopen Magic evaluation copy: 1. Communication with a real CAN bus is not possible. Instead, simulated CANopen nodes may be accessed over a purely internal CAN bus. 2. There is no command line interface to access the CAN bus. Please note: The features in this version match the full version of CANopen Magic Ultimate. There are other versions of CANopen Magic available with smaller feature sets. We hope you enjoy using this software and experimenting with CANopen!

Can I try this software before I purchase?

Yes, please email us for a 30-day PCAN Explorer Trial. You must also have a CAN interface, such as the PCAN USB Adapter. Each trial license includes all available add-in options.

I need a software program for collecting data off the J1939 Vehicle Network and parsing out each PGN and identifying which SPNs are available on the network and are changing in values to show it is valid data. What add-in or other product do I need to perform this?

You can do this with PCAN Explorer 6 with the J1939 add-in. We offer a 30-day trial of PCAN Explorer, and the trial comes with all the add-ins. Email us for your trial copy.

What is a .dbc file? (relevant for PCAN Explorer 6 - CANdb add-in)

A DBC file is a Communication Database for CAN. It is the distributed system's backbone. DBC files are basic text files that include information for decoding raw CAN bus data to physical values or in human-readable form. They specify which signals (e.g., RPM, Vehicle Speed, etc.) are contained within specific messages (i.e., CAN IDs). In developing a distributed ECU network based on CAN, a key component is the communication description in the form of DBC files. Described in DBC databases are the properties of the CAN network, the ECUs connected to the bus, and the CAN messages and signals.

My version of PCAN Trace (1.8.0.50) software is giving a bad file error message when trying to read my customers' 2.1 recordings. Can you help?

The PCAN-Trace can only handle trace files which comply with file version 1.x. A trace file that complies with version 2.x must be converted into file version 1.x with the 'PEAK-Converter.'

I am running PCAN Trace and collecting data off the J1939 Vehicle Network. I want to have a program that parses out each PGN and identifies which SPNs are available on the network and are changing in values to show it is valid data. What add-in or other product do I need to perform this?

PCAN Trace cannot do this, but you can do this with PCAN Explorer 6 with the J1939 add-in. We offer a 30-day trial of PCAN Explorer, and the trial comes with all the add-ins.

I am new to EtherCAT. I am looking for an EtherCAT Slave Unit that runs Linux on Raspberry Pi.

Yes, you can accomplish this with the Gateway Module Ethernet Slave coupled with the appropriate base RevPi module (IPC based on Raspberry Pi).

I need to convert two Modbus TCP devices to one Allen Bradley CompactLogix Ethernet IP. Questions I have are:

1. Hardware required. Looks like (1) KU-PR100066 and (1) KU-PR100088 would work? 2. Any additional hardware part number required to do this? 3. Can I convert both signals with one set of converters? A: The two gateway modules you inquired about (KU-PR100066 and KU-PR100088) will work to create a gateway system that connects Modbus TCP with Ethernet IP. The required connection clip is included. No additional items are needed.

Does the RevPi Core or Core 3 come with a power supply cable?

No, there is no cabling included with the RevPi Core or Core 3.

What are the mounting options for the RevPi Core or Core 3?

The RevPi Core or Core 3 can be mounted on a DIN rail housing (for DIN rail version EN 50022).

Does the RevPi Core or Core 3 come with an SD card?

No, there is no SD card included with the RevPi Core or Core 3. You can use a USB memory stick for data storage.

What are the graphics specs of the RevPi Core or Core 3? I need to drive a large LCD display.

The RevPi Core is based on the Broadcom BCM2711, quad-core Arm Cortex-A72. For more information, visit click here The RevPi Core 3 is based on the Broadcom BCM2837 processor. For more information, click here For more information on the VideoCore subsystem, see click here .

What are the limitations of the CANopen Magic evaluation?

The CANopen Magic evaluation has limitations. Please refer to the documentation and licensing information provided by Embedded Systems Academy, Inc.

What is the HS code for the following items: PCAN Cable 1 w/o termination, PCAN T-Adapter, PCAN-USB Adapter

The HTS code for cables and T-adapters is 8544429000. The PCAN-USB adapter is 8517620050. The ECCN number for all products is EAR99. All are manufactured in Germany.

How do I calculate the baud rate?

There is a tool made by PEAK for calculating the baud rate register settings: baudtool.zip

Are the SYS TEC Canmodul1 and the Kvaser Leaf Light v2 the same product essentially?

The two devices provide similar functionality in that they both connect a PC or laptop via its USB interface to a CAN bus. Both devices support the maximum CAN bitrate of 1 Mbit/s. However, both devices have unique designs in terms of internal circuitry and software API/drivers. There are other differences in terms of CAN message throughput, buffer size, etc. If you are using third-party software that specifically requires the use of the Kvaser Leaf Light V2, then I strongly advise against using a different type of USB-CAN interface.

I'm currently using the PCAN-USB to view 500k CAN bus data on cars. I would like to be able to view the LIN bus data on Chrysler vehicles 2011 and newer. Do I need a dedicated LIN interface or is there one that will do both LIN and CAN?

Phytools offers a PLIN-USB Adapter (dedicated LIN interface) and several interfaces that support both CAN and LIN, including the PCAN USB Pro FD, the Kvaser Hybrid, and the CAN FD LIN Gateway.

I am looking for an isolated CAN repeater, and I saw the one you have rated to 500V. Do you have any rated for higher voltages, around 1.5-2 kV?

The PCAN-Repeater DR establishes a galvanic isolation of up to 5 kV according to IEC60601-1 within a High-speed CAN bus. Both CAN ports are decoupled from each other and from the power supply. All message traffic, including error frames, is forwarded 1:1 between both ports. The PCAN-Repeater DR behaves passively and is transparent from the perspective of the CAN bus. LEDs display the current bus status.

I'm currently using the PCAN-USB Adapter to view 500k CAN bus data on cars. I would like to be able to view the LIN bus data on Chrysler vehicles 2011 and newer. Do I need a dedicated LIN interface or is there one that will do both LIN and CAN?

Phytools offers a PLIN-USB Adapter (dedicated LIN interface) and several interfaces that support both CAN and LIN, including the PCAN USB Pro FD, the Kvaser Hybrid, and the CAN FD LIN Gateway.

I am looking for the ability to connect two CAN FD channels and have the ability to process, manipulate, and filter CAN messages bidirectionally between each bus. Which products do I need?

There are two solutions: PC-based solution or a standalone solution. For the former, you can use PCAN-USB Pro FD Adapter, which has two independent CAN FD capable channels. Any message processing, manipulating, filtering, etc. will require using the corresponding PC software based on the PCAN Basic API. For the latter, use the PCAN Router FD with specially programmed firmware as a stand-alone CAN FD router.

I just need a simple CAN interface with some software that can receive and display CAN messages from other nodes as well as send CAN messages out to other nodes. What device would you recommend?

We suggest a PCAN-USB Interface with the included free PCAN-View software. If you need a device that is able to detect and analyze more of the physical layer properties of a CAN system, we do offer CAN diagnostic tools as well.

CAN BUS CABLES

Discover our selection of high-quality CAN Bus Cables designed for optimal performance and durability.

Perfect for automotive, industrial, and commercial applications, our cables ensure seamless communication and robust data transmission across your CAN networks. Browse now to find the ideal solution for your connectivity needs and keep your systems running smoothly.

CAN Bus Cables From Phytools

Our extensive range of CAN bus cables is designed to provide the highest levels of performance, reliability, and durability. Whether you're upgrading your current network or building a new one, our cables offer the quality and dependability you need. Explore our collection today and find the perfect CAN bus cables for your project.

We offer a wide selection of CAN bus cables to meet different needs and specifications. Whether you need extension cables, splitter cables, different connectors, we have the right cable for your application.

Why Phytools?

Official North American distributor for products from PEAK-System Technik, SYS TEC electronic, and GEMAC
Authorized distributor for products from KUNBUS, Kvaser, MACH Systems, and Embedded Systems Academy
Member of CAN in Automation (CiA) and EtherCAT Technology Group (ETG)
Over 20 years of experience
Diverse customer base across industries such as automotive, industrial automation, medical equipment, aerospace, agriculture, construction, and renewable energy
Offers a large selection of networking solutions
In-house expertise to provide efficient and cost-effective products
Provides support from pre-sales to rapid resolution of issues to exceed customer expectations.

CAN Bus Cables FAQ’s

How do I choose the right CAN bus cable for my application?

Consider the following factors when choosing a CAN bus cable:

Connector type (DB9, J1939 (type 1 or 2), M12, OBDII)
Environmental conditions (temperature, moisture, etc.)
Length of the cable run
Need for EMI protection

Can I use regular cables instead of CAN bus cables?

No, regular cables are not suitable for CAN bus applications because they lack the necessary construction for industrial or automotive environments. CAN bus cables are RoHS compliant.

Are there any standards for CAN bus cables?

Yes, CAN bus cables must adhere to the ISO 11898 standard, which specifies the requirements for data rates, cable lengths, and electrical characteristics.

Sort by

Show
24
36
48

View as

Sale

$18

PCAN-MiniTerm
PEAK-System Technik

Miniature CAN high speed termination adapter. The PCAN-MiniTerm adapter terminates a high-speed CAN bus (ISO 11898-2) at one end. It is used if a C...
View full details

$18

Sale
Sale

from $62

PCAN SAE J1939 Cable
PEAK-System Technik

High-Speed CAN cable for J1939 Connectors Establish standardized, reliable communication between components with the SAE J1939 connector from PEAK-...
View full details

from $62

Sale
Sale

$22

PCAN Termination Adapter
PEAK-System Technik

Adapter For High-speed CAN buses. CAN Termination Adapter(ISO 11898-2) must be terminated at their ends by resistors.The adapters PCAN-Term and PCA...
View full details

$22

Sale
Sale

from $23

PCAN T-Adapter
PEAK-System Technik

Create a tap connection to the data cables and the ground. With a CAN bus in order to be able to connect a further CAN node. In this case, the CAN ...
View full details

from $23

Sale
Sale

$69

PCAN Cable OBD-2 to SUB-D
PEAK-System Technik

This adapter cable used to access the contained CAN lines. Many modern motor vehicles have an OBD-2 interface for connecting various diagnostics an...
View full details

$69

Sale
Sale

$125

Optical CAN Bus Adapter (PCAN-Optoadapter)
PEAK-System Technik

This CANbus opto-isolator offers universal compatibility in high-speed CAN and CAN FD networks. The PCAN-Optoadapter from PEAK System provides up t...
View full details

$125

Sale
Sale

$31

PCAN Cable 2 w/ 120 Ohm termination
PEAK-System Technik

Cable comes with two 120 Ohm CAN bus termination resistors. These cables are needed to set up a CAN bus and are specially designed to be used in a ...
View full details

$31

Sale
Sale

$26

PCAN Cable 1 w/o termination
PEAK-System Technik

Cable that comes "without" CAN bus termination. These cables are needed to set up a CAN bus and are specially designed to be used in a CAN environm...
View full details

$26

Sale
Sale

$35

PCAN-Cable 3
PEAK-System Technik

CAN Cable for Test and Measurement Setups With this cable the two components CAN-High and CAN-Low of the differential CAN signal can be picked up f...
View full details

$35

Sale
Sale

$17

PCAN-D-Sub Connection Adapter
PEAK-System Technik

Hardware products in DIN rail housing feature a 4-pin screw terminal block as CAN connector. The PCAN-D-Sub Connection Adapter routes the CAN sign...
View full details

$17

Sale
Sale

$8

PCAN-Adapter D-Sub to Screw Terminals
PEAK-System Technik

Allows easy connection of open cable ends of a CAN bus to a D-Sub connector The adapter with a D-Sub socket connector and a three-pin screw termina...
View full details

$8

Sale
Sale

$73

Kvaser T-Cannector V2
Kvaser AB

A CANbus hub with three female and one male D-SUB9 connectors. Offering an adjustable CAN termination resistor (120/60/0 Ohm) it provides an affor...
View full details

$73

Sale
Sale

$79

Kvaser OBD II to Dsub9 Adapter Cable 2.5 m
Kvaser AB

A Kvaser OBD II Adapter Cable connects any Kvaser CAN bus interface with a DSUB9 socket connector to any vehicle with an OBD II (J1962) connector. ...
View full details

$79

Sale
Sale

$51

LIN Connection Cable for PCAN-LIN
PEAK-System Technik

Pre-configured Cable Set for the PCAN-LIN Module The field buses and the power supply on the PCAN-LIN module are connected together via a D-Sub plu...
View full details

$51

Sale
Sale

$57

LIN Connection Cable for PCAN-USB Pro FD
PEAK-System Technik

Pre-configured Cable Set for the PCAN-USB Pro FD Adapter PEAK's PCAN-USB Pro FD and PCAN-USB Pro Adapters route the signals for the two field buses...
View full details

$57

Sale
Sale

$35

PCAN-Cable M12
PEAK-System Technik

CAN Adapter Cable from D-Sub Socket to M12 Circular Connector M12 circular connectors are robust and offer increased protection against environment...
View full details

$35

Sale
Sale

from $50

Kvaser Adapter Cable, 30 cm
Kvaser AB

THREE CABLE VARIANTS With a standard 9-pin Dsub at one end and a 16-pin OBDII connector at the other, this 30 cm cable connects the Kvaser Leaf v3 ...
View full details

from $50

Sale
Sale

$109

Kvaser OBD II Extension Cable 5 Meter
Kvaser AB

Kvaser's OBD-II Extension Cable is a highly durable extension cable of 5 metres. Access hard-to-reach OBD2 ports with ease using a 5-meter OBD2 ext...
View full details

$109

Sale
Sold out

$73

Kvaser OBDII Dsub9 adapter cable 2.5 meter
Kvaser AB

(This product is EOL. Please see the newer version: KV-01407-7) A Kvaser OBD II Adapter Cable connects any Kvaser CAN bus interface with a DSUB9 s...
View full details

$73

Sold out
Sale

$18

PCAN miniPCIe/M.2 CAN FD 5-pin to DB-9 cable
PEAK-System Technik

NOTE: Cables only. The image shown is for description purposes. PCAN miniPCIe/M.2 CAN FD connection cable to DB-9. Connects miniature connector on...
View full details

$18

Sale
Sale

$217

Kvaser OBD II Extension Cable 10 Meter
Kvaser AB

A Kvaser OBD II Extension Cable is an extension cable with a male to female OBD II connector. The cable is made of durable thermoplastic rubber. Al...
View full details

$217

Sale
Sale

from $16

PCAN-miniPCIe connection cable to DB-9
PEAK-System Technik

Connects miniature connector on PCB of PEAK PCAN-miniPCIe cards to DB-9 IPEK-003020 = single CAN channel connection to DB-9 (works with IPEH-0030...
View full details

from $16

Sale
Sale

$109

Kvaser OBD II Extension Cable 2.5 Meter
Kvaser AB

A Kvaser OBD II Extension Cable is an extension cable with a male to female OBD II connector. The cable is made of durable thermoplastic rubber. Al...
View full details

$109

Sale
Sale

$309

Kvaser OBD II Extension Cable 15 Meter
Kvaser AB

A Kvaser OBD II Extension Cable is an extension cable with a male to female OBD II connector. The cable is made of durable thermoplastic rubber. Al...
View full details

$309

Sale
Sale

$79

Kvaser OBDII Dsub9 adapter cable 2.5 meter
Kvaser AB

Connects any Kvaser CAN bus interface with a DSUB9 socket Connects to any vehicle with an OBD II (J1962) connector. Supports K-Line. The OBDII Dsub...
View full details

$79

Sale
Sale

$81

Kvaser Q-cable 0.3 Meter
Kvaser AB

NOT FOR NEW DESIGNS (Limited to sock on hand) Adapter cable for the Kvaser PCIcanx 4xHS and Kvaser PCIcan 4xHS. The Q-Cable is an adapter cable for...
View full details

$81

Sale
Sale

$224

Kvaser T-Cannector Expansion L
Kvaser AB

CAN bus hub & extension unit that offers six D-SUB9 socket connectors The Kvaser T-Cannector Expansion L (01300-1) has an adjustable CAN termin...
View full details

$224

Sale
Sold out

$170

Kvaser Q-cable LSZH 3 Meter
Kvaser AB

NOT FOR NEW DESIGNS The Q-Cable is an adapter cable for the Kvaser PCIcanx 4xHS and Kvaser PCIcan 4xHS boards. A D-SUB male connector connects to t...
View full details

$170

Sold out
Sale

$50

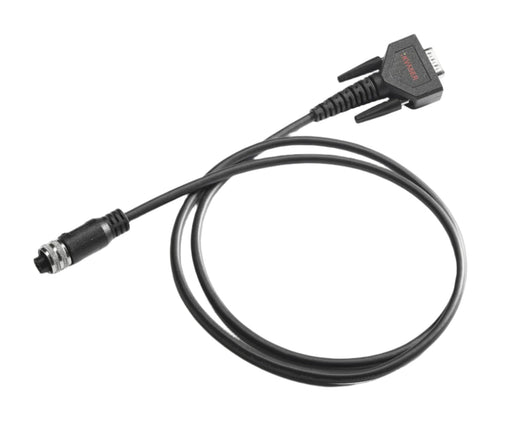

Kvaser Air Bridge Programming Cable M12
Kvaser AB

Adapter cable to connect the Kvaser Air Bridge M12 or any CAN interface with M12 connector. With an NMEA compatible 5-pin M12 socket connector at o...
View full details

$50

Sale
Sale

$139

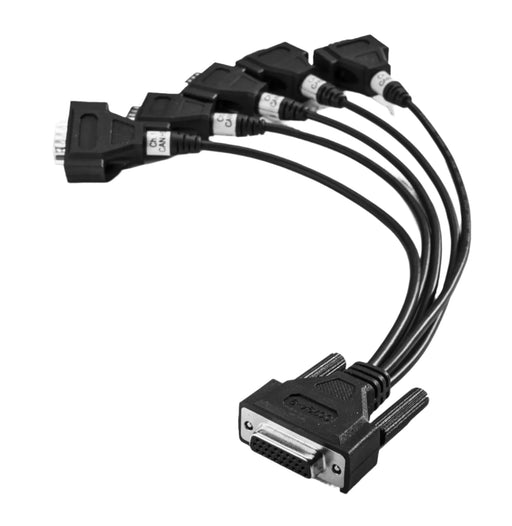

Cable HD26-5xDS9 Splitter
Kvaser AB

Splitter cable (0.3 m) for five-channel interfaces The Cable HD26-5xDS9 Splitter is a 0.3 m (approximately 1 ft) long splitter cable designed to co...
View full details

$139

Sale
Sale

$143

Kvaser Cable HD26-4xM12 Splitter 30 cm
Kvaser AB

Shielded splitter cable for use with four channel products. The Kvaser Cable HD26-4xM12 Splitter can be used with several of Kvaser’s four channel ...
View full details

$143

Sale
