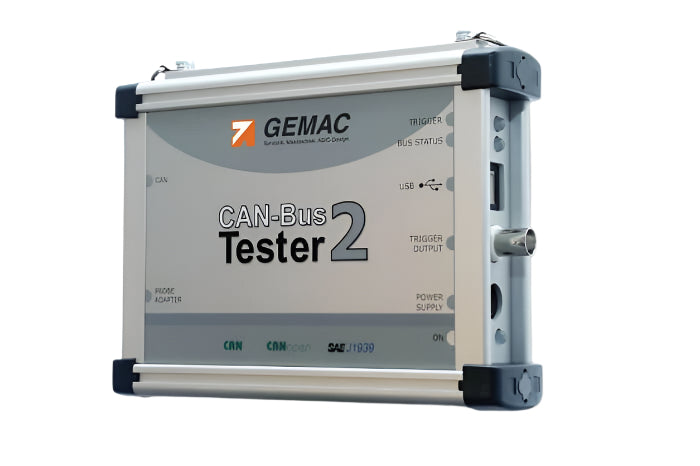

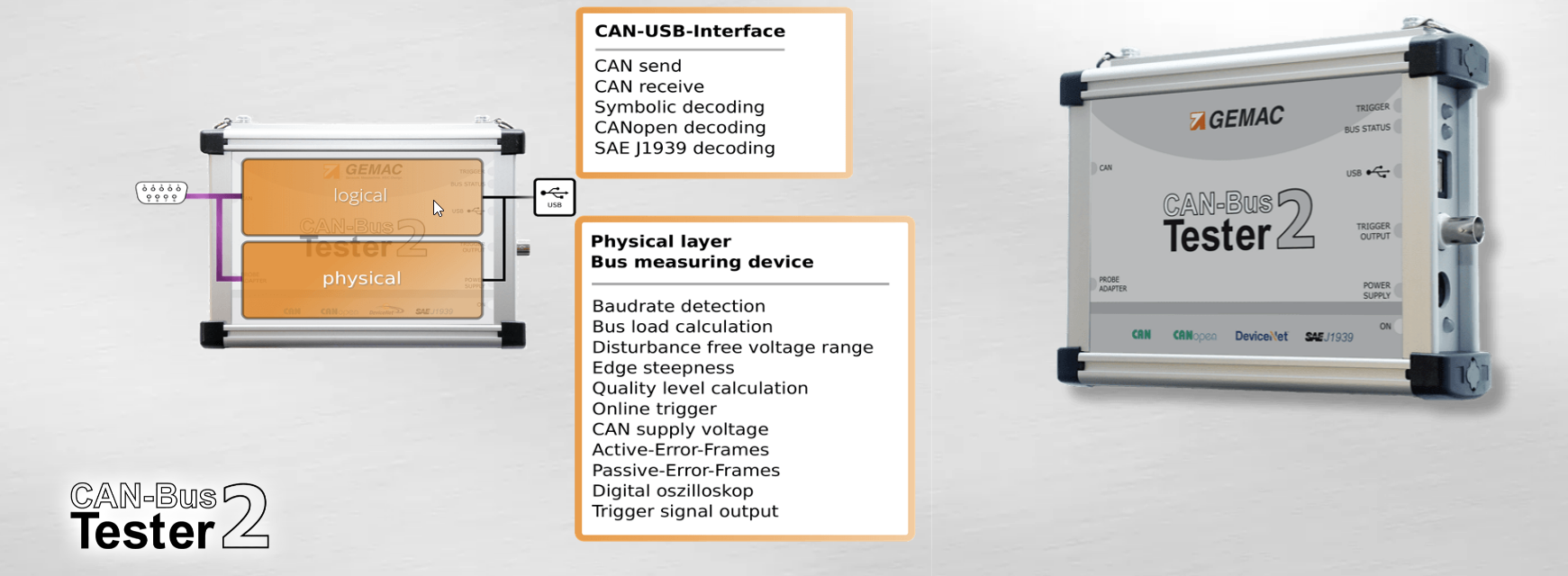

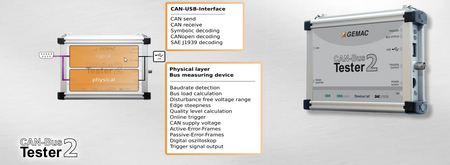

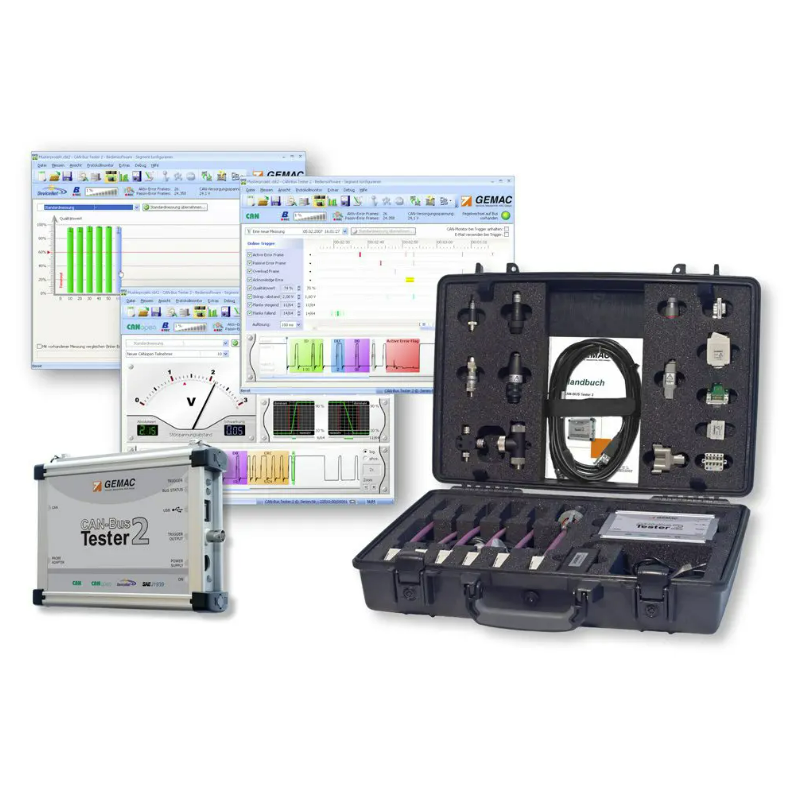

The CAN-Bus Tester 2 is a universal diagnosis tool for the start up, analysis, monitoring, troubleshooting and service/maintenance of CAN bus systems. Typical problems which occur during the operation of CAN bus systems such as node failures, faults in the communication or complete standstill of the plant, often have their origins in the physical bus characteristics. The CAN-Bus Tester 2 provides an overview of the signal conditions on the bus, which helps you to locate and rectify frequently occurring error causes instantly. During the installation phase of CAN bus plants the integrated wiring test is especially useful. It is possible to check the bus cabling by using different measurement methods and thus the transfer properties are ensured. You can also perform comparing measurements directly on the running plant over its lifetime and thus prevent standstills.
- Bus systems:
- Baud rates (5 kbit/s ... 1 Mbit/s)

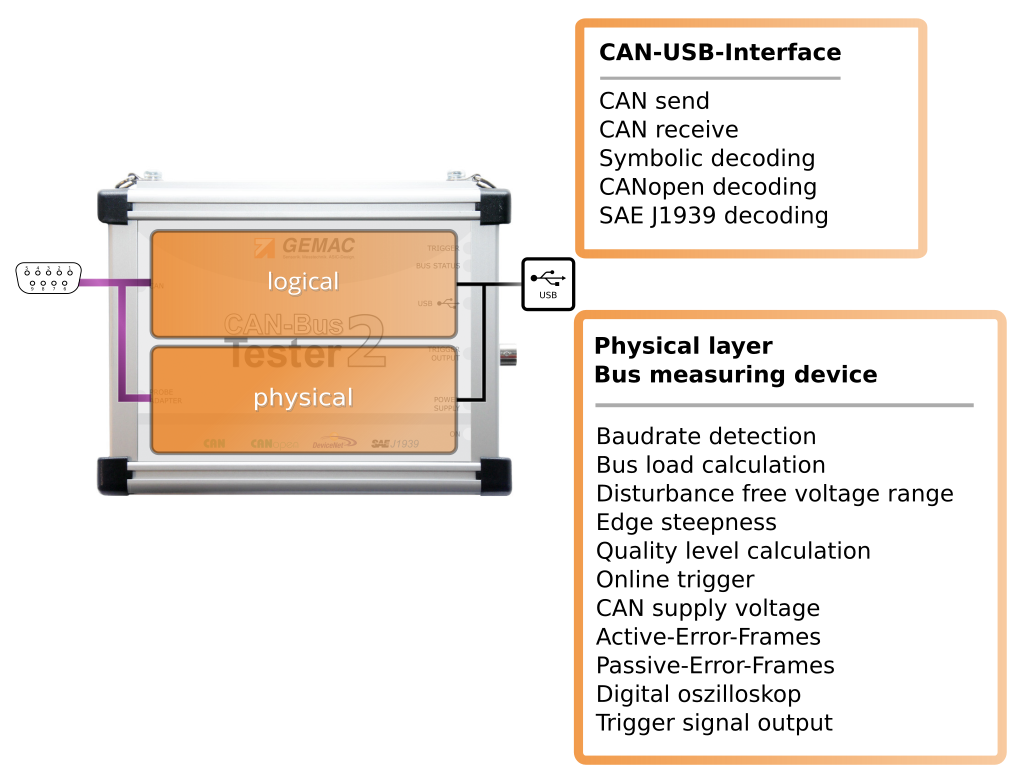

- Measuring of the signal conditions:
- General quality level (0 ... 100 %)
- Disturbance-free voltage range, rising and falling edges
- Continuous monitoring
- Bus status, bus traffic load, error frame counter

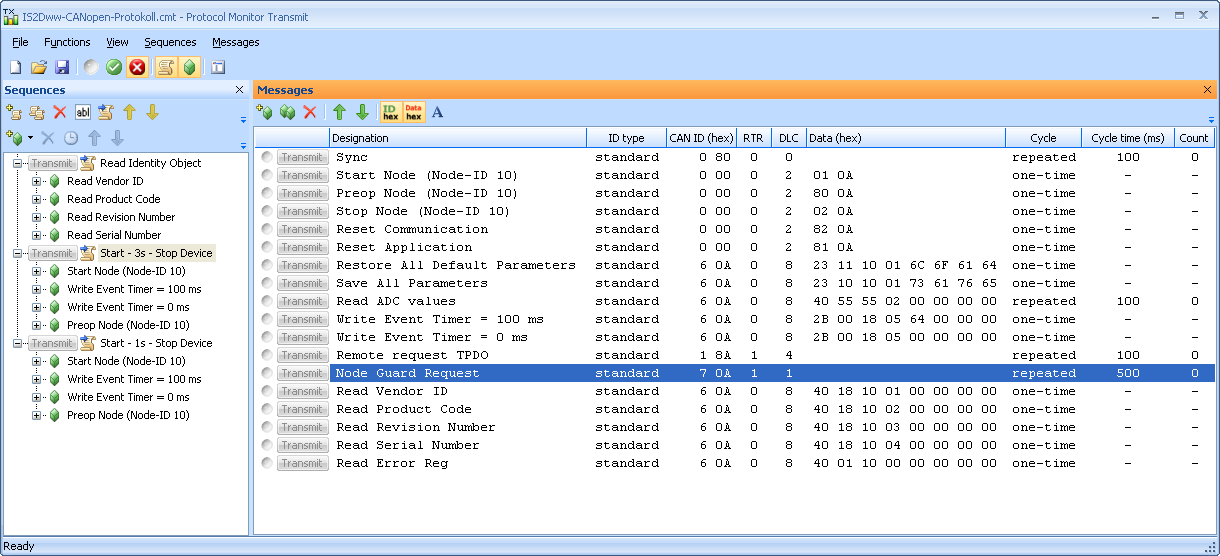

- User-friendly protocol monitor (CAN, CANopen)
- Online trigger (real-time monitoring of the bus for logical and physical errors)

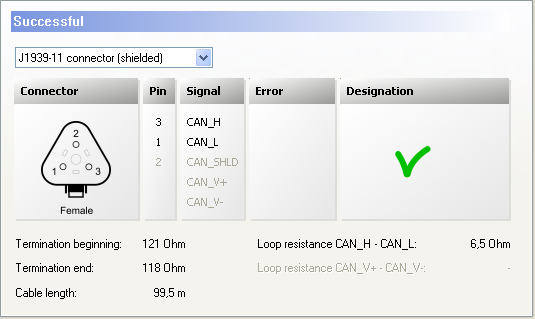

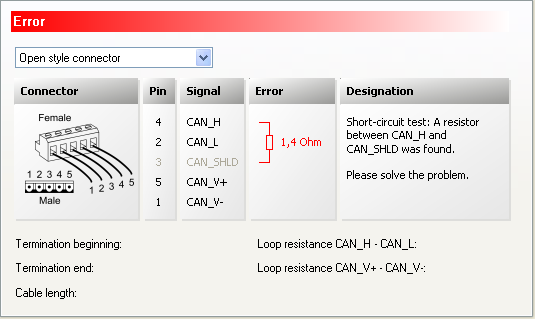

- Testing of cables (Short-circuits, interruptions, loop resistances, cable length)
- Straightforward application software:
- Management of measurements (measurement types, measuring points, measuring times)
- Comprehensive test record, broad variety of export functions
Fields of Application:
- Commissioning of CAN bus plants
- Wiring test, module check
- Service/maintenance of CAN bus plants
- Troubleshooting and analysis of the bus characteristics
- Development of CAN modules
- Final production testing
| Property | Value |
|---|---|
| The information herein is subject to change without notice. | |

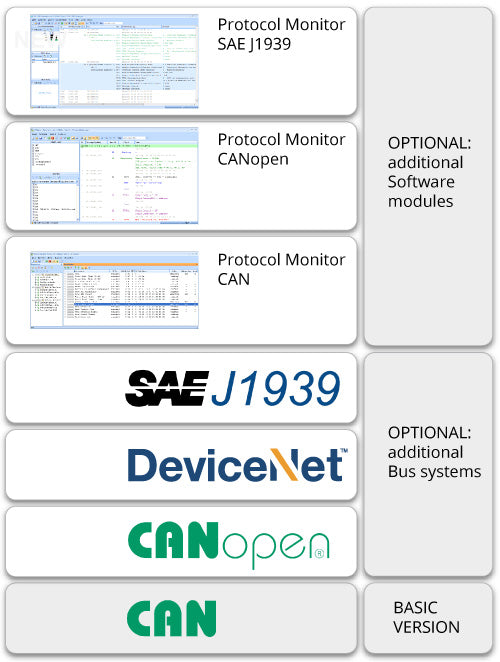

| Bus systems | CAN (ISO11898-2), CANopen (CiA301), DeviceNet (EN 50325–2), SAE J1939 |
| Bit sampling | 64-fold, 10,240 sampling points |
| Bit timing | Adjustable BTL cycles (tq), sample point and resynchronization jump width (SJW) |
| Supported baud rates | Depending on bus system: 10; 20; 50; 100; 125; 250; 500; 800; 1000 kbit/s Additionally user-defined: 5; 33.3; 62.5; 75; 83.3; 200 kbit/s Automatic detection via baud rate scan |
| List of stations | Automatic detection via Station scan Designation, CAN ID, ID type, Node ID, MAC ID, Source address, can also be entered manually |
| List of Measurements | Possibility to measure at different measuring points and at different times Sorting by measurement type, measuring point and measurement time |

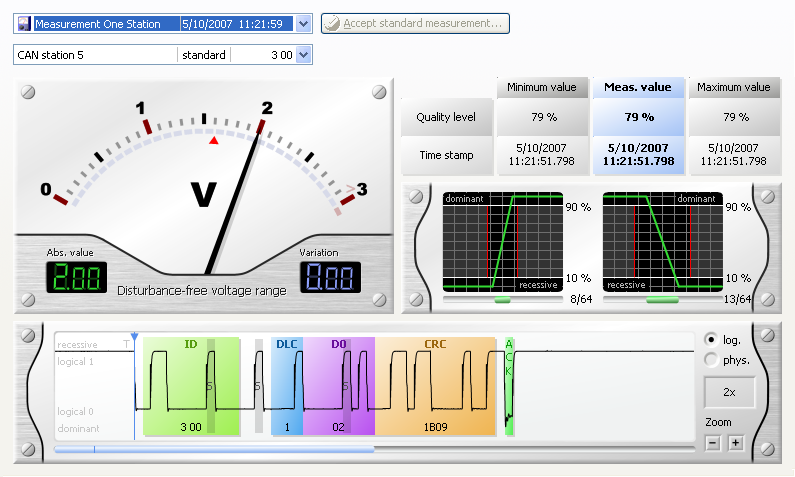

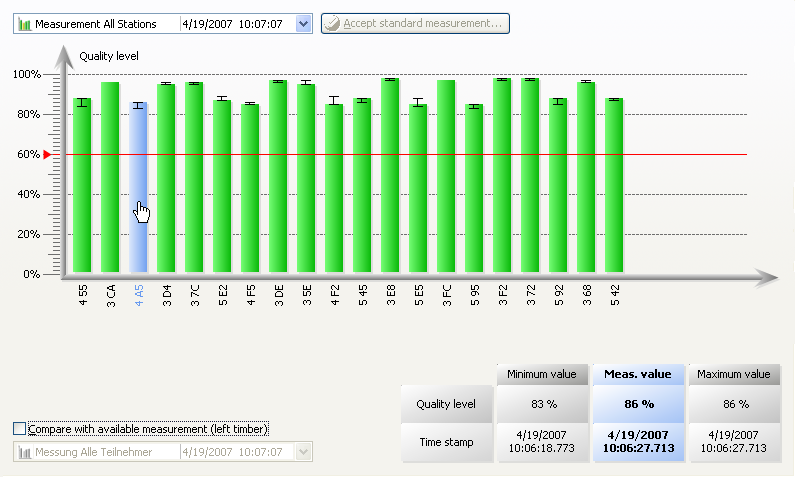

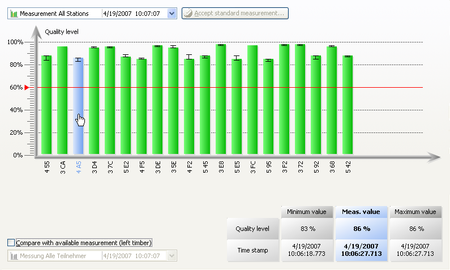

| Quality level | Value representing the signal quality (0 …100%) The minimum value and maximum values saved timestamp |
| Disturbance-free voltage range and edges | Disturbance-free voltage range (typ. ‑0.75 … 3 V, resolution 50 mV) Edge steepness (falling and rising, specified in 1/64th of the bit width) The minimum value and maximum values saved |
| Oscilloscope display | Trigger on message frames with the specified ID, trigger position can be set Frame analysis and full frame recording Decoding according to the protocol (CAN, CANopen, DeviceNet, SAE J1939) Zoom (six stages) |

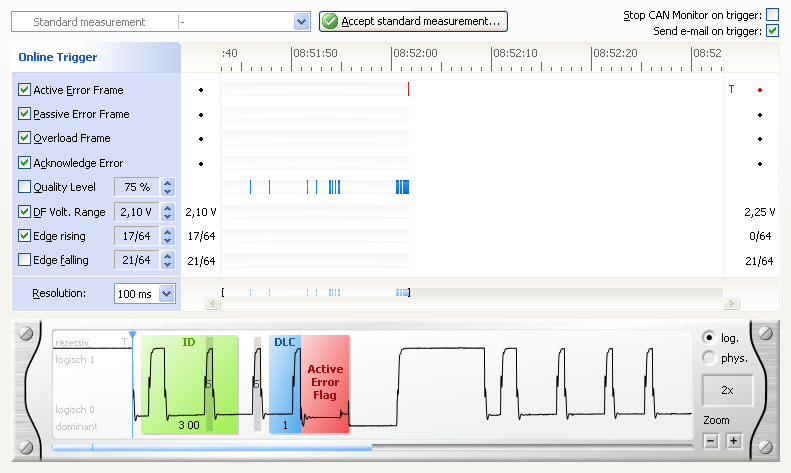

| Online Trigger | Real-time monitoring of the bus for logical and physical errors Resolution can be set (10 ms … 1 min) Oscilloscope display and e-mail notification on triggers |
| Automatic evaluation | Limit value settings and measured-value evaluation according to:
|
| Bus status | Bus traffic detection (display: dominant, recessive, not defined, bus traffic) |
| Bus traffic load | Permanent display of the bus traffic load (0 … 100%) Minimum and maximum values saved |
| Error frames | Constant display of detected frame errors Distinction between active and passive error frames (0 … >50,000) |
| Protocol monitor | CAN: Reception of CAN message frames incl. filtering, Transmission of CAN message frames and sequences (message lists) CANopen: Interpretation of all CAN messages according to the CANopen spec as SDOs, PDOs, NMT-, Heartbeat-, Emergency-, Sync- and Timestamp (CiA301, CiA302, CiA305, CiA401, CiA402, CiA404, CiA406, CiA408, CiA410, upgradeable) |
| Test record | Comprehensive, configurable measuring and test record on DIN A4:
|
| Export function | Measuring data as a configurable CSV file Graphical measured-data representation as a configurable bitmap (.bmp,.jpg,.png) |
| Firmware and FPGA configuration | can be updated via USB |
| CE conformity | |
| Equipment safety | EN 60950–1:2006/A1:2010 |
| EMC | |
| Low-frequency interference emission | EN 61000–3-2:2006/A1:2009/A2:2009 |
| High-frequency interference emission | EN 55022:2006/A1:2007 |
| Interference immunity | EN 61000–6-2:2005/AC:2005 |
| Electrical parameters | |
| Power supply | Via the supplied wide-range power supply (9 … 36 V DC |
| Current | consumption 0.55 … 0.15 A |
| Measuring of the differential voltage | typ. -0.75 V … 3.00 V |
| Measuring of the loop resistances | typ. 0 Ω … 800 Ω |
| Measuring of the cable length | typ. 0 m … 500 m
|
| Measuring of the CAN supply voltage | 0 … 36 V |
| Potential difference between the connections CAN bus, USB and oscilloscope | 50 V DC (or 71 V AC) |
| Trigger output for the oscilloscope | BNC socket, electrically isolated, H pulse, approx. 2 bits wide, level approx. 5 V |
| Mechanical parameters | |
| Supply voltage connection | Extra-low voltage socket |
| CAN connection | 2 x 9-pin D-Sub connector |
| PC connection | Self-powered device to USB Specification 1.1, electrically isolated |
| Trigger output for oscilloscope | BNC socket, electrically isolated |
| Housing | Aluminum sheet housing |
| Temperature range | Operation: 5 °C … 40 °C Storage: -20 °C … 60 °C |
| Humidity | Operation: 20 % … 80 % (non-condensing) Storage: 20 % … 80 % (non-condensing) |
| Degree of protection of the housing | IP20 to EN 60529 |
| Dimensions (Device /Case) | 170 mm x 134 mm x 40 mm /504 mm x 354 mm x 119 mm |
| Weight | (Device /Case) Approx. 600 g /Approx. 5000 g |
|
Warning The CBT2 is a Class A device. Such devices can cause interference in residential areas. In this case, the plant operator can be required to take appropriate measures and to bear the costs of such measures. |
|
