INSTRUMENTS PANEL: ADD-IN FOR PCAN EXPLORER 7
Couldn't load pickup availability
Orders placed before 2:30 Pacific Time usually ship the same day.
Items are delivered with essential accessories and easy-to-follow instructions.
Questions?
Add-in for displaying and manipulating signals.

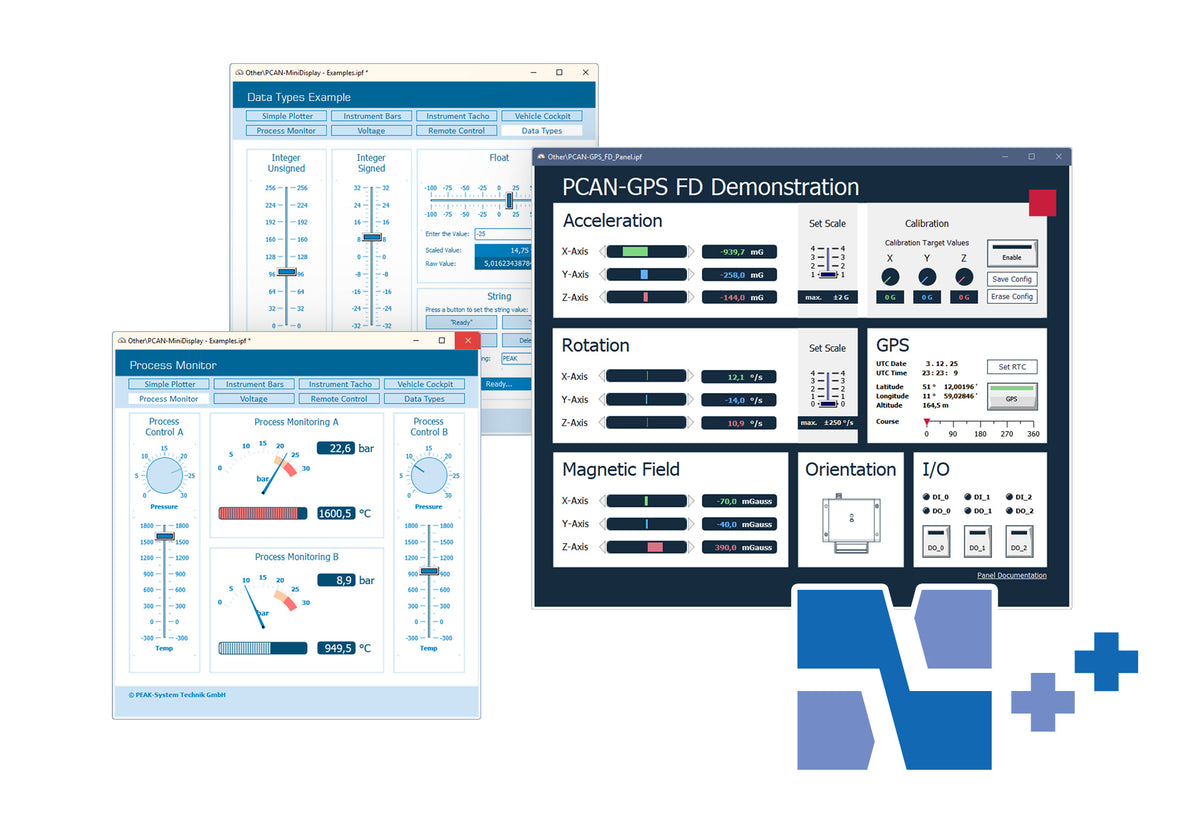

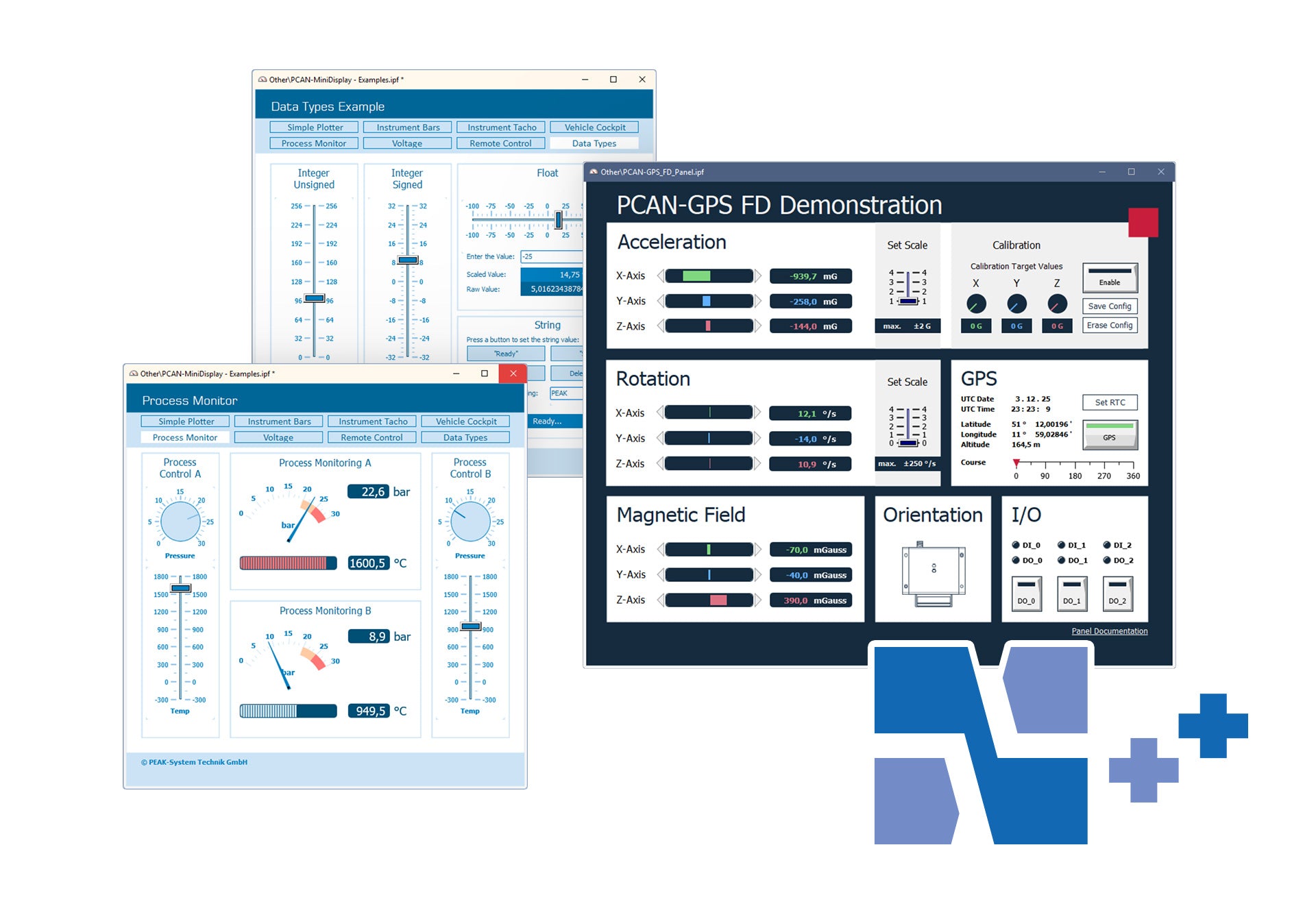

The Instruments Panel Add-in allows the graphical representation of digital and analog signals using various display instruments. With the integrated input options and controls, messages can be generated on the CAN bus. In this way, simple simulations, test benches and complex monitoring applications can be realized.
FEATURES
- Representation of analog and digital signals from received CAN messages using different display instrumentsÂ
- In addition to potentiometers, switches, and sliding controllers, input fields can be used to generate CAN messagesÂ
- Shape element for displaying squares, rectangles, circles, and ellipses
- Signal-dependent display of image lists for creating own graphical instruments; SVG lists in addition since version 7
- Signal-dependent display of different panel layouts (Scenes) during runtime
- Selection and configuration of multiple elements at the same time
- Extensive configuration of the properties of one or more elements using the property window
- Free positioning of the instruments using drag & drop, or numerical inputs for spot-on positioning
- The Instruments Panel object model enables automation using COM and scripts
- Loading and storing of complete panel configurations
SCOPE
- Installations files for Instruments Panel Add-in
- Single user or floating license
- Documentation in HTML help formatÂ
Note:Â Software delivery as a download. Alternative installation media on request.
SYSTEM REQUIREMENTS
- PCAN-Explorer 7 with matching license
Ordering Add-ins for existing PCAN-Explorer 7 licenses:
If you would like to reorder add-ins for an existing PCAN-Explorer 7 license, we require your license ID. You can find the ID in the PCAN-Explorer (menu Help > About PCAN-Explorer) and in the PEAK License Manager. Please enter the license ID in the comment field of your order.
Other Add-Ins Available:
- PCAN-Explorer 7: Plotter Add-in 7
- PCAN-Explorer 7:Â Bus Descriptions Add-in 7
- PCAN-Explorer 7: J1939 Add-in 7
UPGRADINGÂ
UPGRADING FROM 6 to 7
NOTE*: AVAILABILITY & SUPPORT OF PCAN-EXPLORER 6 add-ins
- Â PCAN-Explorer 6 and its Add-Ins will be supported until January 2027 (~ 1 year)
 For this period, only security updates/bug fixing will be continued.
- Type CAN Software
- Vendor PEAK-System Technik
- SKU IPES-007088
