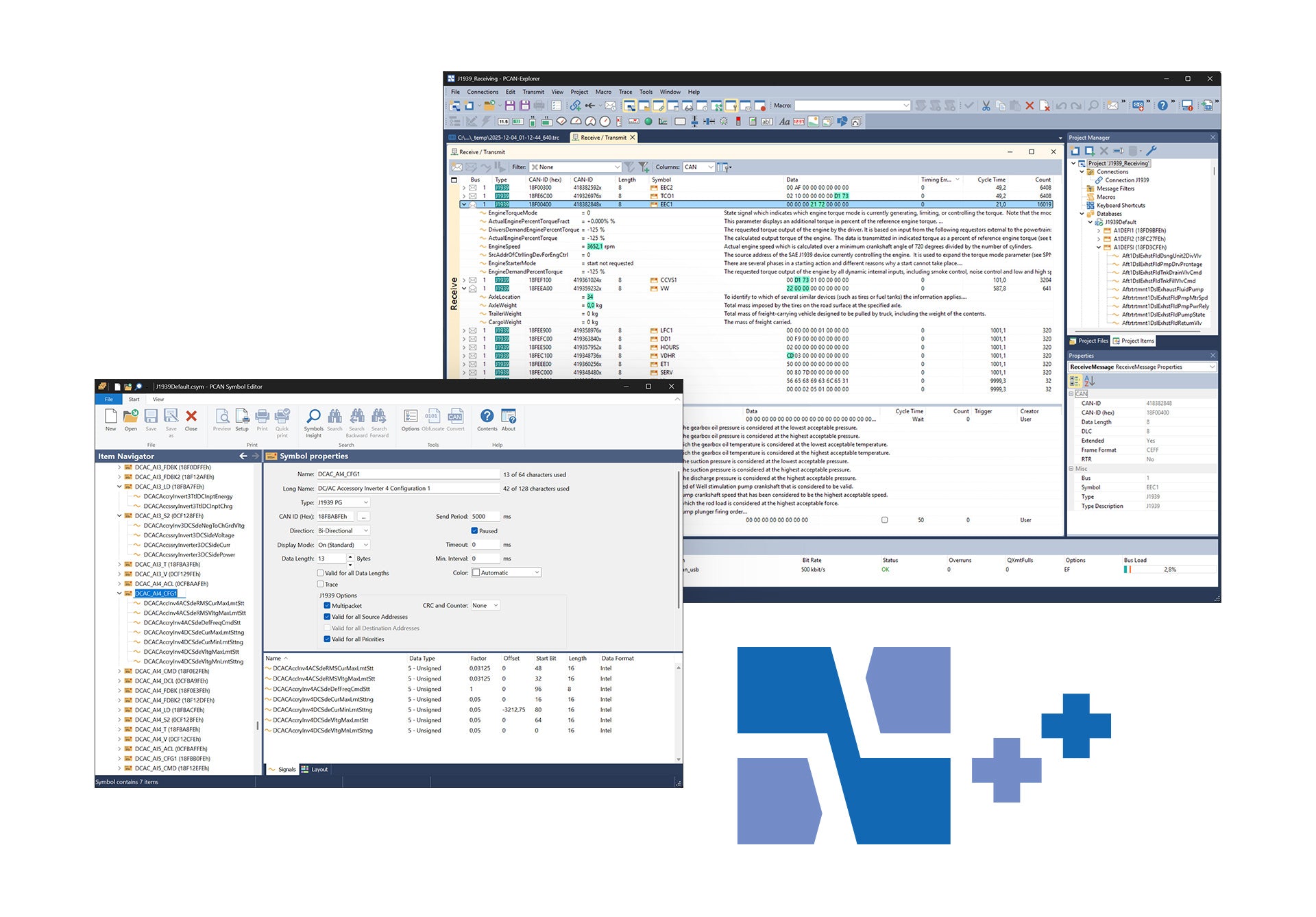

PEAK-System PE7 J1939 data screen capture
PEAK-System PE7 J1939 data screen capture

Images provided by manufacturer.

PEAK-System Technik

J1939: ADD-IN FOR PCAN-EXPLORER 7

SKU: IPES-007089
(0)
$490

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

Add-in to support J1939 and J1939 FD

The SAE J1939 network protocol describes communication on a CAN bus in utility vehicles for the transmission of diagnostics data and control information. It contains a complete network definition using 29-bit CAN IDs. In addition to J1939 with CAN CC as its basis, J1939 FD based on CAN FD was implemented to enable higher data rates and improve responsiveness.

The J1939 Add-in for PCAN-Explorer supports all definitions established by the standard’s parameter groups and provides an easy way to access the parameters. A database with all the definitions and parameters contained is included and is updated regularly in case of an active maintenance contract. Custom Parameter Groups can be defined, also based on PGs from the database.

Note: The database can only be used with the PCAN-Explorer 7 and J1939 Add-in.

FEATURES

  • Support of the SAE J1939 network protocol, including SAE J1939-21 based on CAN CC and SAE J1939-22 based on CAN FD (J1939 FD)
  • SAE J1939 database with all the definitions and included parameters
  • Definition of custom PGs
  • Representation of J1939 data interpreted according to PG and SP definitions
  • CAN messages can be sent in broadcast form or targeted to individual control units (ECUs)
  • Support for address claiming
  • Supports multi-packet messages
  • Monitor window for displaying and requesting J1939 Diagnostic Trouble Codes (DTCs)

SYSTEM REQUIREMENTS

  • PCAN-Explorer 7 with matching license

SCOPE:

  • Installations files for J1939 Add-in
  • Single user or floating license
  • Documentation in HTML help format

Note: Software delivery as a download. Alternative installation media on request.

Ordering Add-ins for existing PCAN-Explorer 7 licenses:

If you would like to reorder add-ins for an existing PCAN-Explorer 7 license, we require your license ID. You can find the ID in the PCAN-Explorer (menu Help > About PCAN-Explorer) and in the PEAK License Manager. Please enter the license ID in the comment field of your order.

Other Add-Ins Available:

UPGRADING

UPGRADING FROM 6 to 7

Below shows the potential discounts on upgrades from Explorer 6 to 7. This includes add-ins as well.

Discount Savings % Chart:



UPGRADE PROCEDURE:

Upgrading from PE6 to PE7 for single machine licenses:

Customer provides current PE6 license ID, upgrade cost is calculated, once paid we send the new PE7 license via email, old PE6 license becomes invalid.

Upgrading from PE6 to PE7 for portable licenses (USB License Dongle):

Provide your PE6 license ID, we calculate the upgrade cost, then customer returns old PE6 USB licensed dongle, upon receipt at Phytools and once paid, we will email a new PE7 single user license and ship the NEW PEAK License Dongle to the customer. Any PE6 add-ins must also be upgraded.

For further information contact sales@phytools.com

NOTE*: AVAILABILITY & SUPPORT OF PCAN-EXPLORER 6 add-ins

  •  PCAN-Explorer 6 and its Add-Ins will be supported until January 2027 (~ 1 year)
     For this period, only security updates/bug fixing will be continued.
  • Type CAN Software
  • Vendor PEAK-System Technik
  • SKU IPES-007089

Order by 2:30PM Pacific Standard Time to get delivery sent out same day!

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
